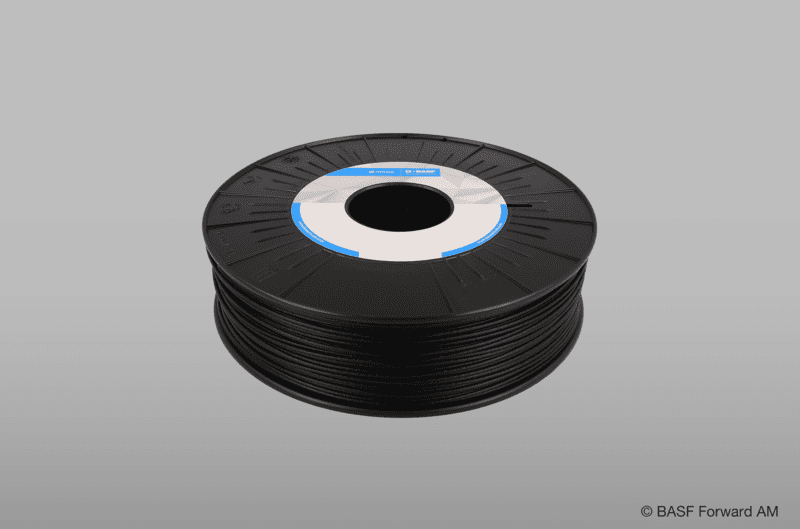

BASF Ultrafuse® PC GF30
$88.95 - $270.95
Ultrafuse® PC GF30 is a unique compound of PC with 30% glass fibers, specially designed for FFF printing. With its high heat deflection temperature and good dimensional stability, Ultrafuse® PC GF30 is the right material to use in an industrial environment where good temperature resistance and high strength is needed.
*Shipping Time: 1-2 Weeks*
Product Details
Specifications
Ultrafuse® PC GF30's UL94 V0 rating makes PC GF30 the perfect solution for applications in transportation industry that require flame retardancy. The resistance to UV light exposure and its low moisture uptake makes Ultrafuse® PC GF30 highly suitable for interior and exterior applications.
Benefits:
- Flame retardancy V0 according to UL 94 (@1.5mm and 3.0mm)
- Resistance to UV light exposure
- Good temperature resistance
- High stiffness and strength
- Good heat deflection temperature
- High dimensional stability
- Very low moisture absorption
- Railway classification according to EN 45545-2
Potential Applications:
- Automotive / transportation
- Functional prototyping
- Electronics
Ultrafuse® PC GF30
- Nozzle Temperature:280 – 330 °C / 137.8 – 165.6 °F
- Bed Temperature:80 – 100 °C / 26.7 – 37.8 °F
- Bed Material:PC adhesive
- Nozzle Diameter:≥ 0.6 mm
- Print Speed:30 - 60 mm/s
- Printed Part Density:1176 kg/m3 / 73.4 lb/ft3
- HDT at 1.8 MPa:124 °C / 255.2 °F
- HDT at 0.45 MPa:134 °C / 273.2 °F
- Glass Transition Temperature:142 °C / 287.6 °F
- Melting Temperature:259 °C / 498.2 °F
- Melt Volume Rate:26 cm3 /10 min / 1.6 in3 /10 min (300 °C, 2.16 kg)
- Flame class rating:V0 @ 1.5 mm and 3.0 mm thickness
