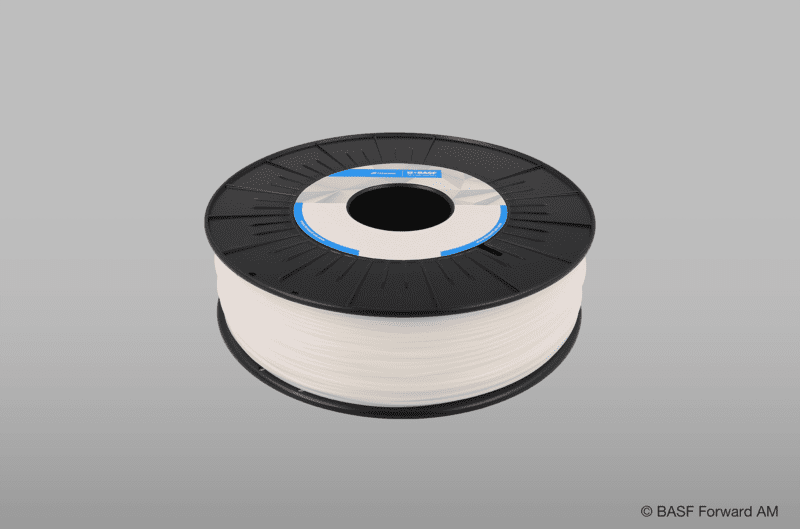

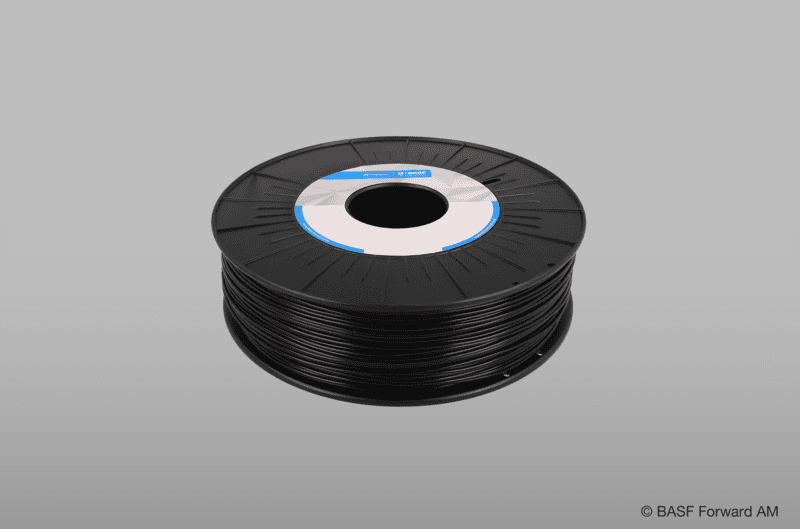

BASF Ultrafuse® PA
$58.95
First BASF Filament Development Based on Ultramid®
The key features of Ultrafuse PA are the high strength and high modulus. Furthermore, Ultrafuse PA shows a good thermal distortion stability.
*Shipping Time: 1-2 Weeks*
The key features of Ultrafuse PA are the high strength and high modulus. Furthermore, Ultrafuse PA shows a good thermal distortion stability.
*Shipping Time: 1-2 Weeks*
Product Details
Specifications
Ultrafuse® PA is the translation of BASF ́s Ultramid® to the 3D printing space. It is based on a copolyamide 6/66 grade of intermediate viscosity. With Ultrafuse® PA, it is possible to print semi-flexible thin parts; however, it is very rigid at higher thicknesses. It has a lower melting temperature than PA6 and PA66, meaning it can be printed at a lower temperature and also has better impact resistance versus PA6 and PA66, opening up a whole new application field for end-users.
Benefits:
- Good fatigue resistance
- High mechanical strength
- Low melting point makes it printable for many FFF printers
- Good wear resistance/ lubricity
- Good impact resistance at low temperatures
Applications:
- Most engineering sectors
- Suitable for a wide range of different components and machine elements, such as high-grade electrical insulation material
Ultrafuse® PA
- Tensile Strength (MPa):16.4 (ZX), 61.4 (XY)
- Flexural Modulus (MPa):2149 (ZX), 2246 (XZ), 2051 (XY)
- Elongation at Break:0.8 % (ZX), 9.6 % (XY)
- Impact Strength Izod notched (kJ/m2):1.7 (ZX), 3.9 (XZ), 5.8 (XY)
- Impact Strength Izod unnotched (kJ/m2):3.2 (ZX), 45.6 (XZ), 28.0 (XY)
- HDT @ 0.45 MPa:135°C
- Nozzle Temperature:220-250 °C
- Bed Temperature:90 - 120 °C
- Bed Material:Glass + PVA / Kapton tape / PA adhesive
- Nozzle Diameter:≥ 0.4 mm
- Print Speed:30 -60 mm / s
