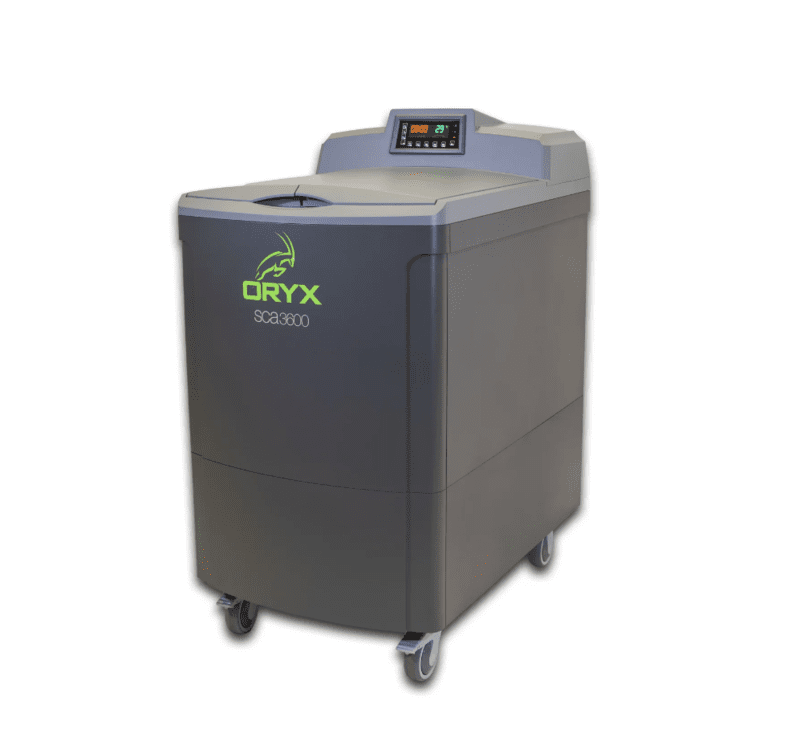

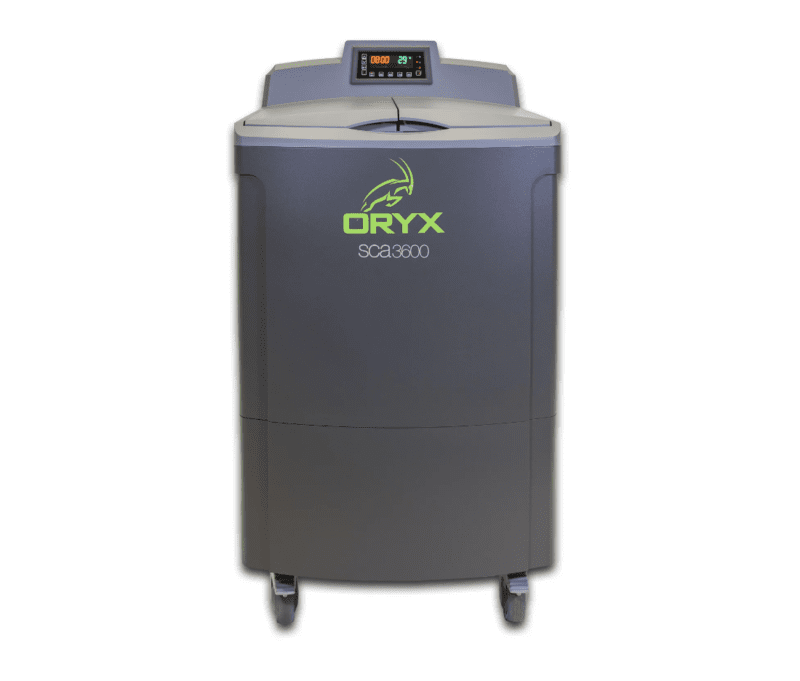

ORYX sca3600 Clean Station
$8,250.00
The sca3600 is a large submersible tank designed for the removal of soluble support materials on 3D-printed parts.
It is capable of removing support from multiple materials such as ABS, ASA, PC, Nylon, PEEK, etc. Its reliable, easy-to-use, and quiet operation makes it a superior product for industrial manufacturing, where producing larger intricate parts and/or high throughput is necessary.
Product Details
The sca3600 provides a larger system capacity with a range of cleaning options and accessory components. Its reliable, easy-to-use, and quiet operation makes it a superior product for AM service firms and industrial manufacturers, where producing larger intricate parts and/or high throughput is necessary.
Manufactured for long-term reliability in highly caustic industrial environments while providing limited maintenance and simpleservicing,sca3600byORYXis the benchmark standard for large part/high volume soluble support removal.
Manufactured for long-term reliability in highly caustic industrial environments while providing limited maintenance and simpleservicing,sca3600byORYXis the benchmark standard for large part/high volume soluble support removal.
Technical Specifications:
Overall Size: | 36.5L x 22.8 W x 42.8 H in. (92.7 L x 57.9 W x 108.7 H cm) |
Stainless Steel Removable Parts Basket: | 16 x 16 x 14 in. (40.6 x 40.6 x 35.6 cm) |
Capacity: | 27 gallons (102 liters) |
Power Requirements: | 230VAC +/- 10%, ~ 50/60 Hz - 15A - 3400W |
Small Parts Basket (included): | 4 x 4 x 4 in. (10 x 10 x 10 cm) |
Power Requirements: | 230VAC+/-10%, ~ 50/60 Hz - 15A - 3400W |
Presets designed for 3D printed parts temperatures: | 50°, 60°, 70° and 85° C |
“Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet |
User-controlled Digital Timer |
Unique Spray Nozzle & Pump Configuration provides optimized & patented flow |
Flow Reducer is included for delicate parts |
Whisper-quiet Operation for in-office use or industrial setting |
Integral Hinged Lid to reduce water waste & maintain accurate temperature |
Built-in Safety Features such as Over Temperature & Water Level Alarms |
Field replaceable Sub-assemblies |
CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals |
