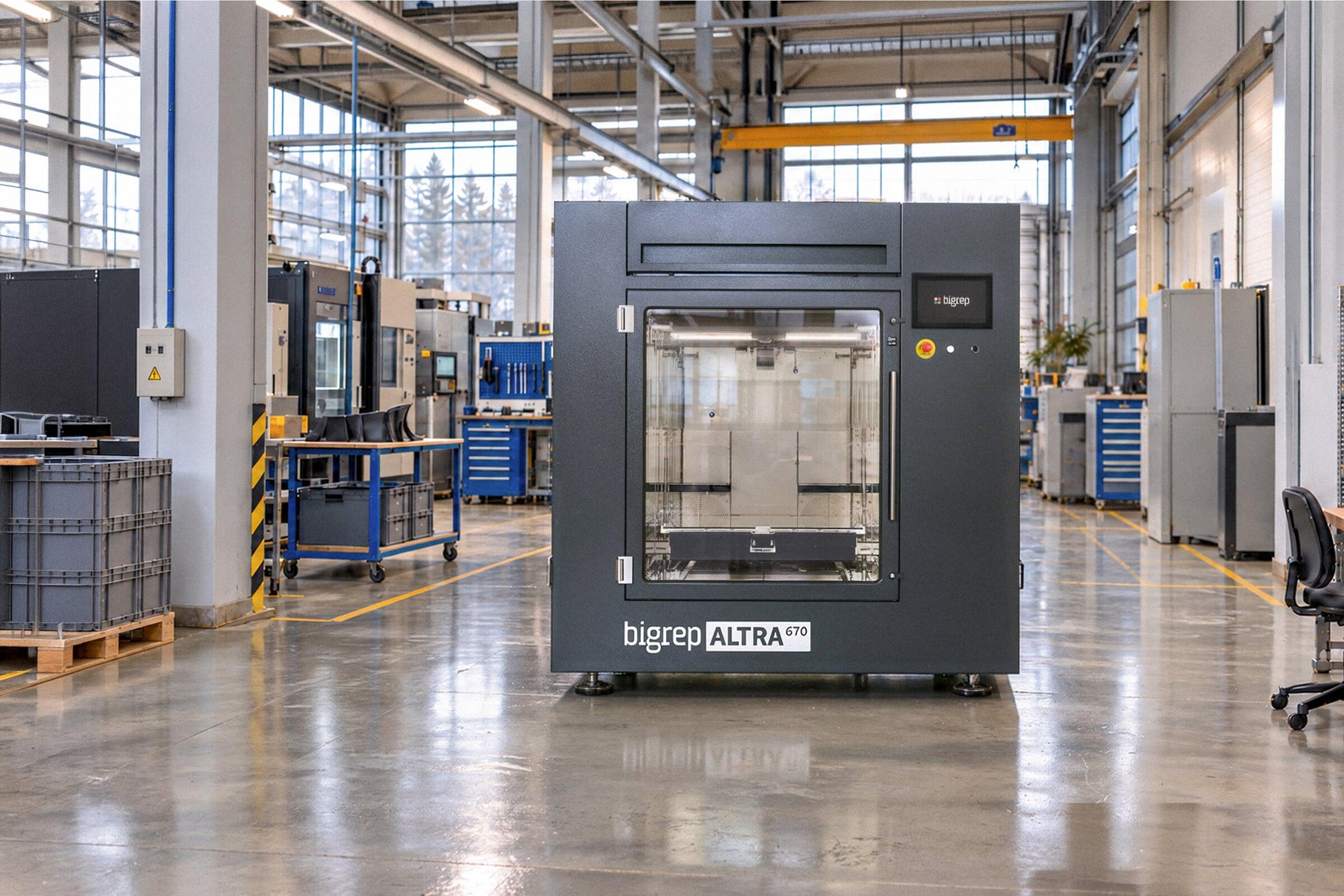

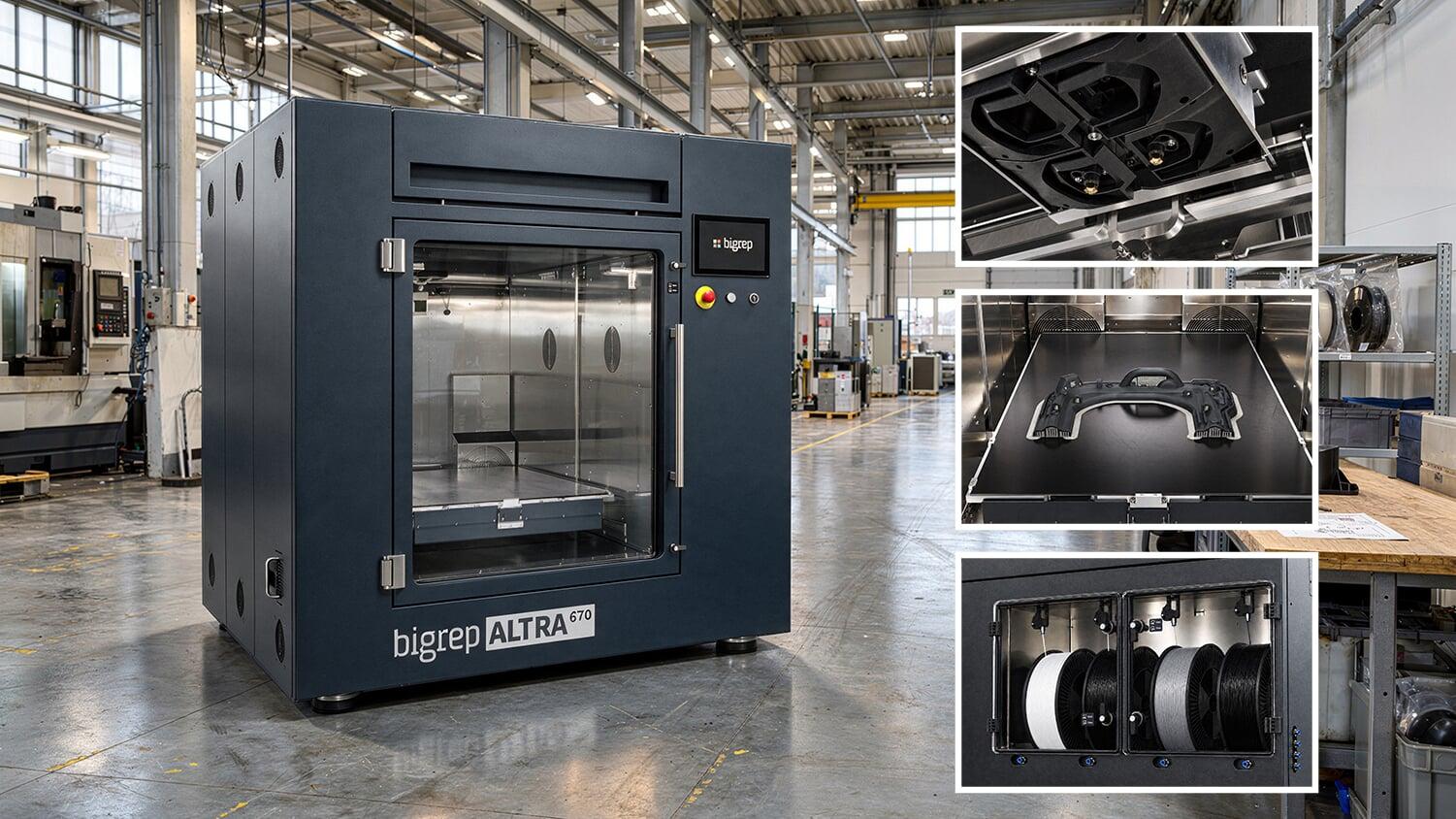

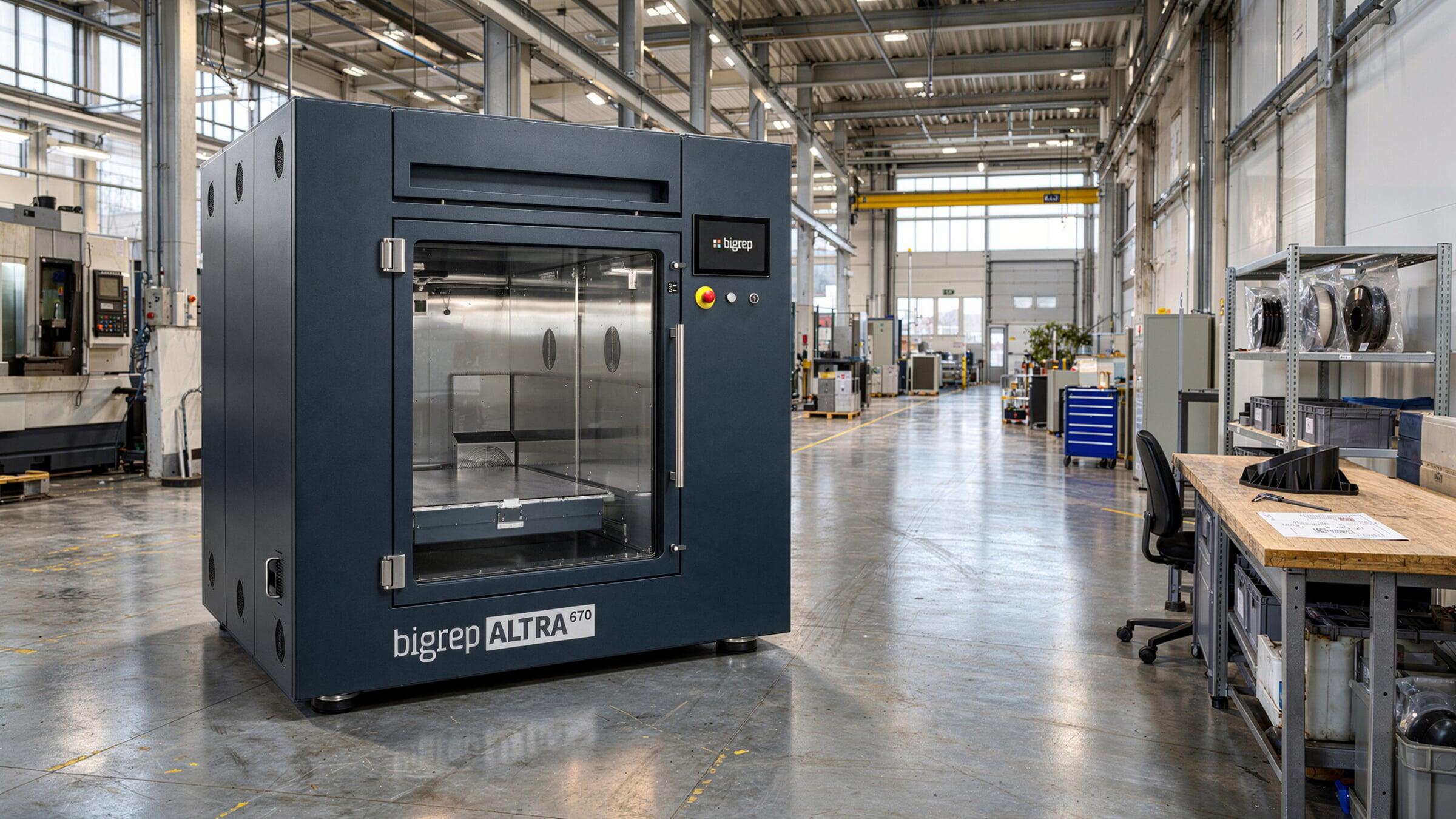

The Pinnacle of High-Performance Technology.
The ALTRA 670 stands as a leading industrial marvel boasting a generous build capacity. Its unparalleled reliability is driven by up to 4 cutting-edge extruders, each with dedicated backups, setting new standards in additive manufacturing for flawless print outcomes.
Who We Are
A local Michigan team since 2015, with a showroom in Detroit. Talk to real people who help engineers, educators, and manufacturers nationwide, from 3D CAD design to professional 3D printing.
Our Offerings
- 3D Print Services
- Training & Onboarding
- Remote & On-Site Support
- Maintenance Contracts
- Free Shipping on Orders over $150 ~Excluding Freight
PO & Net Terms
We accept purchase orders, and Net Terms are available upon approval. Request a quote to find out more.
MADE FOR HIGH-TEMPERATURE APPLICATIONS
High-Performance Parts
ACCURACY IN LARGE SCALE
PEAK PERFORMANCE. MASSIVE BUILD VOLUME.
QUALITY IN LARGE-FORMAT
With its robust frame, high-quality components, and consistent temperature distribution, the ALTRA 670 ensures industrial-grade quality on a large scale.
UNPARALLELED RELIABILITY

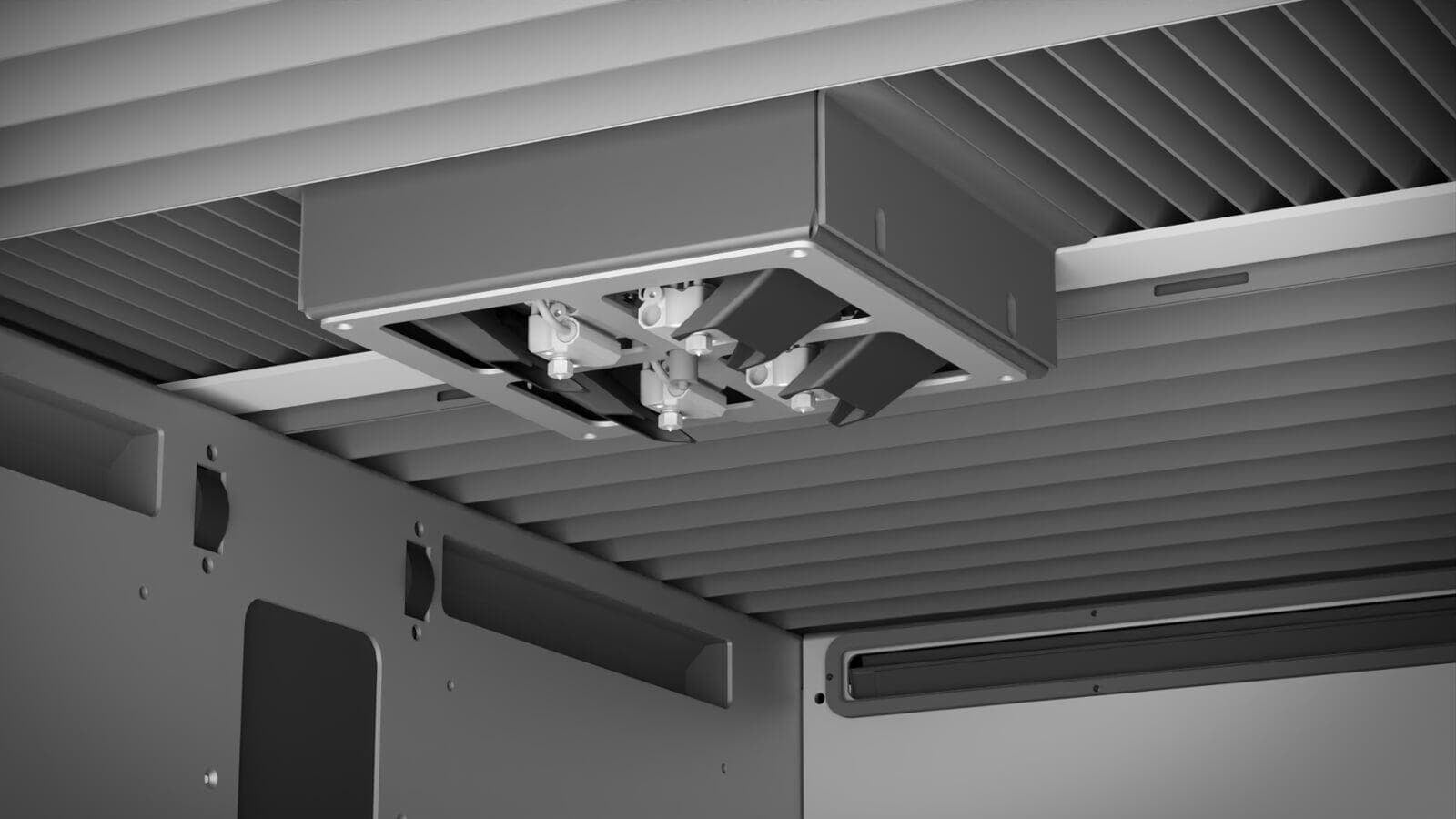

Utilize 4 advanced DSX extruders for dual extrusion, with dual backups, enabling you to print up to 20 kg in a single cycle.
HIGH-PERFORMANCE
With precisely controlled DSX extruders, the ALTRA 670 achieves temperatures up to 450°C, enabling complex prints with high-performance materials.
BigRep ALTRA 670 Specifications
| Version: | BigRep ALTRA 670 |
| Build Volume: | 1200mm x 700mm x 800mm (x,y,z) |
| Materials: | ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC |
| Extruder: | Direct Synchronized Extruder (DSX) |
| Extruder configuration: | Water-cooled multi-DSX (up to 4 extruders) |
| Hotends: | Precise, Power, or High Flow |
| Nozzles: | Brass or hardened steel |
| Nozzle diameters: | 0.4mm, 0.6mm, 1.0mm |
| Layer thickness: | From 0.05mm |
| Extruder temp: | Up to 450°C |
| Build chamber temp: | Up to 140°C |
| Print bed temp: | Up to 140°C |
| Max print speed: | Up to 350 mm/s |
| Position accuracy: | < 0.05mm in XY |
| Max throughput: | Up to 250 g/h |
| Movement speed: | XY~400 mm/s |
| Drive technology: | Servo motor in XYZ |
| Air cleaning unit: | Filtration system with active carbon filter and HEPA filter |
| Safety circuit: | Unmanned 24/7 operation |
| Connectivity: | USB, network |
| Pause printing: | Out-of-filament sensor with smart ʻstop and goʼ function (build chamber and print bed remain heated) |
| Slicing software: | BigRep Blade |
| Machine control: | HAGE3D industrial control |
| HMI: | LED + 12.1” touchscreen |
| Camera: | Wide angle color HD camera for real time remote monitoring |
| Override function: | Manual override in real time |
| User Access: | Multi-level user permissions |
| Power supply: | 400 V / 32 A |
| External dimensions: | 1900mm x 2450mm x 1950mm (x,y,z) |
| Weight: | Approx. 1980kg |
