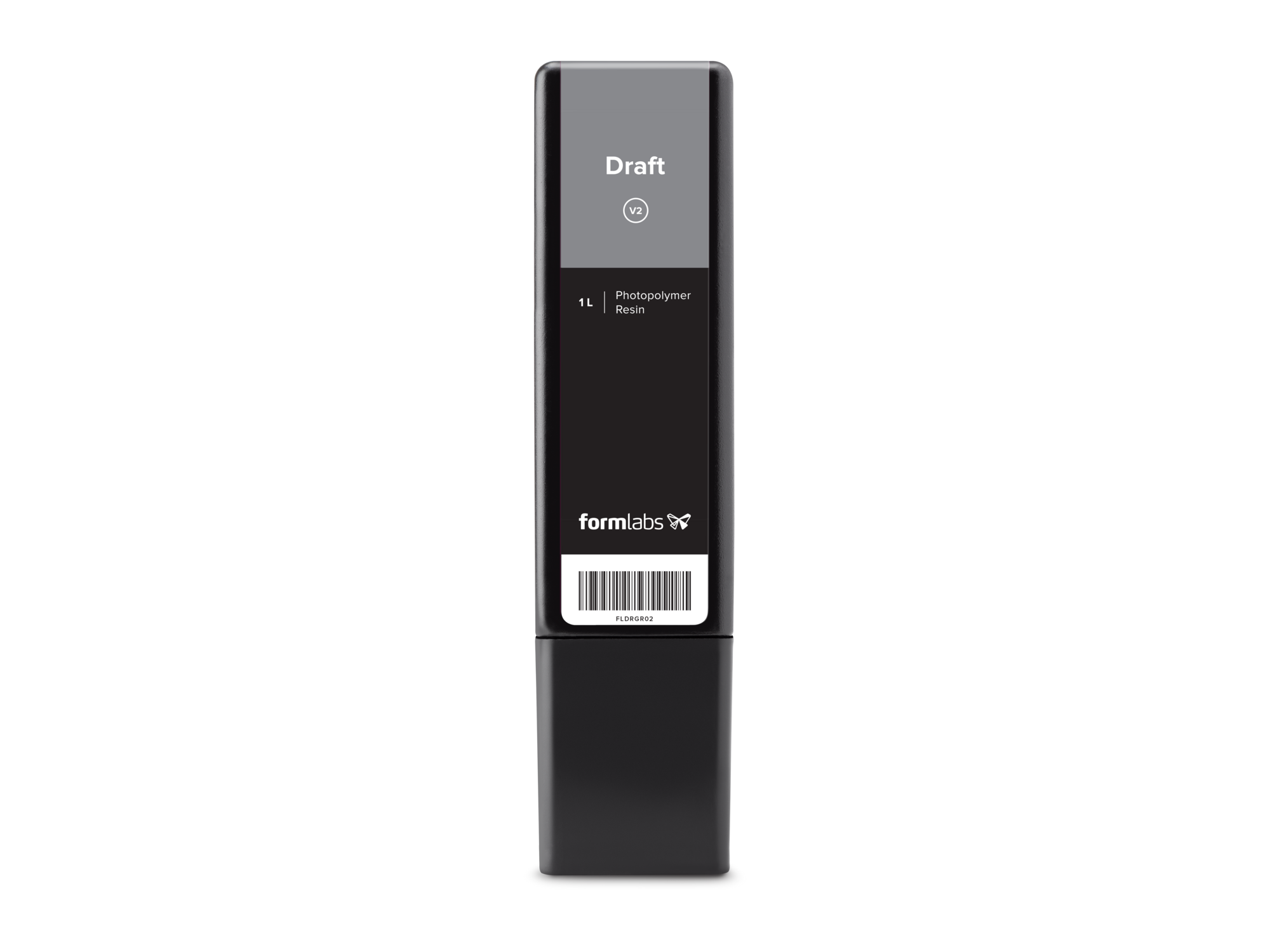

Formlabs Draft Resin
RESIN · FORM 3 SERIES
DRAFT RESIN V2
Overview

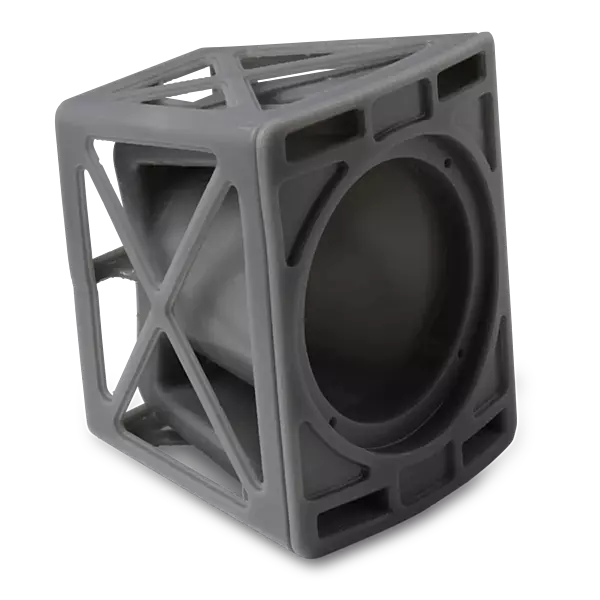

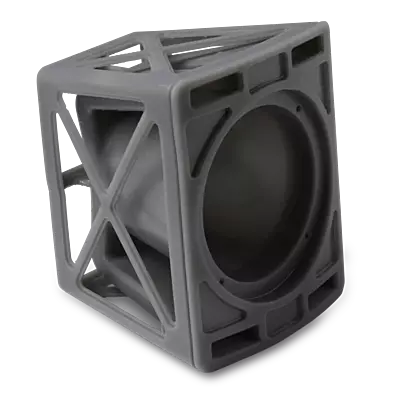

Draft Resin prints up to four times faster than standard materials on Form 3 Series printers, making it ideal for initial prototypes and rapid iterations to help bring products to market faster. Parts printed with Draft Resin exhibit a smooth grey finish and high accuracy. You can use 200-micron settings for fast print speeds, or use 100-micron settings for models with finer details.
Why Choose Draft Resin V2

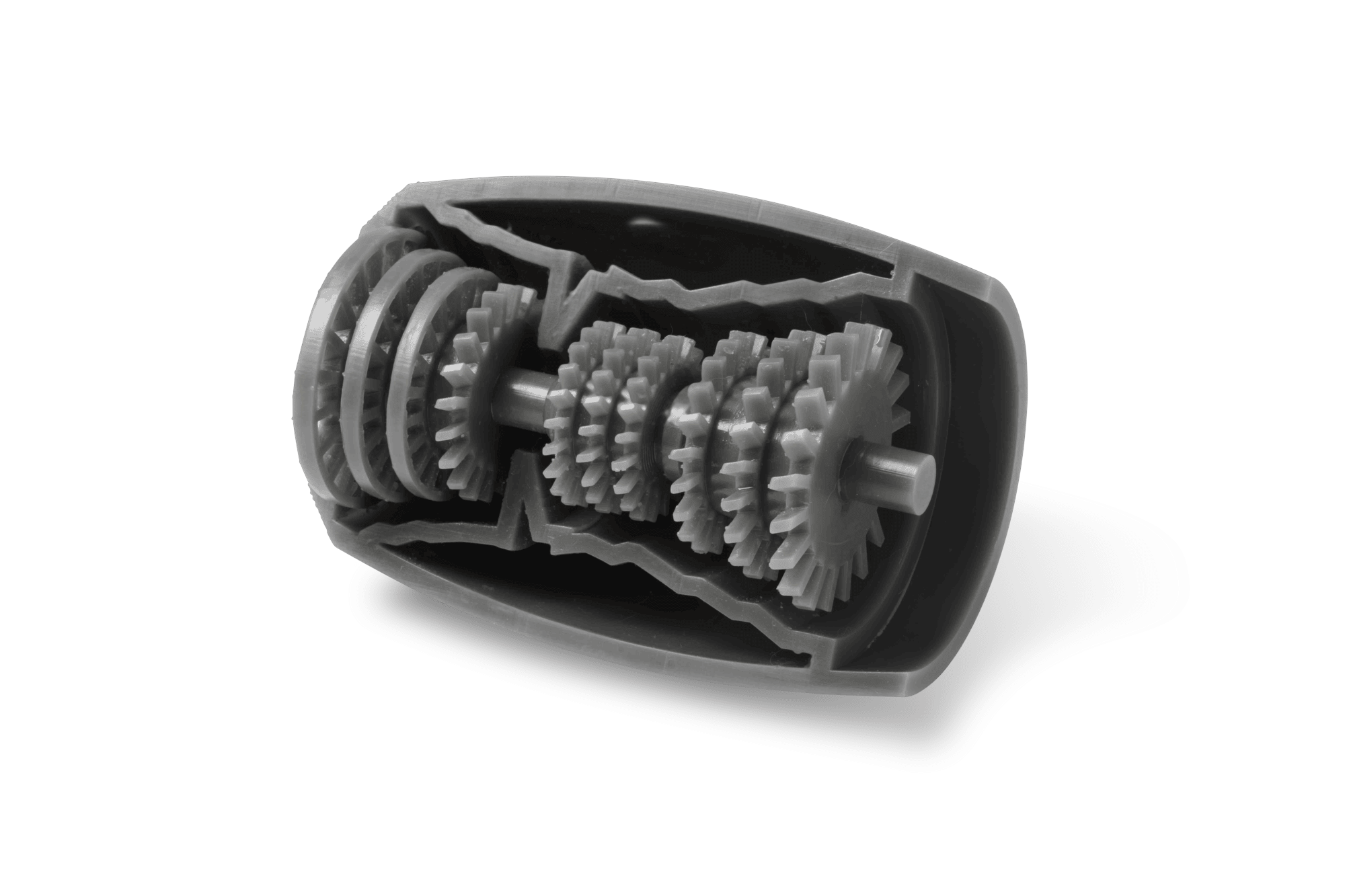

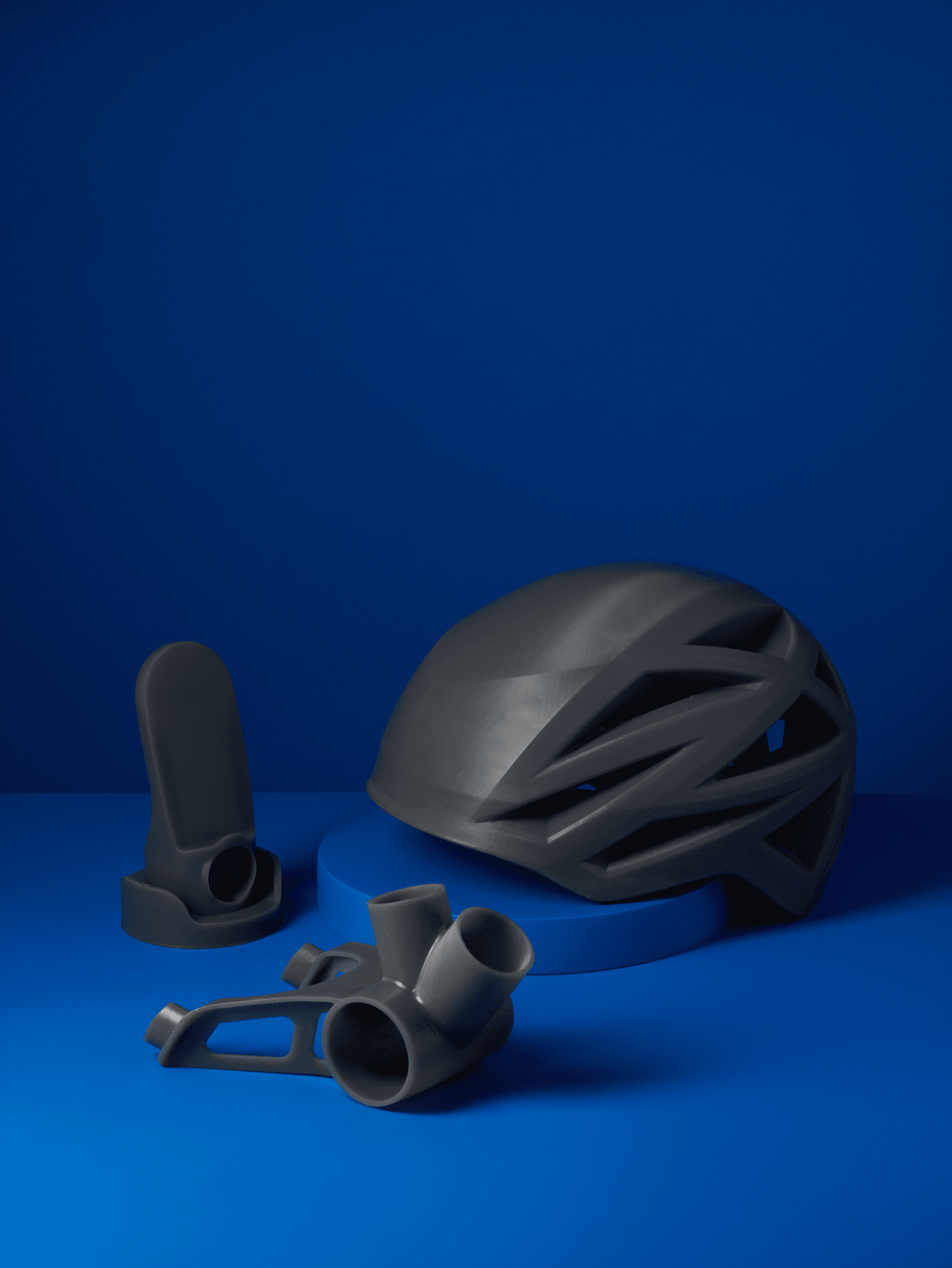

Draft Resin allows you to bring products to market faster by leveraging the material early in the design process. Whether printing large parts or batches of smaller parts, it ensures maximum print speed without compromising part quality. It allows you to iterate quickly and test multiple designs in a single day. This makes it an ideal choice for creating initial prototypes, rapid design iterations, and high throughput parts.
Performance vs. V1
Draft Resin V2 features a reformulation that reduced layer thickness by 33%, which greatly improves surface finish and accuracy compared to the previous version. It also reduces support touchpoints as well as Form Wash and Form Cure times.
Technical Specifications
| Parameter | Draft Resin V2 |
|---|---|
| Ultimate Tensile Strength | 52.0 MPa |
| Tensile Modulus | 2300.0 MPa |
| Flexural Modulus | 2300.0 MPa |
| Elongation at Break | 4.0 % |
| Notched Izod | 26.0 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 57.0 °C |
| Heat Deflection Temp. @ 0.45 MPa | 74.0 °C |
| Thermal Expansion | 75.0 μm/m/°C |
| Compatible Printer | Form 3, Form 3L, Form 3B, Form 3BL, Form 2 |
