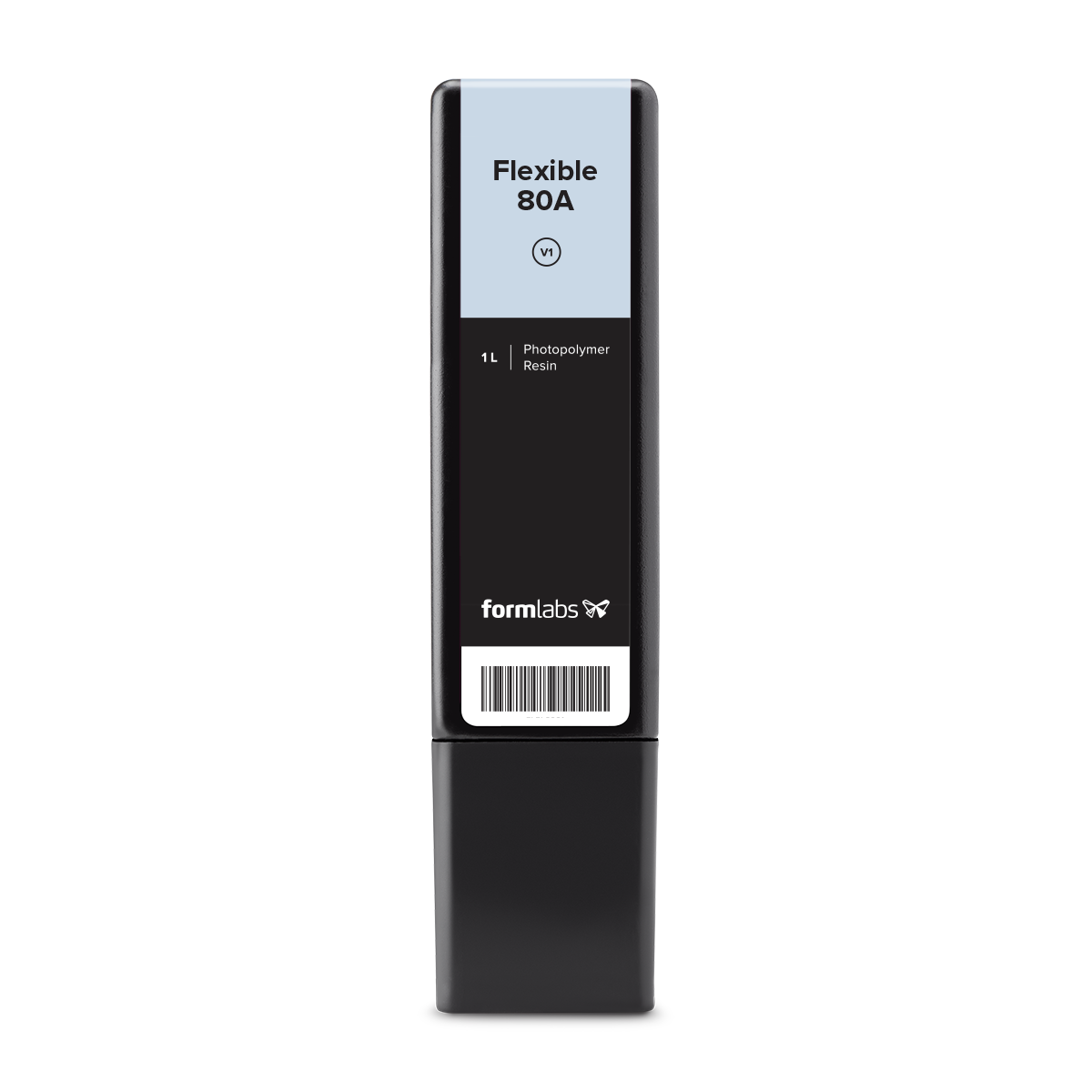

Formlabs Flexible 80A Resin V1
RESIN · FORM 3 & 4 SERIES
FLEXIBLE 80A RESIN V1
Overview

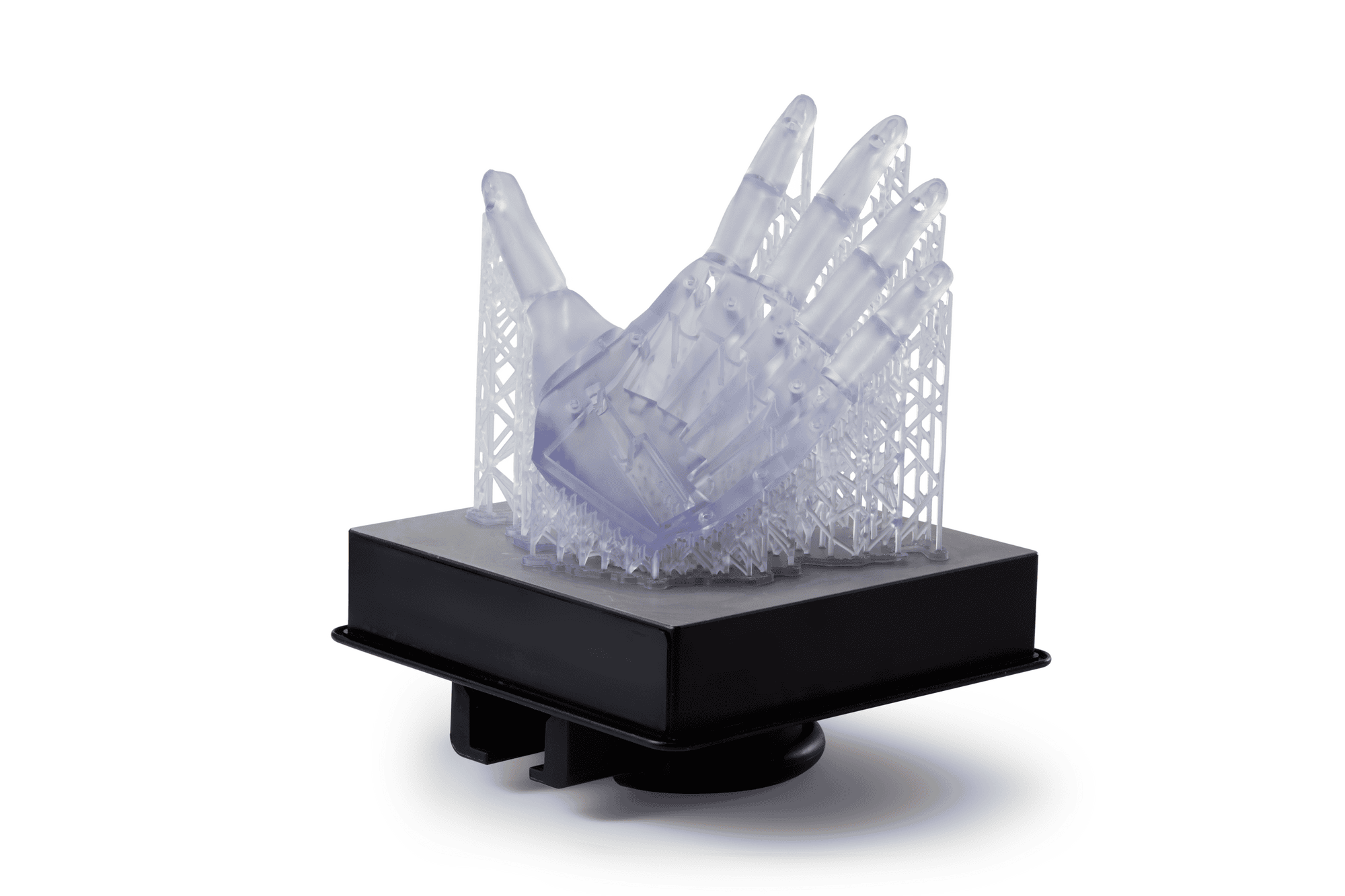

Flexible 80A Resin is a stiff, soft-touch, translucent elastomer with an 80A Shore durometer that is ideal for prototyping rubber-like parts with the flexibility of harder rubber or TPU. Parts printed in Flexible 80A Resin can withstand bending, flexing, and compression, even through repeated cycles.
Why Choose FLEXIBLE 80A RESIN V1

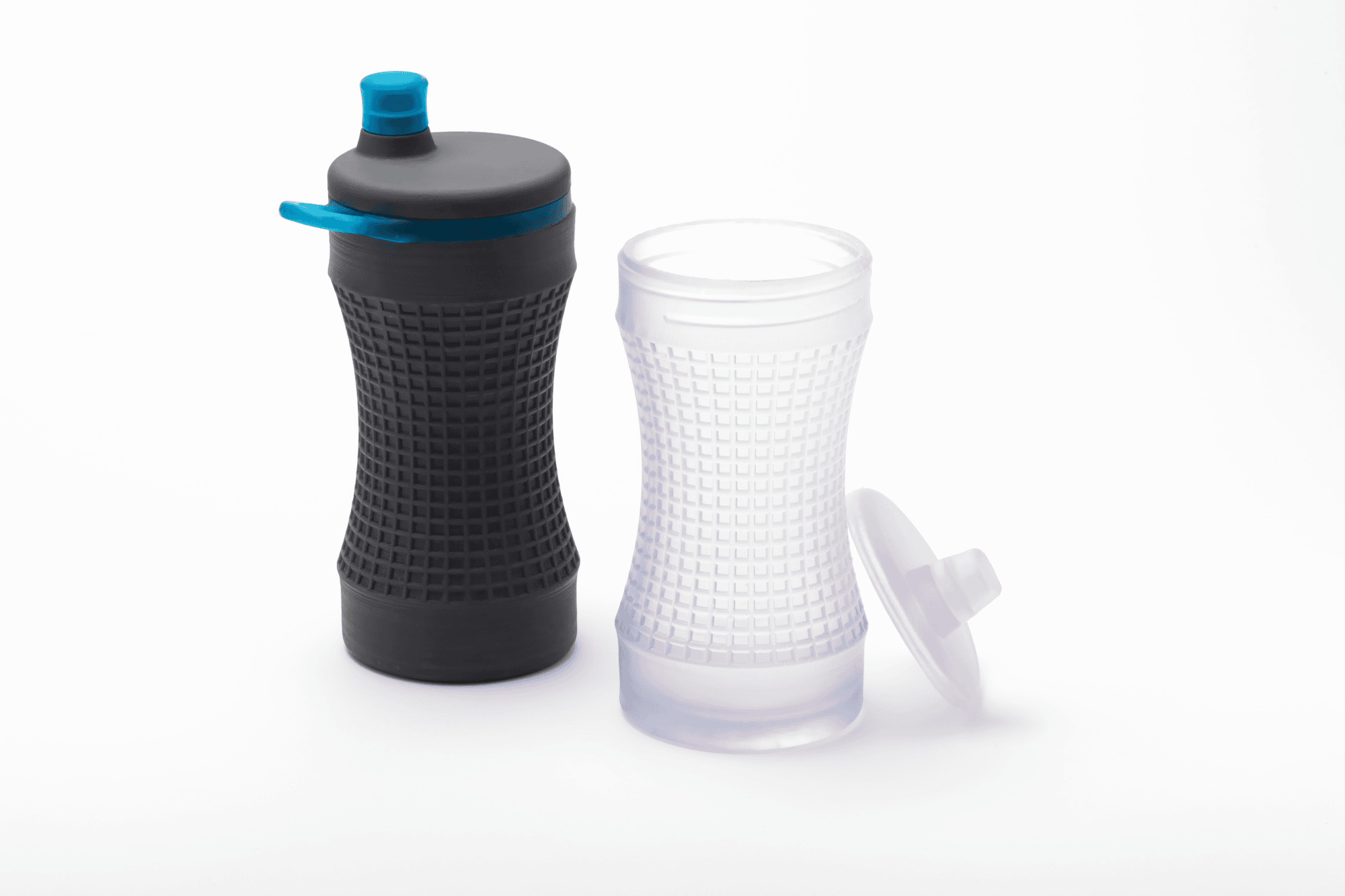

Choose Flexible 80A Resin V1 for prototyping rubber-like components that require a firm elastomeric feel similar to shoe soles, tire treads, and industrial seals. It features exceptional tear strength to withstand stretching and pulling during functional stress testing without failing. The material's low compression set ensures it maintains original dimensions even after prolonged squeezing, while its high optical clarity aids internal geometry inspection. Recommended applications include industrial seals, gaskets, soft-touch ergonomic grips, and consumer wearables.
Technical Specifications
| Parameter | Flexible 80A Resin V1 |
|---|---|
| Ultimate Tensile Strength | 8.9 MPa |
| Elongation at Break | 120.0 % |
| Shore Hardness | 80.0 A |
| Tear Strength | 24.0 kN/m |
| Compression Set 70°C for 22 hours | 5.0 % |
| Stress at 100% Elongation | 6.3 MPa |
| Compatible Printer | Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2 |
