FACTORY 2.0 NET
Omni TECH

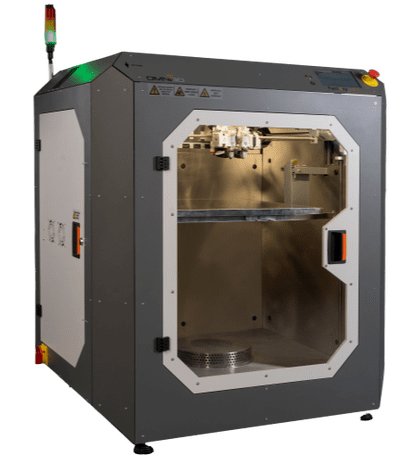

The Factory 2.0 NET is an industrial 3D printer designed for users printing large models or batches of multiple smaller models. Using advanced FFF technology, the 2.0 NET is able to produce high quality, accurate final parts & prototypes.
RELIABLE INDUSTRIAL 3D PRINTING
Fully Automatic Calibration
The Factory 2.0 NET is equipped with an extruder automatic leveling system, allowing for automatic calibration of the distance between the nozzle and the table along with automatic calibration of the height of nozzles in relation to each other. This minimizes the overall impact of table unevenness, creating a more even printout and efficient method of production.

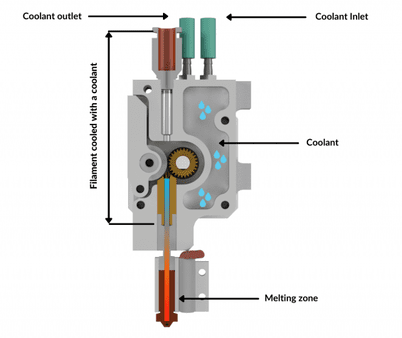

OMNI3D Cooling System
The OMNI3D Cooling System™ allows for improved control over a print's precision. The cooling system lowers the temperature along the filament's "path" by 40 - 60 °C, preventing the filament from reaching its softening point. This provides greater control over both the filament flow and overall printing stability.

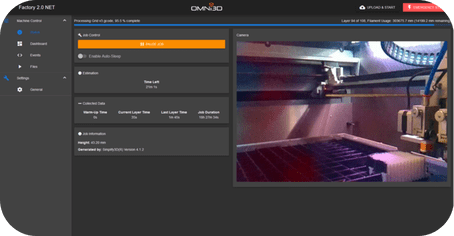

OMNI3D Web Control™
Omni3D Web Control™ allows for remote viewing and management of the Factroy 2.0 NET. Connecting to the printer via the network enables easy temperature preparation and the ability to upload files without the need for physical contact with the printer. The 2.0 NET is also equipped with a wide-angle camera that allows for observation of printing progress.
Omni3D Web Control™ allows for remote viewing and management of the Factroy 2.0 NET. Connecting to the printer via the network enables easy temperature preparation and the ability to upload files without the need for physical contact with the printer. The 2.0 NET is also equipped with a wide-angle camera that allows for observation of printing progress.

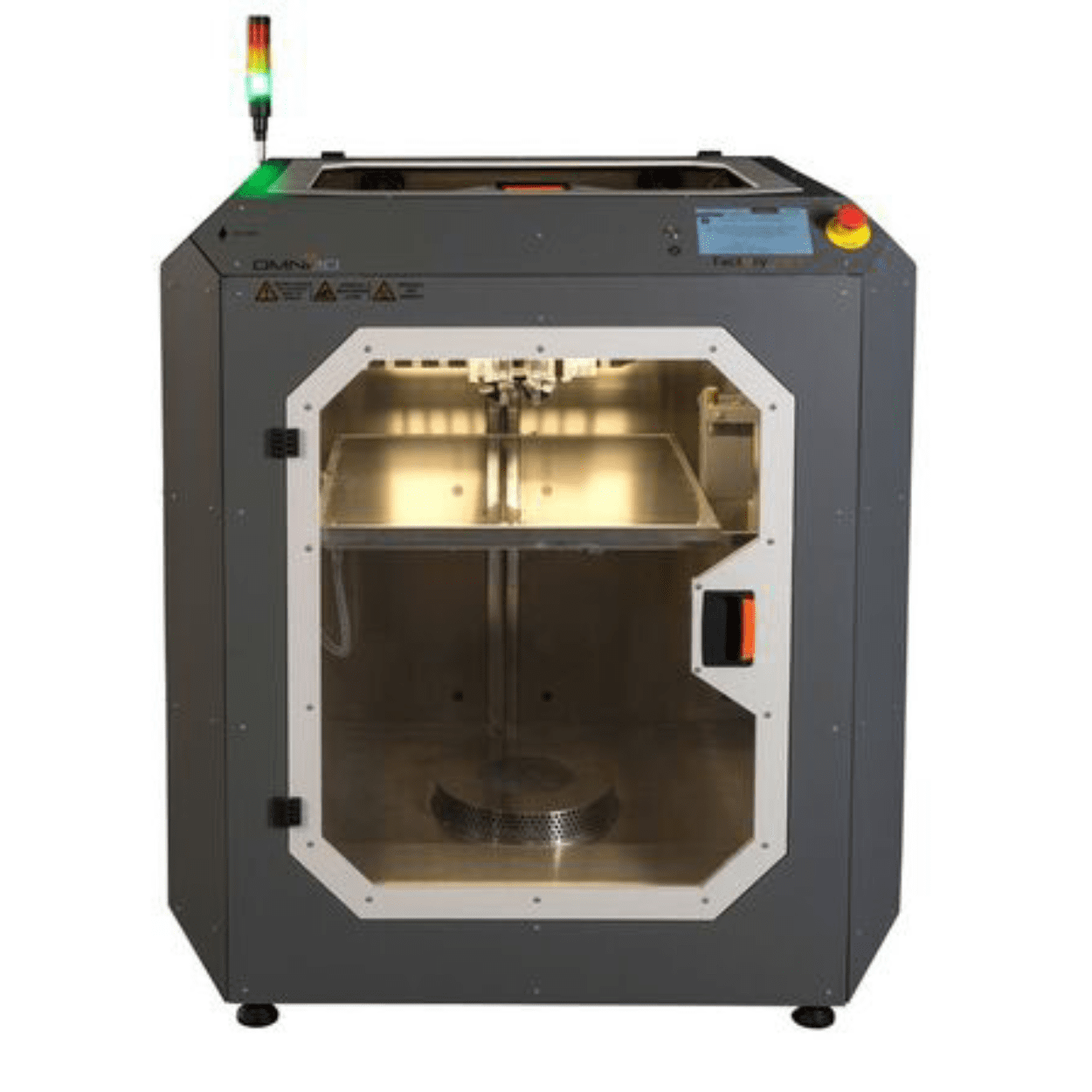

Omni3D Factory 2.0 NET
Build Volume: 500 x 500 x 570 mm

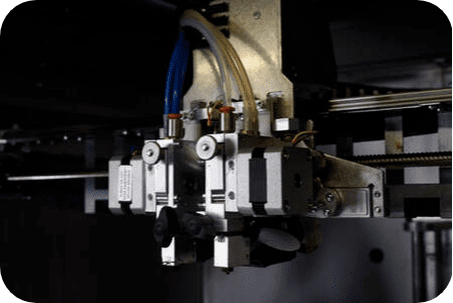

Dual Head with Lift-When-Inactive
LAN and WIFI Connectivity
- Print large objects or multiple smaller models at once.
Dual Head with Lift-When-Inactive
- 3D printer equipped with system of lifting inactive head.
LAN and WIFI Connectivity
- Machine can be connected with internet, what allows you for remote print startup and supervision.
Factory 2.0 NET Specifications
| Build volume (XYZ): | 500 x 500 x 570 mm |
| Nozzle diameter: | 0.4 mm (optionally 0,6 / 0,8 mm) |
| Max. printing speed: | 86 cm³/h |
| Filament diameter: | 1.75 mm |
| Max. head temperature: | 360 °C (optionally 500°C) |
| Max. platform temperature: | 150 °C (optionally 170°C) |
| Max. chamber temperature: | 70 °C |
| Compatible files: | .stl, .obj, .3mf, .gcode, .factory |
