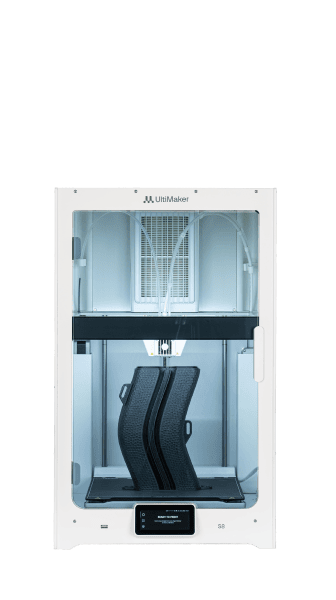

The fastest desktop dual material professional 3D Printer made in Europe
• UltiMaker Cheetah motion planner
• Powered by the UltiMaker Ecosystem
• High-flow print cores & improved feeder system
• The Fastest dual material 3D printer & open material platform
UP TO 4X PRODUCTIVITY AND IMPROVED QUALITY

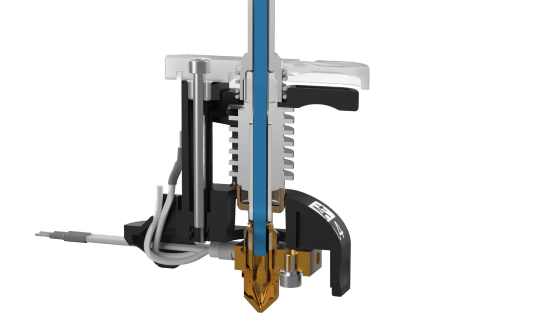

AA+ and CC+ HF Cores
The new High Flow print cores enable exceptional extrusion speeds, reaching flow rates of up to 35 mm³ per second. By increasing the surface area within the meltzone, these print cores ensure faster material melting and deposition, allowing for high-speed, high-strength prints without compromising quality
The new High Flow print cores enable exceptional extrusion speeds, reaching flow rates of up to 35 mm³ per second. By increasing the surface area within the meltzone, these print cores ensure faster material melting and deposition, allowing for high-speed, high-strength prints without compromising quality

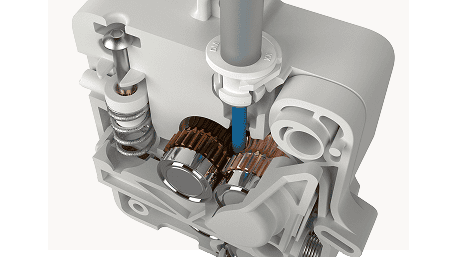

New Feeder
The new S8 material feeder features a re-engineered teeth gear system and updated hatch textures, optimizing material flow for greater precision and reliability. These improvements reduce slip rates, ensuring consistent extrusion and enhanced material control, even when printing with demanding composites and flexible filaments
Cheetah Motion Control
New electronics platform, build for the future. Reach up to 500mm/s speed and 50,000mm/s2 acceleration

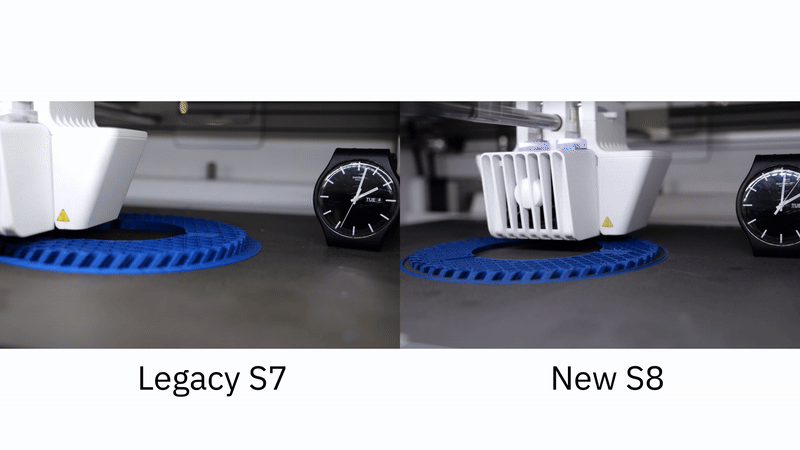

UltiMaker S8 delivers blazing productivity. With a new revolutionary motion planner and many other improvements, it allows you to create parts up to 4x faster than UltiMaker S7
New electronics platform, build for the future. Reach up to 500mm/s speed and 50,000mm/s2 acceleration
UltiMaker S8 delivers blazing productivity. With a new revolutionary motion planner and many other improvements, it allows you to create parts up to 4x faster than UltiMaker S7
UltiMaker S8 Pro Bundle Specifications
Technical Specifications:
| Technology: | Fused deposition modeling (FDM) |
| Print head: | Dual-extrusion print head with a unique auto nozzle-lifting system, flood detection and inductive probing |
| Build volume (XYZ): | 330 x 240 x 300 mm (13 x 9.4 x 11.8 in) |
| Compatible filament diameter: | 2.85 mm |
| Dimensional accuracy: | ± 0.15 mm ± 0.15% feature nominal length* |
| Layer resolution: | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| XYZ resolution: | 6.9, 6.9, 2.5 micron |
| Extrusion flow: | Up to 35 mm3 /s |
| XYZ speed, accelerations, jerk: | Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3 |
| Build plate: | PEI coated flexible build plate (20 - 140 °C) |
| Feeder type: | Dual-geared, reinforced for composite materials |
| Display: | 4.7-inch (11.9 cm) color touchscreen |
| Supported OS: | MacOS, Windows, and Linux |
| Air manager: | EPA filter - Independently tested according to UL2904 (Standard Method for Testing and Assessing Particle and Chemical Emissions from 3D Printers) with UltiMaker materials and corresponding Cura print profiles. |
| Nozzle diameter: | 0.4 mm (included) 0.25 mm, 0.6 mm, 0.8 mm (sold separately) |
| Operating sound: | < 50 dBA |
| Connectivity: | Wi-Fi (2.4GHz + 5GHz), LAN, USB port |
| Dimensions: | 495 x 585 x 800 mm (19.5 x 23 x 31.5 in) |
| Maximum power output: | 500 w |
| Net weight: | 29.1 kg (64.2 lbs) |
