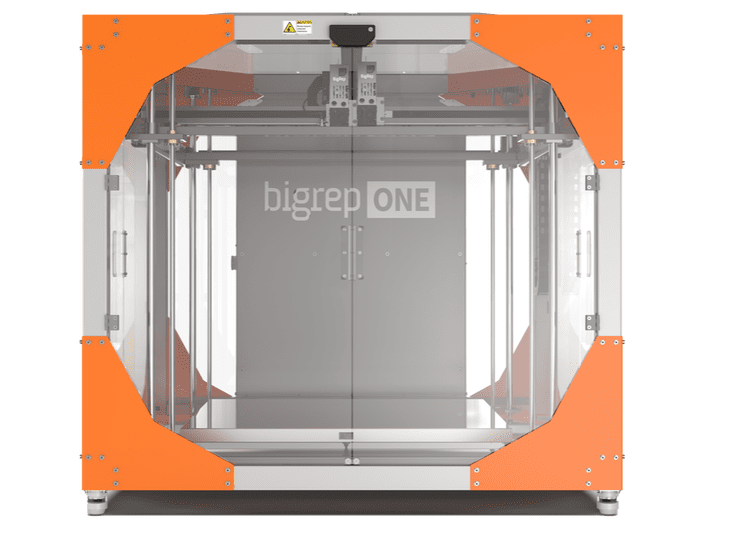

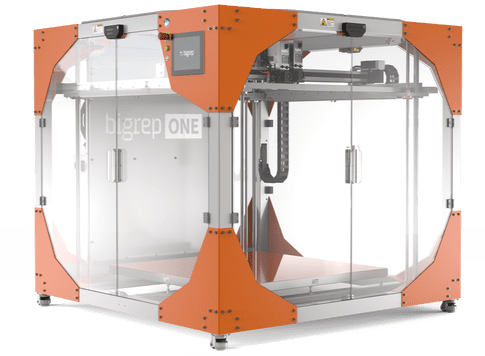

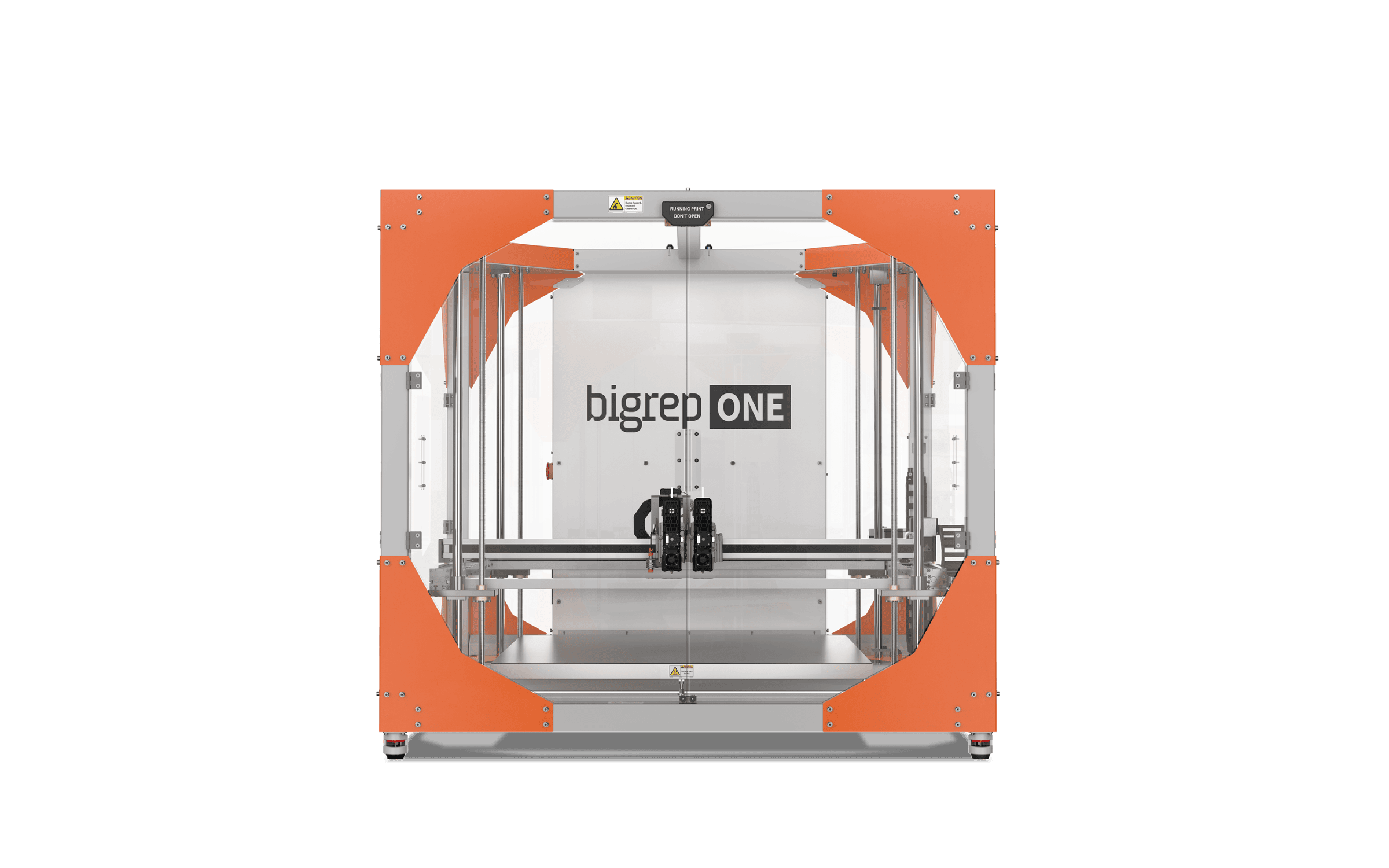

BigRep ONE.5X
Legacy of innovation. The original large format.
The BigRep ONE is an award-winning large-format 3D printer with a 1 m³ build volume, offering reliable, full-scale production at an accessible price. Already trusted worldwide, the new ONE.5X offers many automation features for easier, faster, and better industrial 3D printing.
The BigRep ONE is an award-winning large-format 3D printer with a 1 m³ build volume, offering reliable, full-scale production at an accessible price. Already trusted worldwide, the new ONE.5X offers many automation features for easier, faster, and better industrial 3D printing.
Smart Solutions for Big Ideas
Built on more than a decade of innovation, the BigRep ONE has evolved through five generations to deliver reliable, industrial-scale 3D printing. With nearly 500 systems in operation worldwide and over 2 million production print hours, it provides proven strength, precision, and long-term performance across industries ranging from automotive and aerospace to product design and manufacturing.
BigRep ONE.5X Key Features

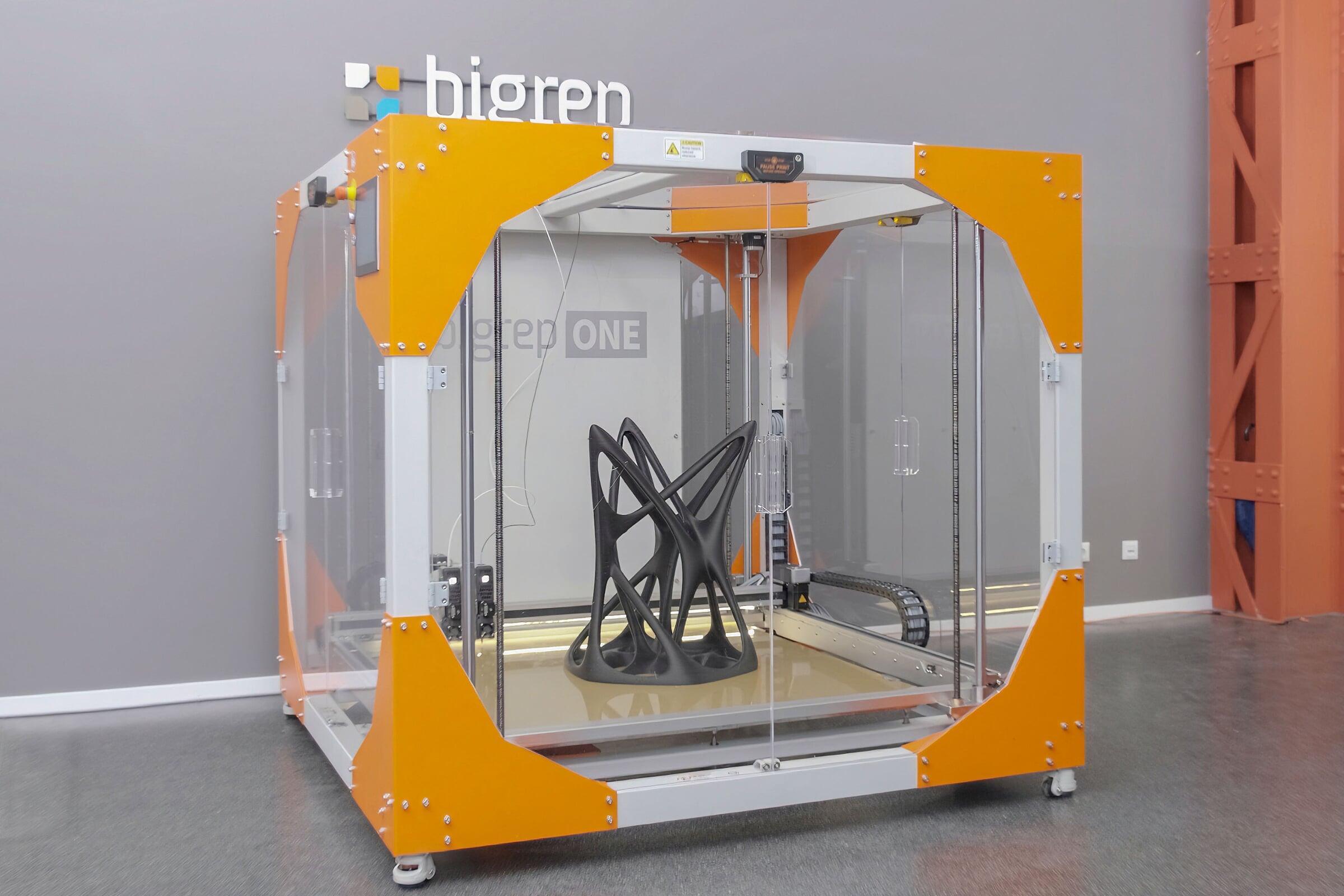

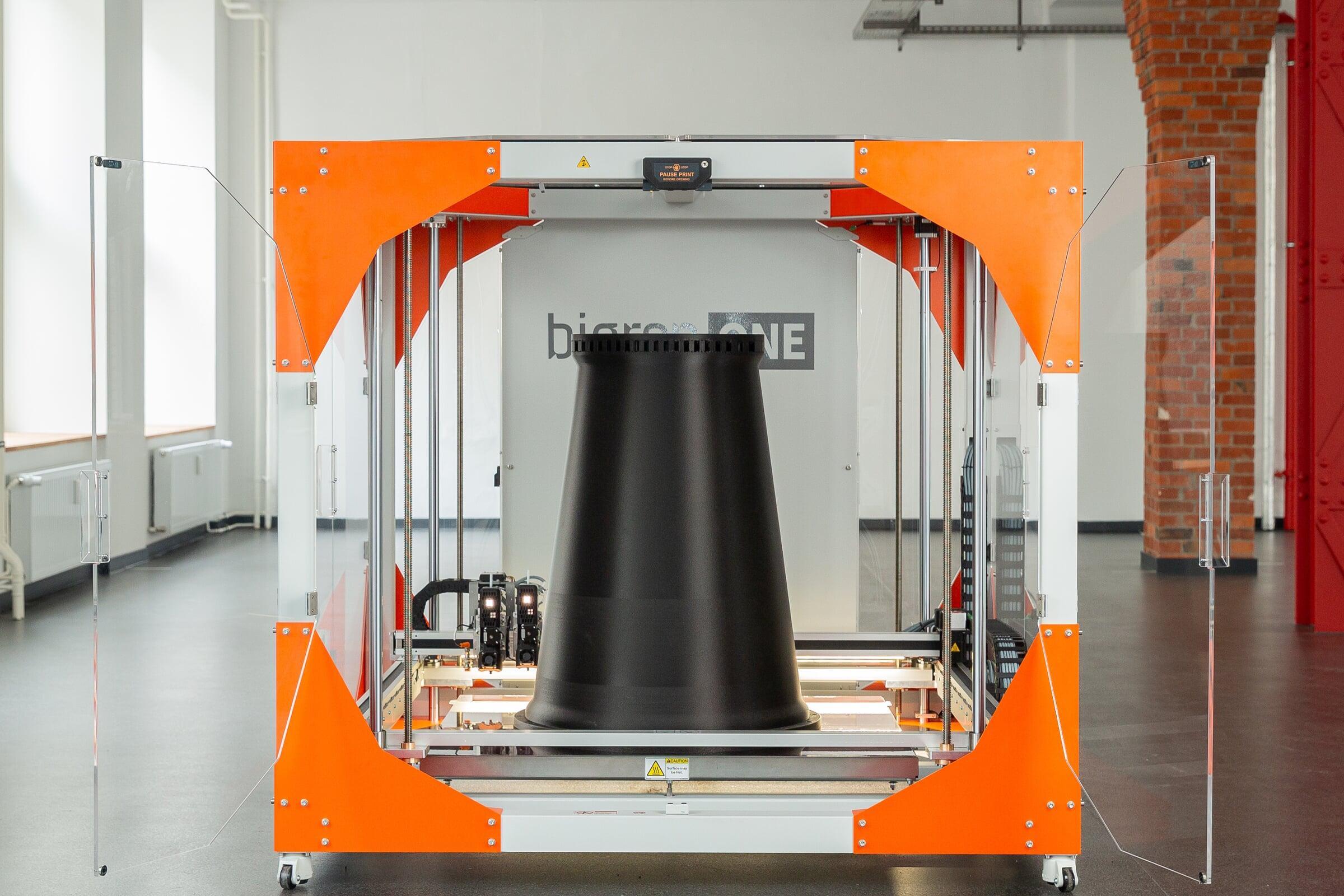

Build Volume of 1 m³
Print large, complex parts in a single run with a massive one-cubic-meter build volume. Reduce assembly, save time, and bring your designs to life at true scale.
Automation for Smarter, more efficient workflows

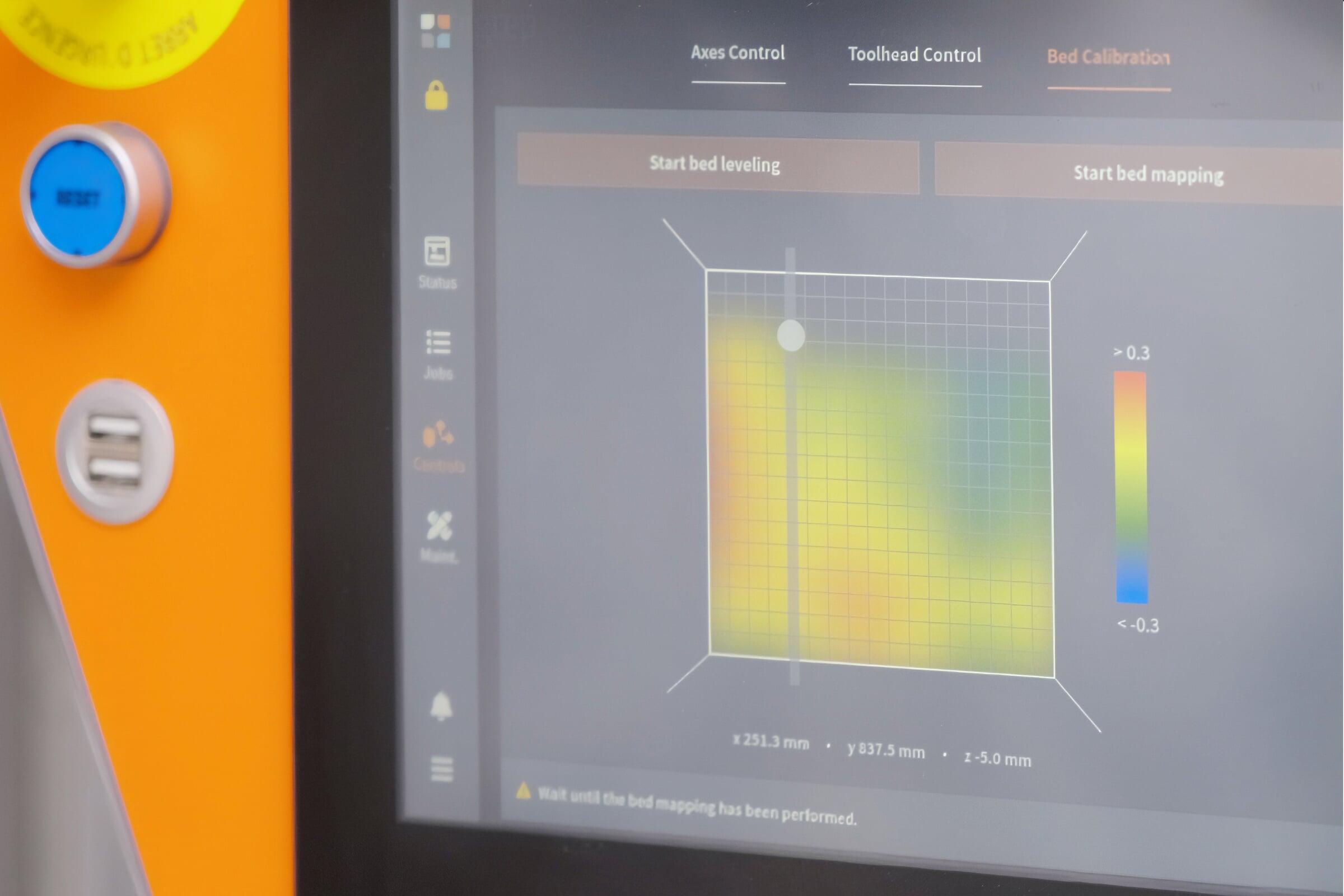

Automated calibration and adaptive leveling ensure accurate, repeatable results with minimal manual setup. Increase efficiency and keep production running with less downtime.
Performance Smarter and faster results
Input shaping with advanced algorithms improve extrusion accuracy. Vibration compensation enables smoother prints at higher speeds with increased efficiency.

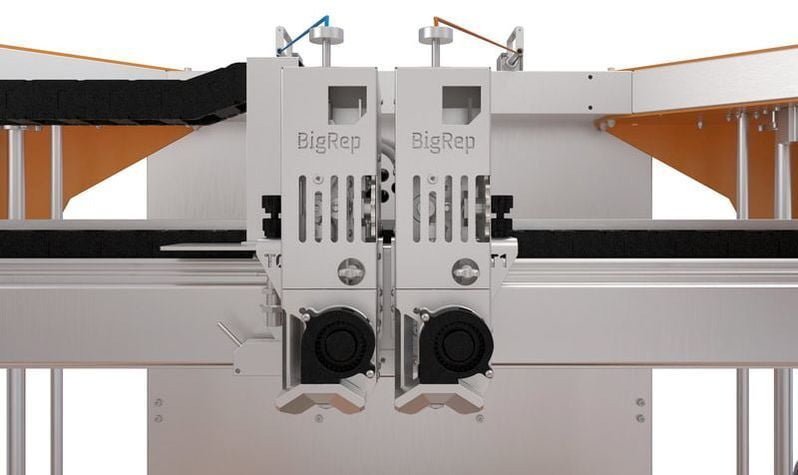

Extrusion at high speed, high percision

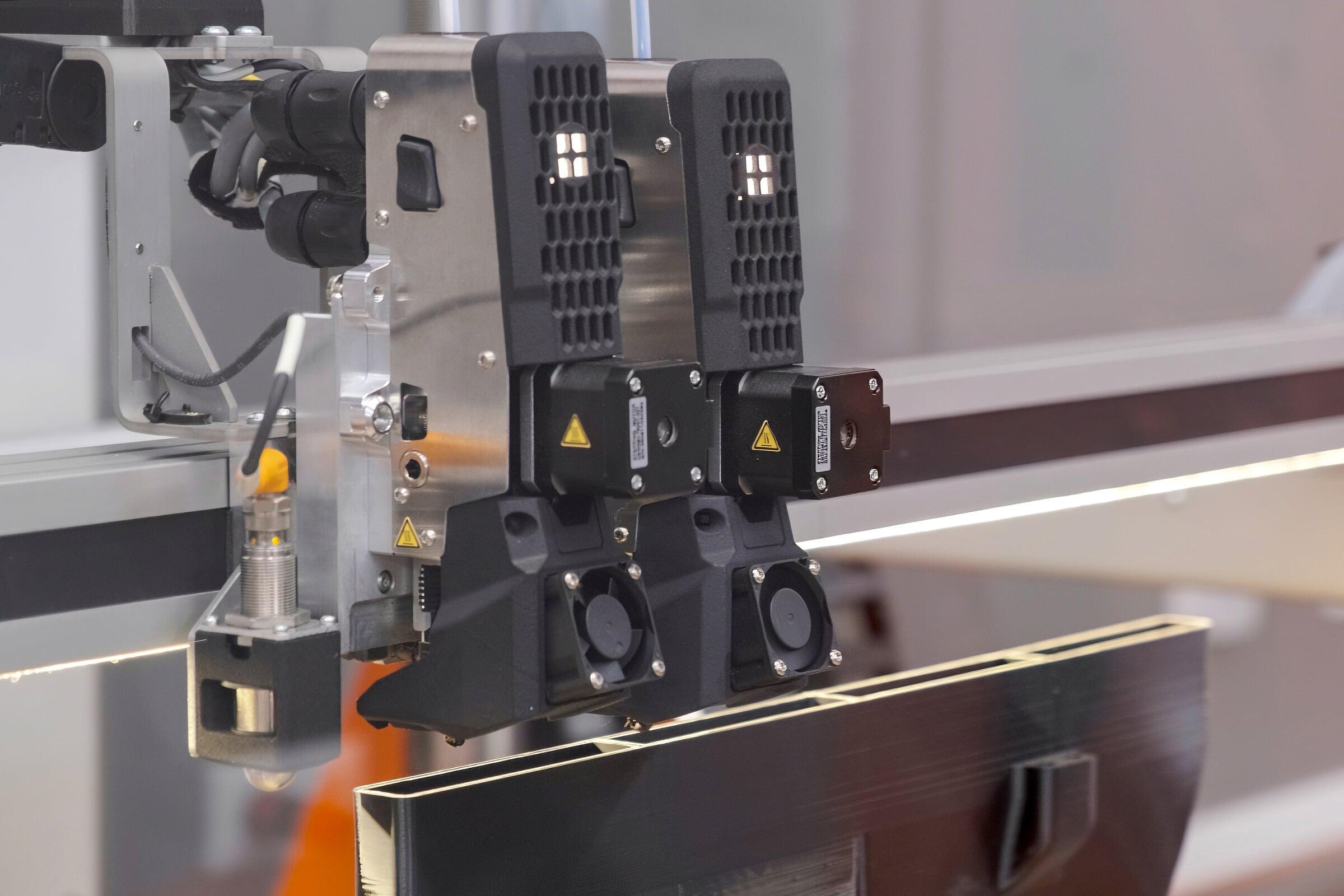

The upgraded PEX2 extruders deliver higher flow rates for faster, more consistent prints. Switch between precision and high-throughput modes to match your needs.

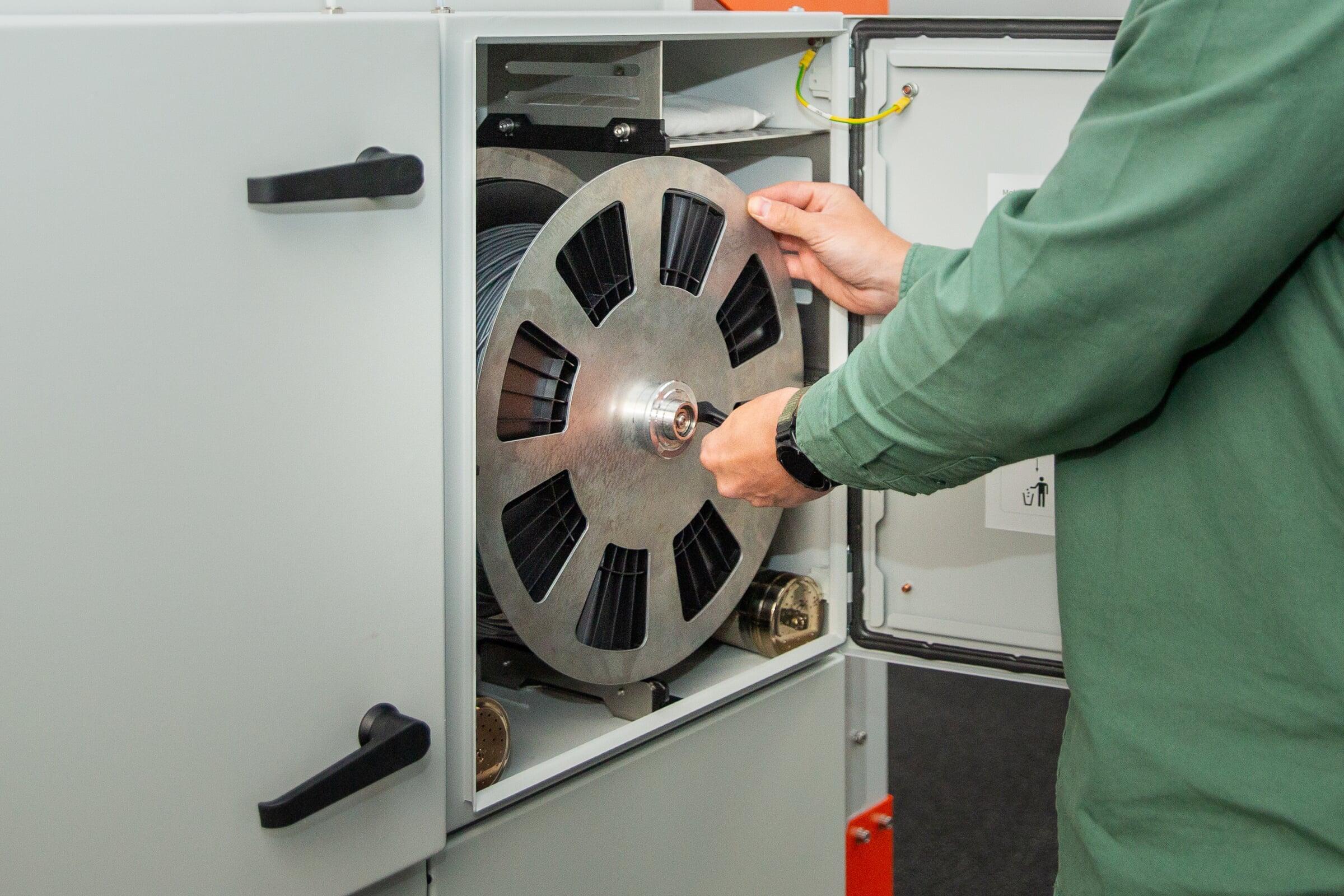

Filament for protected and uninterrupted printing
The Keep-Dry Box protects filament from moisture and dust for optimal material handling. An integrat ed sensor pauses printing when needed, ensuring smooth, continuous production.
Reliability Precise and consistent extrusion
Print large, complex parts in a single run with a massive one-cubic-meter build volume. Reduce assembly, save time, and bring your designs to life at true scale.
Nozzles built for tough materials
Durable diamond nozzles and an advanced hotend deliver fast heating and long-lasting performance. Print abrasive materials with minimal wear, clog ging, or maintenance.

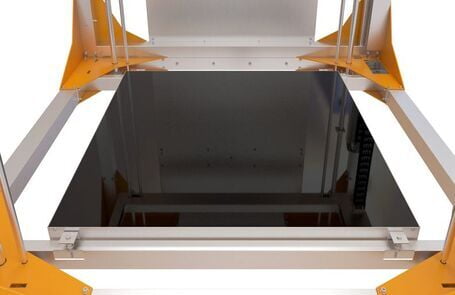

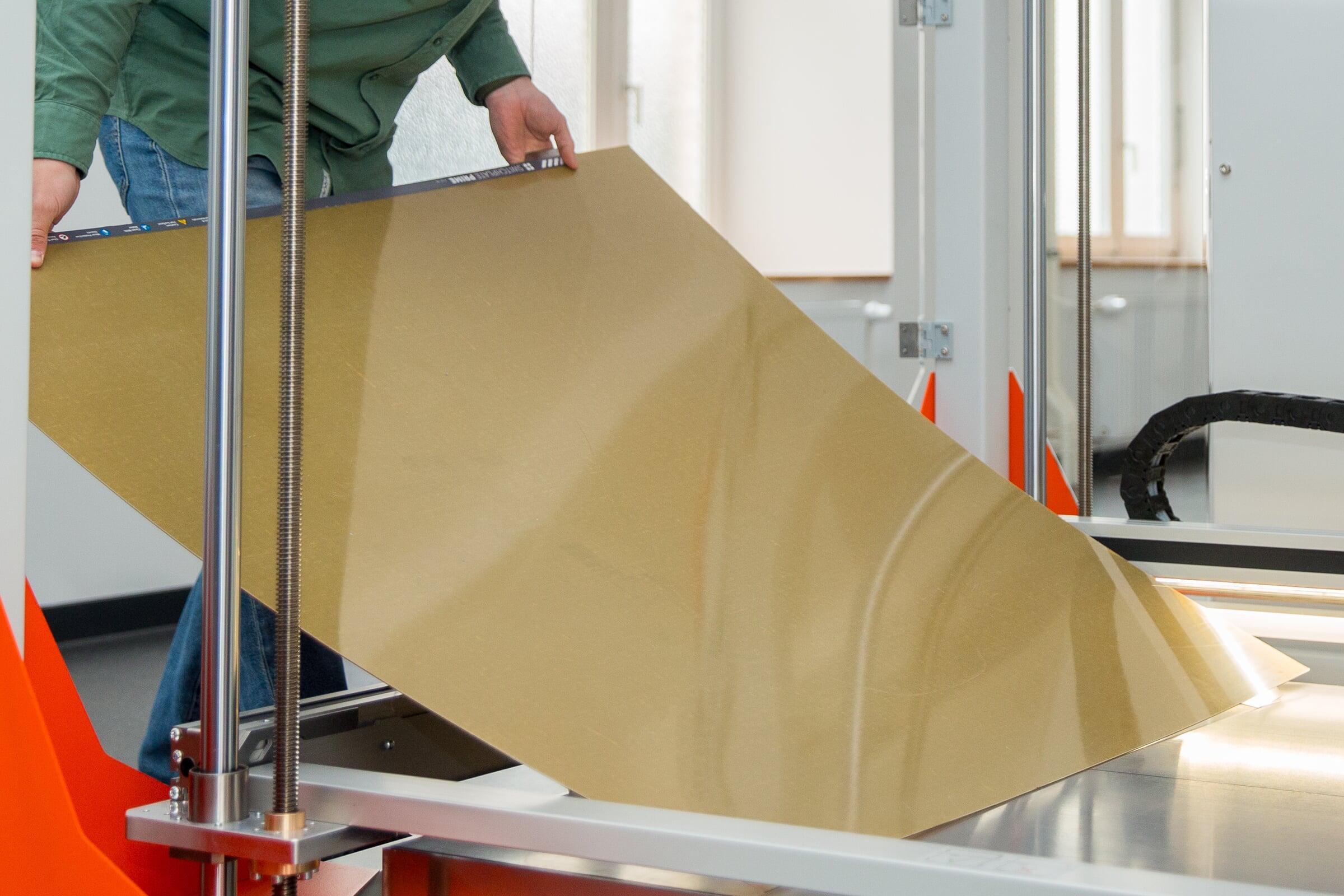

Print Bed a flexible and reliable surface

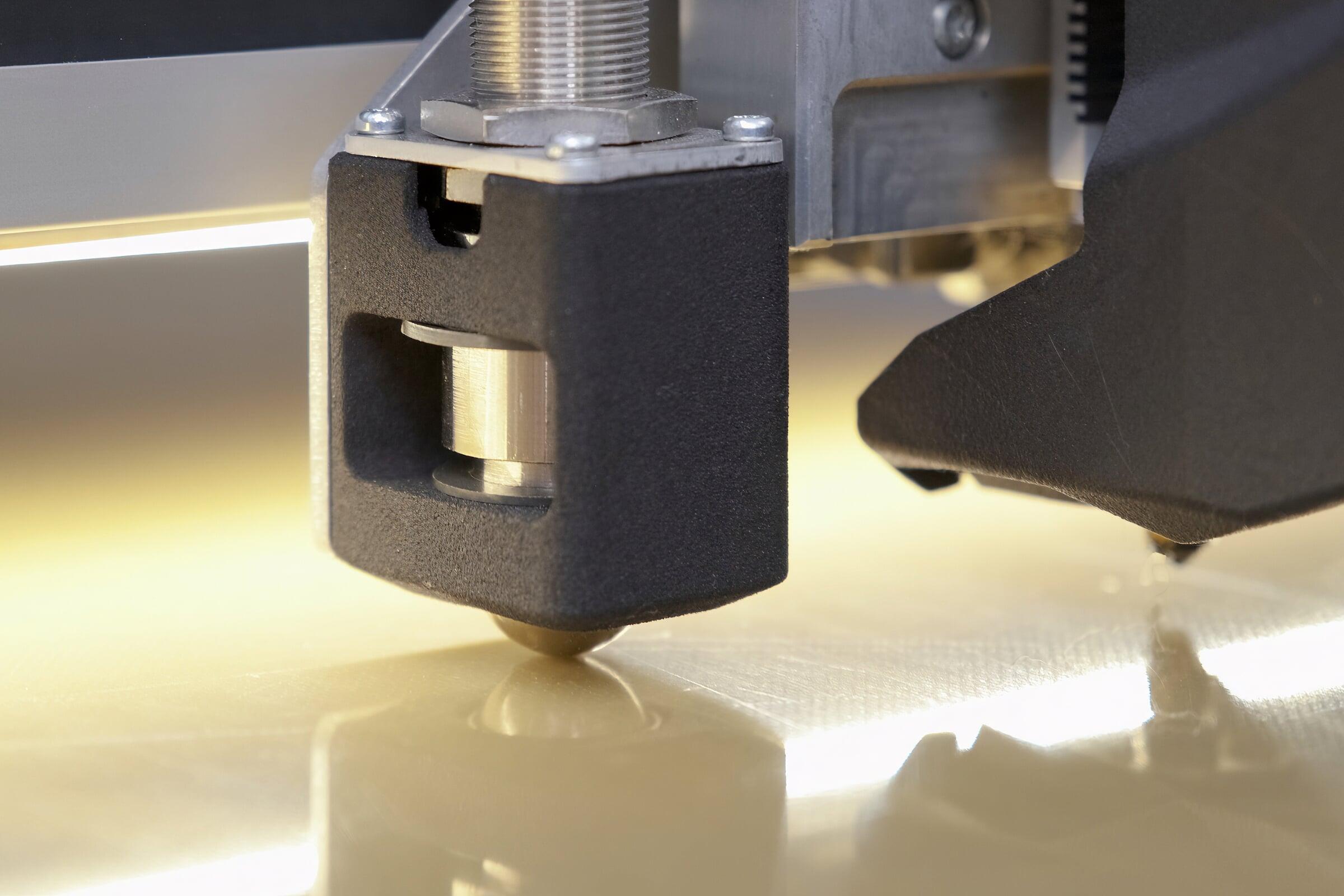

The removable SWITCHPLATE ensures strong adhesion across different materials and easy part removal. Integrated sensors and assisted leveling provide stable, repeatable print results.
BigRep ONE.5 Specifications
| Version: | ONE.5X |
| Build Volume: | x:1005 (mm) y:1005 (mm) z:1005 (mm) x: 39.5 (in) y: 39.5 (in) z: 39.5 (in) |
| Layer Height: | 0.3 mm, 0.6 mm, 1.0 mm *Other layer heights supported through slicer software |
| Max. speed | Max. acceleration: | 500 mm/s | 400 mm/s² |
| Extruder: | Dual Power Extruder 2 (PEX2) |
| Certified BigRep Materials: | BigRep materials with BLADE slicing profiles: BVOH, HI-TEMP, HI-TEMP CF, PLX, PRO HT, rPETG, rPLA, TPU 98A |
| Support Materials: | BVOH Other filaments upon request |
| Print bed Temperature: | Max. 80 °C (176 °F) |
| Printer Weight: | Approx. 460 kg (1,014 lb) |
| Size: | x:1850 (mm) y:2250 (mm) z:1725 (mm) x 72.8 (in) y 88.6 (in) z 67.9 (in) |
| Power: | 208 V – 240 V, 16 A, 50 / 60 Hz |
| Max. temperature: | 80 °C |
| Safety Certifications: | CE compliant (Machinery Directive 2006/42/EC) |
