GRADUATE FROM DESKTOP — GO INDUSTRIAL.

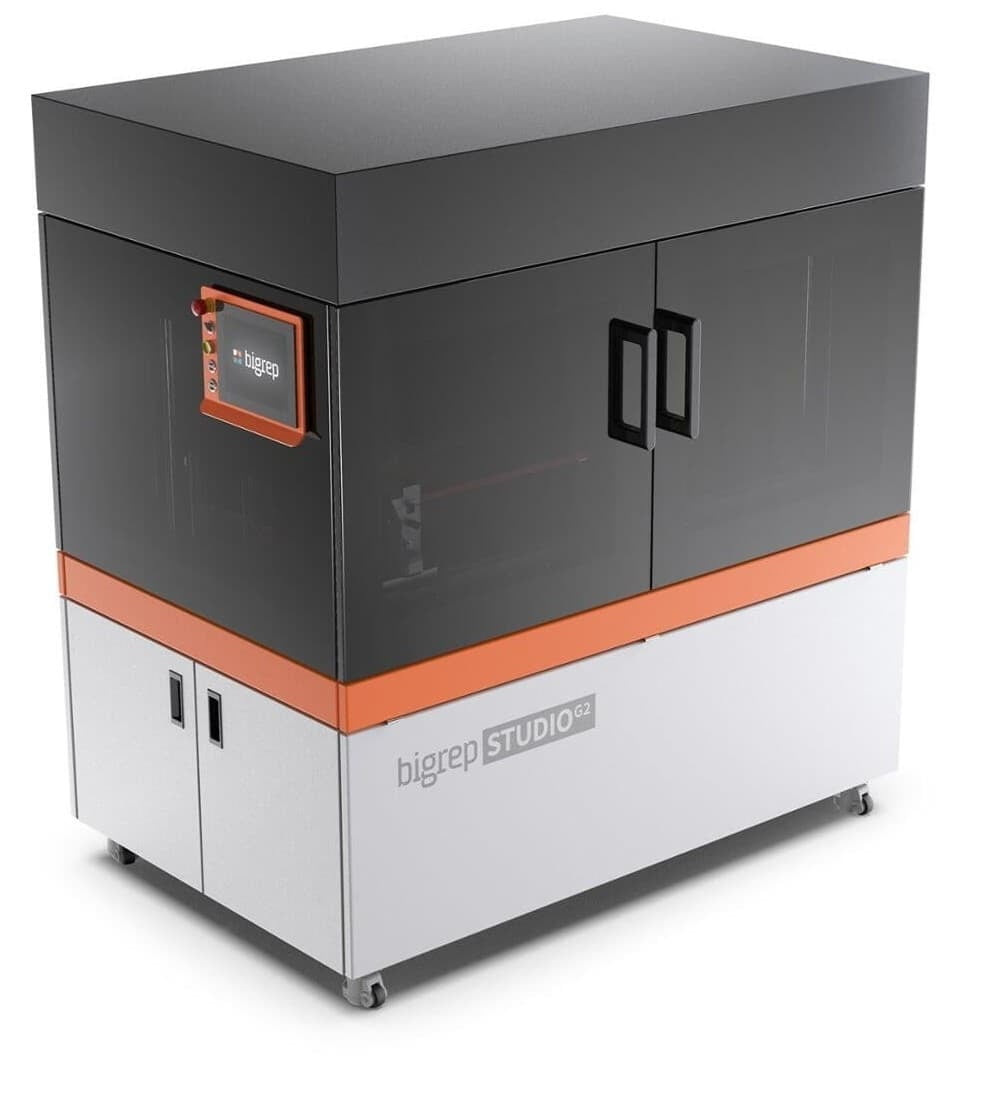

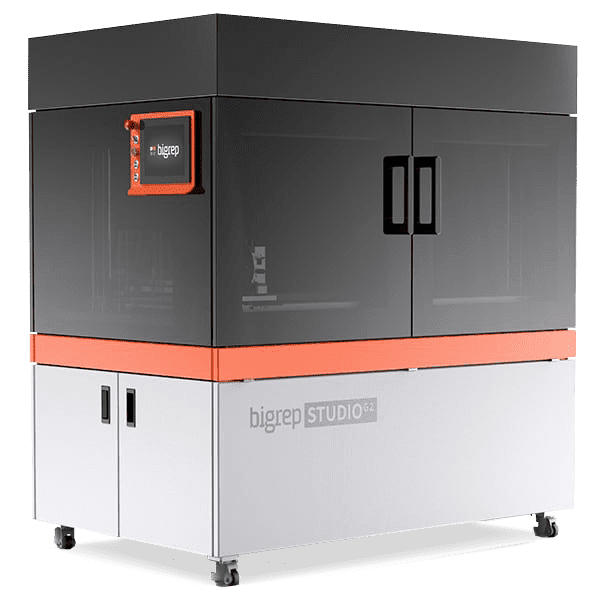

Explore new frontiers of large-format industrial 3D printing with the BigRep STUDIO G2. The STUDIO G2 is an easy-to-use, large-format 3D printer designed specifically for applications that require the use of engineering-grade materials. With a sleek, space-conscious body, it is optimal for any workspace — from the office to the factory floor.

Download Brochure
Request a Quote

EFFICIENT & INDUSTRIAL 3D PRINTING

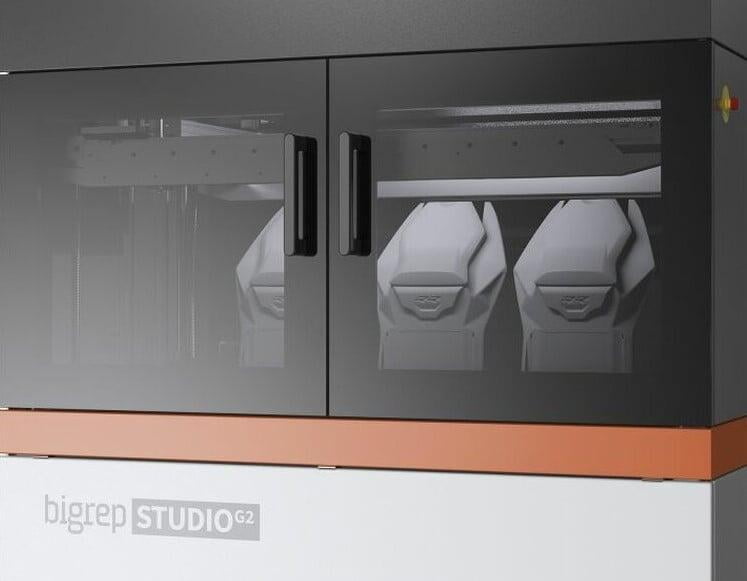

3D PRINT IN FULL SCALE
​The STUDIO G2 boasts a generous build volume of 1000 x 500 x 500 mm — 10 times that of a standard desktop 3D printer.Whether you're creating strong, on-demand factory tooling or designing your next product, the STUDIO is German engineered for reliable production in full scale.

BOOST PRODUCTIVITY
Join industrial leaders and increase your productivity by up to 94%. Create products and tooling in-house and on demand. Iterate fast, and get immediate results.

CUT YOUR COSTS
BigRep customers have cut up to 85% of costs, and you can too. Replace slow, expensive, outsourcing with in-house 3D printing and realize massive savings today.

With ruby nozzles, the STUDIO G2 is designed for printing with abrasive, engineering-grade materials at maximum speed and high resolutions. The specially designed extruder achieves high-level detail with layer heights as low as 0.1mm on parts up to a meter long, enabling more options to perfect a part’s mechanical properties

​​The easy to use BigRep "BLADE” slicing software allows for greater control of printing parameters while providing presets for all BigRep-compatible materials, making a rapid, hassle-free start to printing possible. The new estimation engine gives accurate printing time and material use predictions for unmatched productivity. BLADE is one of the fastest and most precise slicers on the market.

HAZARDOUS MATERIAL SAFETY
The BOFA Filtration System
With the BOFA air filtration system, you're taking every step to ensure health and safety and compliance with present and future regulations while working with any potentially hazardous materials. The STUDIO's insulated enclosure with dedicated output safely directs any and all fumes into its filtration system which then utilizes HEPA filters to purify air to a certified minimum efficiency of 99.997% down to 0.3 microns and 95% to 0.1 micron.

OPTIMAL PRINTING TEMPERATURES

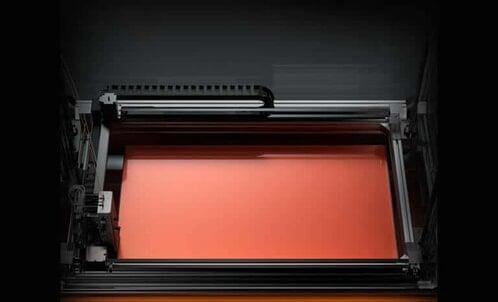

The Fast-Heating Print Bed

Preparation time is significantly reduced for all print projects with the STUDIO's fast-heating print bed, capable of reaching 80 °C for optimal print bed adhesion with a variety of high-quality materials in just 15 minutes. Coupled with an inductive sensor that enables semi-automatic print bed leveling to ensure optimal calibration and maximum control, the STUDIO is made to work fast and work well.


INDEPENDENT TEMPERATURE CONTROLS

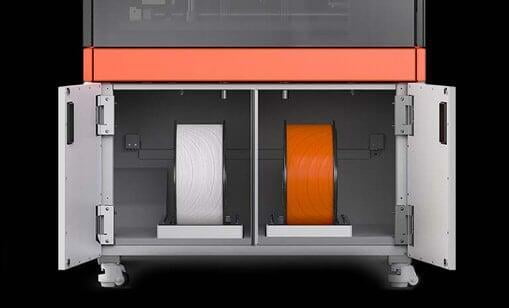

The Heated Filament Chambers
Two heated filament chambers ensure that engineering-grade materials with sensitive environmental requirements remain dry in a consistently controlled environment for best-in-class quality. Both the chambers, the print bed and the build envelope also feature independent temperature controls - going beyond industry standards to give you maximum control of your 3D printing environment.

BigRep STUDIO G2 Specifications
​Safety Certifications:CE approved
Build volume: x:1000 (mm)
y: 500 (mm)
z: 500 (mm)

Print speed:
Up to 140 mm/s at 0.1 mm layer height
Acceleration:
Up to 1000 mm/s²
Layer height:
0.1 - 0.5 mm
​​Extruder:
Dual extruder
(each equipped with 0.6mm nozzle)
Printing technology:
FFF- Fused-Filament-Fabrication
Certified materials:
PLA, PRO HT,  PETG, TPU PA6/66
*flexible materials to be released soon
​​Print bed temperature: Max. 100c
Printer weight:
Approx. 500kg
Size:x: 1715 (mm)
y: 1170 (mm)
z: 1765 (mm)

Power:208V - 240V 16A 50/60 Hz
