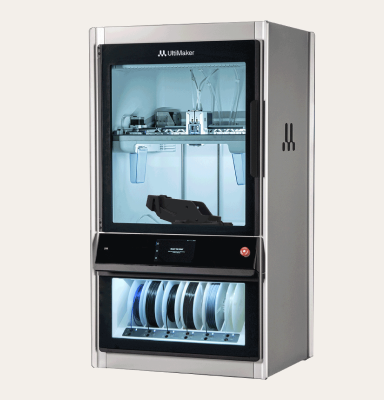

UltiMaker Factor 4 Plus
The UltiMaker Factor 4 Plus elevates additive manufacturing into an industrial production power center. Engineered with a direct drive dual-extrusion system, high-flow print cores reaching up to 340 °C, and an actively heated 70 °C triple-insulated build chamber, it delivers exceptional dimensional accuracy and mechanical performance across engineering plastics and high-temperature composites. With integrated 6-spool automated filament management, high-speed gantry motion architecture, and real-time print validation, the Factor 4 Plus guarantees continuous, reliable, 24/7 output for demanding factory-floor and prototyping applications.
High-Flow & High-Temperature Extrusion
Equipped with new high-flow AA+ (0.4 mm) and CC+ (0.6 mm) print cores reaching up to 340 °C, enabling up to 2x faster production speeds and compatibility with demanding materials like PPS-CF, PEKK-A, and high-temp composites.
Actively Heated 70 °C Build Chamber
Triple-insulated build volume maintains an actively controlled temperature up to 70 °C with uniform airflow, preventing warping, maximizing layer adhesion, and ensuring structural part integrity.
Automated 6-Spool Climate Station
Integrated material storage holds up to 6 spools in an ultra-low humidity environment (<15% RH) with automatic pre-loading and spool switching for uninterrupted 24/7 printing.

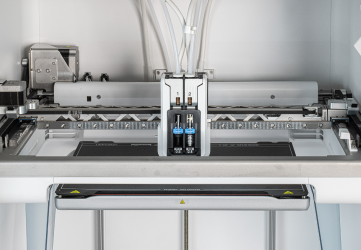

High-Speed Motion Architecture
Redesigned H-bridge gantry with direct-drive extrusion utilizes input shaping resonance compensation to achieve smooth, accurate, high-speed movement without sacrificing part precision.
Key Features

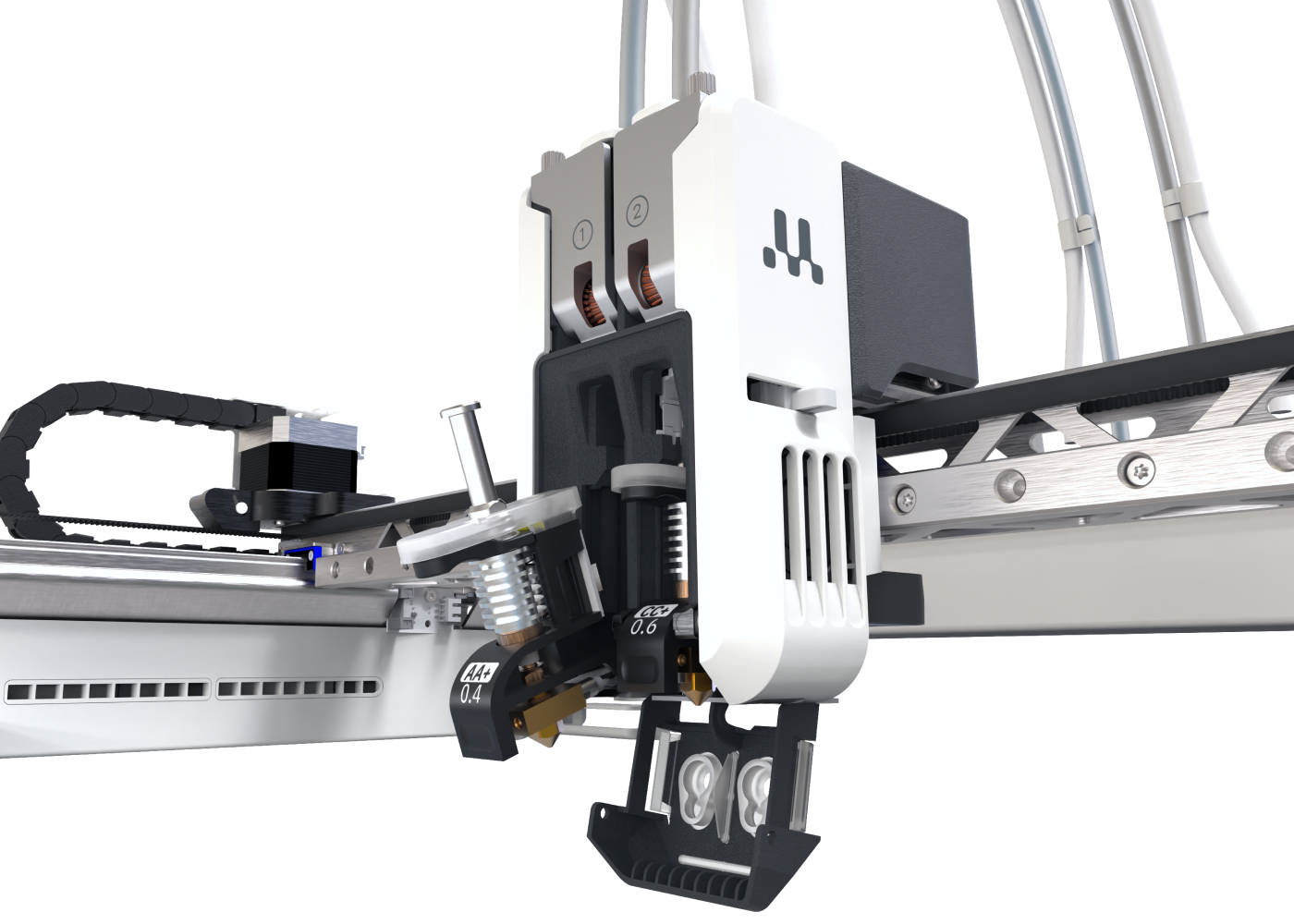

- Direct Dual Extrusion Platform: Direct-drive head allows fast switching between flexible polymers, soluble supports, and fiber-reinforced composite materials.
- High-Temperature Capability: Reaches nozzle temperatures up to 340 °C, bed temperatures up to 120 °C, and active chamber heating to 70 °C.
- Automated Material Failover: Integrated 6-spool material station with NFC filament recognition auto-switches spools for non-stop production.
- HEPA H13 Air Filtration: Replaceable HEPA H13 filter removes up to 95% of ultrafine particles (UFPs) for clean operation in production environments.
- Print Quality Assurance Logging: Onboard sensor suite tracks print telemetry to verify part quality and generate detailed validation reports.
- Industrial Safety & Usability: Features an elevated 7-inch capacitive touchscreen, emergency stop button, and automatic pause on door opening.
Technical Specifications
Technology: Fused Deposition Modeling (FDM)
Build Volume: 330 × 240 × 300 mm (13 × 9.4 × 11.8 in)
Extrusion System: Direct-drive dual extrusion with swappable print cores
Max Nozzle Temperature: Up to 340 °C (CC+ / HT Cores)
Active Chamber Heating: Actively temperature-controlled up to 70 °C
Filament Capacity: 6 Bays in Material Station (Auto-preloading & auto-switch)
Chamber Humidity: Dehumidified storage bay (<15% RH)
Air Filtration: Integrated HEPA H13 Filter (95% UFP removal)
Build Plate:Flexible PEI-coated steel plate (Heated up to 120 °C)
Filament Diameter:2.85 mm
Connectivity:Wi-Fi (2.4/5 GHz), Gigabit Ethernet, USB 2.0
What's Included
- UltiMaker Factor 4 Plus 3D Printer
- Integrated Automated Material Handling Station (6 Bays)
- Integrated HEPA H13 Air Filtration System
- AA+ High-Flow Print Core (0.4 mm)
- CC+ High-Temp/High-Flow Print Core (0.6 mm)
- Flexible PEI Steel Build Plate
- Spool of UltiMaker Filament
- Power Cord & Maintenance Accessories
- UltiMaker Cura & UltiMaker Digital Factory Access
