Unmatched Performance, Exceptional Value.
The IPSO 105 stands out as an all-around high-temp industrial machine with an unbeatable price-to-performance ratio. Offering automation, reliability, and speed, it's the ultimate solution for industrial engineers and designers to produce robust, high-performance parts efficiently.
MADE FOR HIGH-TEMPERATURE APPLICATIONS
Advanced High Temperature Features
ELEVATED TEMPERATURES FOR ENHANCED PERFORMANCE
AEROSPACE-QUALITY
With IPSO 105, fabricate aerospace components using high-performance materials, ensuring robust, secure, and lightweight parts. Experience unparalleled precision, consistency, and detail, fostering innovation across the design spectrum.
FUNCTIONAL PROTOTYPES
With an open-material system, explore diverse filaments to accurately prototype and test parts before production. Streamline iterations, reduce manufacturing expenses, and expedite your product's journey to market.
DURABLE TOOLING
Craft cost-effective rapid tooling for your manufacturing environment, including jigs and fixtures. Leverage high-temperature capabilities to forge robust and intricate tooling in-house. Say goodbye to outdated methods and embrace on-demand tool printing.
BigRep IPSO 105 Specifications
| Version: | BigRep IPSO 105 |
| Build Volume: | 400mm x 600mm x 440mm (x,y,z) |
| Materials: | ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, TPU, TPC (Open for 3rd party materials) |

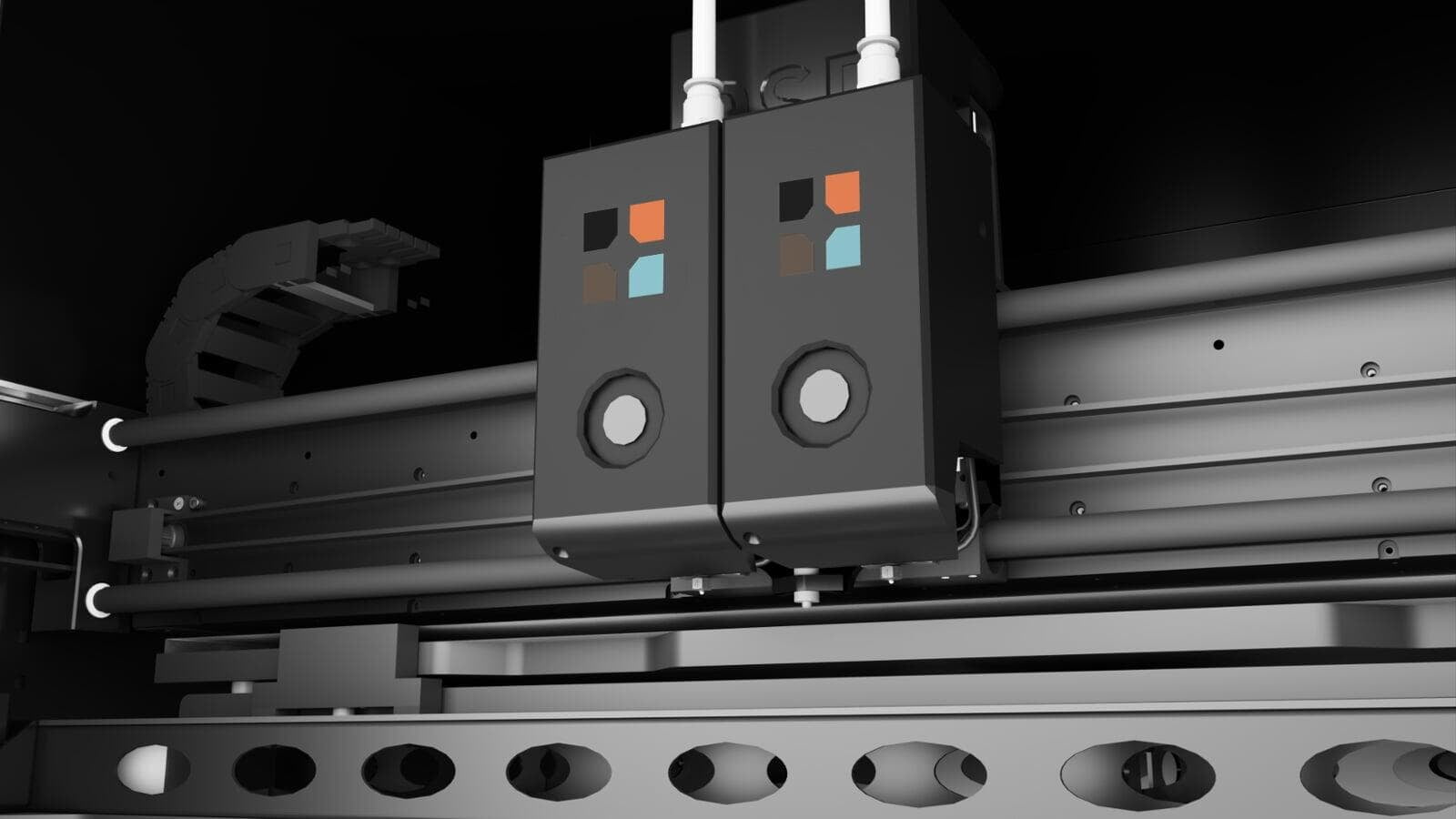

| Extruder: | Direct Synchronized Extruder (DSX) |
| Extruder configuration: | Water-cooled multi-DSX |
| Hotends: | Precise or Power |
| Nozzles: | Brass or hardened steel |
| Nozzle diameters: | 0.4mm, 0.6mm, 1.0mm |
| Layer thickness: | From 0.05mm |
| Extruder temp: | Up to 450°C |
| Build chamber temp: | Up to 100°C |
| Print bed temp: | Up to 180°C |
| Max print speed: | Up to 200 mm/s |
| Position accuracy: | < 0.1mm in XY |
| Max throughput: | Up to 150 g/h |
| Movement speed: | 250 mm/s in XY |
| Drive technology: | Stepper motors with encoder |
| Air cleaning unit: | Filtration system with active carbon filter and HEPA filter |
| Safety circuit: | Unmanned 24/7 operation |
| Connectivity: | USB, network |
| Pause printing: | Out-of-filament sensor with smart ʻstop and goʼ function (build chamber and print bed remain heated) |
| Slicing software: | Simplify3D, Cura |
| Machine control: | HAGE3D industrial control |
| HMI: | LED + 7” touchscreen |
| Camera: | Wide angle color HD camera for real time remote monitoring |
| Override function: | Manual override in real time |
| User Access: | Multi-level user permissions |
| Power supply: | 400 V / 16 A |
| External dimensions: | 1270mm x 1120mm x 1730mm (x,y,z) |
| Weight: | Approx. 420kg |
