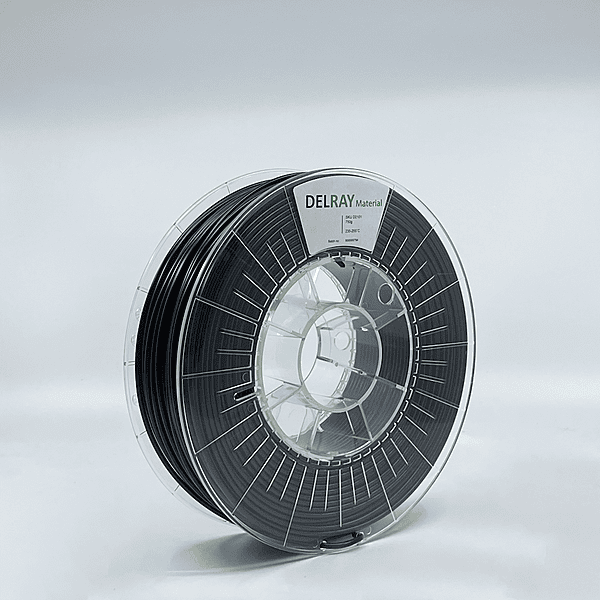

Tough PLA Pro DM

Tough PLA Pro DM is a high-performance industrial PLA filament engineered for demanding applications requiring excellent mechanical strength, high printing speeds, and improved heat resistance. Designed to combine the ease of printing associated with PLA with mechanical performance comparable to ABS, Tough PLA Pro DM provides an excellent balance of strength, stiffness, dimensional stability, and printability.

Engineered for industrial FDM/FFF manufacturing, Tough PLA Pro DM can achieve printing speeds exceeding 120 mm/s while maintaining excellent mechanical properties and a clean semi-matte surface finish. Its low-shrinkage characteristics help maintain dimensional accuracy and reduce the warping and delamination commonly associated with ABS.

Tough PLA Pro DM is also designed for applications requiring elevated temperature performance. When annealed, the material can achieve a Heat Deflection Temperature (HDT) of 95°C or higher while maintaining negligible shrinkage and excellent dimensional stability.

Key Benefits

• Prints like PLA, performs like ABS
• High mechanical strength and stiffness
• Designed for high-speed printing exceeding 120 mm/s
• Excellent dimensional stability
• Very low shrinkage after annealing
• High heat resistance after annealing
• HDT of 95°C+ after annealing
• Excellent layer adhesion with reduced risk of delamination
• Semi-matte surface finish helps conceal layer lines
• Bio-based alternative to ABS
• Compatible with most common desktop FDM/FFF 3D printers
• Suitable for industrial and functional applications

Typical Applications

• Functional prototypes
• Engineering components
• Automotive components
• Industrial fixtures and tooling
• Mechanical housings and enclosures
• Jigs and fixtures
• Replacement parts
• High-strength prototypes
• Low-volume production parts
• Applications traditionally printed in ABS

Tough PLA Pro DM delivers an excellent combination of printability, speed, strength, and heat resistance. It is an ideal choice for manufacturers and engineers who need the dimensional stability and ease of PLA while demanding mechanical performance closer to ABS.

Specifications

Material: Thermoplastic PLA
Material Type: Tough / High-Performance PLA
Diameter: 1.75mm/2.85 mm
Diameter Tolerance: ±0.10 mm
Roundness: ≥95%
Density: 1.27 g/cm³

Mechanical Properties

• Tensile Strength: 40 MPa
• Elongation at Break: 47%
• Tensile Modulus: 4000 MPa
• Charpy Notched Impact Strength at 23°C: 23 kJ/m²

Thermal Properties

• Melting Temperature: 205 ±15°C
• Heat Deflection Temperature (after annealing): 95°C+

Recommended Print Settings

• Nozzle Temperature: 230 ±10°C
• High-Speed Printing: >120 mm/s
• Build Plate Temperature: 50–60°C
• Heated Bed: Optional
• Annealing: Recommended for applications requiring maximum heat resistance

Tough PLA Pro DM can be printed without a heated bed and adheres to most common print surfaces. When using a heated bed, a temperature of approximately 50–60°C is recommended. For best results, use an appropriate adhesive or print surface/sticker.

Higher printing temperatures can increase material flow and enable higher printing speeds. A printing temperature around 240°C ±10°C can further increase the material's flow rate for high-speed applications.

Storage

Store Tough PLA Pro DM in a cool, dry environment and protect it from UV exposure. Proper storage helps maximize material shelf life and maintain consistent printing performance.

Production & Availability

Tough PLA Pro DM is produced to order for larger-volume requirements. Orders for 8 kg may require up to 2 weeks for material production prior to shipment. Please allow additional lead time when ordering quantities of 8 kg or more.

Additional Information

Tough PLA Pro DM is specifically engineered for industrial applications where high-speed printing, mechanical performance, and dimensional accuracy are important. Its high crystallinity provides increased stiffness at elevated temperatures, while annealing further improves heat resistance.

Unlike conventional ABS, Tough PLA Pro DM offers negligible shrinkage after annealing, helping maintain excellent dimensional accuracy. Its semi-matte finish also provides an attractive appearance while helping conceal visible layer lines.
