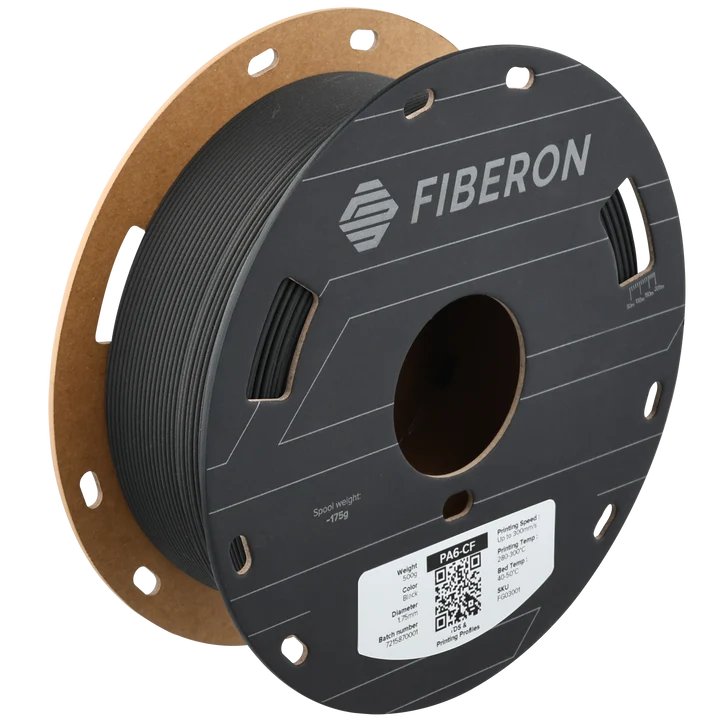

Fiberon™ PA6-CF20

Fiberon™ PA6-CF20 combines high-performance PA6 nylon with 20% carbon fiber reinforcement by weight to produce exceptionally strong, rigid, and thermally resistant parts. The high loading of carbon fiber drastically improves structural rigidity and reduces warping, making PA6-CF20 an outstanding choice for high-stress engineering components operating under harsh conditions. With a tensile strength of 115 MPa and bending strength of 170 MPa in the XY direction, PA6-CF20 delivers the structural integrity required to replace traditional metal parts in lightweight assemblies. Its 7800 MPa bending modulus provides extreme stiffness, while maintaining high heat deflection temperatures up to 215°C under load.

Key Benefits

• 20% carbon fiber reinforcement by weight for extreme rigidity and tensile strength

• Outstanding thermal resistance with HDT up to 215°C

• High dimensional stability with minimal warping during printing

• Superior layer adhesion and high structural reliability

• Excellent chemical and wear resistance typical of PA6 nylon

• Smooth, professional matte surface finish that conceals layer lines

• Excellent replacement for metal brackets, fixtures, and structural components

• High-speed printing capability up to 350 mm/s

• Annealing capability to unlock maximum thermal and mechanical performance

• Compatible with standard open and enclosed FDM 3D printers

Typical Applications

• Heavy-duty industrial jigs, fixtures, and tooling

• Automotive engine compartment components and housings

• Structural brackets, mounts, and mechanical arms

• Robotics, drone frames, and end-of-arm tooling

• Functional end-use manufacturing hardware

• High-temperature fluid manifolds and enclosures

• Replacement metal structural parts

• Manufacturing aids and assembly guides

• High-stress mechanical prototypes Fiberon™ PA6-CF20 is ideal for applications where extreme rigidity, heat resistance, tensile strength, and structural performance under mechanical load are critical priorities.

Specifications Material: PA6 Nylon with 20% Carbon Fiber Filament Diameter: 1.75mm Available Weights: 0.5kg, 2kg Available Colors: Black Density: 1.20 g/cm³ Nozzle Temperature: 280–300°C Build Plate Temperature: 25–50°C Maximum Print Speed: Up to 350 mm/s Cooling Fan: OFF Enclosure: Recommended Nozzle: 0.4mm or larger hardened steel or ruby nozzle required Drying: 100°C for 8–12 hours before printing

Mechanical Properties

• Tensile Strength XY: 115.3 MPa

• Tensile Strength Z: 36.8 MPa

• Elongation at Break XY: 2.1%

• Elongation at Break Z: 1.2%

• Bending Strength XY: 169.8 MPa

• Bending Strength Z: 62.4 MPa

• Bending Modulus XY: 7820 MPa

• Bending Modulus Z: 2650 MPa

• Young's Modulus XY: 8250 MPa

• Young's Modulus Z: 2890 MPa

• Charpy Notched: 10.2 kJ/m²

Thermal Properties

• Glass Transition Temperature (Tg): 70°C

• Vicat Softening Temperature: 218°C

• HDT @ 0.45 MPa: 215°C

• HDT @ 1.8 MPa: 186°C

Recommended Print Settings

• Nozzle: 280–300°C

• Build Plate: 25–50°C

• Print Speed: Up to 350 mm/s

• Cooling Fan: OFF

• Retraction Distance: 1–3mm

• Retraction Speed: 20–40 mm/s

• Drying: 100°C for 8–12 hours prior to printing

• Nozzle: Hardened steel or ruby, 0.4mm or larger

• Enclosure: Recommended for large parts to prevent ambient drafts Because carbon fiber reinforcement is highly abrasive, a wear-resistant hardened nozzle is required. PA6-CF20 is extremely hygroscopic and must be printed directly from a dry box/filament dryer to ensure optimal layer adhesion and surface finish.
