Form Studio 1 Complete Bundle
SPECIAL PACKAGE BUNDLE
FORM STUDIO 1 COMPLETE BUNDLE
COMPLETE END-TO-END RESIN PRINTING SOLUTION
BUNDLE INCLUSIONS
What's Inside the Box
PRINTER

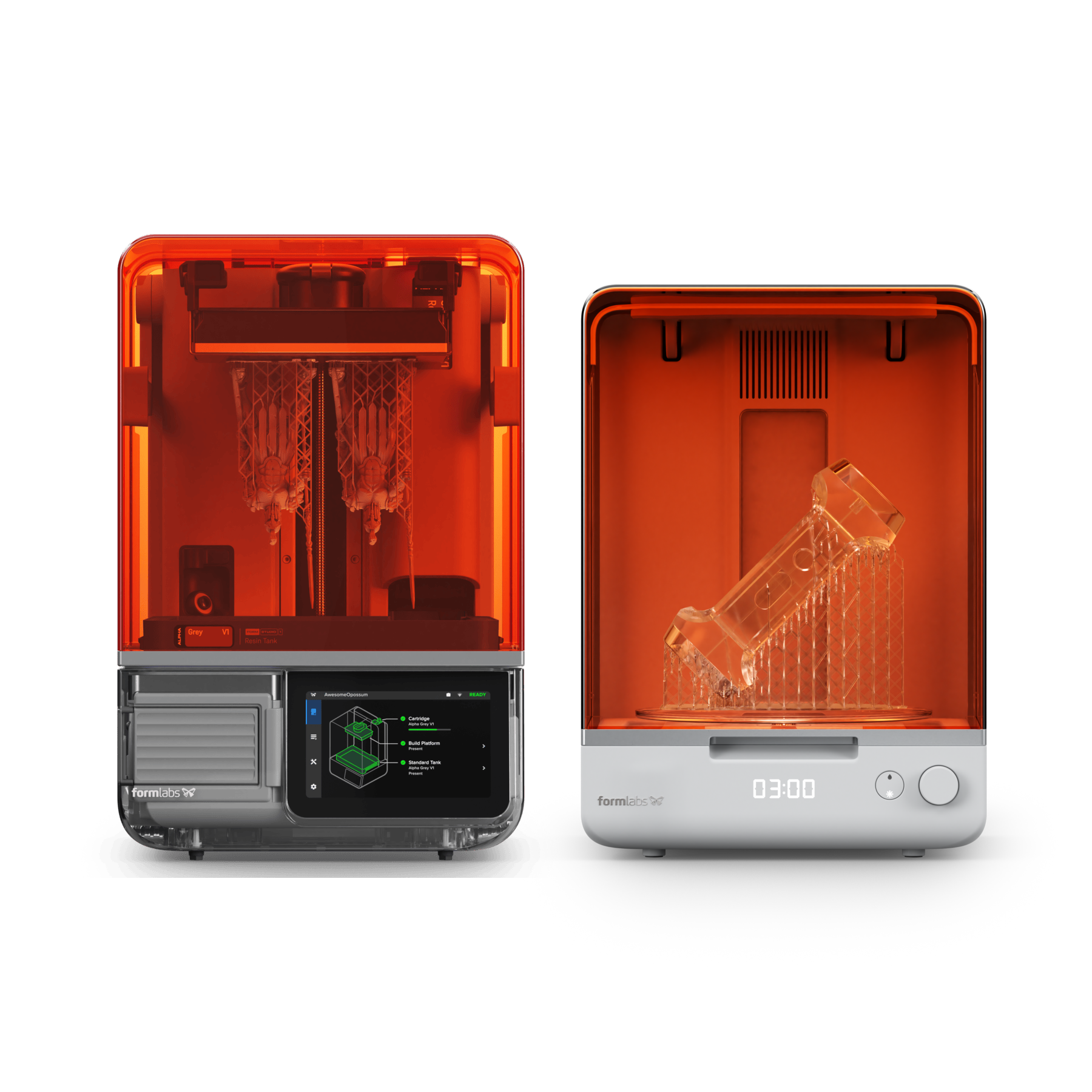

Formlabs Form Studio 1
Ultra-fast MSLA printing, ±0.15% XY tolerance, and intelligent sensor monitoring for incredible detail, speed, and workflow consistency.
BUILD SURFACE
Standard Build Platform
Rigid, highly durable aluminum build surface optimized for reliable adhesion across all Formlabs resin formulations and precision geometric accuracy.
POST-PROCESSING
Formlabs Wash + Cure
Automates washing and curing to ensure parts maximize their physical and mechanical properties while maintaining biocompatibility with minimal human intervention.
HARDWARE OVERVIEW
Pro Resin Printing Made Seamless
SPEED
Engineered for Speed
Most prints finish in under two hours. A custom lens array and 28 LEDs deliver a uniform, highly collimated 6 mW/cm² light field that cures resin quickly and evenly. Release Texture V2 and a flexible film tank reduce peel forces for faster printing without compromising surface finish.
QUALITY
Print Amazing Parts
35 µm pixels and finely tuned anti-aliasing capture subpixel detail, while lower peel forces and light-touch supports leave smooth, clean surfaces. Every material setting is calibrated for dimensional accuracy, holding ±0.15% XY tolerance so assemblies fit together seamlessly.
RELIABILITY
Unmatched Reliability
Every material comes with validated print settings, tuned on hundreds of test parts. An integrated camera shows progress remotely in the Form Mobile App. During each print, intelligent control systems monitor:
● Resin temperature
● Resin level
● Print forces
● Leveling
EVERYTHING YOU NEED TO GO FROM DESIGN TO FINISHED PART
Streamlined 5-Step Production Workflow
01
SELECT A MATERIAL
Load a validated Formlabs resin cartridge and utilize factory-calibrated settings for guaranteed print success.
02
FILE SET UP
Import your model into PreForm for one-click setup. Built-in printability checks detect potential issues prior to printing.
03
Insert your resin tank, Standard Build Platform, and resin cartridge. Automatic resin dispensing ensures seamless operations throughout your print.
04
WASH
Transfer the build platform directly into the Formlabs Wash unit for automated solvent agitation that cleans uncured resin thoroughly.
05
CURE
Post-cure parts in the Formlabs Cure unit to optimize strength, achieve specified mechanical properties, and finish part preparation.
FORM STUDIO 1 COMPLETE BUNDLE
TECH SPECS
BUNDLE CONTENTS
Form Studio 1 Printer, Standard Build Platform, Formlabs Wash + Cure Units
TECHNOLOGY
Masked Stereolithography (MSLA)
BUILD VOLUME (L × W × H)
20.0 × 12.5 × 23.5 cm | 7.9 × 4.9 × 9.3 in
LAYER THICKNESS (Z RESOLUTION)
25–250 µm | 0.001–0.010 in
XY RESOLUTION
35 µm
MAXIMUM PRINT SPEED
130 mm/hr
PRINTER DIMENSIONS & WEIGHT
34.2 × 31.5 × 50.2 cm (13.5 × 12.4 × 19.8 in) | 14.3 kg (31.5 lb)
