PRINTER

Formlabs Form Studio 1

Ultra-fast MSLA printing, ±0.15% XY tolerance, and intelligent monitoring for incredible detail and ease of use.

AIR QUALITY & SAFETY

VOC Extractor

Ensures ultra-low emissions when using Alpha Resins, giving you UL GREENGUARD Gold certified safety for printing inside your home, studio, or office.

UL GREENGUARD Gold Certified Setup

POST-PROCESSING

Formlabs Wash + Cure

Automates washing and curing to help your parts reach optimal mechanical properties and bio-compatibility safely with minimal effort.

EASY REMOVAL

Flex Plate Form Studio 1 (Graphite)

Quickly release finished parts without scraping. A gentle flex pops models right off, preserving fine details and reducing part damage.

SPEED

Engineered for Speed

Most prints finish in under two hours. A custom lens array and 28 LEDs deliver a uniform, highly collimated 6 mW/cm² light field that cures resin quickly and evenly. Release Texture V2 and a flexible film tank reduce peel forces for faster printing without compromising surface finish or fine detail.

SAFETY

Safe to Use Wherever You Work

Low-odor Alpha Resins are the first to achieve UL GREENGUARD Gold, certifying low VOC emissions for the printing process when printed on Form Studio 1 with the bundled VOC Extractor. Liquid resin scores as a non-skin irritant under OECD 439, and post-processed parts meet ISO 10993 requirements for long-term skin contact, making them suitable for wearables.

UL GREENGUARD Gold · OECD 439 · ISO 10993

QUALITY

Print Amazing Parts

30 µm pixels and finely tuned anti-aliasing capture subpixel detail, while lower peel forces and light-touch supports leave smooth, clean surfaces. Every material setting is calibrated for dimensional accuracy, holding ±0.15% XY tolerance so assemblies fit together as designed.

RELIABILITY

Unmatched Reliability

Every material comes with validated print settings, tuned on hundreds of test parts. An integrated camera shows progress remotely in the Form Mobile App. During each print, intelligent control systems monitor:

● Resin temperature

● Resin level

● Print forces

● Leveling

OPEN MATERIALS

Print With Any Resin

Start with validated Formlabs resins for reliable results out of the box, or branch out to third-party resins with no license fee.

01

SELECT A MATERIAL

Load a validated Formlabs resin cartridge and print with validated settings tuned for that material.

02

FILE SET UP

Import your model into PreForm and set up your print with one click. Real-time printability checks flag issues before you hit print.

03

PRINT SAFELY

Insert a cartridge, tank, and build platform. With the integrated VOC Extractor running, automatic resin dispensing handles the rest with minimal fumes and emissions.

04

WASH & FLEX RELEASE

Wash parts in the Form Studio Wash + Cure. Once clean, pop parts off effortlessly using the Graphite Flex Plate with zero scraping required.

05

CURE

Remove light-touch supports by hand, then slot into the Form Studio Wash + Cure to finalize strength and achieve optimal mechanical properties.

Alpha Model Resin

A deep, fully matte, neutral surface that captures every detail, down to the smallest crevice and texture, and paints beautifully.

Fully matte · Paint-ready

Alpha Fast Resin

Prototype and iterate faster with print speeds up to 130 mm/hr, for components in minutes or entire build volumes in less than 2 hours.

Up to 130 mm/hr · Rapid iteration

Alpha Clear Resin

Optical clarity, crisp fine features, and smooth, dimensionally accurate surfaces for see-through parts that fit together.

Optical clarity · See-through parts

Alpha Black, Grey & White Resin

Rich matte color, crisp fine features, and smooth, dimensionally accurate surfaces for parts that are display-ready and fit together.

Rich matte color · Display-ready

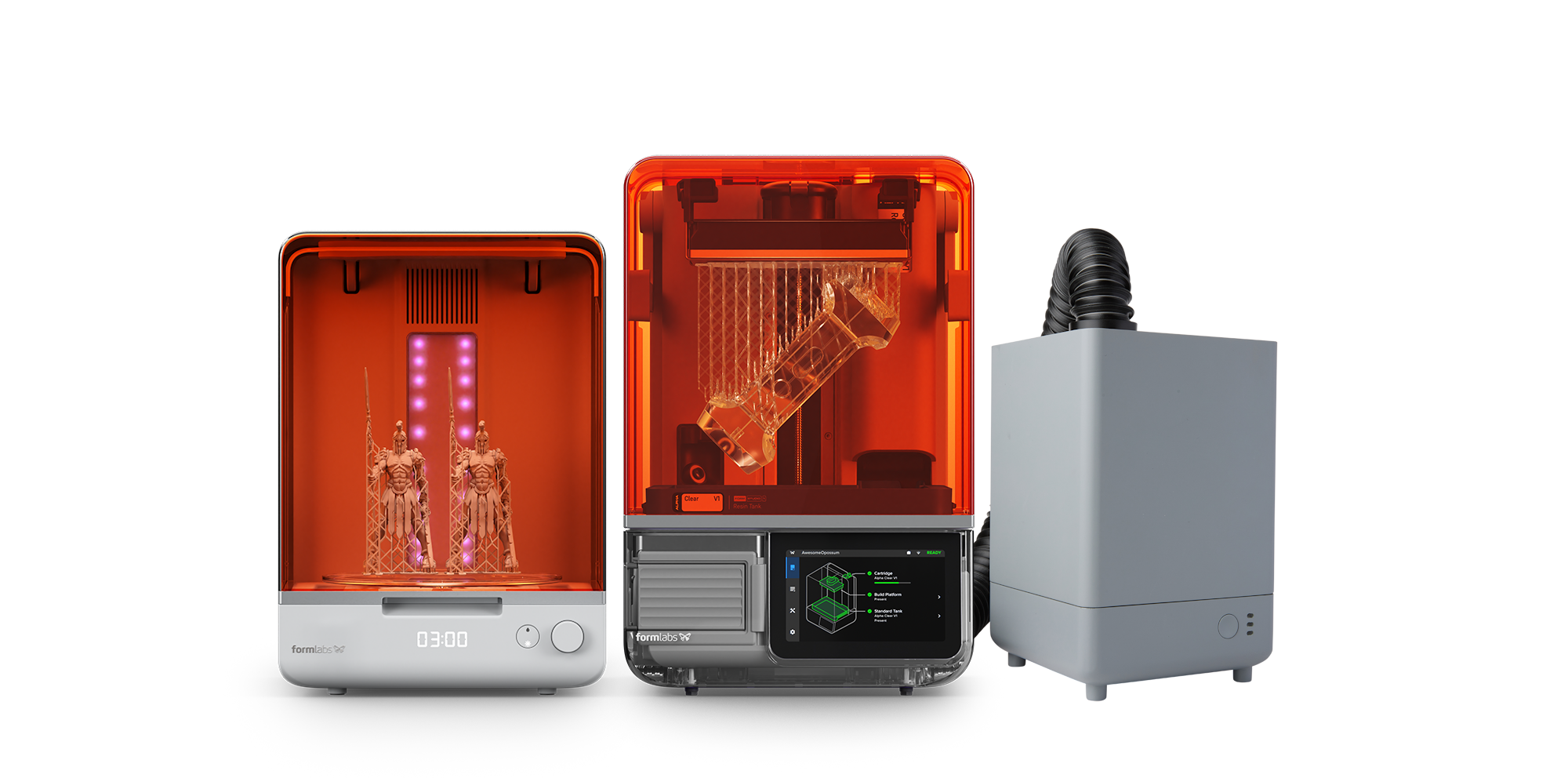

FORM STUDIO 1 GREENGUARD BUNDLE

TECH SPECS
