Formlabs Clear Resin V5
RESIN · FORM 4 SERIES
CLEAR RESIN V5
Overview

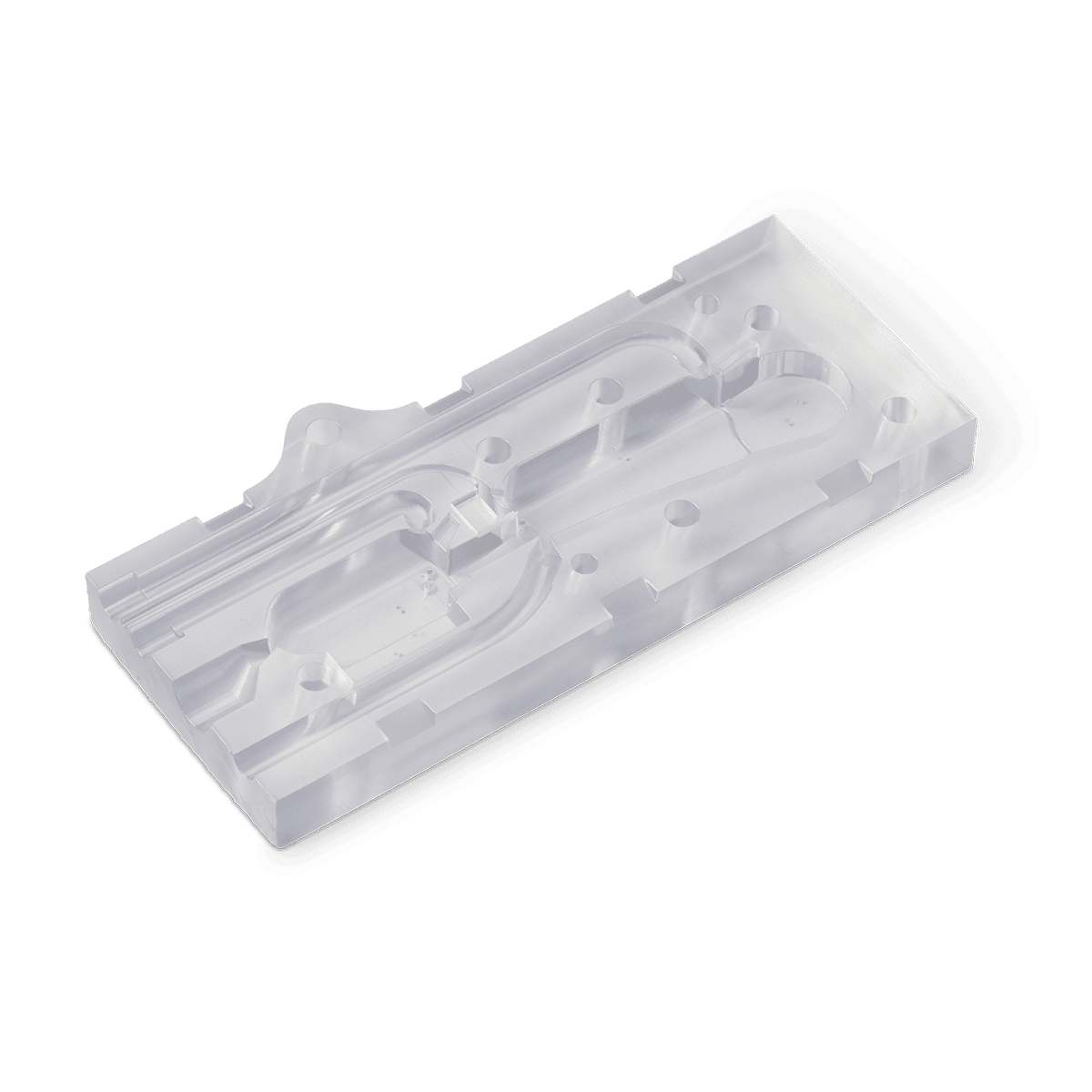

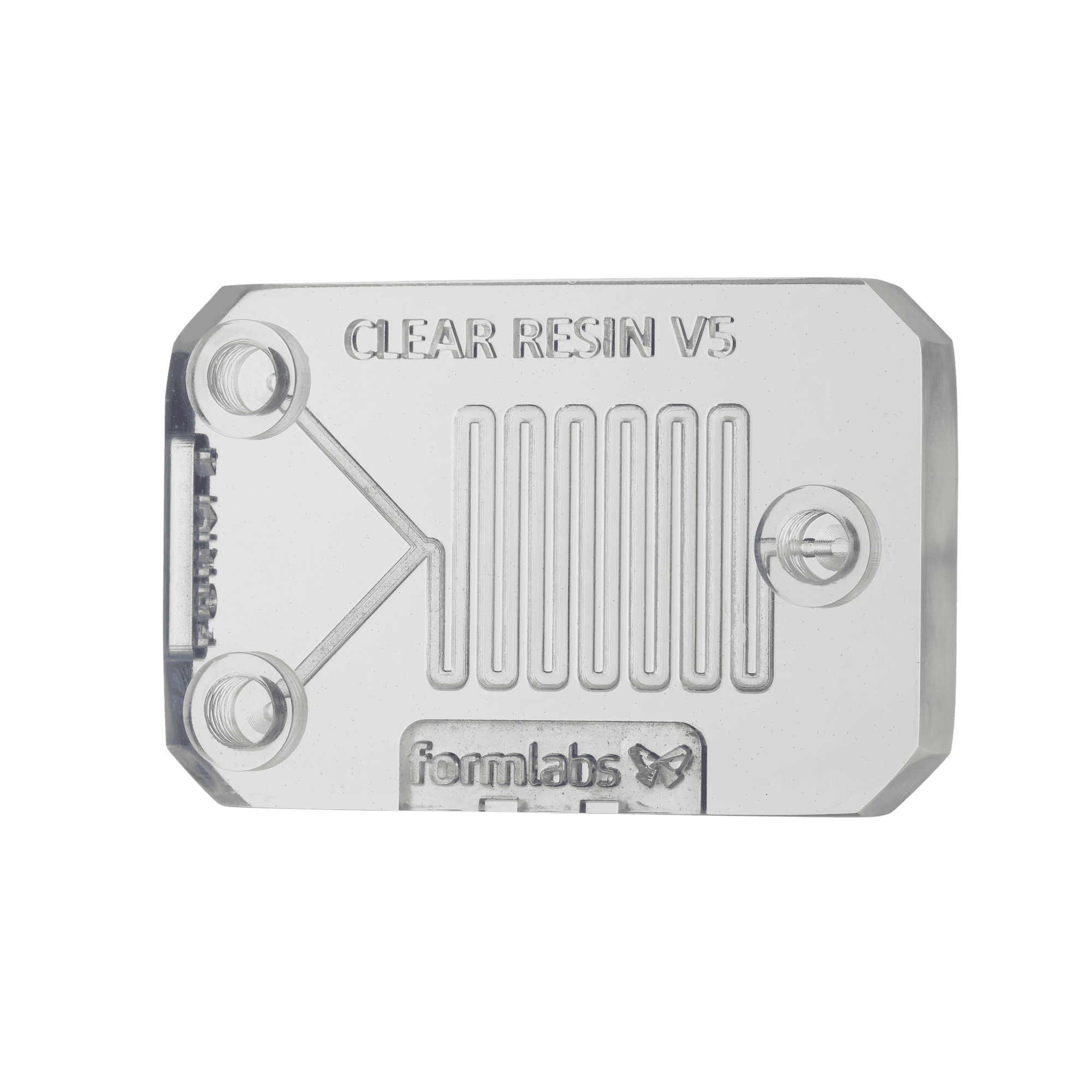

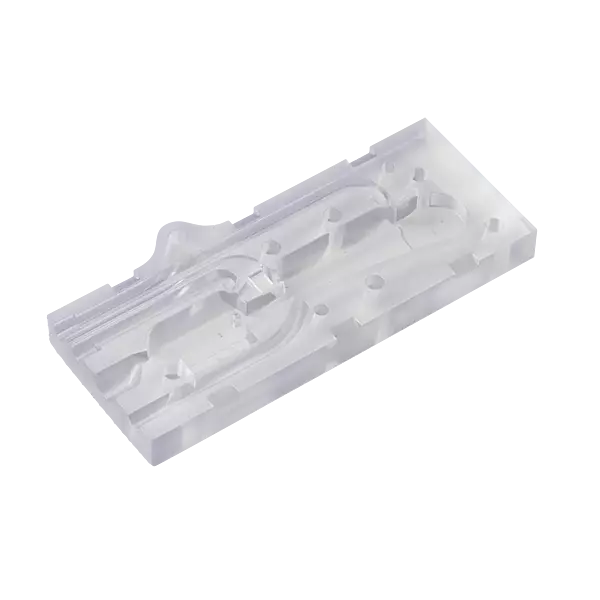

Clear Resin V5 is an exceptionally clear and color-neutral General Purpose Resin, offering an optimal balance of fast print speed, high dimensional accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow. It creates highly transparent and colorless parts that can be polished to near optical transparency. Parts produced with Clear Resin V5 are stiff and strong, possessing a smooth surface finish that rivals acrylic.


Why Choose Clear Resin V5
Clear Resin V5 offers high dimensional accuracy to achieve precise tolerances and fine features. It provides superior aesthetics with high-clarity, colorless parts that rival the transparency of acrylic. Versatile mechanical properties deliver an optimal balance of strength, toughness, and stiffness alongside an extremely low-odor printing experience. Recommended applications include transparent enclosures, optical components, lighting prototypes, molds, masters, rapid tooling, fluidic devices, and parts showcasing internal features.
Performance vs. V4
Compared to Clear Resin V4, Clear Resin V5 prints three times faster by leveraging the Form 4 ecosystem. It features improved clarity and color, while offering 2x elongation at break and 25% higher impact strength.
Technical Specifications
| Parameter | Clear Resin V5 |
|---|---|
| Ultimate Tensile Strength | 60.0 MPa |
| Tensile Modulus | 2750.0 MPa |
| Elongation at Break | 8.0 % |
| Flexural Strength | 105.0 MPa |
| Flexural Modulus | 2700.0 MPa |
| Notched Izod | 29.0 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 74.0 °C |
| Heat Deflection Temp. @ 1.8 MPa | 59.0 °C |
| Compatible Printer | Form 4, Form 4B, Form 4L, Form 4BL |
