Formlabs Grey Resin V5
RESIN · FORM 4 SERIES
GREY RESIN V5
Overview
Grey Resin V5 is an exceptionally versatile General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow. It produces stiff, strong parts with a surface finish that rivals injection molding. Grey Resin V5 features a rich, matte color that captures fine features accurately.


Why Choose Grey Resin V5

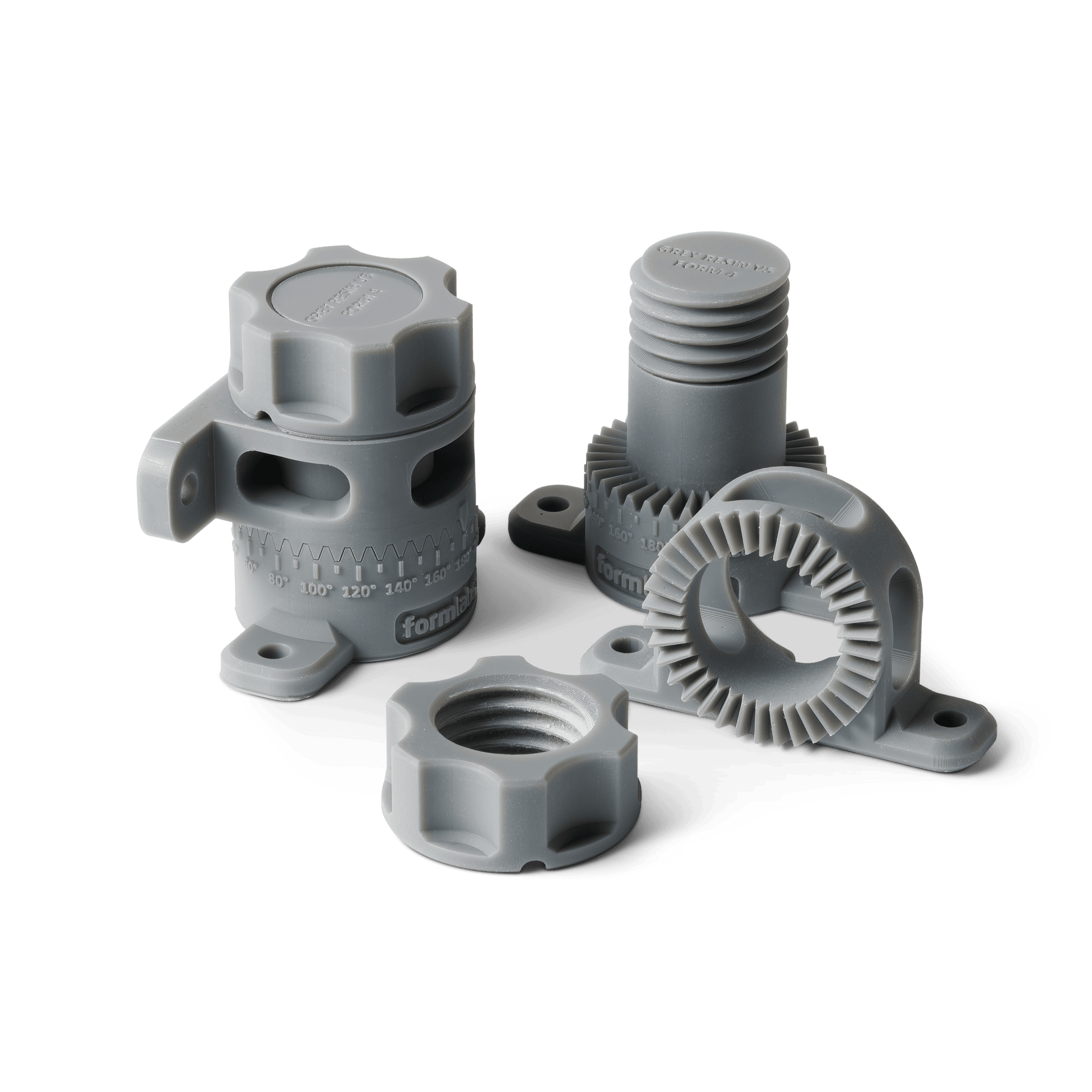

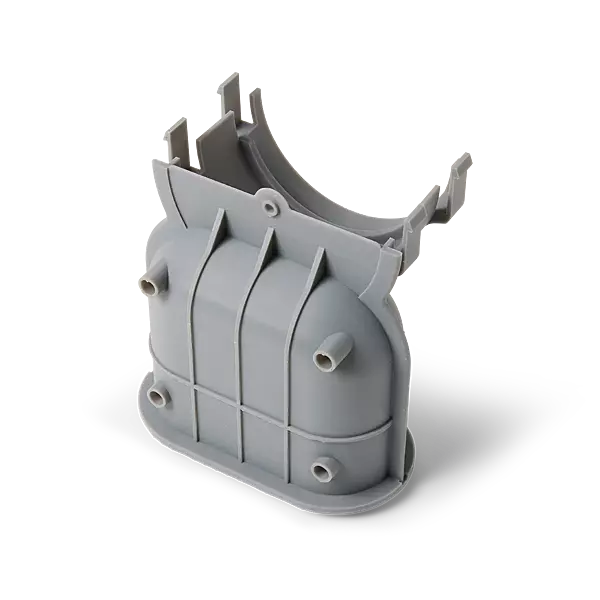

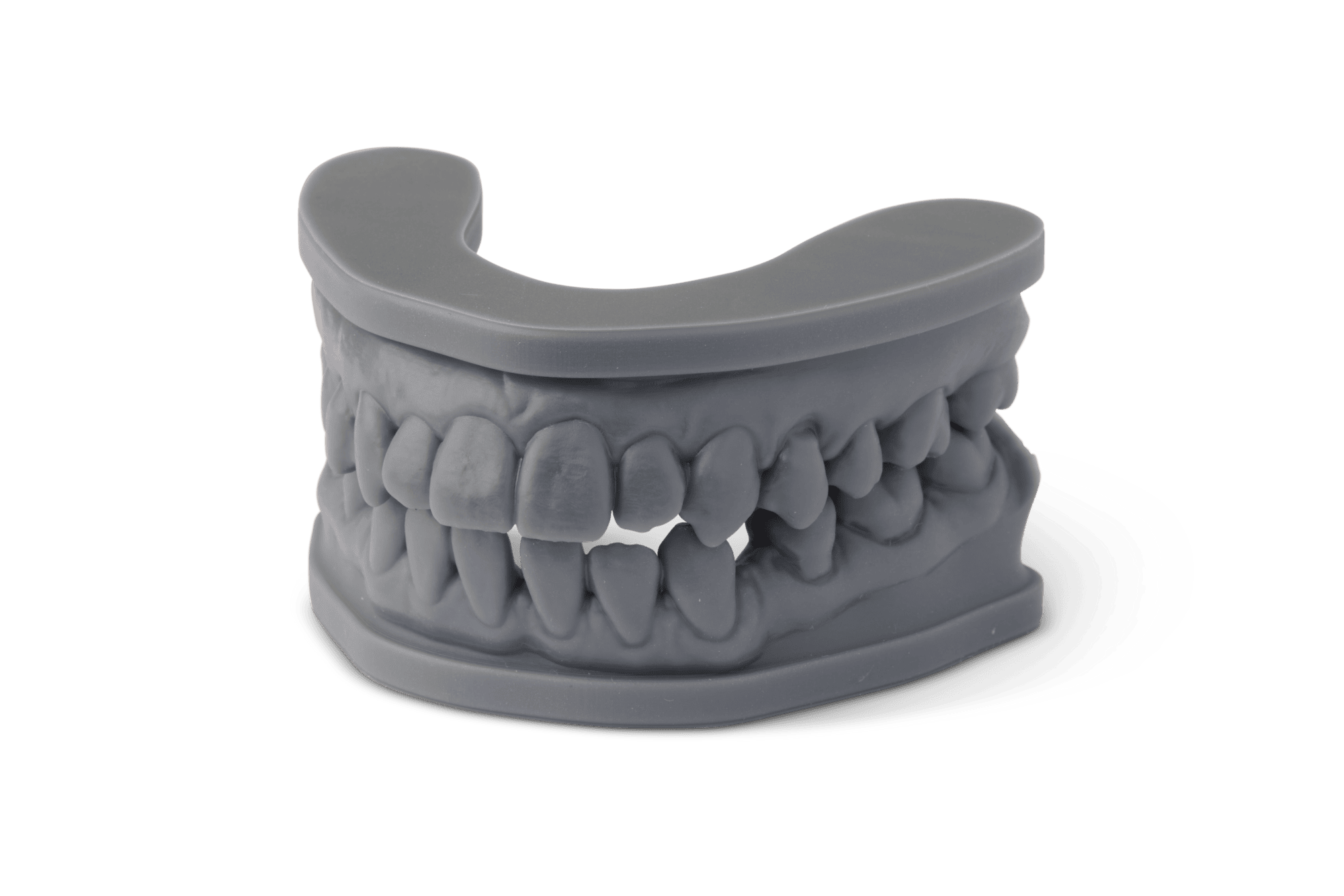

Grey Resin V5 offers high dimensional accuracy to achieve precise tolerances with XY dimensional tolerances of ±0.15% (lower limit: ±0.02 mm). It provides superior aesthetics with a rich, matte color and crisp fine feature performance that rivals injection-molded parts. Versatile mechanical properties deliver an optimal balance of strength, toughness, and stiffness alongside an ultra-low odor printing experience. Recommended applications include form and fit prototyping, presentation-ready models with fine features and intricate details, jigs and fixtures, and general dental models.
Performance vs. V4
Compared to Grey Resin V4, Grey Resin V5 prints three times faster by leveraging the Form 4 ecosystem. It is 30% tougher with higher impact strength and features a darker, richer matte color.
Technical Specifications
| Parameter | Grey Resin V5 |
|---|---|
| Ultimate Tensile Strength | 62.0 MPa |
| Tensile Modulus | 2675.0 MPa |
| Elongation at Break | 13.0 % |
| Flexural Strength | 103.0 MPa |
| Flexural Modulus | 2750.0 MPa |
| Notched Izod | 32.0 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 71.0 °C |
| Heat Deflection Temp. @ 1.8 MPa | 59.0 °C |
| Compatible Printer | Form 4, Form 4B, Form 4L, Form 4BL |
