Formlabs White Resin V5
RESIN · FORM 4 SERIES
WHITE RESIN V5
Overview
White Resin V5 is an exceptionally bright white General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow. It produces stiff, strong parts with a surface finish that rivals injection molding. White Resin V5 features a bright, matte shade that captures fine details with crisp clarity.


Why Choose White Resin V5

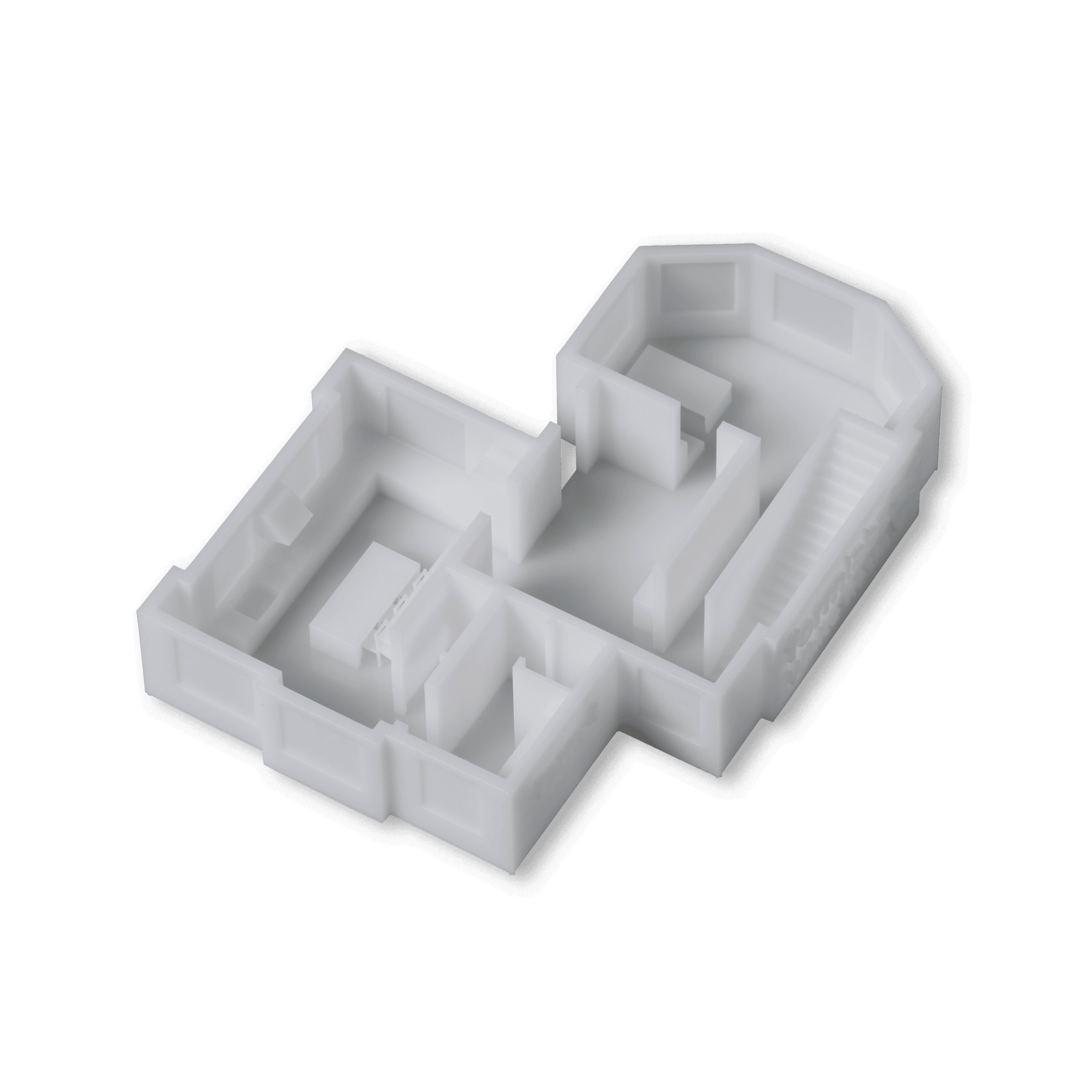

White Resin V5 offers high dimensional accuracy to achieve precise tolerances and resolve fine features. It provides superior aesthetics with a clean, matte color and surface finish that rivals injection-molded parts. Designed with versatile mechanical properties, it delivers an optimal balance of strength, toughness, and stiffness alongside an extremely low-odor printing experience. Recommended applications include rapid prototyping, scale and architectural models, anatomical models, diagnostic models, and dental applications.
Performance vs. V4
Compared to White Resin V4, White Resin V5 prints three times faster by leveraging the Form 4 ecosystem. It is brighter and crisper white in color while offering twice the elongation at break and 25% higher impact strength.
Technical Specifications
| Parameter | White Resin V5 |
|---|---|
| Ultimate Tensile Strength | 61.0 MPa |
| Tensile Modulus | 2650.0 MPa |
| Elongation at Break | 11.0 % |
| Flexural Strength | 103.0 MPa |
| Flexural Modulus | 2750.0 MPa |
| Notched Izod | 29.0 J/m |
| Heat Deflection Temp. @ 0.45 MPa | 62.0 °C |
| Heat Deflection Temp. @ 1.8 MPa | 54.0 °C |
| Compatible Printer | Form 4, Form 4B, Form 4L, Form 4BL |
