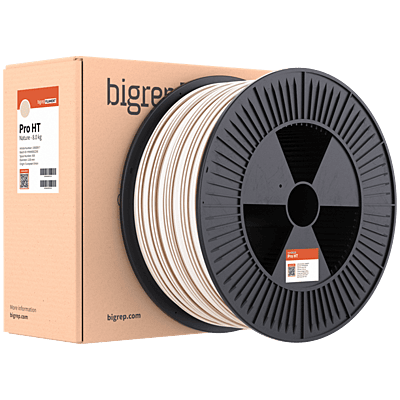

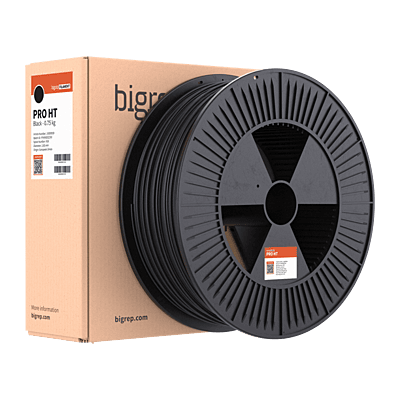

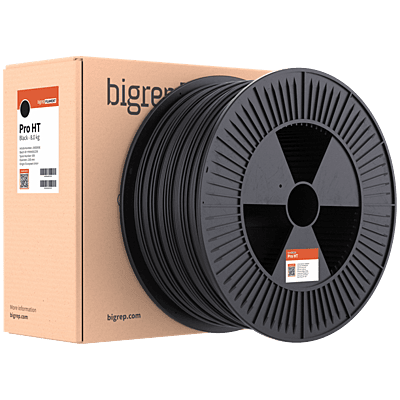

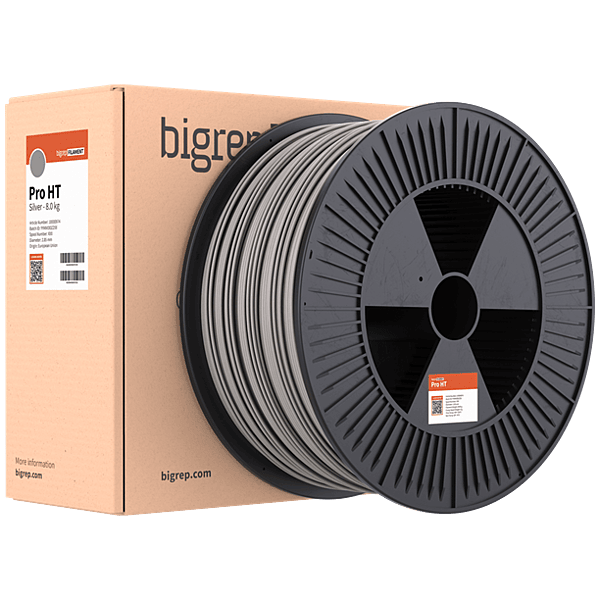

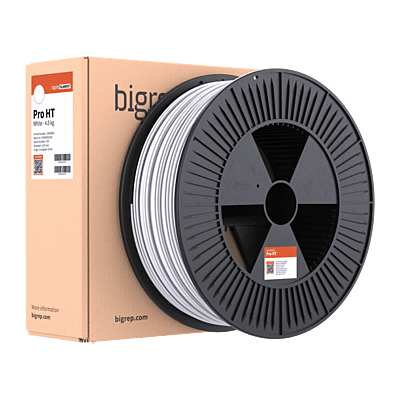

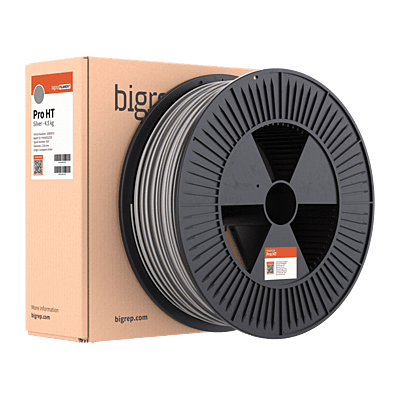

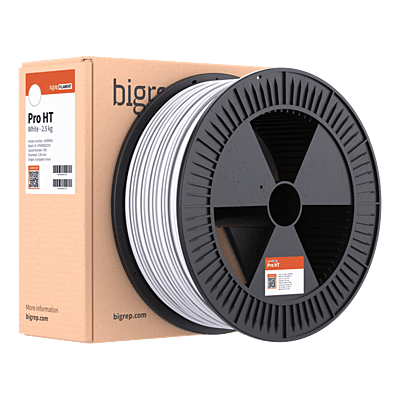

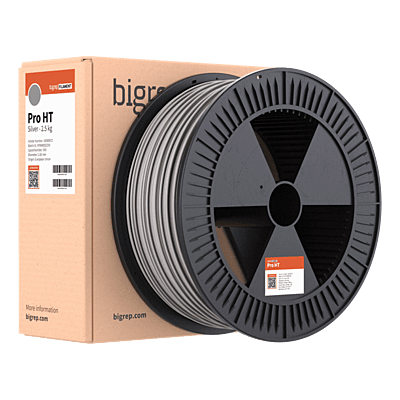

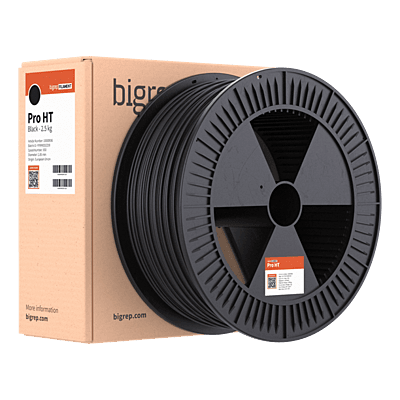

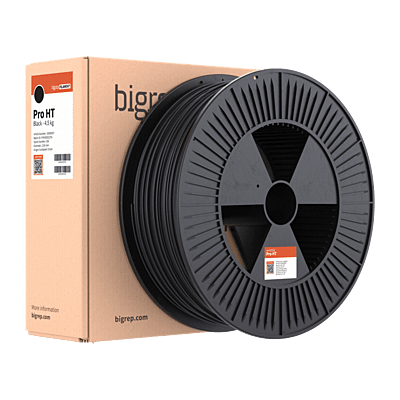

BigRep PRO-HT
BigRep PRO HT High-Performance Biopolymer Filament
BigRep PRO HT is a versatile biopolymer filament engineered to deliver excellent printability, consistent part quality, and balanced mechanical performance for a wide range of industrial applications. Designed for functional prototyping, manufacturing aids, and low-volume production, PRO HT is one of BigRep’s most widely used “all-around” engineering materials.
Featuring a clean matte surface finish and reliable processing behavior, PRO HT produces aesthetically consistent parts with minimal post-processing. Its combination of stiffness, impact resistance, and dimensional stability makes it suitable for prototypes, tooling, fixtures, and end-use components intended for indoor and light-duty environments.
Derived from bio-based materials, PRO HT is designed with a reduced environmental footprint compared to fossil-based thermoplastics, while still maintaining dependable industrial performance.
Key Benefits
• Easy to print on a wide range of FDM/FFF printers
• Attractive matte surface finish
• Excellent dimensional stability
• Good impact resistance and toughness
• Effortless breakaway support removal
• Reduced environmental impact biopolymer formulation
• Suitable for large-format additive manufacturing
• Consistent, production-ready print quality
Typical Applications
• Functional prototypes
• Manufacturing fixtures and tooling
• Jigs and assembly aids
• Custom automotive interior components
• End-use indoor parts
• Low-volume production components
• Product development and testing
• Educational and engineering models
PRO HT delivers a strong balance between usability and performance, making it a reliable choice for engineers and manufacturers who need predictable printing behavior without the complexity of high-temperature engineering plastics.
Specifications
Material: BioPolymer Blend
Physical Properties
• Diameter: 2.85 mm
• Density: 1.30 g/cm³
Mechanical Properties
• Tensile Strength: 45 MPa
• Tensile Modulus: 3100 MPa
• Flexural Strength: 60 MPa
• Flexural Modulus: 3000 MPa
• Notched Impact Strength: 8 kJ/m²
Thermal Properties
• Heat Deflection Temperature (1.8 MPa): 55°C
• Heat Deflection Temperature (0.45 MPa): 61°C
• Vicat Softening Temperature: 116°C
• Glass Transition Temperature (Tg): 60°C
• Melting Temperature: 170°C
Recommended Print Settings
• Nozzle Temperature: 190–230°C
• Build Plate Temperature: 50–70°C
• Cooling Fan: 50–100%
Additional Information
• Drying Recommendation: 50°C for 4–6 hours
• REACH Compliant: Yes
• RoHS Compliant: Yes
• FDA Compliant: Yes (except Silver)
