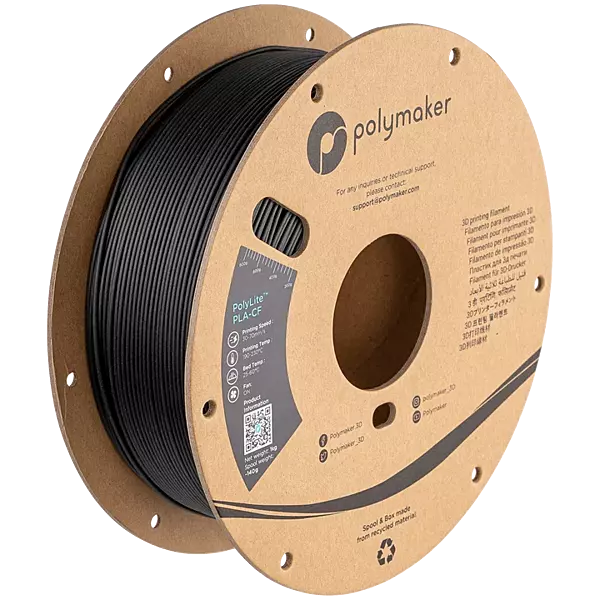

PolyLite™ PLA-CF 1.75mm Carbon Fiber Reinforced PLA Filament

PolyLite™ PLA-CF is a high-performance PLA filament reinforced with 8% chopped carbon fiber by weight, providing increased rigidity, strength, and dimensional stability compared to standard PLA. Its carbon fiber formulation also produces a distinctive matte black surface finish that helps conceal visible layer lines for a clean, professional appearance.

PolyLite™ PLA-CF is designed for functional prototypes, engineering components, mechanical parts, and other applications where stiffness, precision, and appearance are important. Despite its carbon fiber reinforcement, it maintains the straightforward printing characteristics of PLA and can be printed using standard PLA-style settings.

Key Benefits

• 8% chopped carbon fiber reinforcement

• High rigidity and stiffness

• Improved strength

• Excellent dimensional stability

• Low shrinkage

• Smooth matte black surface finish

• Helps conceal visible layer lines

• Easy to print using PLA-style settings

• Suitable for functional and engineering applications

• No heated chamber required

• 1.75mm filament diameter

• Hardened nozzle required due to abrasive carbon fiber

Typical Applications

• Functional prototypes

• Engineering components

• Mechanical parts

• Fixtures and tooling

• Automotive prototypes

• Housings and enclosures

• Brackets and mounts

• Structural components

• Industrial prototypes

• Precision models

• High-rigidity components

PolyLite™ PLA-CF is an excellent choice when increased rigidity, dimensional accuracy, and a professional matte appearance are required while retaining the convenience of PLA-based printing.

Specifications

Material: Carbon Fiber Reinforced PLA

Carbon Fiber Content: 8% by weight

Filament Diameter: 1.75 mm

Net Weight: 1 kg

Color: Black

Density: 1.29 g/cm³ at 23°C

Melt Index: 9.2 g/10 min at 210°C, 2.16 kg

Mechanical Properties

• Young's Modulus (X-Y): 3280.7 MPa

• Young's Modulus (Z): 2213.1 MPa

• Tensile Strength (X-Y): 31.2 MPa

• Tensile Strength (Z): 15.1 MPa

• Elongation at Break (X-Y): 13.2%

• Elongation at Break (Z): 0.9%

• Bending Modulus (X-Y): 3380.5 MPa

• Bending Strength (X-Y): 51.7 MPa

• Notched Charpy Impact Strength (X-Y): 5.5 kJ/m²

Thermal Properties

• Glass Transition Temperature (Tg): 52.83°C

• Melting Temperature: 155.43°C

• Vicat Softening Temperature: 64°C

• Heat Deflection Temperature (0.45 MPa): 54°C

Recommended Print Settings

• Nozzle Temperature: 190–230°C

• Build Plate Temperature: 25–60°C

• Printing Speed: 50–300 mm/s

• Cooling Fan: ON

• Retraction Distance: 1–3 mm

• Retraction Speed: 20–40 mm/s

• Chamber: Not required

• Build Surface: PC and Textured PEI

• Drying: 55°C for 6 hours

• Recommended Support Materials: PolySupport™ and PolyDissolve™ S1

• Nozzle: Hardened nozzle required

Because the carbon fiber reinforcement is abrasive, a hardened nozzle should be used to prevent excessive wear on standard brass nozzles.

Additional Information

• Chemical resistance: Good against weak acids and oils/grease; fair against weak alkalis; poor against strong acids and strong alkalis.

• Surface Finish: Matte black with excellent layer-line concealment.

• Dimensional Stability: Low shrinkage helps maintain accurate part dimensions.

Note: Material shipment times are subject to PolyMaker warehouse stock and production times.
