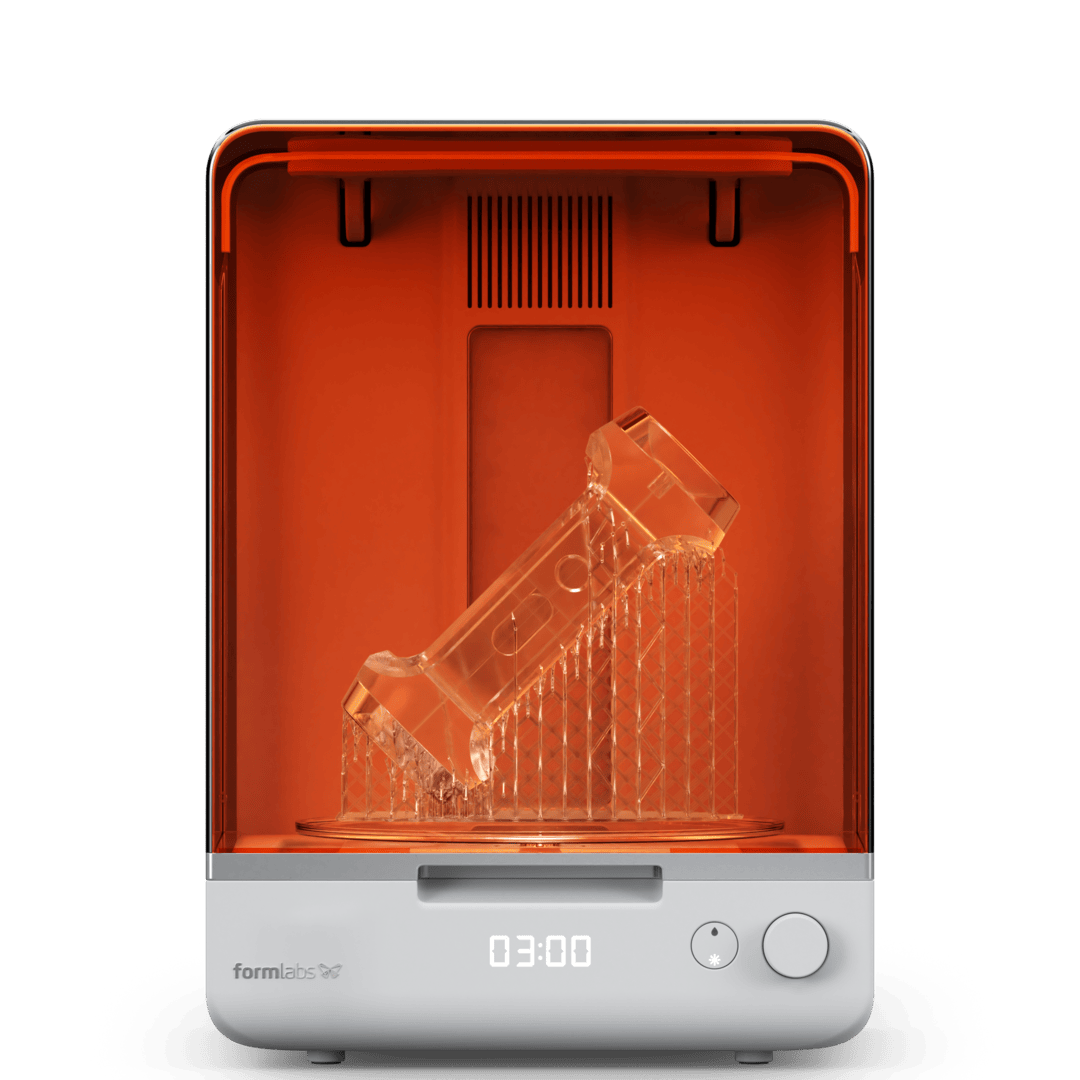

FORM STUDIO WASH + CURE
Form Studio Wash+Cure is an all-in-one, compact, and

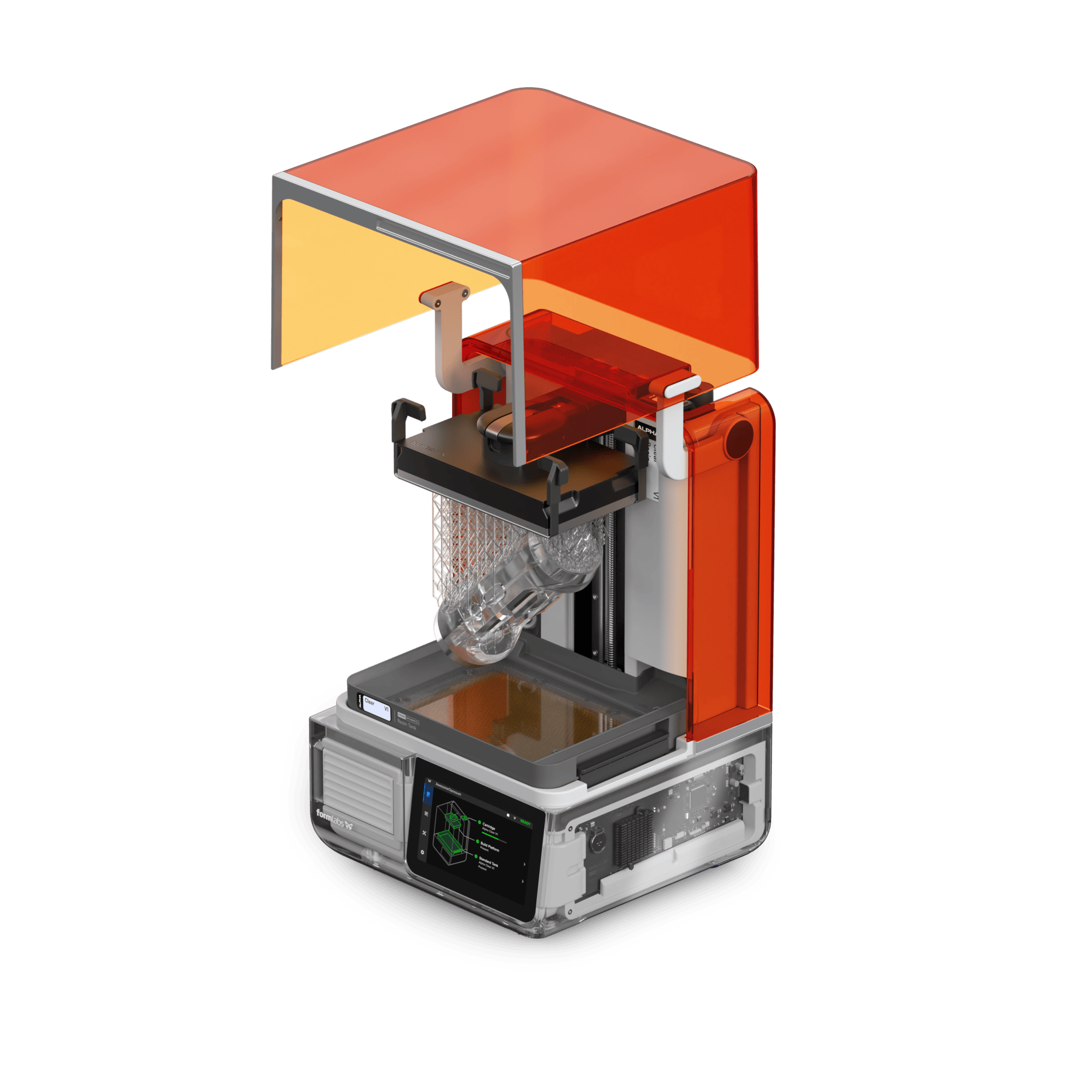

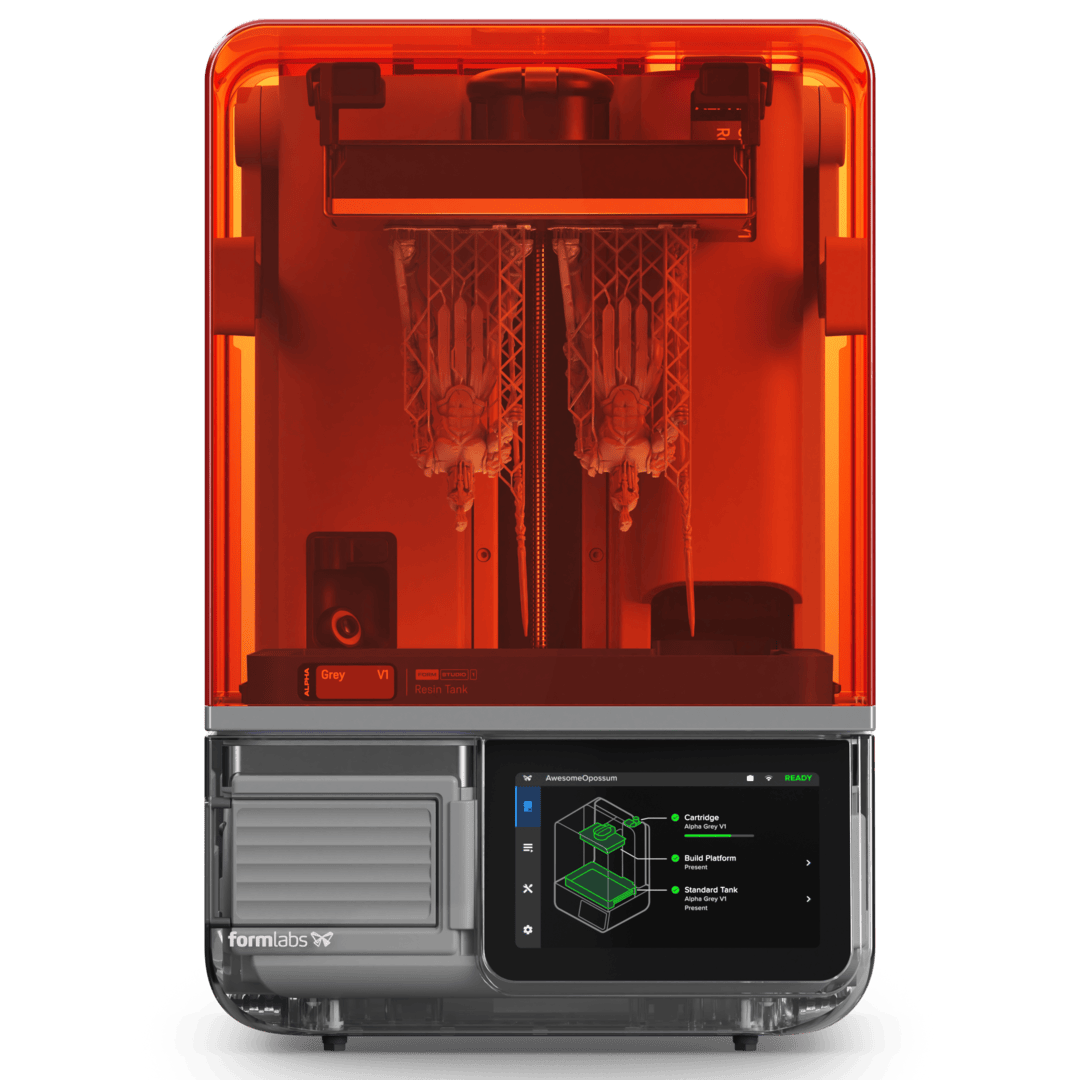

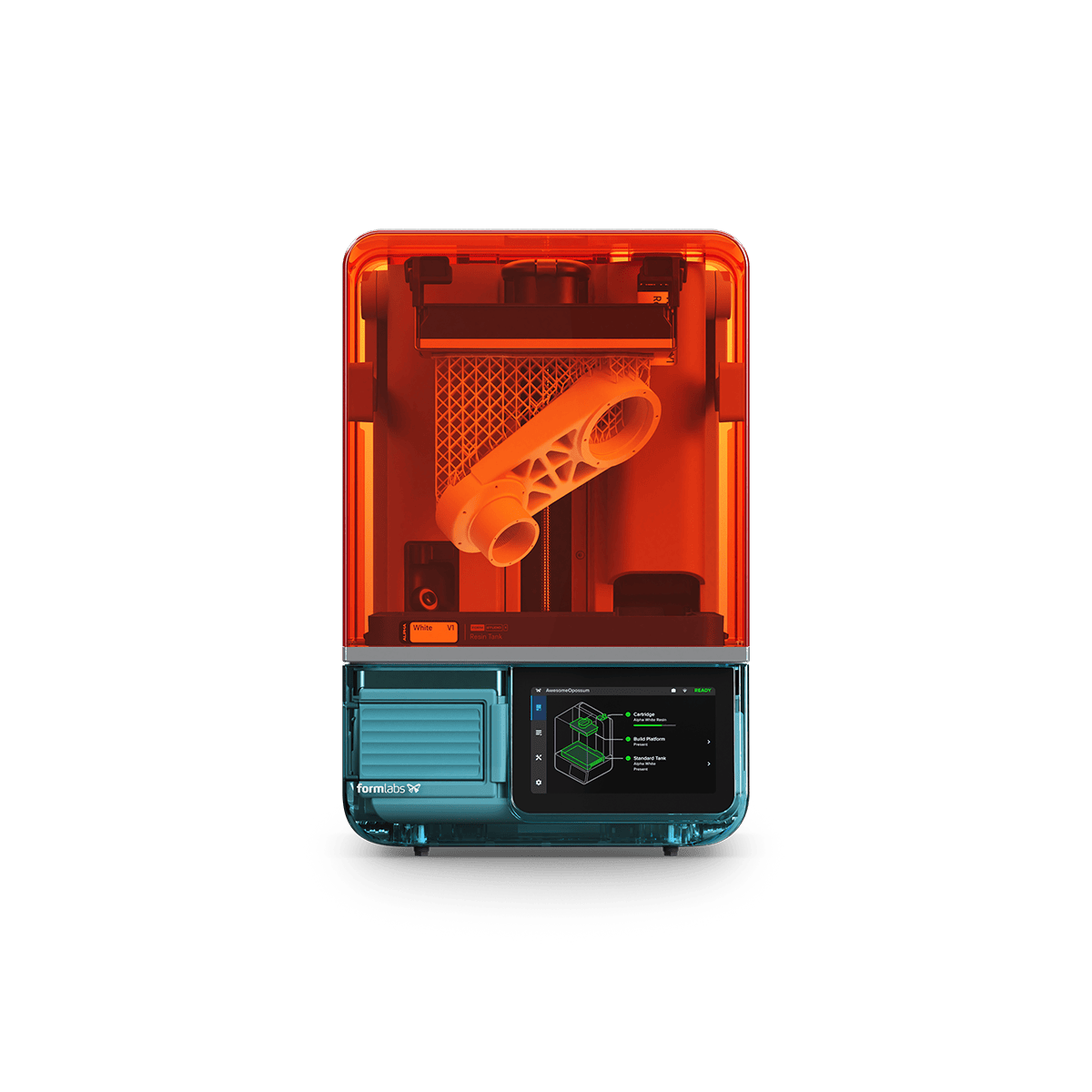

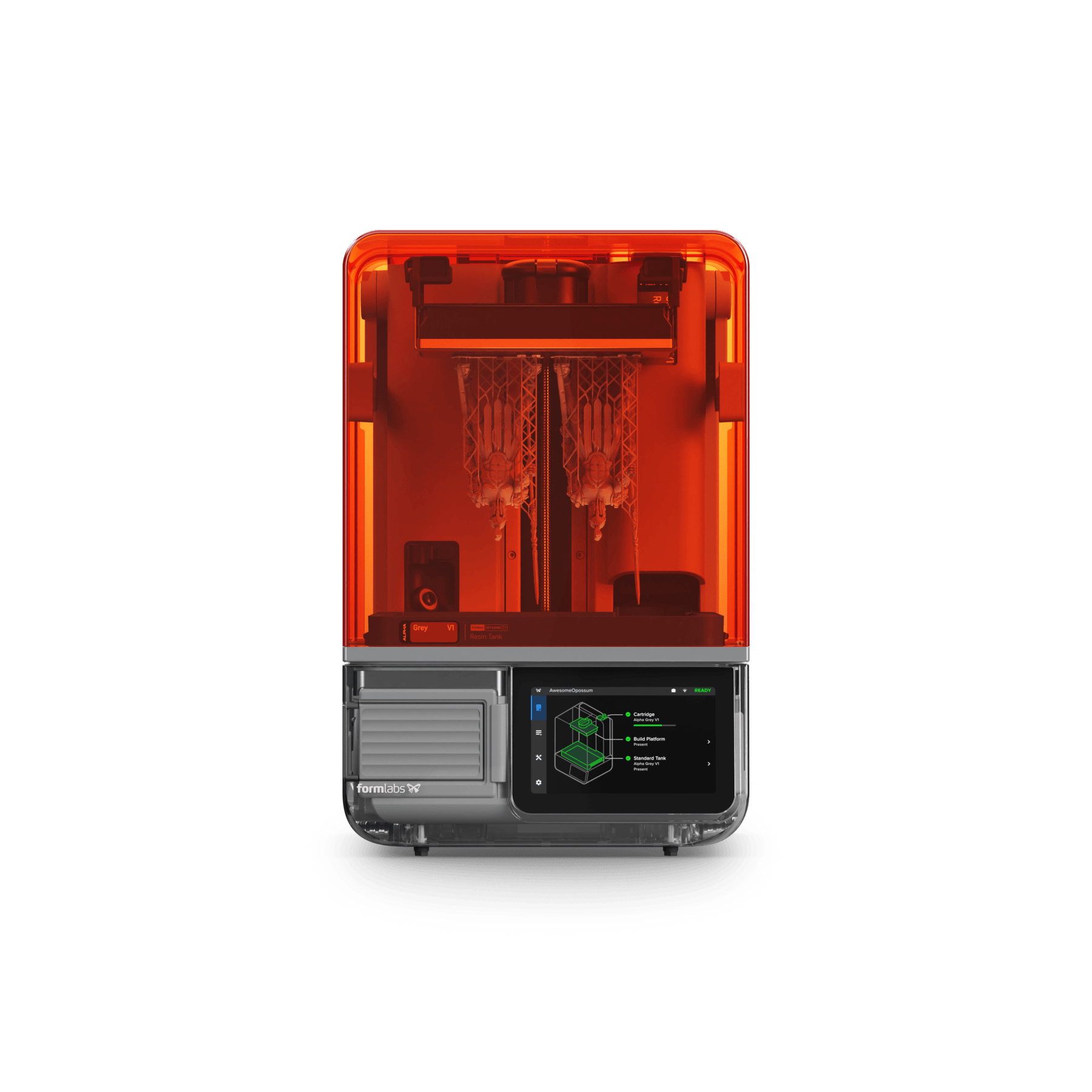

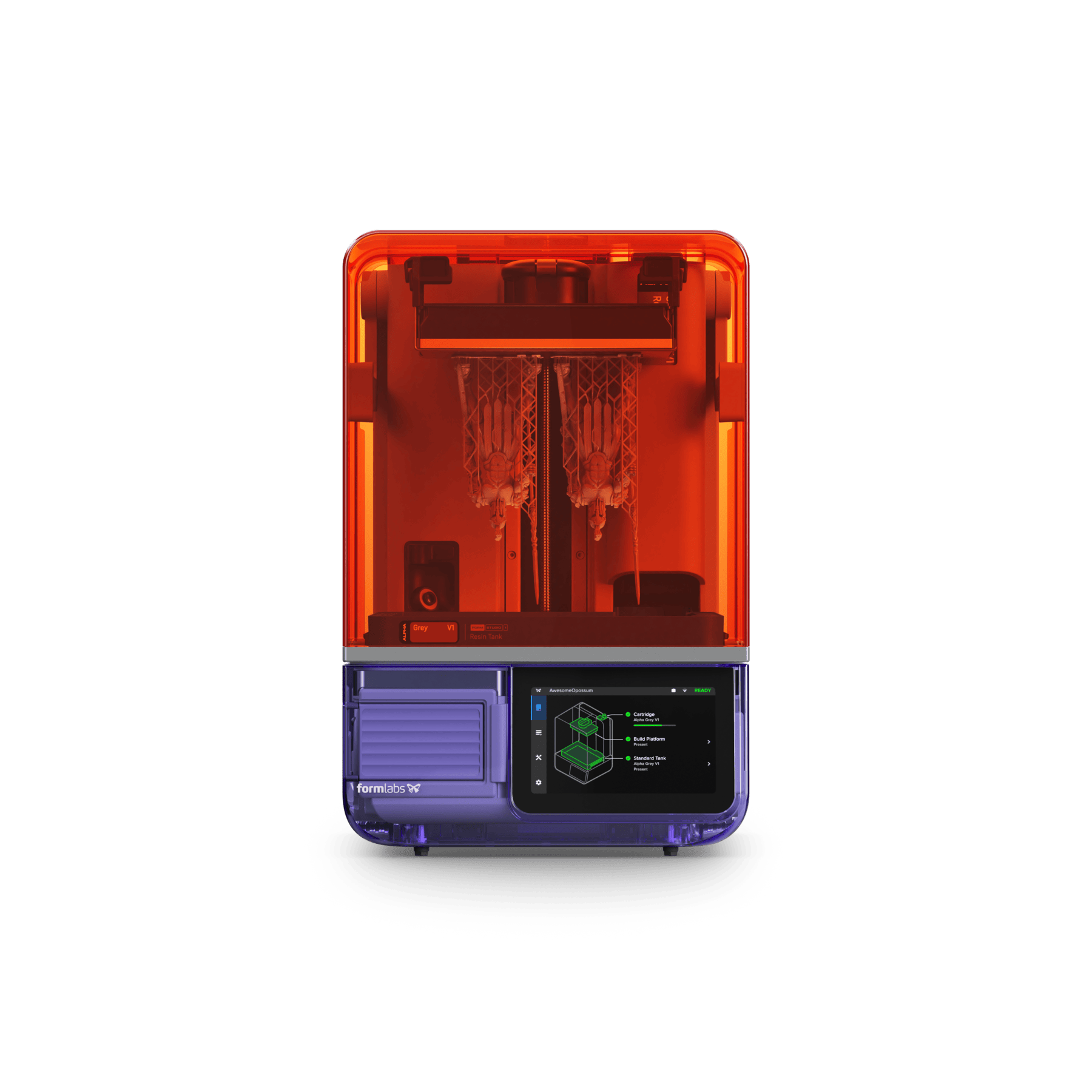

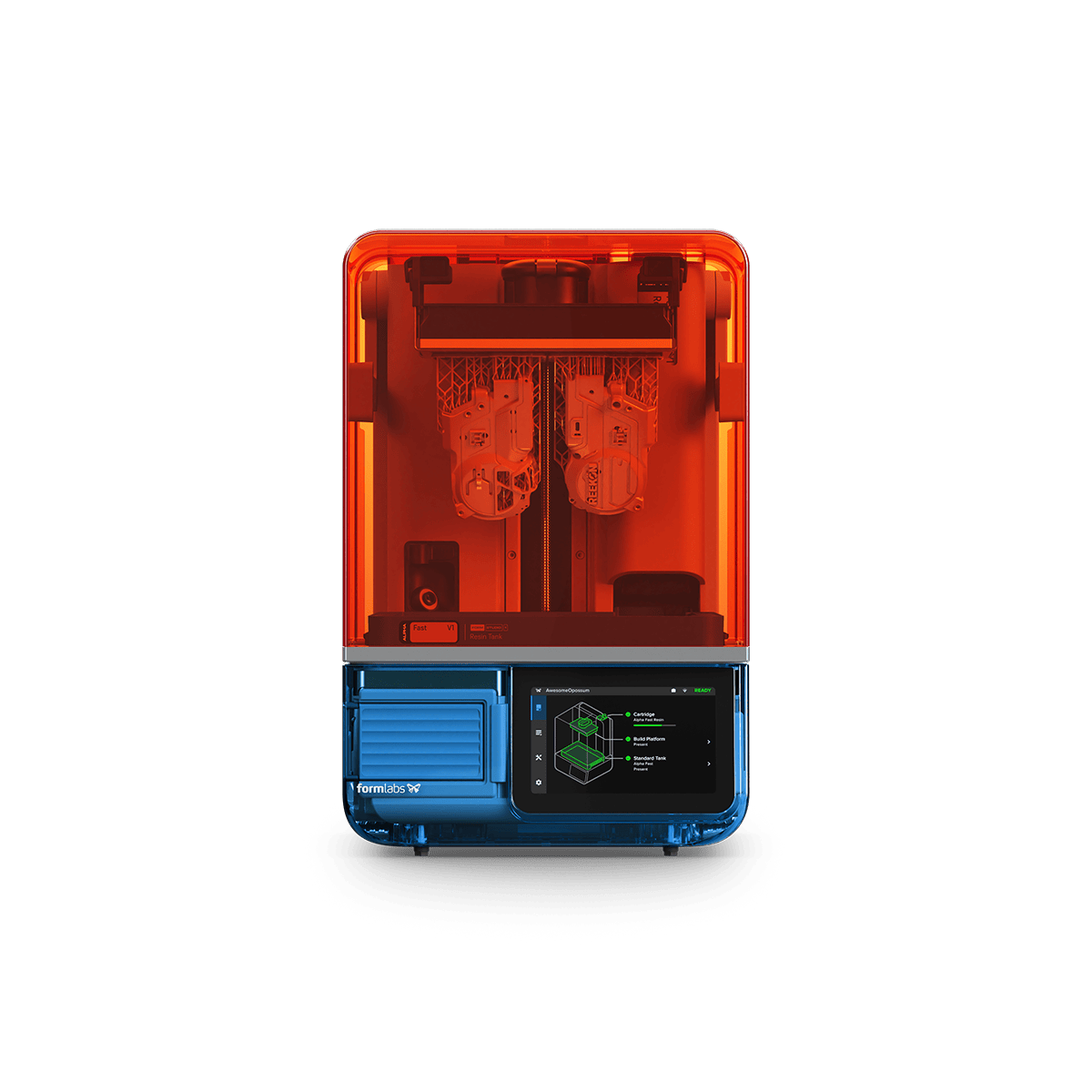

FORM STUDIO 1
Blazing fast: most parts print in under two hours, with speeds up to 130 mm/h on Alpha Fast Resin
Amazing parts: a 35 µm pixel, anti-aliasing, and resins tuned to the light engine deliver sharp edges and smooth surfaces
Automatic resin handling: integrated, hands-free dispensing with glove-free material swaps in under a minute
Open platform: Open Material Mode is included, so customers can print in any 405 nm resin with no license fee!

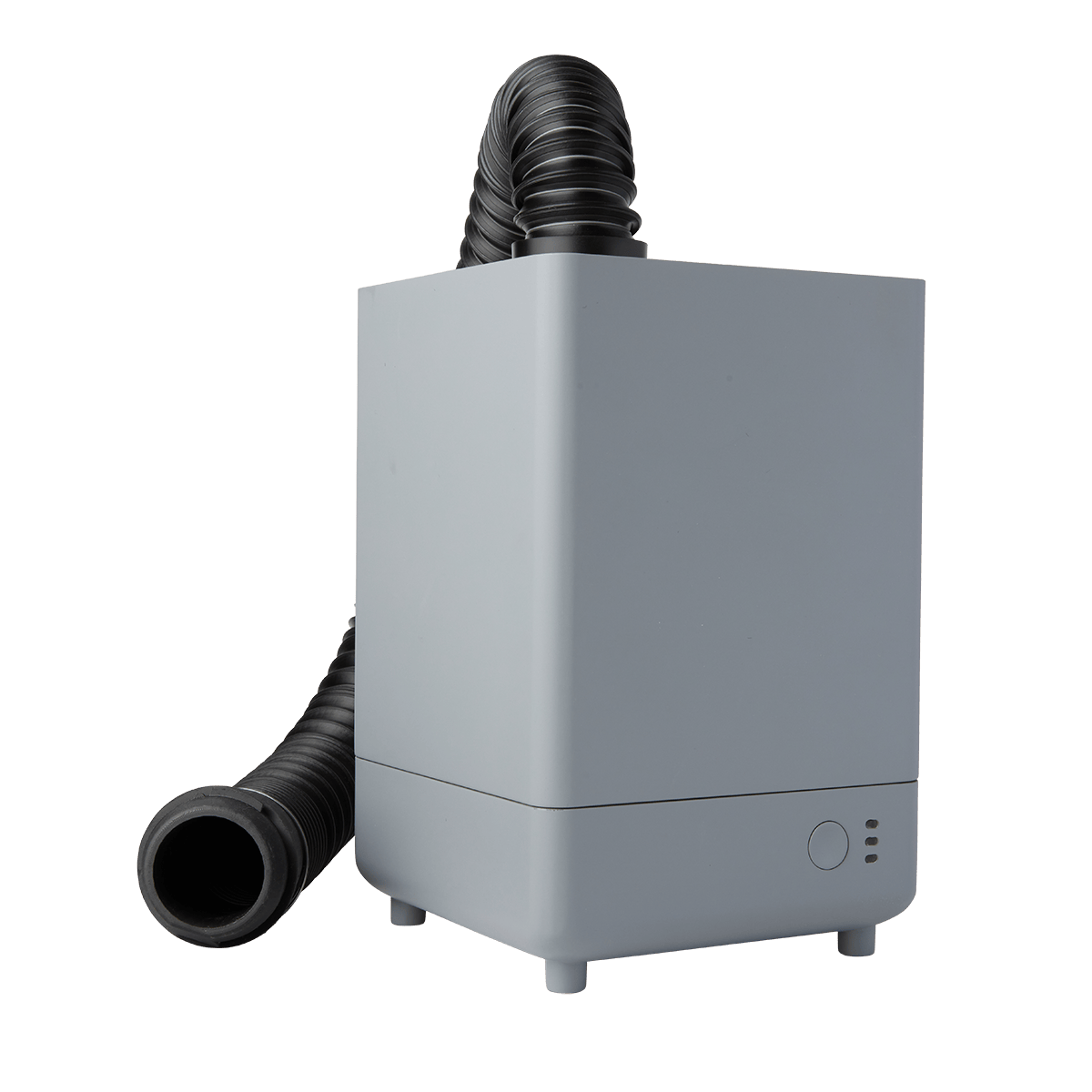

VOC EXTRACTOR
VOC Extractor is a compact add-on that reduces volatile organic compound levels while your printer runs. Air passes through two carbon filters, lasting roughly 330 hours of print time and replaceable in seconds. Three fan speeds let you match airflow to your needs.
01 - PICK A MATERIAL
Go from a design to printing in min-
02 - PREPARE
Go from a design to printing in min-
03 - PRINT
Go from a design to printing in min-
04 - POST PROCESS
Finish your prints in one place. Easy,
Tech Specs
| Feature | Specification |
| Maximum Print Speed¹ | 130 mm/hour |

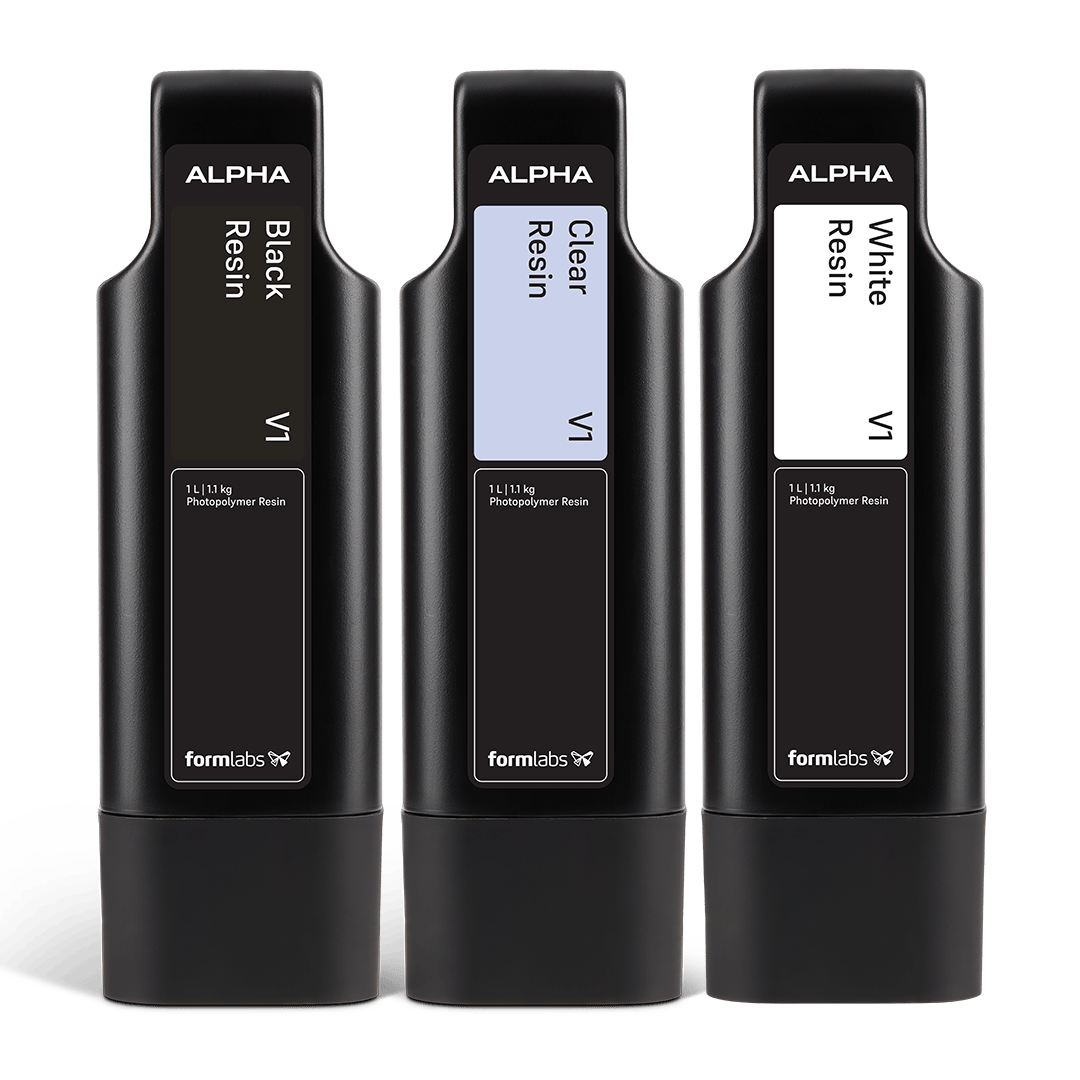

| Materials | Resin Tank: Alpha Black, Grey, White, Clear, Model, and Fast Resins Pro Resin Tank: Tough 1500 v2, True Cast, Flexible 80A V2 Open Materials |
| Build Volume (W x D x H)⁵ | 20.0 × 12.5 × 23.5 cm / 7.9 × 4.9 × 9.3 in |
| XY Resolution | 35μm |
| Printer Weight | 14.3 kg | 31.5 lb |
| Printer Dimensions | 34.2 x 31.5 x 50.2 cm | 13.5 x 12.4 x 19.8 in |
| Layer Thickness⁸ | 25–250 μm | 0.001–0.010 in |
| Camera | Integrated camera |

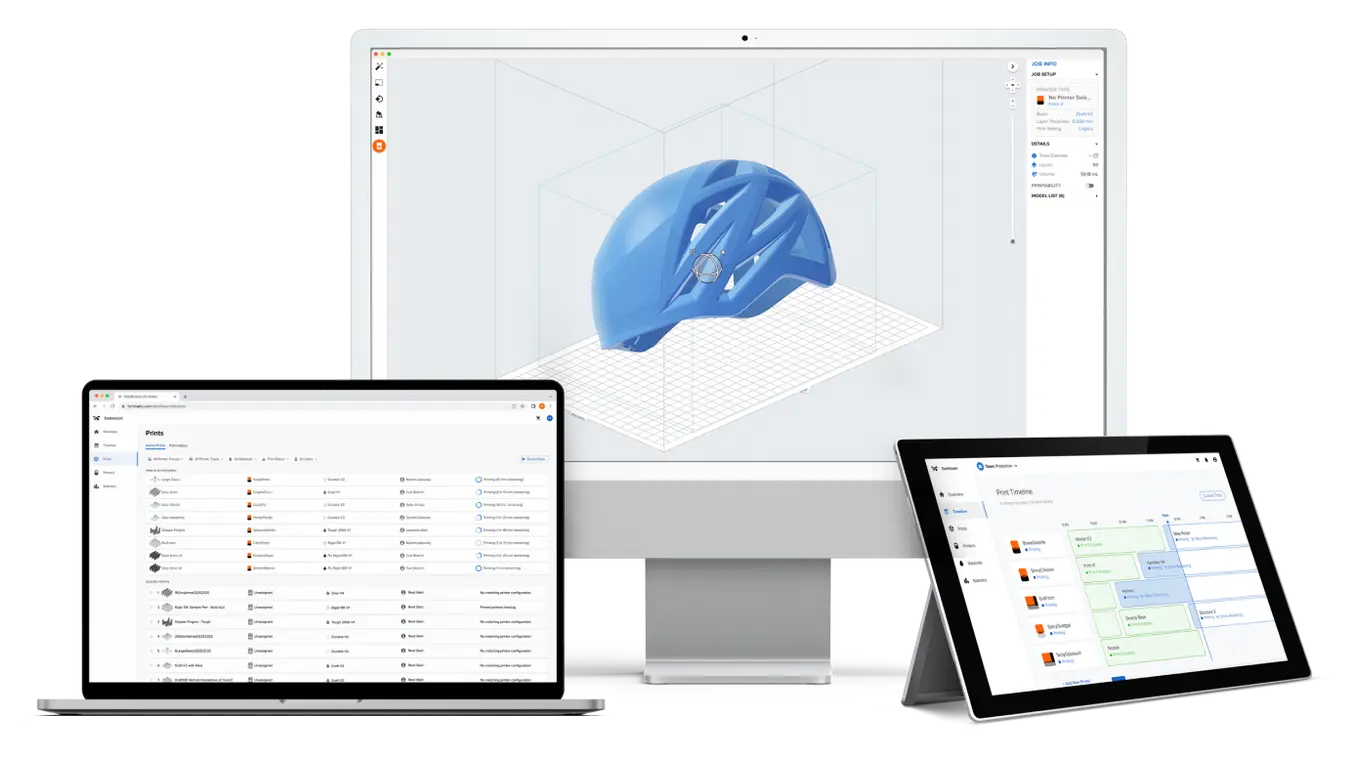

| Software | PreForm, Dashboard |
