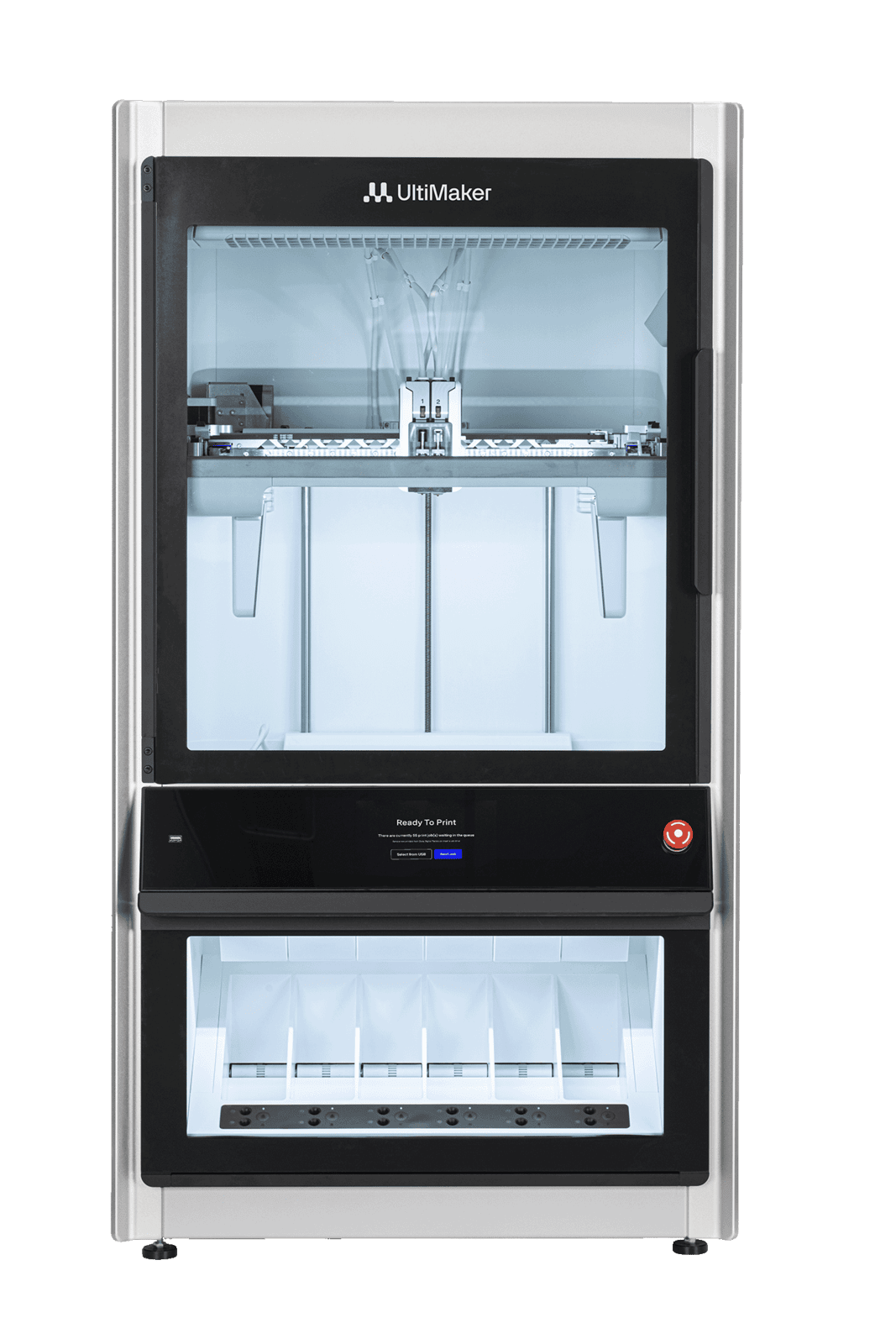

Factor 4
Unrivaled Predictablility & Minimal Variance
The UltiMaker Factor 4, delivers industrial-grade performance with reliable and repeatable results. This new 3D printer streamlines production, simplifies processes, and keeps operations running smoothly. With support for engineering materials, direct dual extrusion, onboard print process reporting, and other innovations, it offers unrivaled predictability and minimal variance.
• A future-proof investment
• Built for the factory floor
Direct Dual Extrusion

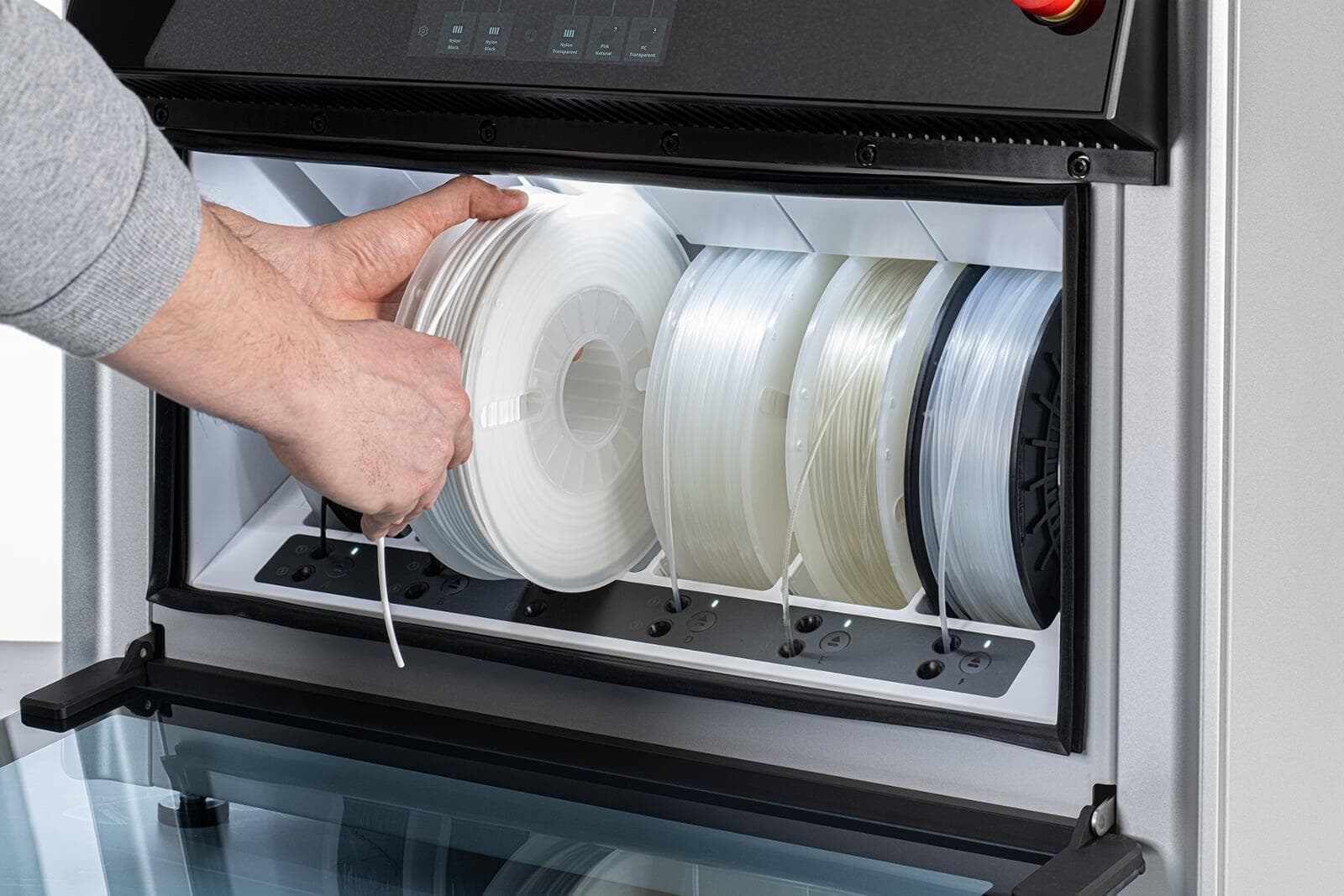

The Factor 4 revolutionizes manufacturing with its triple-insulated build chamber and direct dual extrusion capabilities. The automated material handling system preserves filament quality, while the sturdy, temperature-controlled design guarantees consistent production output even for complex and challenging designs.
The Factor 4 revolutionizes manufacturing with its triple-insulated build chamber and direct dual extrusion capabilities. The automated material handling system preserves filament quality, while the sturdy, temperature-controlled design guarantees consistent production output even for complex and challenging designs.
Extrusion Tailored for Flexible Materials

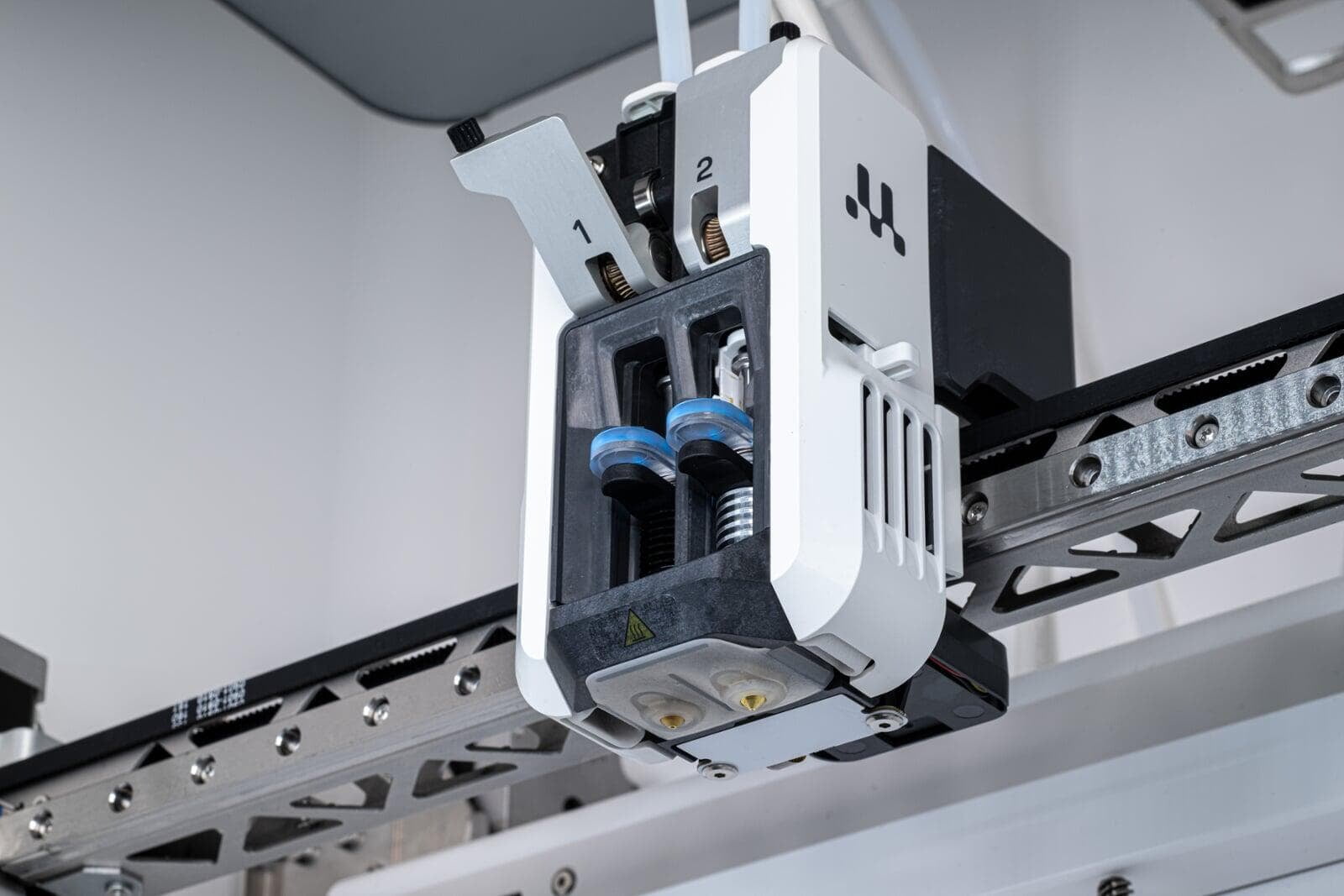

The The Factor 4 sets a new standard in versatility with its direct drive extrusion system tailored for flexible materials. Whether it's handling highly flexible filaments or robust composites like UltiMaker PPS-CF, this cutting-edge technology ensures seamless transitions between different printing tasks. Thanks to its innovative H-bridge gantry and direct drive head, the Factor 4 enables rapid dual-material printing, facilitating efficient production of diverse designs with unparalleled precision and speed.
The The Factor 4 sets a new standard in versatility with its direct drive extrusion system tailored for flexible materials. Whether it's handling highly flexible filaments or robust composites like UltiMaker PPS-CF, this cutting-edge technology ensures seamless transitions between different printing tasks. Thanks to its innovative H-bridge gantry and direct drive head, the Factor 4 enables rapid dual-material printing, facilitating efficient production of diverse designs with unparalleled precision and speed.
Success with Every 3D Print
The Factor 4 enables the additive production and deployment of structural integrity-verified parts across various locations. Its consistent extrusion rate and mechanical properties, with less than 10% variance batch after batch and part after part, are achieved through the H-bridge gantry, closed-loop feed control, and uniformly controlled build plate temperatures—maintaining a maximum variation of only 2°C across the X and Y axes.
The Factor 4 enables the additive production and deployment of structural integrity-verified parts across various locations. Its consistent extrusion rate and mechanical properties, with less than 10% variance batch after batch and part after part, are achieved through the H-bridge gantry, closed-loop feed control, and uniformly controlled build plate temperatures—maintaining a maximum variation of only 2°C across the X and Y axes.
A Future-Proof Investment
The versatility and quality of Factor 4 lead to rapid ROI. Continuous updates guarantee that your Factor 4 evolves over time, extending its value well beyond the typical 12 to 18-month return on investment period. Additionally, the 3D printer's modular construction enables our global support network to swiftly replace parts, reducing downtime to a minimum.
The versatility and quality of Factor 4 lead to rapid ROI. Continuous updates guarantee that your Factor 4 evolves over time, extending its value well beyond the typical 12 to 18-month return on investment period. Additionally, the 3D printer's modular construction enables our global support network to swiftly replace parts, reducing downtime to a minimum.
UltiMaker Factor 4 Specifications
Dimensions:
| Build Volume: | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled Dimensions: | 695 x 605 x 1287 mm (27.5 x 24 x 51 inches) |
| Print technology: | Fused filament fabrication (FFF) |
| Weight: | 120 kg (265 lbs) |
| Compatible Filament Diameter: | 2.85 mm |
| Maximum Power Output: | 600 W |
Printer Properties:
| XYZ Resolution: | 6.9, 6.9, 2.5 micron |
| Layer Resolution: | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |

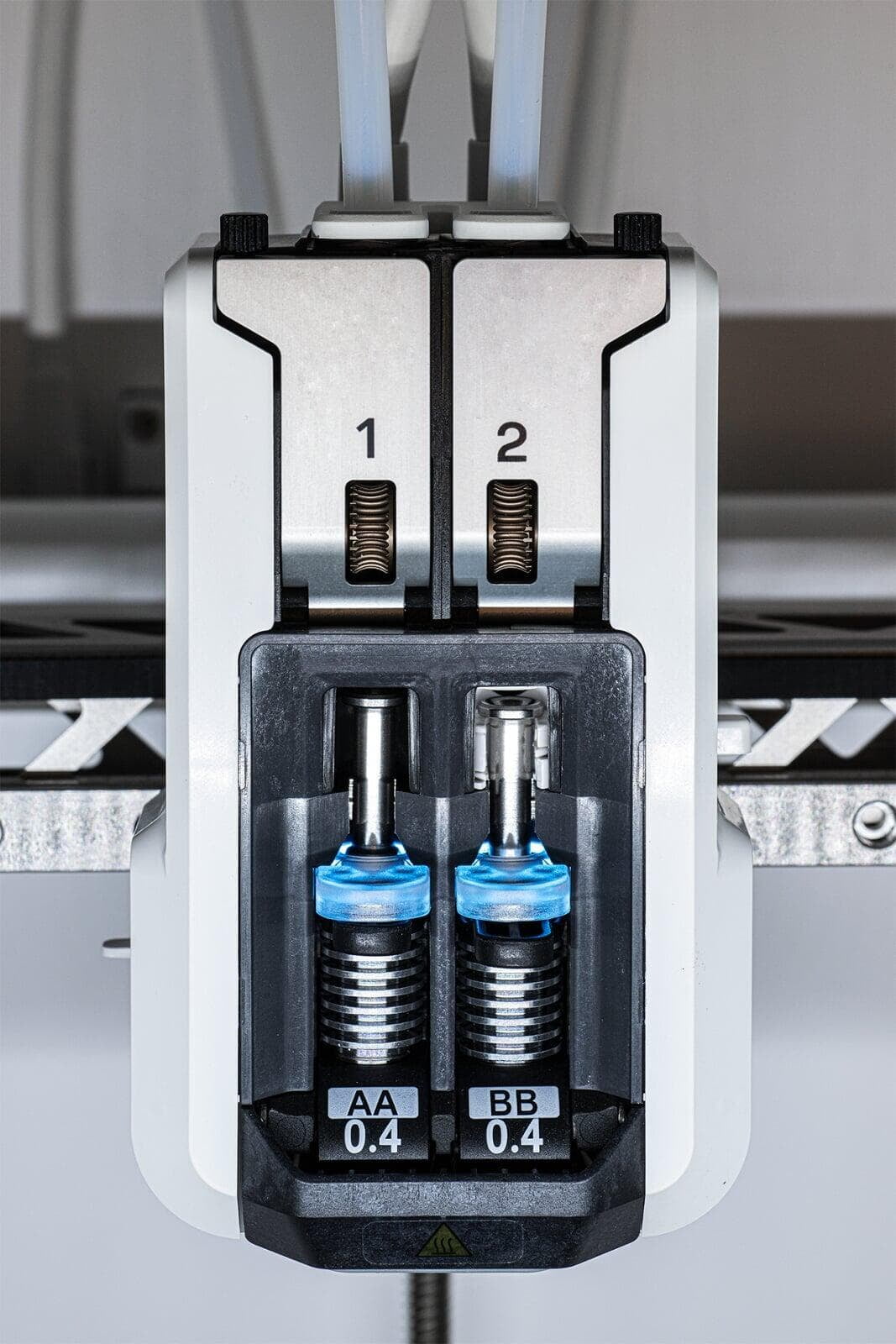

| Feeder Type: | Dual-extrusion, direct drive print head and swappable print cores |
| Display: | 7 inches interactive touchscreen (resolution 1024 × 600 px) |
| Print Core Replacement: | Swappable print cores |
| Print Head: | Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection. |
| Nozzle Diameters: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters:

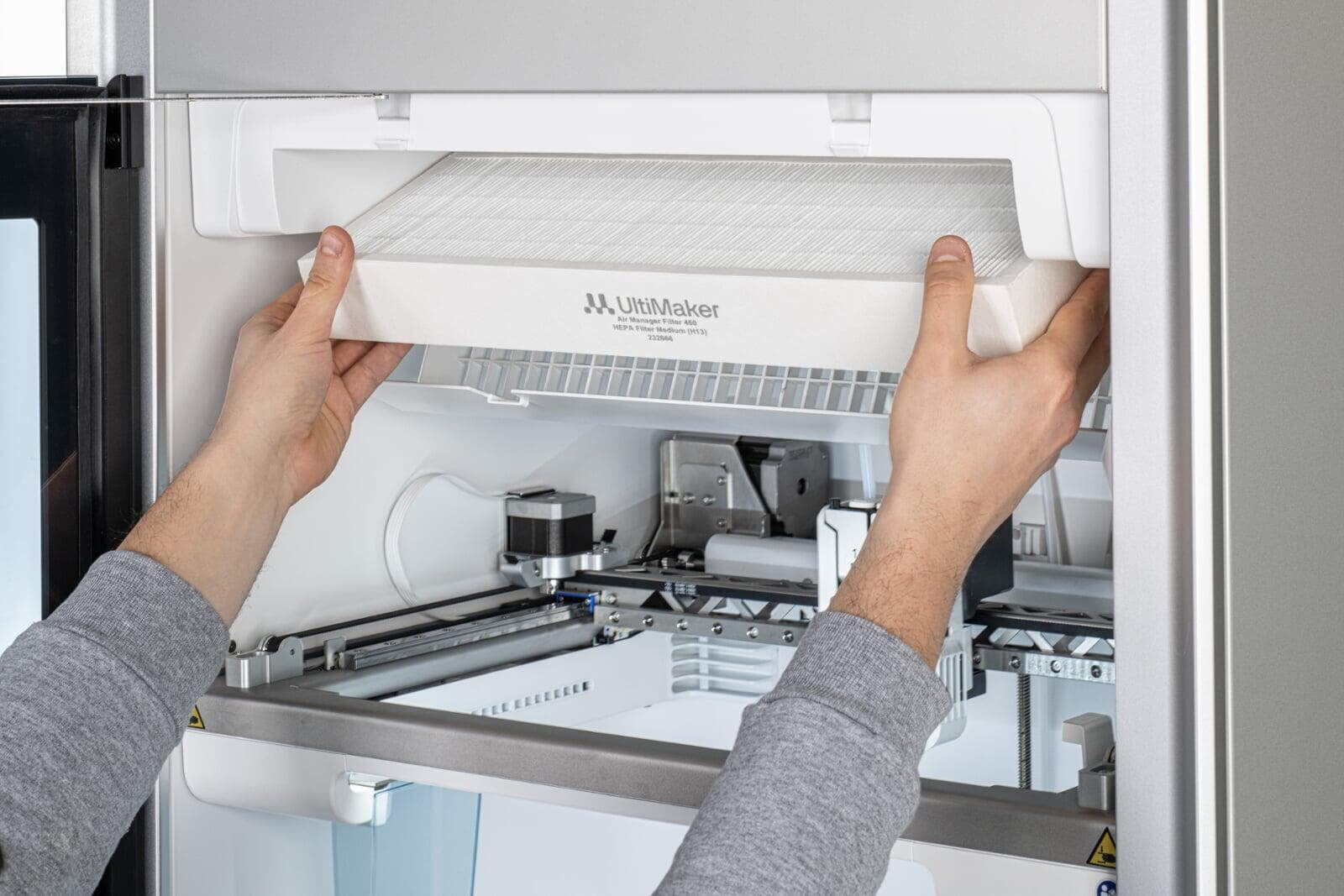

| Filter Technology: | Replaceable HEPA H13 filter |
| Nozzle Temperature: | 180 - 340 °C |
| Build Plate: | PEI-coated flexible steel build plate |
| Operating Ambient Temperature: | 18 - 30 °C (64 – 86 °F) , Humidity: 30 – 70% RH |
| Non-Operating Temperature: | 5° – 40 ºC (41 – 104 °F) , Humidity: 20 – 90% RH |
Ecosystem:
| Supplied Free Software: | Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software |
| Supported OS: | MacOS, Windows, and Linux |
| Plugin Integration: | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported File Types: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File Transfer: | Wi-Fi, Ethernet, USB |
