FUNMAT HT ENHANCED
FUNMAT HT ENHANCED
3D Print with Functional Materials at a Fraction of the Cost
With a build space of 260 x 260 x 260 mm, the FUNMAT HT is an economical, high-performance 3D printer.
With a build space of 260 x 260 x 260 mm, the FUNMAT HT is an economical, high-performance 3D printer.
UNMATCHED PRINTING VALUE
High annual operating costs have traditionally been associated with 3D printing high-performance polymers to supplement industrial tools and processes — Using INTAMSYS 3D Printers can help reduce the annual load.
With FUNMAT HT Enhanced from INTAMSYS, take your desktop 3D printing process to the industrial level.
DESIGNED FOR INDUSTRY
3D Print High-Performance Materials
•90ºC Constant Temperature Chamber
•160ºC Heated Build Plate
•450ºC High-Temperature Extruder
The INTAMSYS FUNMAT HT Enhanced is expressly designed for 3D printing high-performance materials such as PEEK, PEI, and PPSU, as well as a variety of engineering thermoplastics. With the INTAMSYS FUNMAT HT, users can achieve 50-micron, high-resolution, industrial-quality 3D printing unlike ever before.
How are Customers Using the FUNMAT HT ENHANCED?
Aerospace/Aviation
Low Volume Production
Automotive
Functional Part Test, Tooling
Medical
Implants, Guides, Prosthetics
Oil/Gas
Fast Prototyping, Tooling
Tooling
Jigs & Fixtures
Research
Medical, New Polymers
Accessories
Custom Fit Shoes

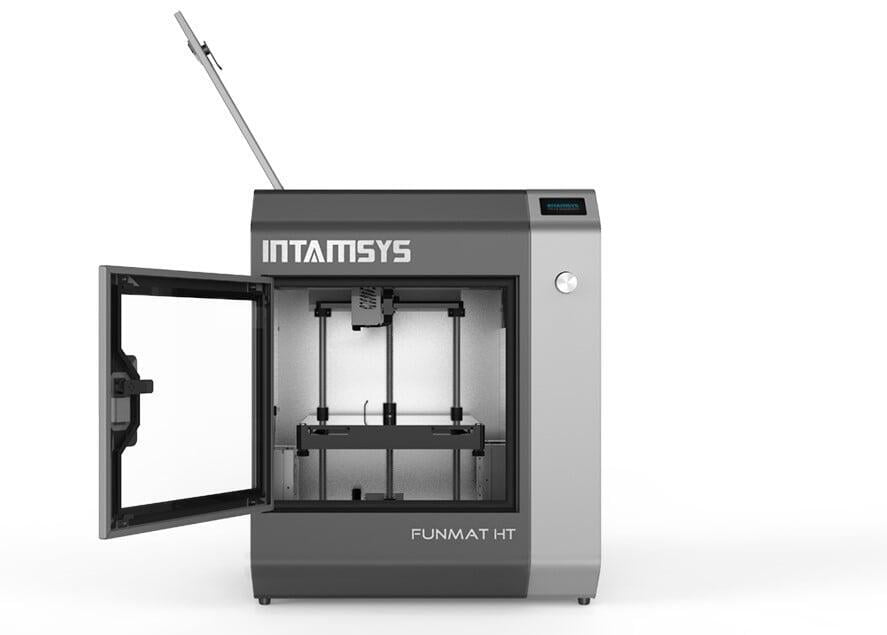

Intamsys Funmat HT Enhanced Specifications
| Positional Accuracy: | XY: 12.25 μm Z: 1.25 μm |
| Layer Resolution: | 0.05-0.3 mm |
| Build Volume: | 260 X 260 X 260 mm (10.2 X 10.2 X 10.2 in) |
| Max Extruder Temp: | 450°C |
| Max Chamber Temp: | 90°C |
| Connectivity: | WiFi / USB |
| Filament Diameter: | 1.75mm |
| Supported Materials: | PEEK/PEEK-CF/PEEK-GF/PEKK/ULTEMTM (PEI)*/PPSU*/PC/PC Alloys/PA/PA-CF/ASA/ABS/HIPS/TPU/PETG/PLA/Carbon Fiber-Filled/GlassFiber-Filled/ESD-Safe, etc. |
New to INTAMSYS Products?
Share INTAMSYS products with your colleagues at your next meeting. Our product brochure has all the specs you need to educate the team about a new high-performance solution that actually fits the budget.
