Standalone Reverse Engineering Software Compatible with Nearly Any CAD Software

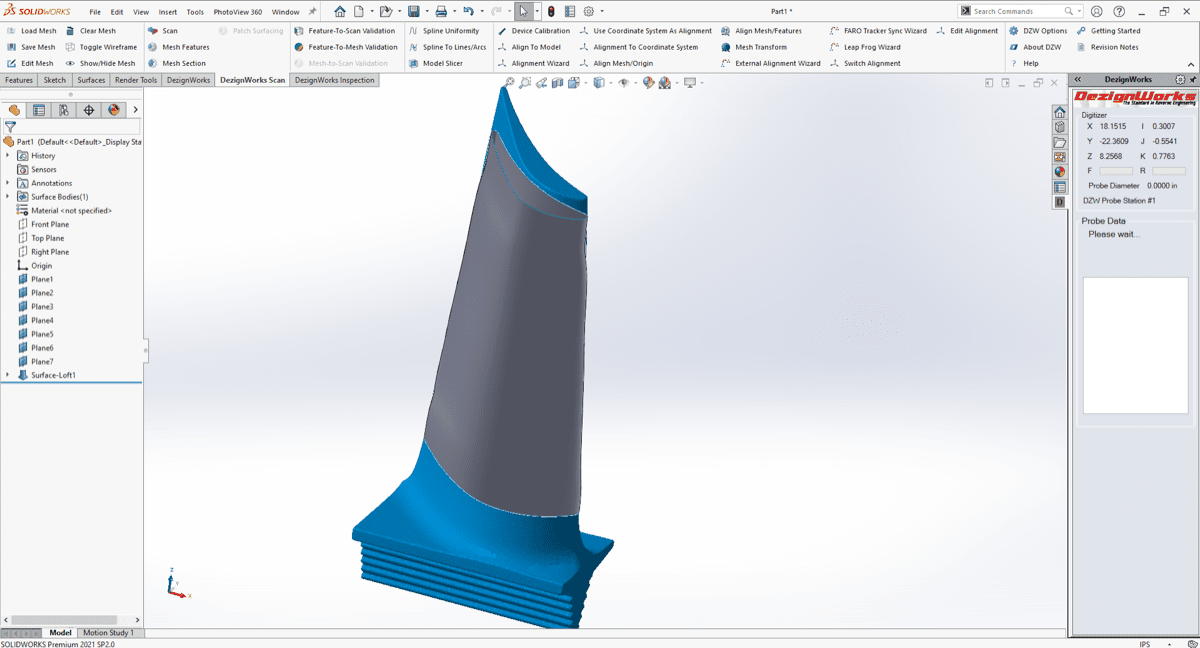

DezignWorks Pro Mesh for CREO is a plugin that allows you to import STL or OBJ files and construct feature-based parametric models. DezignWorks converts your mesh into a CREO coordinate system that can be easily manipulated. Create cylinders, cones, extrudes, revolves, sweeps, lofts, planes, and mid planes using intuitive tools that work with the mesh and solid files. The features that have been built are fully customizable and limited to the native CREO data set. Complex free form surfaces and solids are generated using industry-first GPU-based technology, which maximizes surface size while removing bothersome small surface patches. You can manage and adjust the model shape with integrated curve editing tools.
DezignWorks Pro Mesh for CREO is a plugin that allows you to import STL or OBJ files and construct feature-based parametric models. DezignWorks converts your mesh into a CREO coordinate system that can be easily manipulated. Create cylinders, cones, extrudes, revolves, sweeps, lofts, planes, and mid planes using intuitive tools that work with the mesh and solid files. The features that have been built are fully customizable and limited to the native CREO data set. Complex free form surfaces and solids are generated using industry-first GPU-based technology, which maximizes surface size while removing bothersome small surface patches. You can manage and adjust the model shape with integrated curve editing tools.
Streamline Your CAD Environment

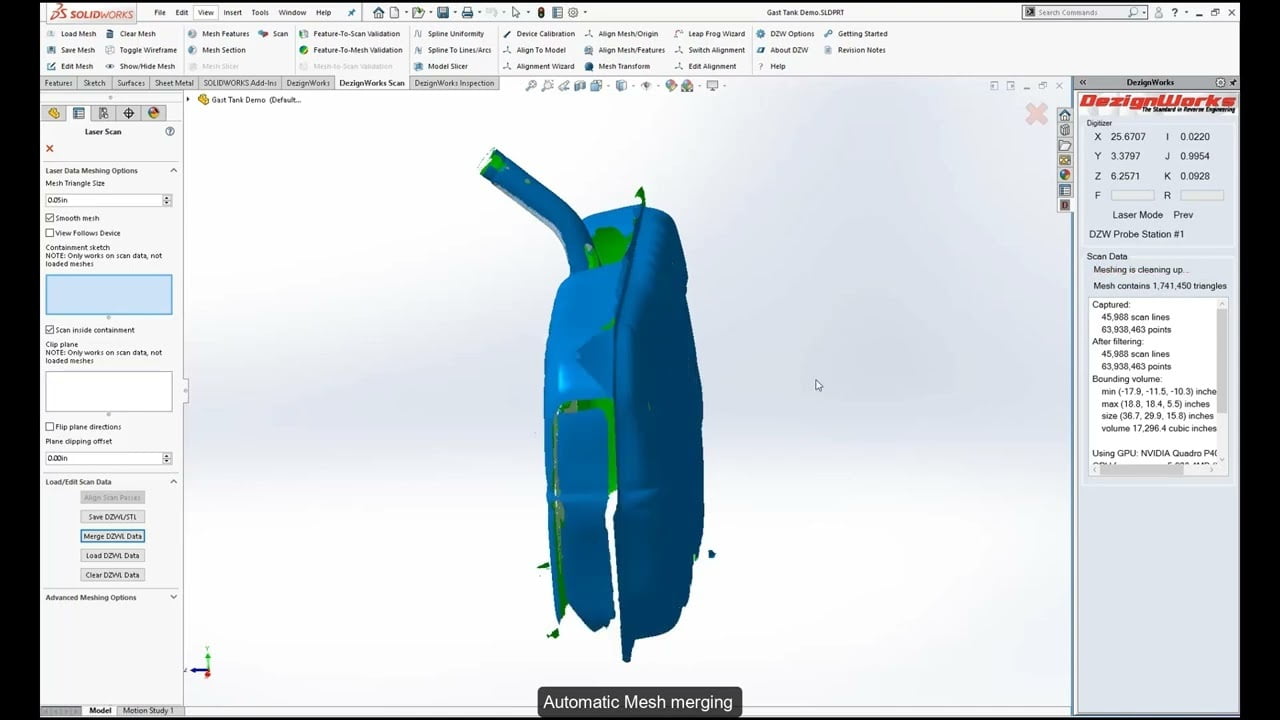

Never leave the CREO interface thanks to an integrated, comprehensive set of mesh editing tools. This can be done simultaneously or individually throughout the feature creation process. Decimating, hole filling, boundary clean up, mesh smoothing, triangle clean up, and many other tools are also available.
Inspection tools are offered to align a mesh to a CREO part using features or best fit. Select items on the part for mapping balloons and analyzing features, or visualize the deviation as a heat map with real-time confirmation. Custom reports with limitless views can be produced.
