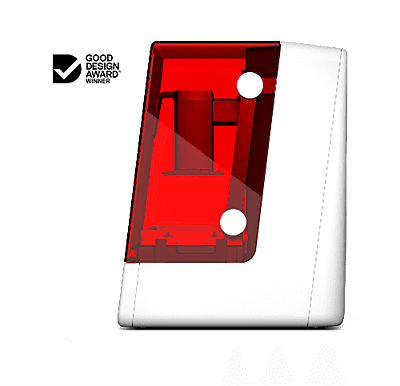

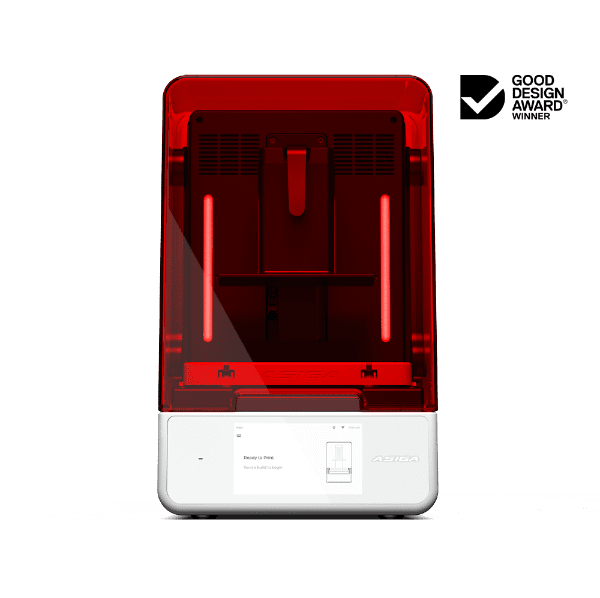

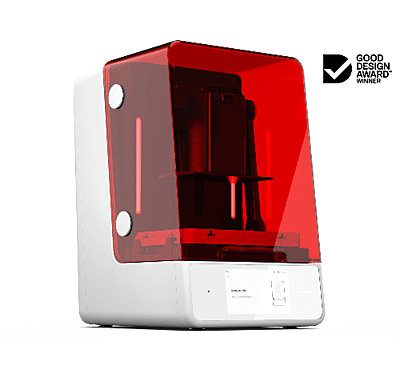

Asiga Ultra
Choose Quantity
What’s included:
• Ultra 3D printer
• Calibration toolkit
• Asiga material of your choice and build tray
• Asiga Flash curing chamber
• Composer software
• Unlimited lifetime technical support
LED: 385nm LED (405nm available on request)
Industries: jewellery, microfluidics, manufacturing
Pixel Size: 32 μm
LED: 385nm LED (405nm available on request)
Industries: dental, audiology, manufacturing
Pixel Size: 50 μm
Active Layer Monitoring
Asiga’s pioneering Smart Positioning System (SPS™) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.
Auto-Calibrating UV LED
Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.
385nm LED as standard*
DLP Micromirror Technology
Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.
4K Imaging Resolution
The latest high resolution imaging chipset delivers extraordinary resolution over a large build envelope.
Asiga Ultra
- Build Volume (X, Y, Z):Ultra (32): 121 x 68 x 147 mm , Ultra (50): 192 x 108 x 147mm
- Technology:DLP
- Auto-calibrating UV LED:385nm (365nm and 405nm available on request)
- Software:Asiga Composer software. Lifetime updates included
- File Inputs:STL, SLC, PLY, STM (Asiga Stomp file format)
- Network Compatibility:Wifi, Wireless Direct, Ethernet
- Power Requirements:100-240VAC / 500Watts
- System Sizing:353 x 441 x 555mm | Weight 32.5Kg .. 13.9 x x 17.3 x 21.8 inches | Weight 71.5 Lbs
- Warranty:12 months manufacturer's warranty
- Technical Support:Unlimited lifetime technical support included
