OMNI NOVA
Factory 2.0
The Omni NOVA (formerly Factory 2.0) is an affordable industrial solution for those looking to expand their 3D printing production. With a 500 x 500 x 500 mm build volume, dual extruders and several other automated features, the NOVA can benefit automotive industries, electronics manufacturing, engineering, and more.
POWERFUL 3D PRINTING FOR INDUSRTY
OMNI3D Air Circulation System™
The NOVA is equipped with OMNI3D's Air circulation system which helps to control the temperature of the working space. This ultimately prevents printout deformation during the printing process, because hot air is not directly blown onto the print. This is perfect in situations where printouts are anticipated to endure several dozen or even several hundred hours of continuous printing.
OMNI3D Filament Flow Control™
The NOVA also includes OMNI3D Filament Flow Control, which allows for user control over the flow of filament. This ensures precision and consistent dimensional repeatability. Thanks to special encoders, the system counts the amount of filament fed and compares it with the given amount in .gcode. When the discrepancies are too large, the printer informs the operator about it to prompt adjustment.
OMNI3D Platform Autoleveling System™
The automatic table leveling system included in the NOVA enables the printer to accurately level its build plate without the need for manual calibration. This allows for high printing precision, the possibility of immediate printing, and simpler operation for less experienced users.
The automatic table leveling system included in the NOVA enables the printer to accurately level its build plate without the need for manual calibration. This allows for high printing precision, the possibility of immediate printing, and simpler operation for less experienced users.

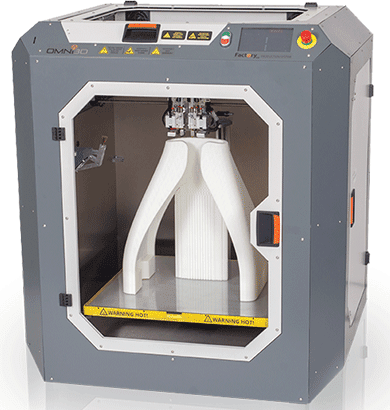

Omni3D — Omni NOVA
500 x 500 x 500 mm Build Volume
- Extremely large printable area where you can print large items and smaller batches simultaneously.
Quick Start of Printing and Easy Operation
- We optimize your work with automatic platform calibration, defined print settings and filament flow control. Optional: CARBON + HEPA FILTRATION.
2 extruders with Automatic Height Adjustment
- Print complicated and unusual shapes using dedicated support material. The printer is additionally equipped with a lifting system for an inactive head. Optional high temperature head module up to 420 °C.
Omni NOVA Specifications
| Build volume (XYZ): | 500 x 500 x 500 mm |
| Nozzle diameter: | 0.4 mm (optionally 0,6 / 0,8 mm) |
| Max. printing speed: | 86 cm³/h |
| Filament diameter: | 1.75 mm |
| Max. head temperature: | 360 °C (optionally 420°C) |
| Max. platform temperature: | 130 °C |
| Max. chamber temperature: | 70 °C |
| Compatible files: | .stl, .obj, .3mf, .gcode, .factory |
