Asiga MAX X
$9,990.00
The Asiga MAX X 3D Printer is designed for rapid production & repeatability of complex visualization models. This open-source printer offers high resolution production, ideal for jewelry, audiology, & other high performance applications.
Resolution
Wavelength
Choose Quantity
Product Details

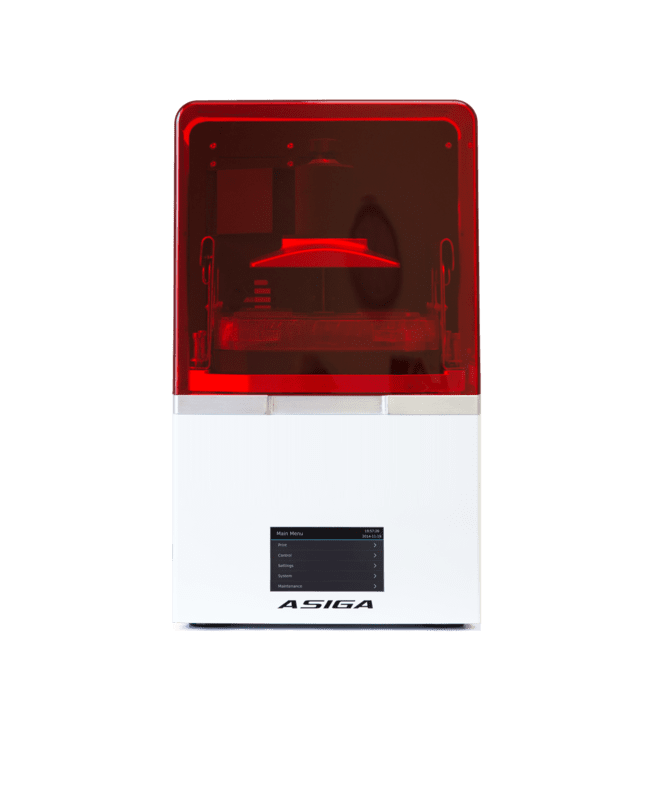

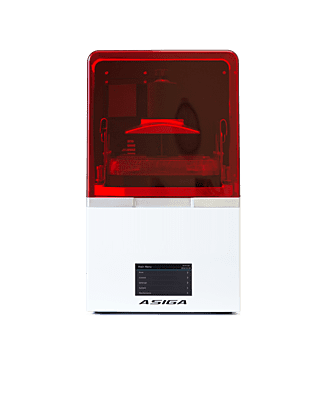

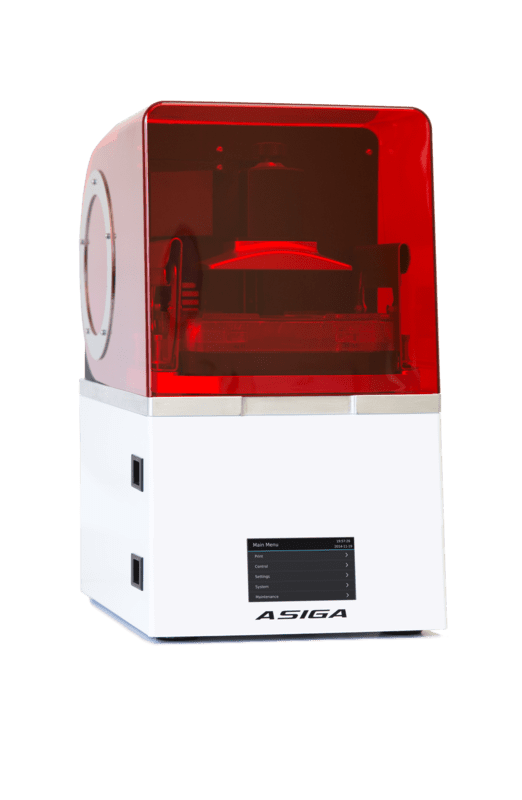

The Asiga MAX X is a multi-functional DLP 3D printer specifically designed for more precise applications. With flexible precision, the MAX X is Asiga’s highest resolution production system with a reconfigurable resolution of 27, 35, or 43 microns.
The Asiga MAX X is optimized for a variety of industry uses in fields including dental, audiology, jewelry, & engineering because of its ability to produce smooth & detailed elements.
The MAX X also includes Asiga's unique SPS™ process which guarantees that every layer is formed accurately, allowing the printer to achieve consistently accurate results in any production environment.
The Asiga MAX X is optimized for a variety of industry uses in fields including dental, audiology, jewelry, & engineering because of its ability to produce smooth & detailed elements.
The MAX X also includes Asiga's unique SPS™ process which guarantees that every layer is formed accurately, allowing the printer to achieve consistently accurate results in any production environment.
- Open Material System
Compatible with a wide range of materials from Asiga's Material Library as well as other materials from third party manufacturers.
- Re-configurable Resolution
The MAX X series offers a variety of incredible pixel resolution options including 27µm, 35µm, & 43µm.
- SPS™ Smart-Positioning-System Technology
Asiga's unique SPS™ process guarantees every layer is formed accurately, which is the key to achieving consistently accurate results in any production environment.
MAX X27 | MAX X35 | MAX X43 | |
Build Volume X, Y, Z | 51.8 × 29.2 × 75mm 2.04 × 1.15 × 2.95 inches | 67.2 × 37.8 × 75mm 2.65 × 1.49 × 2.95 inches | 82.3 × 46.4 × 75mm 3.24 × 1.83 × 2.95 inches |
Pixel Resolution | 27µm | 35µm | 43µm |
Technology | DLP |
LED Wavelength | 385nm (high power UV LED) or 405nm |
Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material |
Software | Asiga Composer software. Lifetime updates included |
File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
Network Compatibility | Wifi, Wireless Direct, Ethernet |
Power Requirements | 100 to 240 VAC, 50/60 Hz, ≤2 Amps |
System Sizing | 260 × 400 × 510mm / 21.5 kg 10.2 × 15.7 × 20 inches / 47.4 lb |
Packed Sizing | 400 × 510 × 630mm / 23.5 kg 15.7 × 20 × 24.8 inches / 51.8 lb |
Warranty | 12 months manufacturer's warranty |
Technical Support | Unlimited lifetime technical support included |
Bundle Includes | 3D printer, Composer software, 1 kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit |
