POWERFUL DLP IMAGING TECHNOLOGY
Crystal Clear Imaging & Precise Pixel Placement

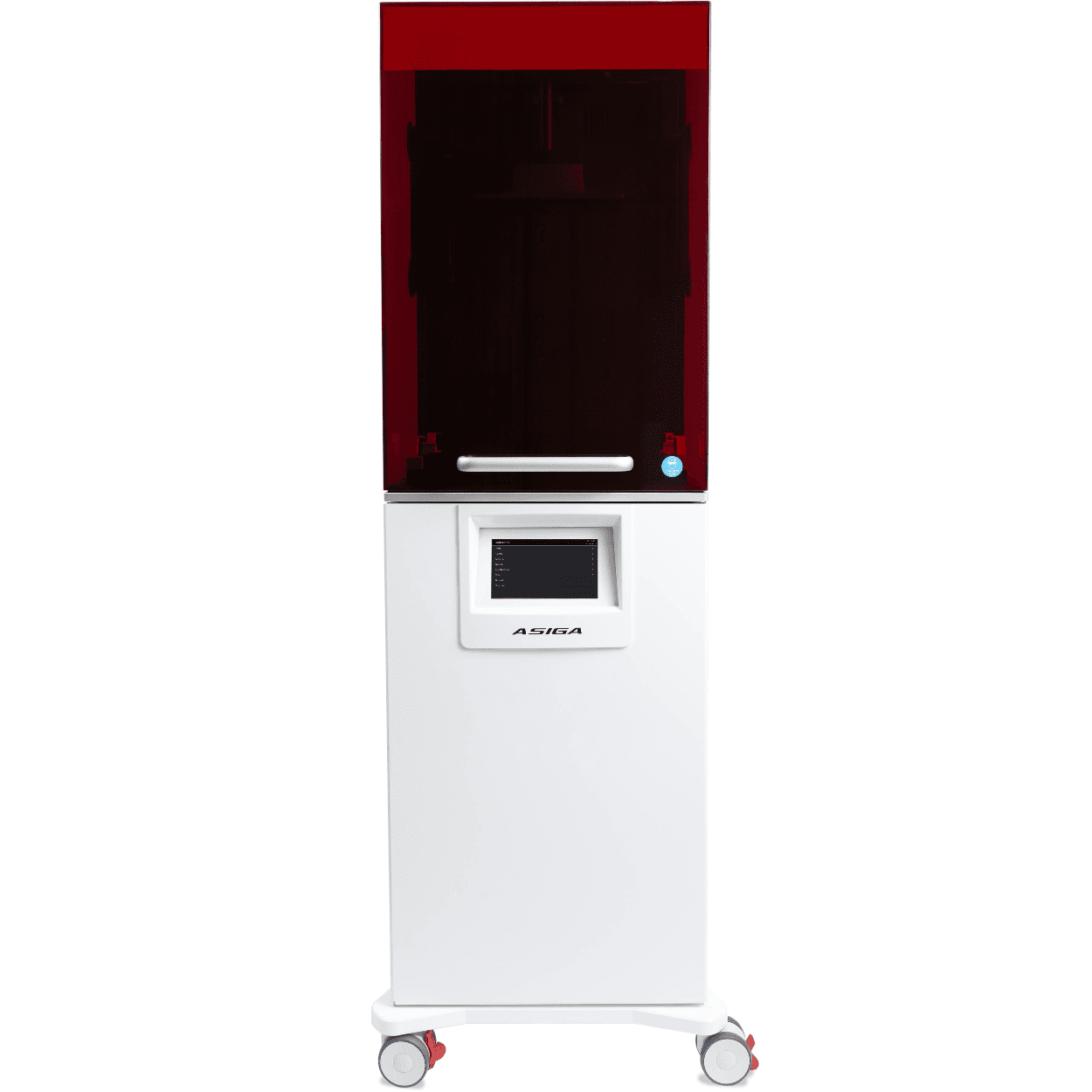

The Asiga PRO 4K XL is designed for producing large scale industrial parts and prototypes. With Asiga's proven SPS technology, the PRO 4K XL provides continued production reliability & accurate layer formation.
Asiga SPS Technology
Accurate layer formation is the key to any successful 3D printing solution and our SPS technology alongside our internal radiometer provide finite layer control required to achieve production repeatability and system reliability in any industry / environment.
400mm Z-Travel as Standard

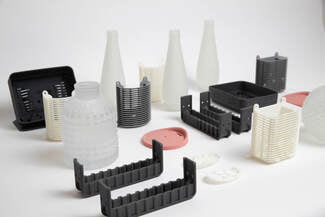

Manufacture end-use parts, prototypes, large anatomical models or jigs & fixtures on the PRO 4K XL. Super-sized for your next large scale application.
Open Material System
Total material freedom with Open Material Architecture. Unlimited access to over 500 material profiles from many of the worlds leading material manufacturers. Nobody does it better.
Asiga 4K Mode
Using pixel shifting technology, our 4K mode reduces pixel size and increase part accuracy and resolution without impacting build area or printing time.
385nm UV LED as standard.
365 & 405nm also available.
3D printing materials cure faster at deeper UV wavelengths (385nm) reducing XY scattering and over-cure. The result is sharper detail definition, accuracy, production reliability and the ability to process water-clear materials.
PRO 4K XL Specifications
| PRO 4K45 XL | PRO 4K65 XL | PRO 4K65 XL | |
| Build Volume X, Y, Z | 122 × 69 × 200mm 4.8 × 2.71 × 7.87 inches | 176 × 99 × 200mm 6.94 × 3.9 × 7.87 inches | 217 × 122 × 200mm 8.54 × 4.8 × 7.87 inches |
| Pixel Size - 4K mode | 32µm | 46µm | 56µm |
| Pixel Size - Native mode | 45µm | 65µm | 80µm |
| Technology | DLP | DLP | DLP |
| LED Wavelength | 385nm industrial grade LED. (365nm & 405nm also available) | 385nm industrial grade LED. (365nm & 405nm also available) | 385nm industrial grade LED. (365nm & 405nm also available) |
| Material Compatibility: | 500+ materials available. Open Material System — use any suitable third party material |
| Software | Asiga Composer software. Lifetime updates included |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
| Power Requirements | 90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp) |
| System Sizing | 465 x 540 x 1550mm / 164.5 kg 18.3 x 21.2 x 61 inches / 362 lb |
| Packed Sizing | 900 × 700 × 1740mm / 249 kg 35.4 × 27.6 × 68.5 inches / 548 lb |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support included |
| Bundle Includes | 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit |
