OMNI500 LITE
Omni LITE

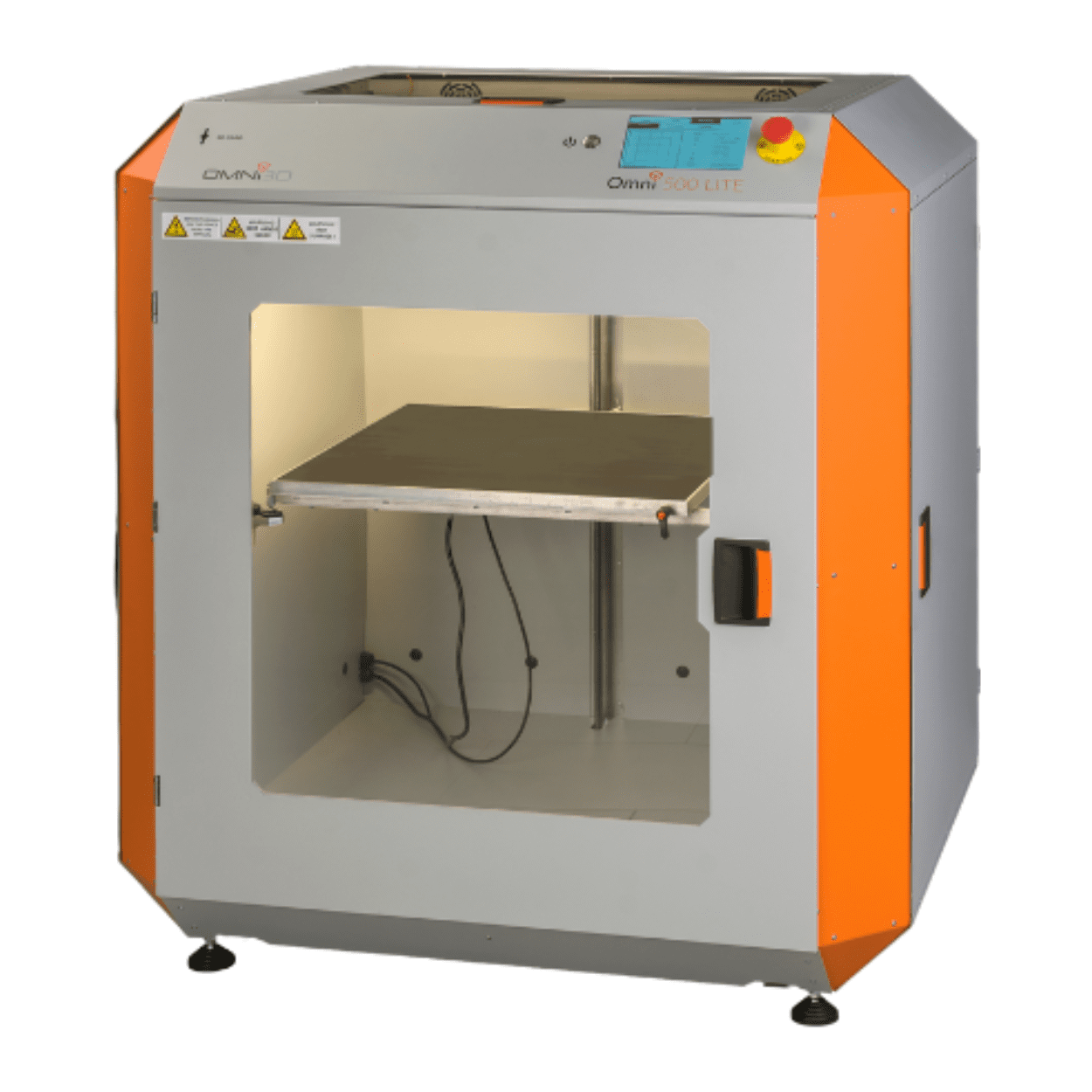

The OMNI 500 LITE is an affordable, large-format 3D printer designed for users seeking a quick operation that still meets their industrial standards. The 500 LITE offers users an FDM two-head 3D printer with a working area of 460 x 460 x 600 mm.
AFFORDABLE, INDUSTRIAL 3D PRINTING
OMNI3D Web Control™

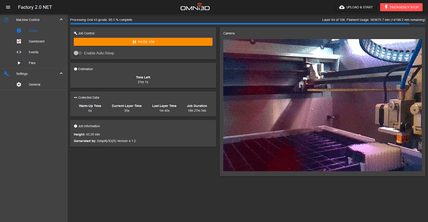

Omni3D Web Control™ allows for remote viewing and management of the OMNI 500 LITE. Connecting to the printer via the network enables easy temperature preparation and the ability to upload files without the need for physical contact with the printer. The 500 LITE is also equipped with a wide-angle camera that allows for observation of printing progress.
OMNI3D Platform Autoleveling System™
The automatic table leveling system included in the Factory 2.0 enables the printer to accurately level its build plate without the need for manual calibration. This allows for high printing precision, the possibility of immediate printing, and simpler operation for less experienced users.
OMNI3D Head Leveling Control™

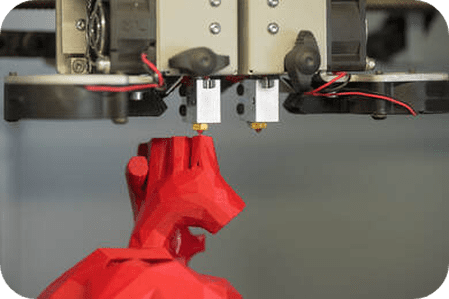

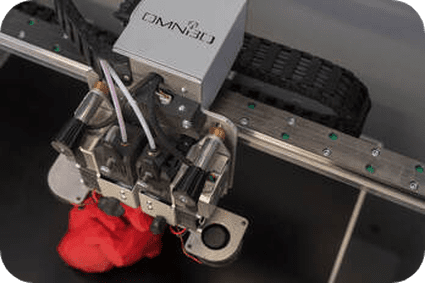

The OMNI 500 LITE is equipped with an extruder automatic leveling system, allowing for automatic calibration of the distance between the nozzle and the table along with automatic calibration of the height of nozzles in relation to each other. This minimizes the overall impact of table unevenness, creating a more even printout and efficient method of production.
The OMNI 500 LITE is equipped with an extruder automatic leveling system, allowing for automatic calibration of the distance between the nozzle and the table along with automatic calibration of the height of nozzles in relation to each other. This minimizes the overall impact of table unevenness, creating a more even printout and efficient method of production.
Omni500 LITE Specifications
| Build volume (XYZ): | 460 x 460 x 600 mm |
| Nozzle diameter: | 0.4 mm (optionally 0,6 / 0,8 mm) |
| Max. printing speed: | 86 cm³/h |
| Filament diameter: | 1.75 mm |
| Max. head temperature: | 360 °C (optionally 500°C) |
| Max. platform temperature: | 150 °C |
| Max. chamber temperature: | 50 °C |
| Compatible files: | .stl, .obj, .3mf, .gcode, .factory |
