ITERATE FAST. PRODUCE FASTER. GET TO MARKET FASTEST.

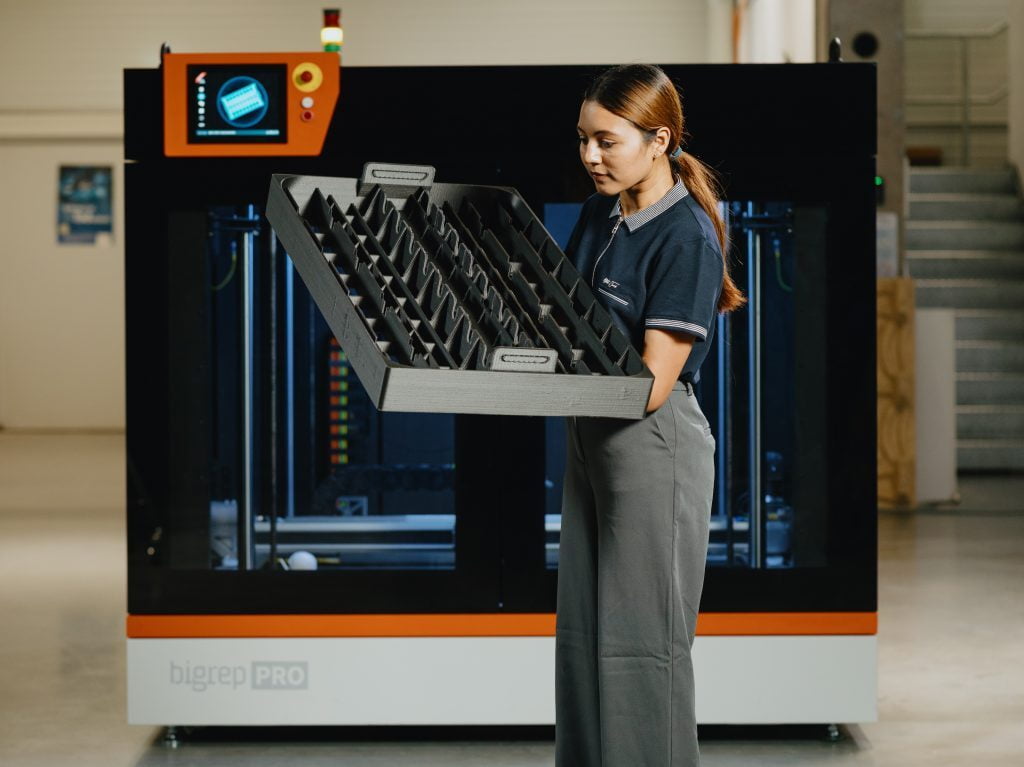

The Bigrep PRO has been specifically designed to print with engineering-grade materials in order to bring serious designs to life in all production environments.

Download Brochure

Request a Quote

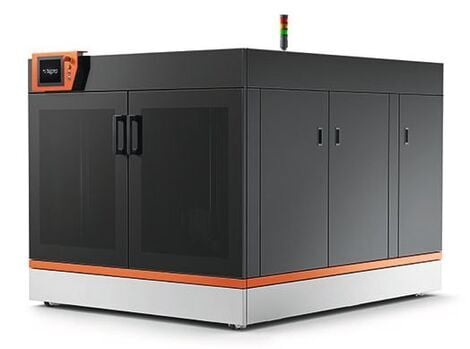

DESIGNED FOR LARGE-SCALE PRINTS

PART PRODUCTION:

The Build Platform

True to its name, Bigrep makes machines for big prints, and the PRO is no exception. With a build envelope of one cubic meter, the machine is made for 3D printing of large-scale industrial objects, enabling countless application possibilities.

SHIELDED PRINTING:

The Enclosed Frame

An insulated enclosed metal frame ensures optimum even temperature control and the glass doors offer an optimal view on the print. Further improving safety is the PRO’s compatibility with standard ventilation systems, for fume and emissions control, making it a best practice example for 3D printing in industrial environments.

INDUSTRIAL MATERIAL COMPATIBILITY:

The Insulated Filament Cabinet

The PRO provides an optimal environment for printing with industrial-grade materials, due to a humidity controlled spool chamber. Air circulation fans within ensure air flow for uniform temperature throughout the filament cabinet, and the cabinet stores up to four filament spools.

SPEED & PRODUCTION:

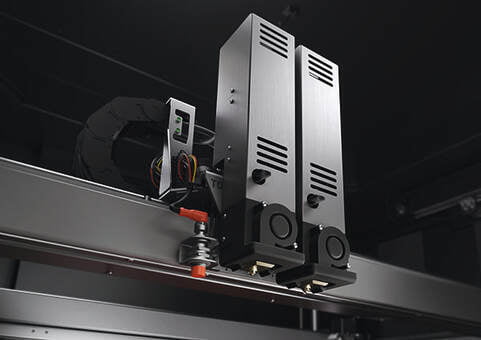

The Build MXT

Bigrep is introducing a metering extruder technology (MXT) with exceptional speed and precision, which is one of the defining features of the PRO. This state-of-the-art extruder allows for ultimate control on the materials deposition, allowing users to achieve the highest quality for every application.

SEMI-AUTOMATIC LEVELING:

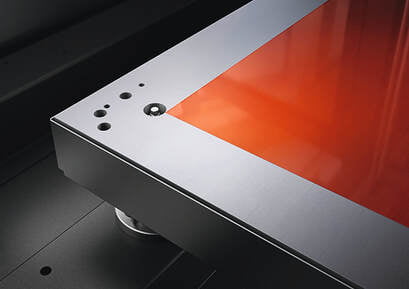

The Print Bed

The heated print bed mounted with polyimide foil provides optimal adhesion in the printing process. An integrated inductive sensor allows for semi-automatic leveling of the print bed.

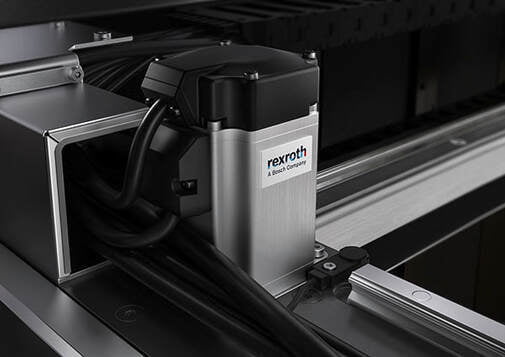

BOSCH REXROTH TECHNOLOGY:

The CNC System

A new state-of-the-art Bosch Rexroth CNC motion- control system makes the PRO the ideal machine for controlling the entire printing process, from start to finish. Widely used in the automotive industry, the Bosch system ensures maximum responsiveness, accuracy and closed-loop control in BigRep’s industrial- grade machine, as well as superior connectivity.

JUMPSTART

SKIP THE HASSLE. JUST PRINT.

Using the latest PRO 3D printer is easier than ever thanks to BigRep JUMPSTART, a hybrid software-hardware solution that lets you skip the hassle and just start printing. It includes the SWITCHPLATE, a removable and flexible print bed surface, the LOCKSTAGE for easy and secure extruder mounting, and the MXT® Control System that bypasses manual calibration ensuring crucial first print layers are optimal every time.

SWITCHPLATE

The SWITCHPLATE is a removable and flexible print bed surface available in different coatings, each optimized for various materials ensuring proper bed adhesion. It is magnetic and easily snaps into place. Heat increases the adhesiveness of the surface so your print stays fixed during printing, but is easy to remove once cooled.

MXT® CONTROL SYSTEM

The MXT® Control System employs proprietary algorithms that improve your gcode print file. The result is better quality, higher accuracy, and all-around consistent results. MXT® is the brain powering JUMPSTART, which simplifies the user experience, bypassing the need for manual calibration for the print bed, extruder, and dual extrusion.

LOCKSTAGE

The LOCKSTAGE allows simple and secure extruder mounting without the need for manual position calibration. Extruders easily snap into place and provide consistent precision throughout your entire print.

GET TO KNOW THE PRO

HIGH ACCURACY AT HIGH SPEEDS:

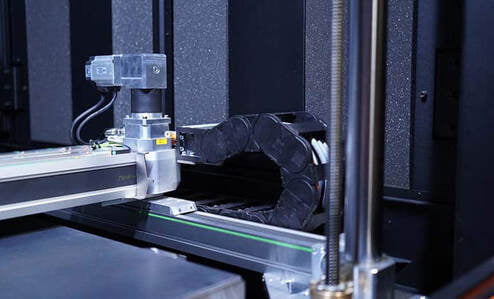

The Precision Motions Portal

The PRO's massive 1m3 build volume is supported by a durable, custom-built gantry engineered for high speed, fast acceleration, and accuracy. The robust frame eliminates vibrations during 3D printing assuring fast, yet precise movement gliding the extruders along a reinforced carriage system. Powered by Bosch servo motors with integrated encoders, the PRO calculates the real-time location of the print head to self-monitor for position accuracy.

AIRTIGHT FILAMENT CHAMBER:

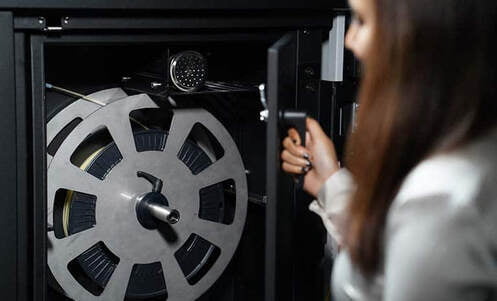

The Dry Material Storage

The PRO’s environmentally sealed filament chamber with a two-spool capacity ensures that all materials, including engineering-grade and water-soluble, remain dry in a consistently temperature and humidity-controlled environment. Even when powered off, the PRO’s airtight material storage ensures best-in-class quality and reliability.

BigRep PRO Specifications

Version:	BigRep PRO.2
Build Volume:	Up to x:1020 (mm) y: 970 (mm) z: 985 (mm) x: 40 (in) y: 38 (in) z: 38.5 (in)
Materials:	PLA, HI-TEMP CF, PRO HT, PETG, ASA, PA6/66, PA12-CF Water Soluble BVOH Other filaments upon request
Slicing Software:	BigRep BLADE
Extruders:	Fiber-Ready PRO ACE Extruder
Layer Heights:	0.3 mm, 0.6 mm (Other layer heights supported through slicer software)
Nozzle Diameters:	0.6 mm, 1.0 mm
Speed \| Acceleration (XY):	Max. 600 mm/s \| Max. 5000 mm/s²
Achievable Part Accuracy:	±0.2mm or ±0.002mm/mm (whichever is greater)*
Material Storage:	2x sealed keep dry filament chambers supporting up to 8 kg spools each
Machine Size:	x: 1950 (mm) y: 2500 (mm) z: 2105 (mm) x: 77 (in) y: 98 (in) z: 70 (in) (with tower)
Machine Weight:	Approx. 1550 kg (3417 lb)
Power:	3 Phase 400V AC, PE, 16 A, 50 / 60 Hz
Safety Certifications:	UL, CE, EC Machinery Directive 2006/42/EC Compliant
