INDUSTRY-PROVEN PERFORMANCE
Reliability, Precision, & Speed Focused
Reliability, Precision, & Speed Focused

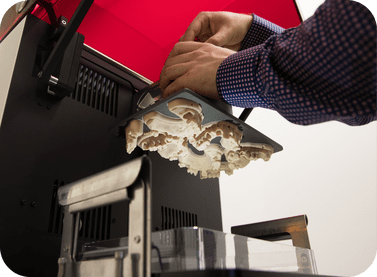

The PRO 4K combines the latest 4K imaging technology with Asiga’s acclaimed Smart Positioning System (SPS™) in order to produce a build volume 3x larger than Asiga's standard desktop 3D printers.
Precision, reliability, speed and an Open Material System all come as standard to provide production continuity for the most demanding digital manufacturing environments.
4K Super Fast Printing Mode
Asiga's 4K mode uses pixel shifting technology in order to reduce the pixel size and increase part accuracy & resolution without impacting build area or printing time.

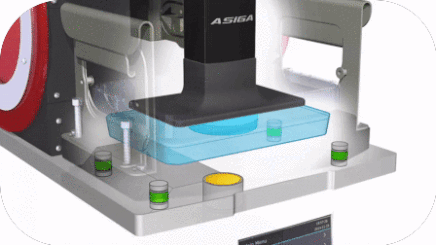

SPS™ Smart-Positioning-System Technology
Asiga's unique SPS™ process guarantees every layer is formed accurately, which is the key to achieving consistently accurate results in any production environment.
PRO 4K Specifications
| PRO 4K45 | PRO 4K65 | PRO 4K65 | |
| Build Volume X, Y, Z | 122 × 69 × 200mm 4.8 × 2.71 × 7.87 inches | 176 × 99 × 200mm 6.94 × 3.9 × 7.87 inches | 217 × 122 × 200mm 8.54 × 4.8 × 7.87 inches |
| Pixel Size - 4K mode | 32µm | 46µm | 56µm |
| Pixel Size - Native mode | 45µm | 65µm | 80µm |
| Technology | DLP | DLP | DLP |
| LED Wavelength | 385nm or 405nm (high power LEDs) | 385nm or 405nm (high power LEDs) | 385nm or 405nm (high power LEDs) |
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material |
| Software | Asiga Composer software. Lifetime updates included |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
| Network Compatibility | Wifi, Wireless Direct, Ethernet |
| Power Requirements | 90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp) |
| System Sizing | 465 × 540 × 1345mm / 140 kg 18.3 × 21.3 × 53.0 inches / 309 lb |
| Packed Sizing | 900 × 700 × 1540mm / 205 kg 35.4 × 27.6 × 60.6 inches / 452 lb |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support included |
| Bundle Includes | 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit |
