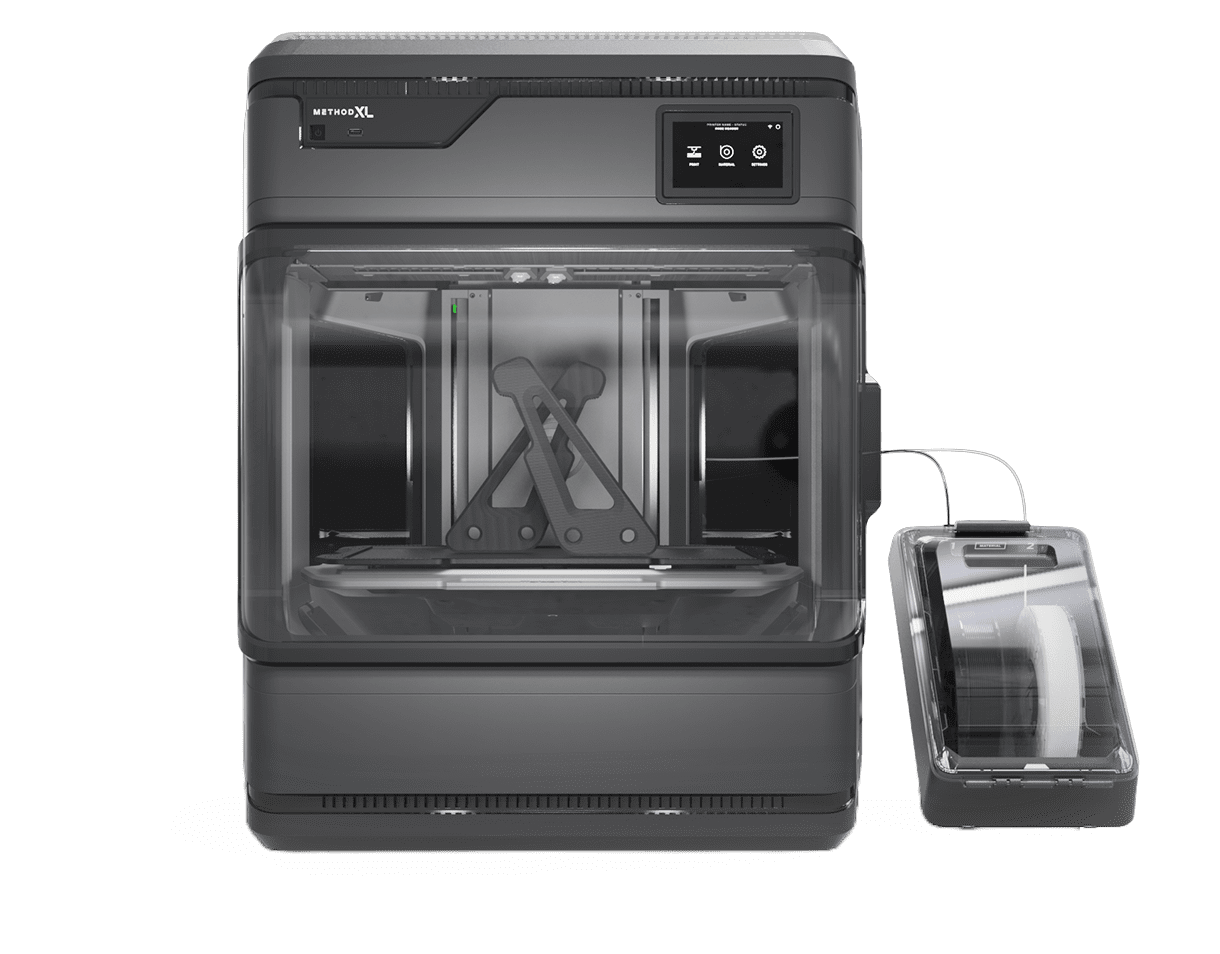

3D Print Large-Scale Parts with Industrial Grade Materials
Scale up your 3D printing output with the Method XL. Larger parts, increased output, and competitive pricing. Experience the precision of industrial production alongside the flexibility of a 3D printer. Featuring:
• Actively Heated Chamber (up to 100°C)
• Dual-Extrusion 3D Printing
• Extra Large Build Volume
• Flexible Heated Build Plate
PRECISION PRINTING — INDUSTRIAL SCALE
Extra Large Build Volume
With the largest build volume of any UltiMaker 3D printer, the Method XL is the ultimate 3D printing solution for large-scale projects. Print with industrial-grade materials and exceptional dimensional accuracy without the need to compromise on the size of your parts.
Exceptional Dimensional Accuracy
The Method XL has been especially engineered to maintain dimensional accuracy and tight tolerances while printing even the largest ABS parts. Not only does the Method XL avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.

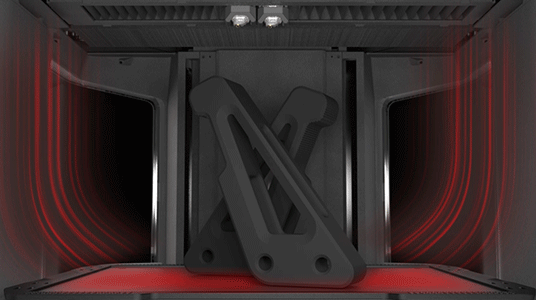

VECT Thermal Regulation System
Patented Variable Environmental Controlled Temperature (VECT) 100 thermal regulation evenly heats and controls the print environment. The result? Parts are 2x stronger on the z-axis, and 2x more accurate across the board. The Method XL also has a heated build plate for even better adhesion and temperature control.
Fast-Dissolving Supports for ABS
RapidRinse on the Method XL enables the fastest support removal for complex FDM prints. Create the geometries you want – in any orientation. Then watch as those water-soluble supports dissolve before your eyes.
ABS, Just as Easy as PLA
With RapidRinse™ support, achieve incomparable ABS parts with unprecedented ease.

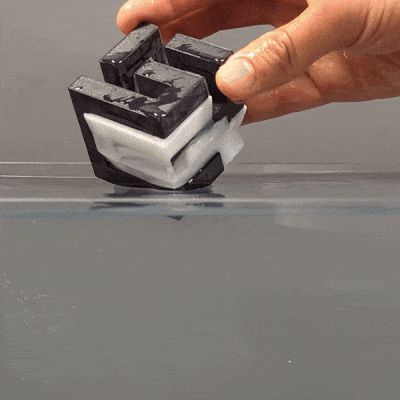

Tap Water Soluble
Forget the cumbersome wash tanks and chemicals, RapidRinse™ dissolves in pure tap water so it’s easy to use in just about any environment.
Dissolves in Minutes
You don’t have time to wait around while your print dissolves, so we’ve engineered RapidRinse™ to dissolve faster than PVA and competitive high-temp dissolvable support materials.
*Dissolution time may vary based on part geometry and dissolution methodology
UltiMaker Method XL Specifications
Heated chamber max temperature: | 100 °C |
Dual extruder build volume (XYZ): | 305 x 305 x 320 mm (12 x 12 x 12.6 in) |
| Heated build plate: | Heated build plate with removable, flexible build surface |
Build volume (dual material): | 305 x 305 x 320 mm (12 x 12 x 12.6 in) |
Assembled dimensions: | Printer: W 655 x D 565 x H 815 mm (W 25.8 x D 22.2 x H 32.1 in) Material case: W 223 x D 328 x H 319 mm (W 8.8 x D 12.9 x H 12.6 in) |
Compatible filament diameter: | Up to 2x faster than desktop 3D printers |
Weight: | Printer: 56.5 kg (125 lbs) Material case: 1.9 kg (4.2 lbs) |
Maximum power output: | 1400 W |
Layer resolution: | 0.4 mm nozzle: 100 - 400 micron |
Nozzle diameter: | 0.4 mm |
