S5
Expand Your 3D Printing Ambitions
The Ultimaker S5 is designed to meet the needs of professional users. Its next-generation features increase the number of possible applications while still maintaining an easy-to-use design. Moreover, the S5 also offers its users:
• Composite-ready dual extrusion

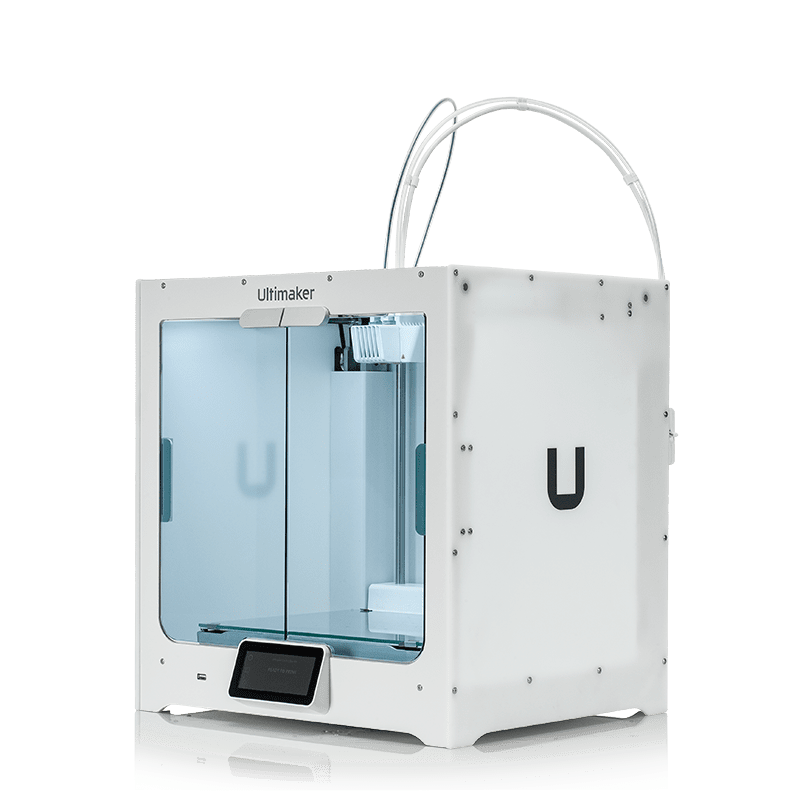

• Larger Build Volume (330 x 240 x 300 mm)
• Advanced auto bed leveling
• Compatibility with over 200 materials
• 4.7-inch touchscreen interface• And More!

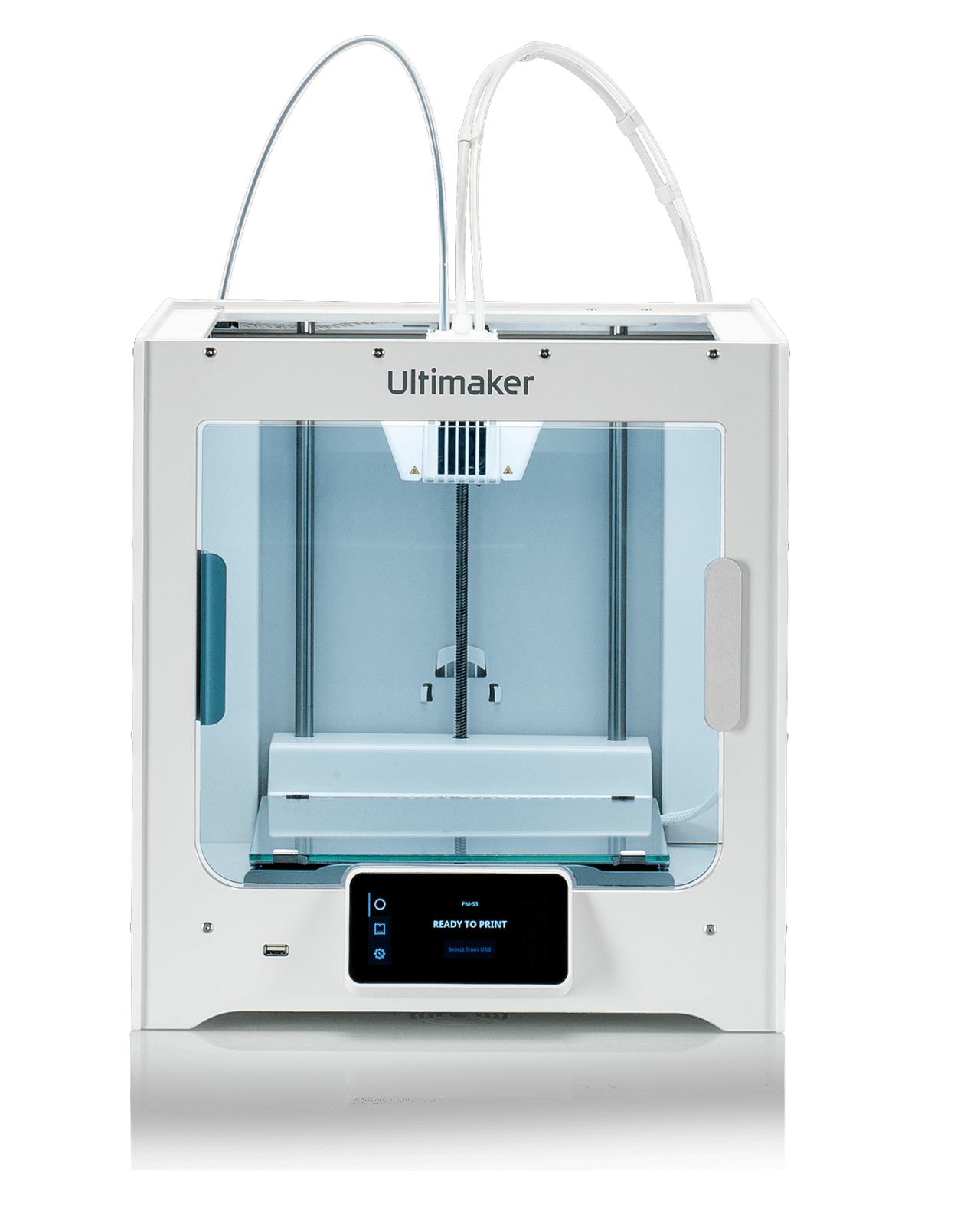

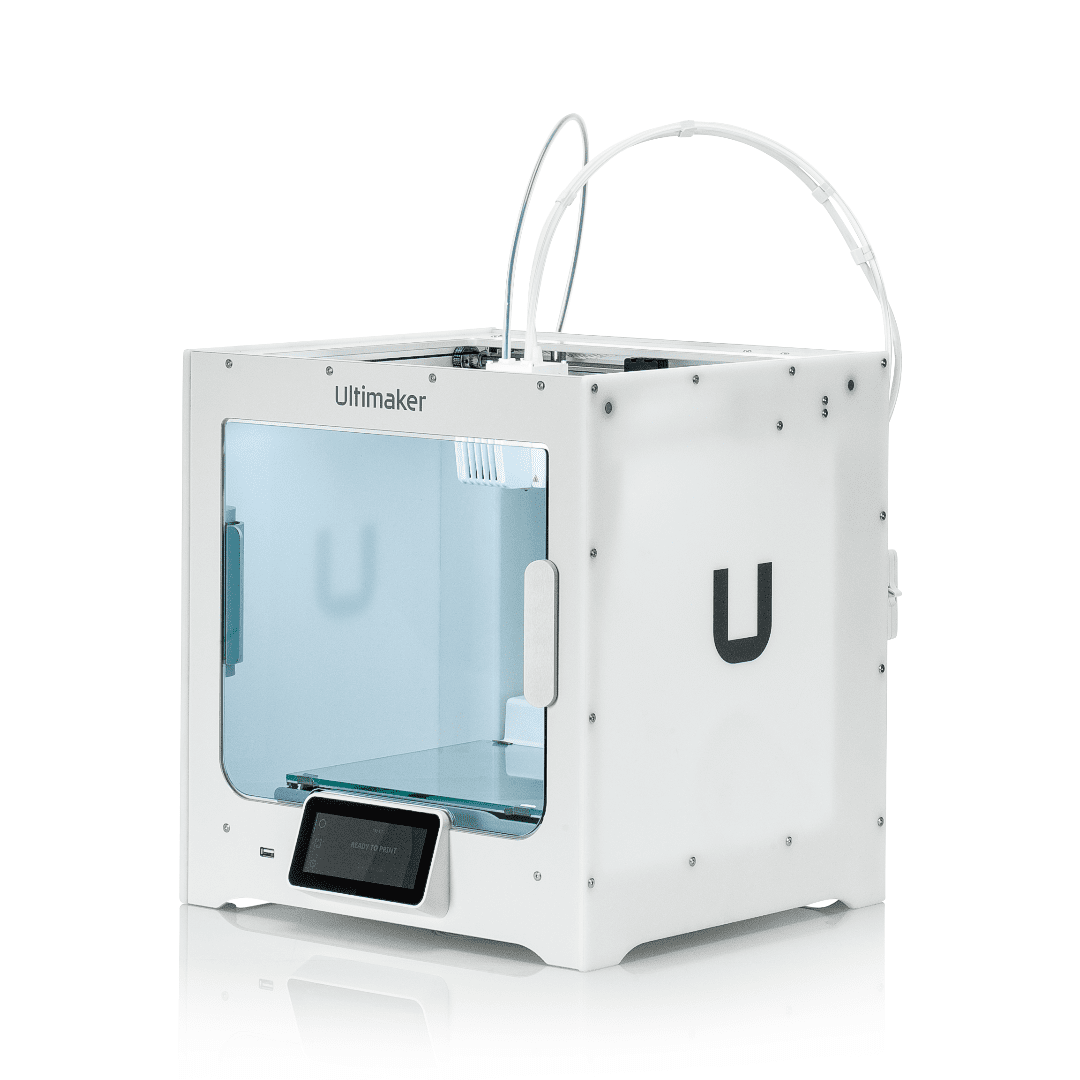

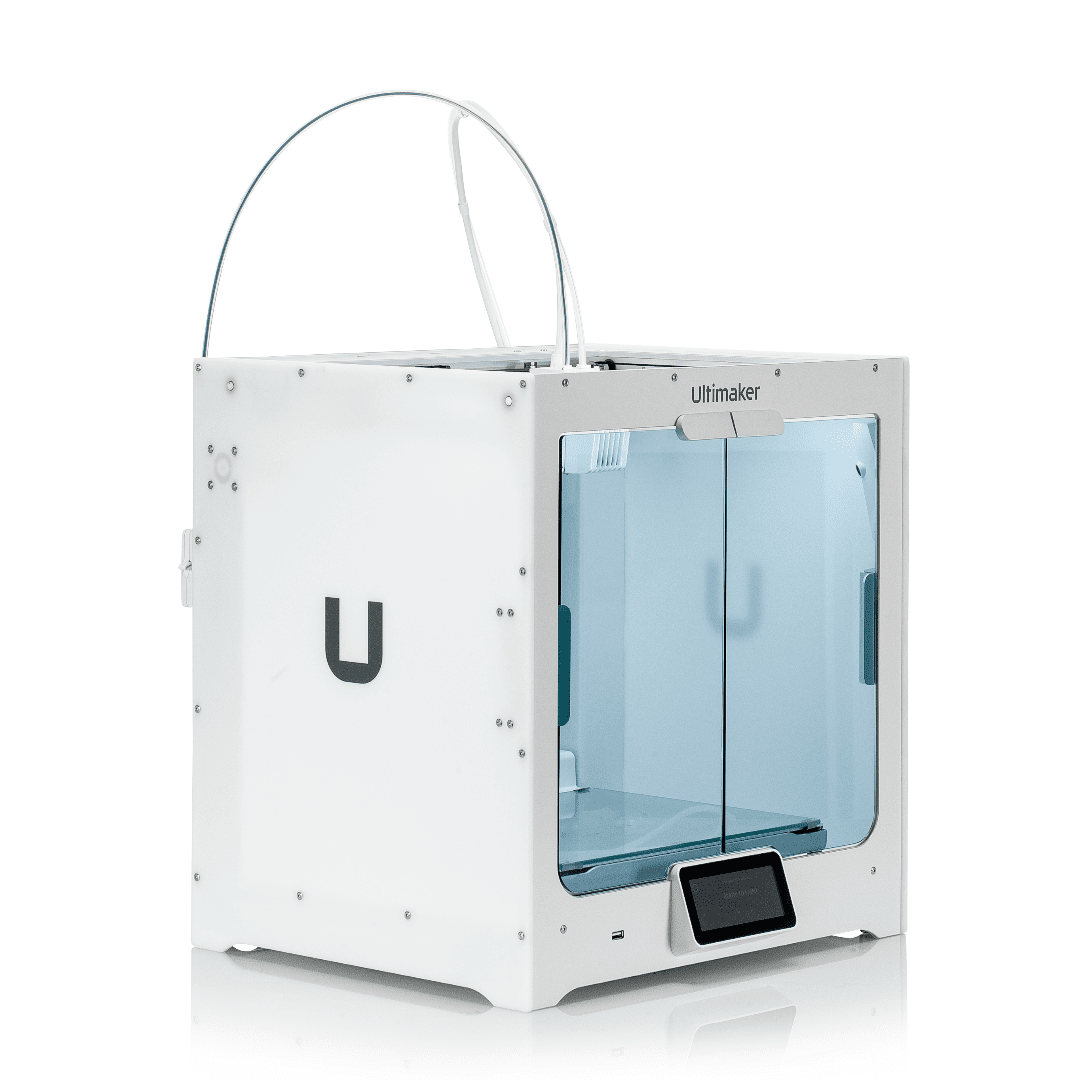

Sleek & Simple Design
The Ultimaker S5 packs powerful technology into a small footprint. With a simple, clean, & stylish enclosure, the S5 fits perfectly into any office or workspace. An enclosed front & tinted glass doors help to ensure the internal temperature and airflow are optimal. An intuitive touchscreen interface guides you through operation of the printer, and displays detailed status information. Frame lights provide visual feedback, and project clean white light to overview and inspect your print up close. And an embedded power supply gives the printer a clean footprint, making it ideal for shelf or rack mounting.
The Ultimaker S5 packs powerful technology into a small footprint. With a simple, clean, & stylish enclosure, the S5 fits perfectly into any office or workspace. An enclosed front & tinted glass doors help to ensure the internal temperature and airflow are optimal. An intuitive touchscreen interface guides you through operation of the printer, and displays detailed status information. Frame lights provide visual feedback, and project clean white light to overview and inspect your print up close. And an embedded power supply gives the printer a clean footprint, making it ideal for shelf or rack mounting.
Greater Capability & Flexibility
The S5's swappable print cores allow for effortless, tool-free maintenance and maximum user control. With the ability to use different nozzle sizes (ranging from 0.8 mm for rapid prints to 0.25 mm for ultra-fine detail), users can expand their production standards to include more complex mechanical parts. The S5 offers two available print core slots in the print head, allowing users to quickly and easily select their desired combination for reliable dual-extrusion. Dual-extrusion capabilities allow the user to print with two different materials, including varying colors for aesthetic impact, or water-soluble support for full geometric freedom.
The S5's swappable print cores allow for effortless, tool-free maintenance and maximum user control. With the ability to use different nozzle sizes (ranging from 0.8 mm for rapid prints to 0.25 mm for ultra-fine detail), users can expand their production standards to include more complex mechanical parts. The S5 offers two available print core slots in the print head, allowing users to quickly and easily select their desired combination for reliable dual-extrusion. Dual-extrusion capabilities allow the user to print with two different materials, including varying colors for aesthetic impact, or water-soluble support for full geometric freedom.
Seamless Workflow Integration

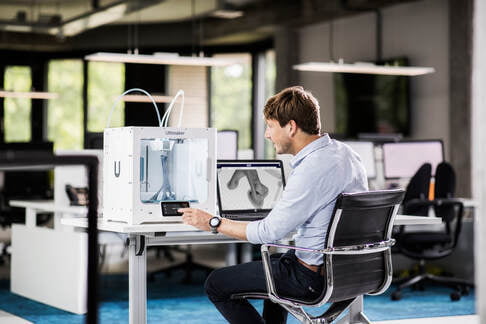

With the Ultimaker S5, 3D printing becomes a smooth process through an integrated ecosystem of software products designed to work seamlessly with each other. High-speed Wi-Fi and LAN connectivity are built directly into the S5, and regular firmware updates with new features and improvements will ultimately enhance the printer’s capabilities over time. The Ultimaker Cura software ensures a seamless workflow by allowing users to prepare prints, send them to the printer wirelessly, and monitor jobs remotely with the printer’s integrated camera.
With the Ultimaker S5, 3D printing becomes a smooth process through an integrated ecosystem of software products designed to work seamlessly with each other. High-speed Wi-Fi and LAN connectivity are built directly into the S5, and regular firmware updates with new features and improvements will ultimately enhance the printer’s capabilities over time. The Ultimaker Cura software ensures a seamless workflow by allowing users to prepare prints, send them to the printer wirelessly, and monitor jobs remotely with the printer’s integrated camera.
POWERFUL, RELIABLE, & VERSATILE
The Ultimaker S5 is designed for professional-quality applications, offering its users a powerful, reliable, and versatile 3D printer that delivers industrial-class results. It is a powerful, low-cost solution that streamlines user production processes & concept development. Building on the capabilities of the Ultimaker S3, the Ultimaker S5 enhances printing performance with a larger build volume, effortless operation, and unparalleled reliability.
UltiMaker S5 Specifications
Dimensions:
| Build Volume: | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled Dimensions: | 495 x 585 x 780 mm (19.5 x 23 x 30.7 inches) |
| Print technology: | Fused filament fabrication (FFF) |
| Weight: | 20.6 kg (45.4 lbs) |
| Compatible Filament Diameter: | 2.85 mm |
| Maximum Power Output: | 500 W |
Printer Properties:
| Layer Resolution: | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| XYZ Resolution: | 6.9, 6.9, 2.5 micron |
| Feeder Type: | Dual-geared feeder, reinforced for composite materials |
| Display: | 4.7-inch (11.9 cm) color touchscreen |
| Print Core Replacement: | Swappable print cores |
| Print Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
| Nozzle Diameters: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters:
| Build Speed: | < 24 mm³/s |
| Nozzle Temperature: | 180 - 280 °C |
| Nozzle Heat-Up Time: | < 2 minutes |
| Operating Sound: | < 50 dBA |
| Build Plate Leveling: | Advanced active leveling |
| Build Plate: | 20 - 140 °C heated glass build plate |
| Build Plate Heat-Up Time: | < 4 minutes (from 20 to 60 °C) |
| Operating Ambient Temperature: | 15 - 32 °C (59 - 90 °F) |
| Non-Operating Temperature: | 0 - 32 °C (32 - 90 °F) |
Ecosystem:
| Supplied Free Software: | Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software |
| Supported OS: | MacOS, Windows, and Linux |
| Plugin Integration: | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported File Types: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File Transfer: | Wi-Fi, Ethernet, USB |
