Industrial Production Power — At Your Desktop
With automatic material handling, efficient air filtering, and filament humidity control, users can unlock 24/7 productivity. These features open the possibility for demanding applications that use an extended range of materials. The S5 Pro Bundle also offers users:
• Composite-Ready Dual Extrusion

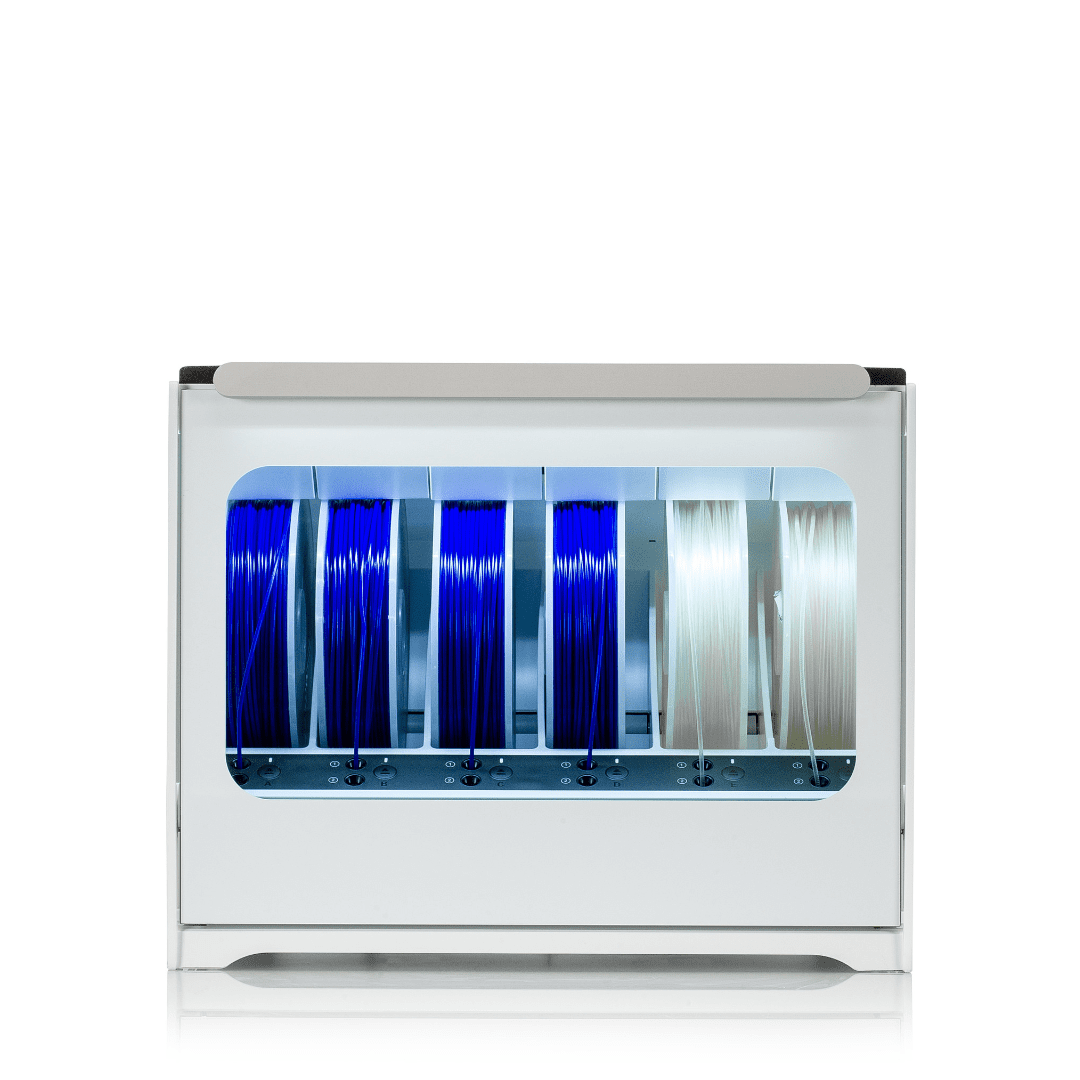

• Humidity Controlled Storage for 6 Spools
• The Ability to Filter up to 95% of Ultrafine Particles
• An Enclosed Build Chamber
• Compatibility with Over 90 Materials

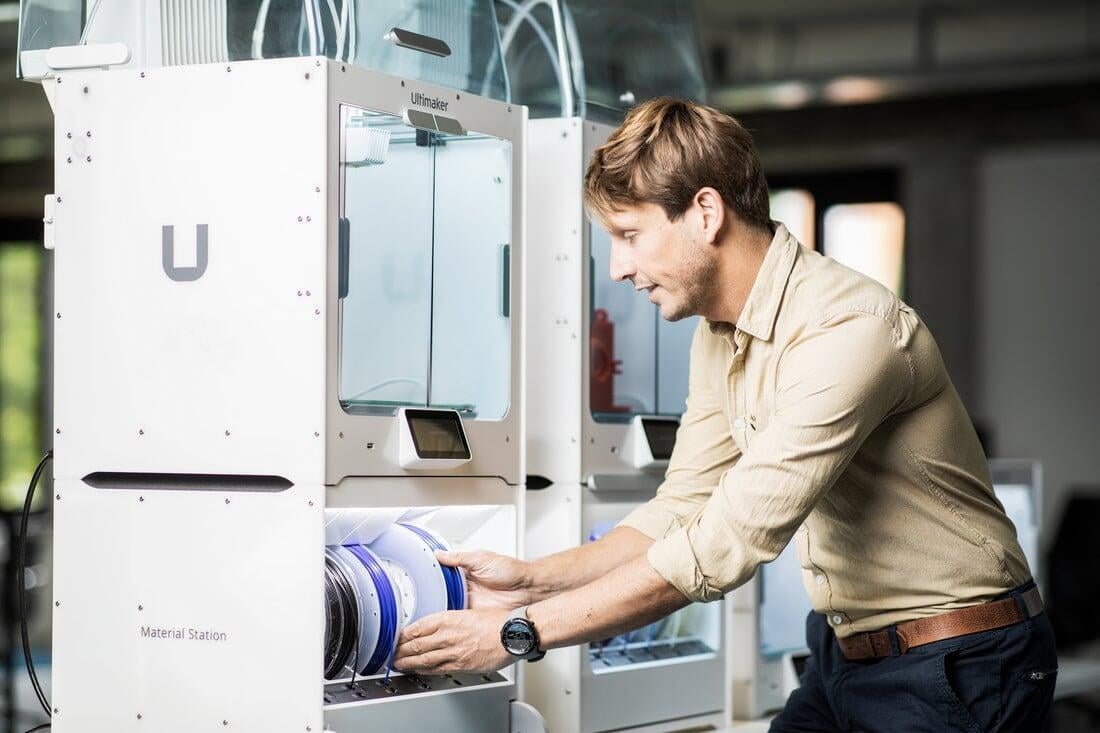

• Uninterrupted Printing with Automatic Material Switching
• Humidity Controlled Storage for 6 Spools
• The Ability to Filter up to 95% of Ultrafine Particles
• An Enclosed Build Chamber
• And More!
ENHANCE YOUR PRODUCTIVITY

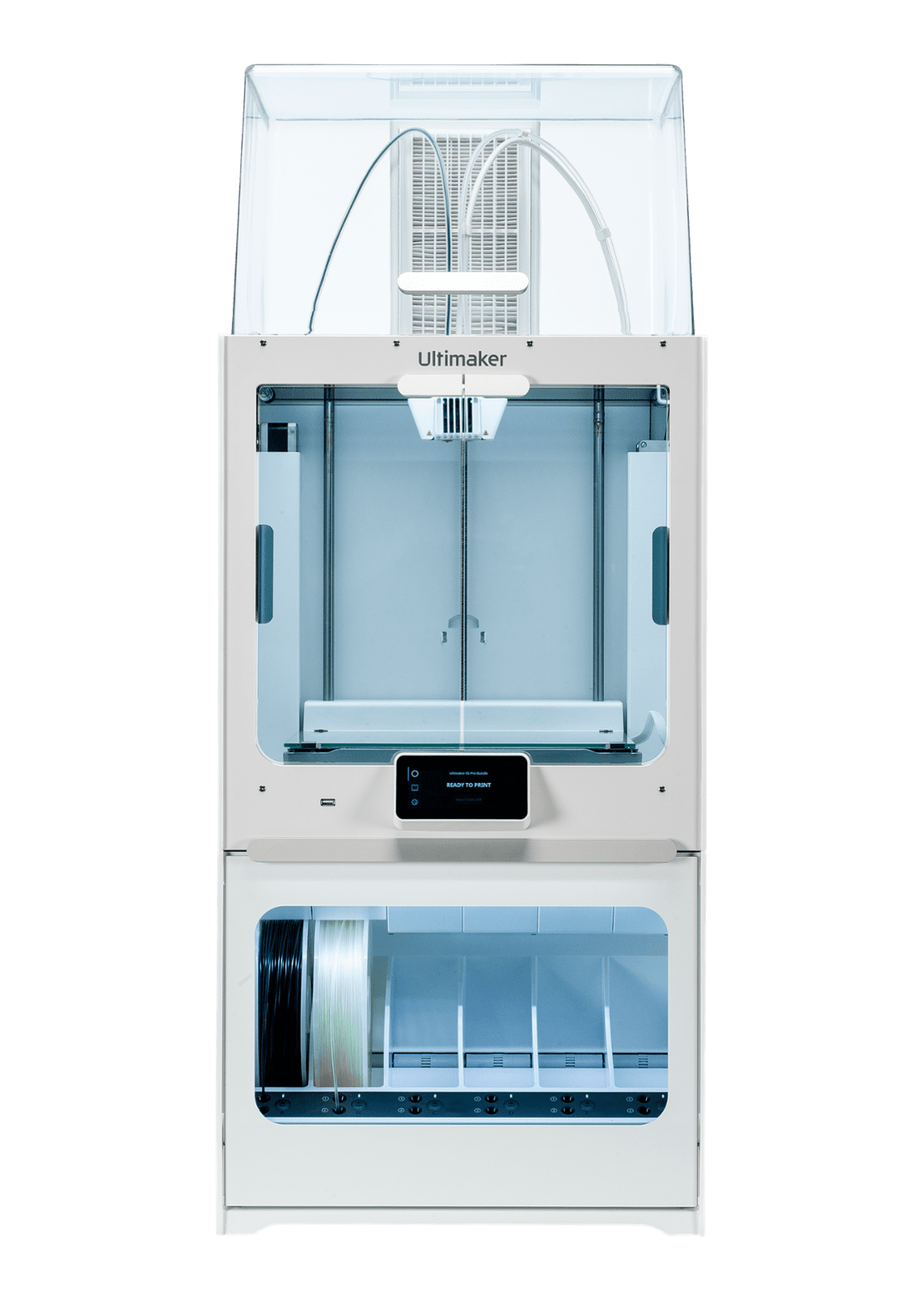

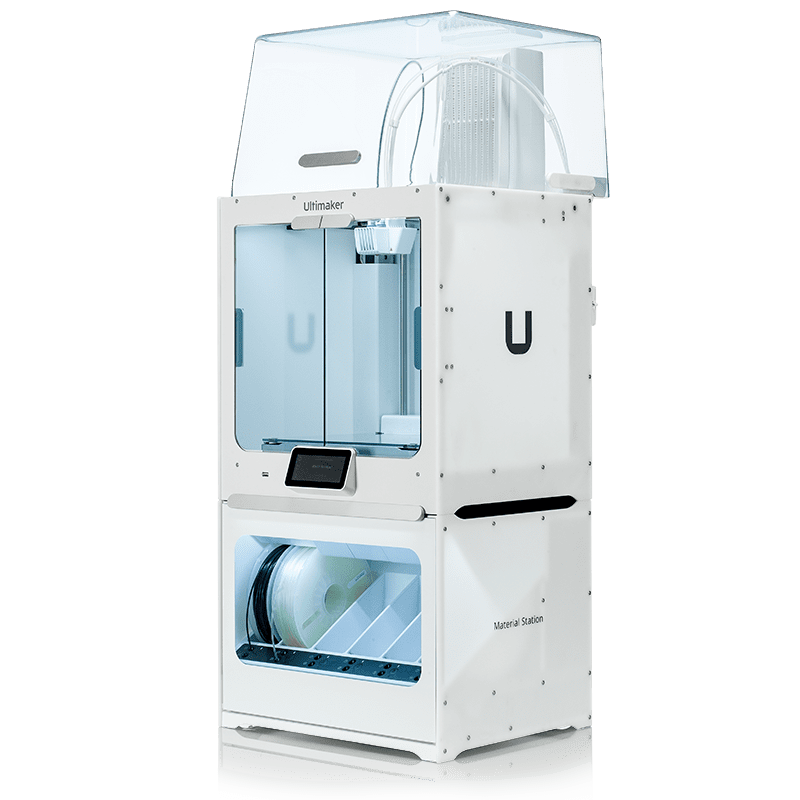

The UltiMaker S5 Pro Bundle is Composed of:

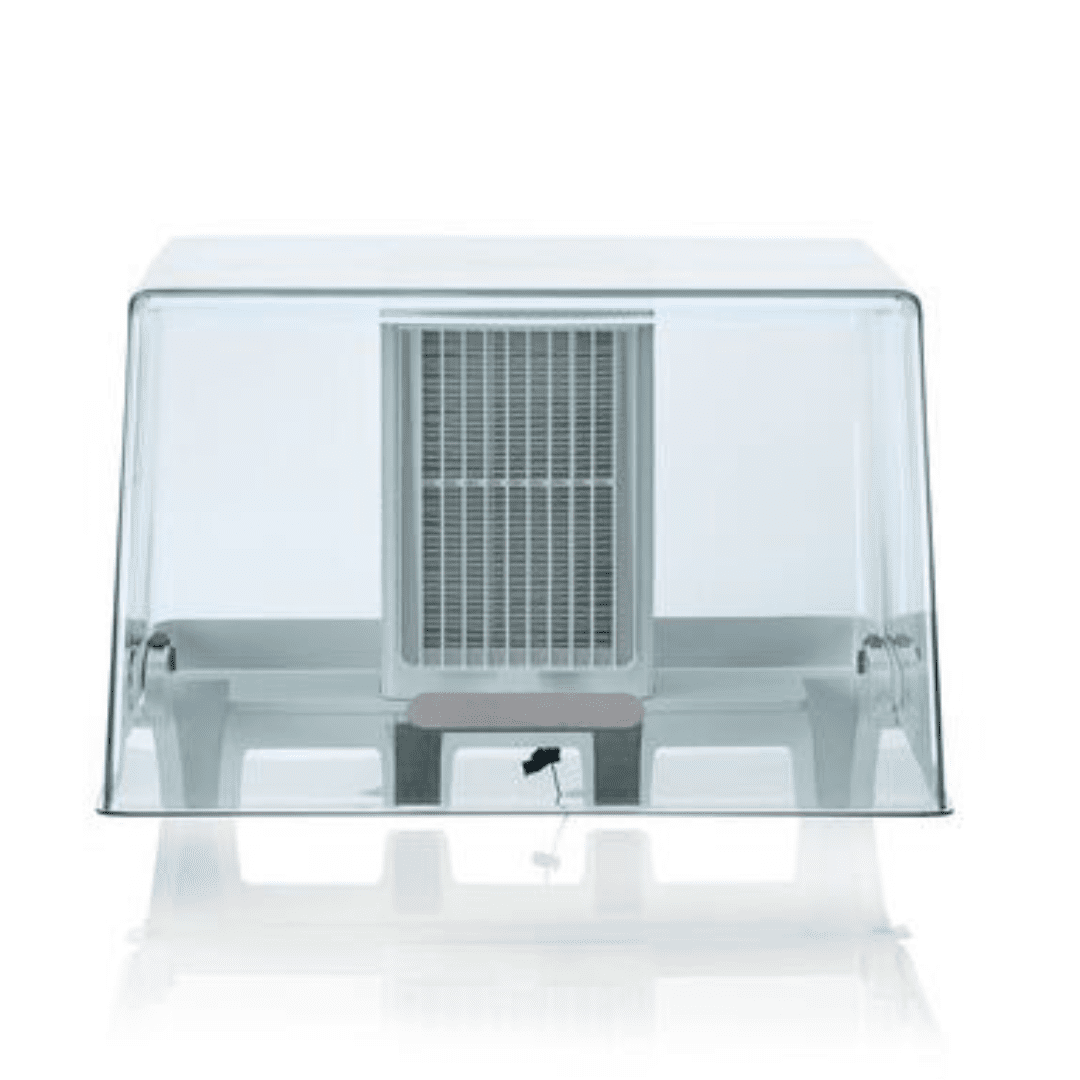

Ensures a safe working environment when working with even more materials. The closed, inside-out airflow catches, traps, or diffuses up to 95% of UFPs.

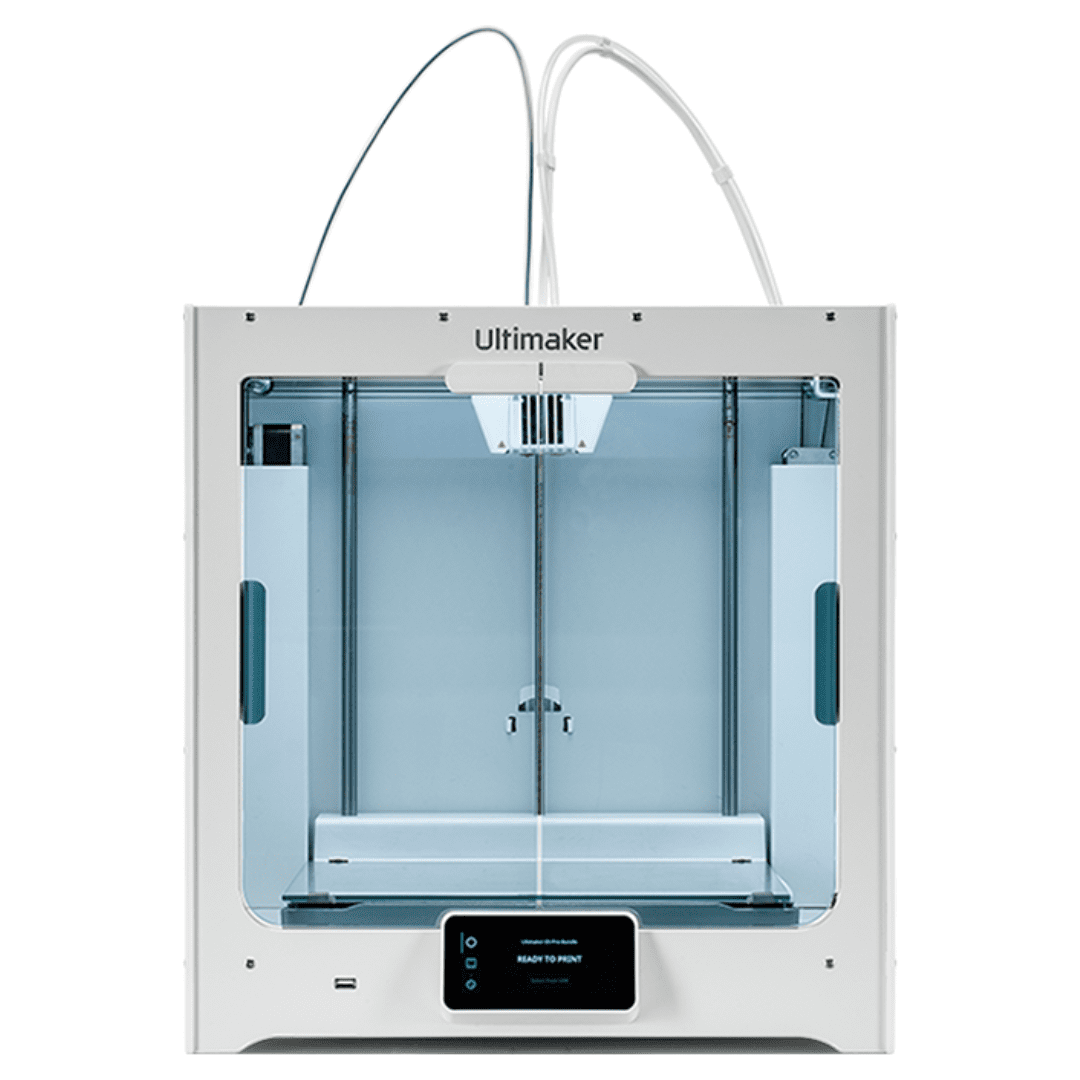

An award-winning, composite-ready 3D printer that is both reliable and easy to use. Designed with professionals, educators, and manufacturing applications in mind.
UNRIVALED PRINTING POWER
STREAMLINE YOUR PROCESS
High-Performance Materials
INTAMSYS has partnered with the industries top material developers to deliver the best performance and quality. Composite materials like carbon-filled nylon, or flame retardant material like ULTEM are very popular materials we offer, along PEEK and many others.
High-Performance Materials
INTAMSYS has partnered with the industries top material developers to deliver the best performance and quality. Composite materials like carbon-filled nylon, or flame retardant material like ULTEM are very popular materials we offer, along PEEK and many others.
High-Performance Materials
INTAMSYS has partnered with the industries top material developers to deliver the best performance and quality. Composite materials like carbon-filled nylon, or flame retardant material like ULTEM are very popular materials we offer, along PEEK and many others.
UltiMaker S5 Pro Bundle Specifications
Dimensions:
| Build Volume: | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled Dimensions: | 495 x 500 x 1197 mm (19.5 x 19.5 x 47.1 inches) |
| Print technology: | Fused filament fabrication (FFF) |
| Weight: | 41.9 kg (92.4 lbs) |
| Power Input: | 100-240 VAC, 50-60 Hz |
| Maximum Power Output: | 600W |
Printer Properties:
| Layer Resolution: | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| XYZ Resolution: | 6.9, 6.9, 2.5 micron |
| Feeder Type: | Dual-geared feeder, reinforced for composite materials |
| Display: | 4.7-inch (11.9 cm) color touchscreen |
| Print core replacement: | Swappable print cores |
| Print Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
| Nozzle Diameters: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Software:
| Supported File Types: | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG |
| Printable Formats: | UFP |
| Bundled Software: | Ultimaker Cura, Ultimaker Digital Factory |
| Plugin Integration: | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported OS: | Windows Mac OS X Linux |
