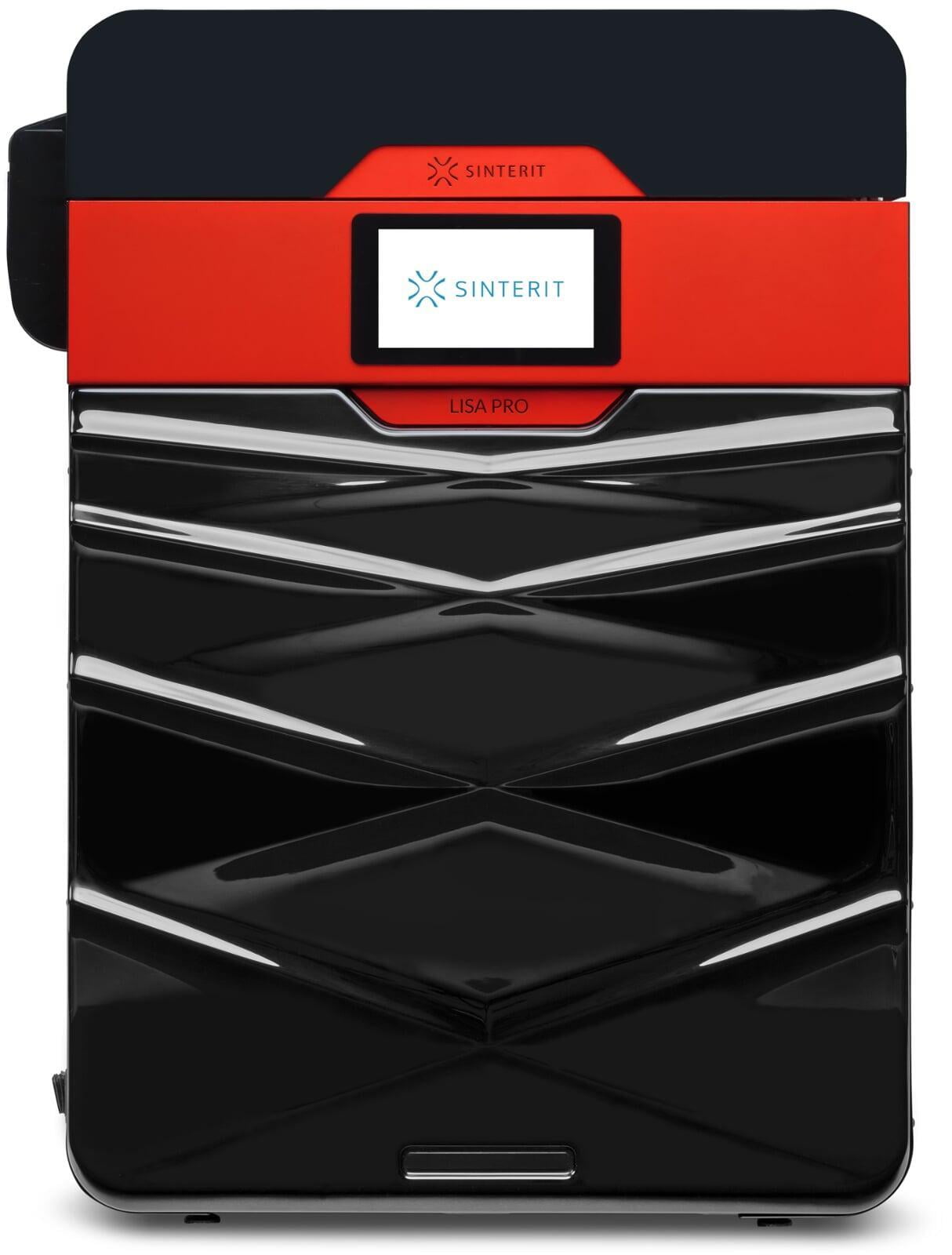

LISA PRO
PROFESSIONAL SLS PRINTING
The Lisa Pro has a large build area designed for bigger prints and higher volume production than ever before. You can print with a range of materials including strong PA12, flexible and semi-flexible materials, TPE and more. There is an enclosed nitrogen chamber for use with PA11. And the Sinterit Studio software enables you to use third-party materials which is great for testing and experimentation.
INNOVATE WITH AN IMPACT
The Sinterit Lisa Pro Features:
- A built-in nitrogen chamber for a wider choice of materials
- The possibility of using 3rd party powders
- A bigger print volume: 316 [mm] (12.4 [in]) diagonally
- Plug-and-play: no calibration needed
- Print bed size: 150 x 200 x 260 [mm] (5.9 x 7.9 x 10.2 [in])
- XY accuracy from 0.05 [mm] (0.002 [in])
- Sinterit Studio 2019 Open
KEY FEATURES
Open Printing System
Wide Range of Applications
Reliability & Consistency
High-Quality Printed Parts
No pre-defined parameters and only dedicated materials. Choose from our compatible materials, or pick your own. For greater flexibility, you can also change our recommended printing settings.
With nine compatible materials, access to third-party materials, and the ability to manage printing parameters, the spectrum of possible applications is enormous.
The LISA Pro is trusted by hundreds of users across the world printing thousands of parts. The impressive results they’ve achieved only confirm the printer’s reliability.
The quality of the 3D printed parts is comparable to that of industrial size machines. Just consider the number of applications the Lisa Pro produces for education, product design, and industrial applications.
Sinterit Lisa Pro Specifications
| Material: | Powder |
| Max build volume: | 150 x 200 x 260 [mm] (5.9 x 7.9 x 10.2 [in]) |
| Max size of print diagonally: | 316 [mm] |
| Max size of high precision print Flexa, TPE: | 110 x 150 x 250 [mm] (4.3 x 5.9 x 9.8 [in]) |
| Max size of high precision print PA12, PA11: | 90 x 130 x 230 [mm] (3.5 x 5.1 x 9 [in]) |
| Size of Print Bed: | 150 x 200 x 260 [mm] (5.9 x 7.9 x 10.2 [in]) |
| XY Accuracy: | from 0,05 [mm] | 0,002 [in] |
| Min layer thickness: | 0,075 [mm] | 0,003 [in] |
| Min wall thickness: | 0,4 [mm] | 0,015 [in] |
| Dimensions: | 690 x 500 x 880 [mm] 27.1 x 19.7 x 34.6 [in] |
| Weight: | 90,0 [kg] 198 [lbs] |
| Power Supply: | One phase, recommended AC outlet power |
| Software: | Sinterit Studio 2018 |
| Compatible OS: | Microsoft Windows |
| Connectivity: | USB Stick or WIFI |
