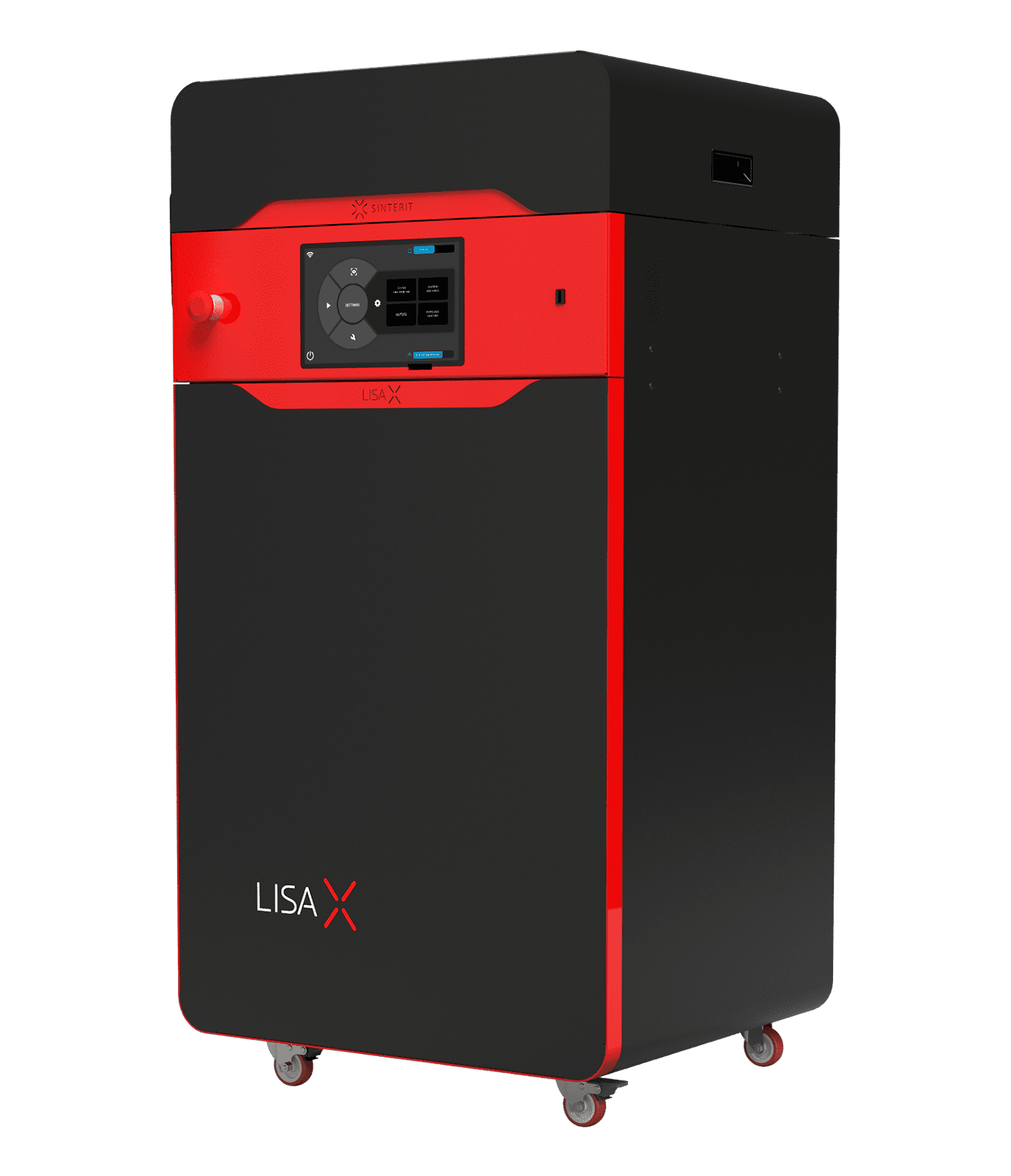

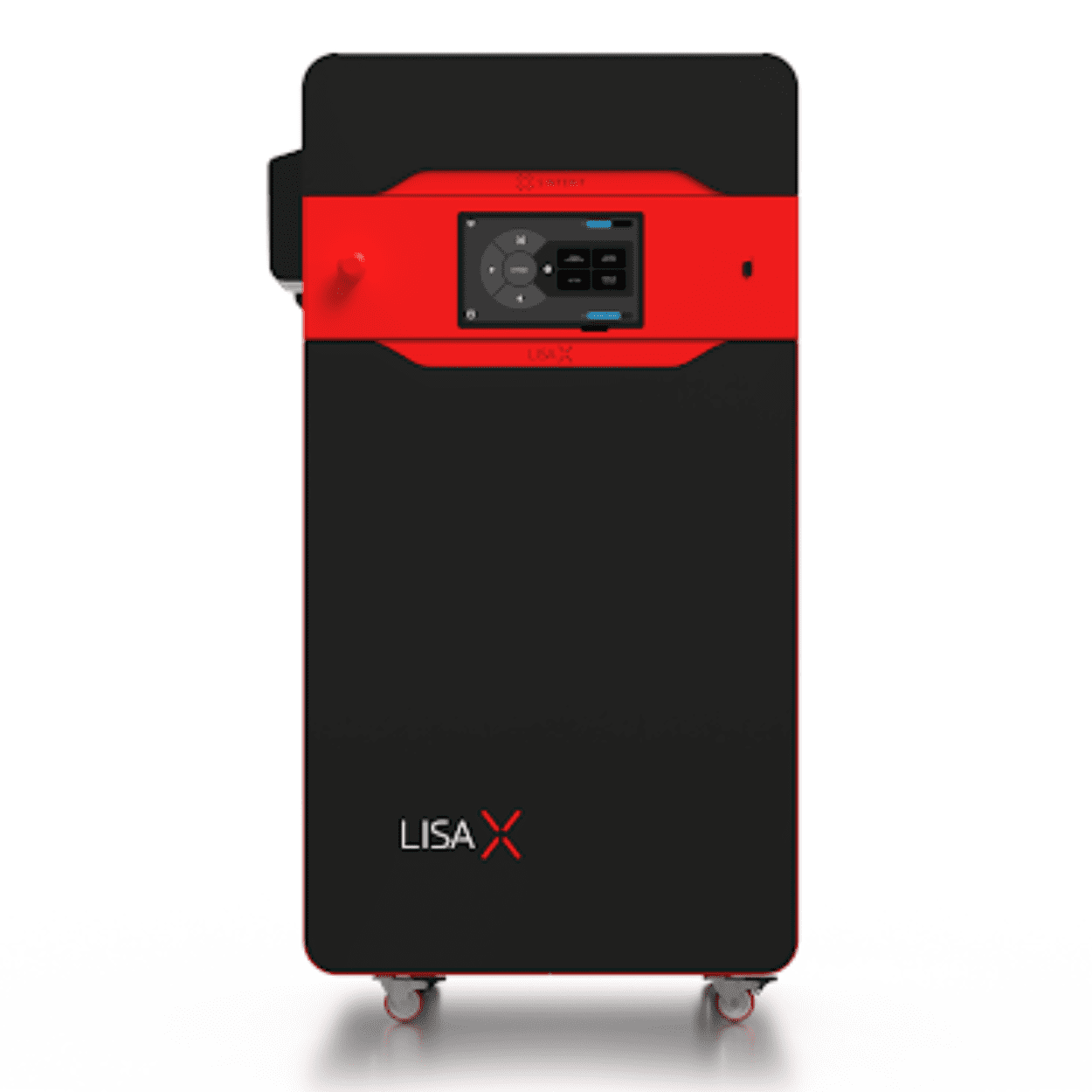

LISA X
COMPACT SLS PRINTING
Sinterit's LISA X is designed to improve user innovation by offering lightning-fast printing capabilities, a large working area, access to a wide variety of materials, & open printing parameters.
The 22 heating elements spread across four heating zones enable you to strictly control the temperature variations inside the printer. The resulting array of options for modifying and adjusting parameters allows you to optimize the printing process for developed materials, test new research methodologies, and make top-quality printouts.
A FASTER COMPACT SOLUTION
Larger Build Volume
Wide Range of Materials
Nine materials, from ultra-durable, flexible materials to more specialized ones like ESD powder.
Top Print Quality
Top-notch detail achieved thanks to Sinterit’s experience-gained know-how in the SLS industry.
Open Environment
32 open printing parameters to manage and the ability to use external materials.
Optimal Printing Costs
Made possible thanks to Lisa X’s revolutionary speed and best powder refresh ratio on the market.
Made possible thanks to Lisa X’s revolutionary speed and best powder refresh ratio on the market.
KEY FEATURES
Open Printing System
Industrial Printing Speed
Larger Build Volume
Wide Range of Materials
No pre-defined parameters and a wide range of compatible materials. Choose from our compatible materials, or pick your own. For even more flexibility, you can also change our recommended printing settings.
Build speed of up to 14 mm/h – most jobs are printed within 24 hours. With the ability to print up to five print beds per week, you will prototype and iterate faster.
With a bed measuring
130 x 180 x 330 mm,
the Lisa X is the largest compact SLS printer in our arsenal. You can print more elements or larger objects.
Nine materials,
from ultra-durable, flexible materials to more specialized ones like ESD powder. With so many possible materials to use, the range of applications is enormous.
Sinterit Lisa X Specifications
| Technology: | Laser Sintering |
| Build Volume: | 130 x 180 x 330 mm 5.1 x 7.1 x 13.0 in |
| Max print diagonally: | 398 mm 15.7 in |
| Layer Thickness (Axis Resolution): | 0.075 - 0.175 mm 0.003 - 0.006 in |
| Build Speed: | 10 - 14 mm/h 0.39 - 0.55 in/h |
| Laser Type: | IR 30 W |
| Laser Scanner Type: | Galvo |
| Laser Spot Size: | 650 μm / 0.0256 in |
| Print Preparation: | Sinterit Studio |
| Windows: | 10 and later |
| File Types: | STL, 3MF, OBJ, 3DS, FBX, DAE |
| Output File Type: | *.scode, *.sspf, *.sspfz |
| Communication: | 1200 x 1200 x 1750 (mm) 47.2 x 47.2 x 68.9 (in) |
| Inert gas control system: | Yes |
| Control Panel: | 9" Interactive touchscreen |
| Printer Dimensions: | 650 x 610 x 1200 mm 25.6 x 24.0 x 47.2 in |
| Weight: | 150 kg 330 lbs |
