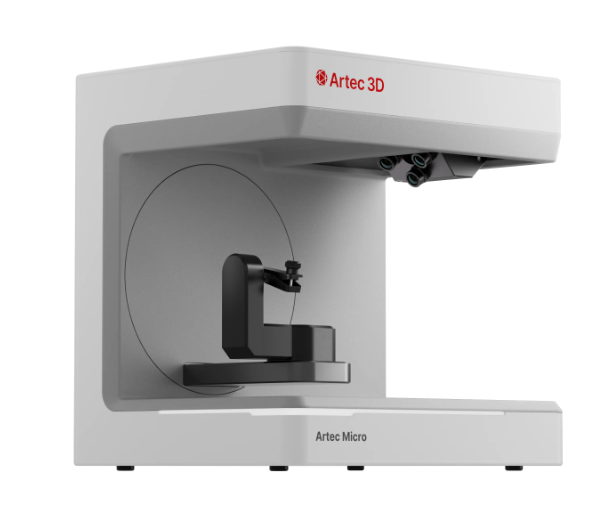

ARTEC MICRO II

Automated Desktop Scanner for Digitizing Parts in 5-Micron Accuracy

With heightened precision, an expanded field of view, and a compact form, the Micro II fully automated desktop 3D scanner facilitates seamless professional reverse engineering and quality inspection. With just a simple click, users can activate this scanner designed for small objects, delivering a precise 5-micron accuracy for crafting highly detailed, full-color 3D models of industrial components, dental structures, and jewelry.

Request a Quote

Metrology-Grade Accuracy for Small Components

Experience unparalleled data quality with a point accuracy reaching up to 5 microns, positioning the Micro II as the ultimate 3D scanner for advanced reverse engineering and meticulous quality inspection of small and minute parts. Capture everything with exceptional clarity!

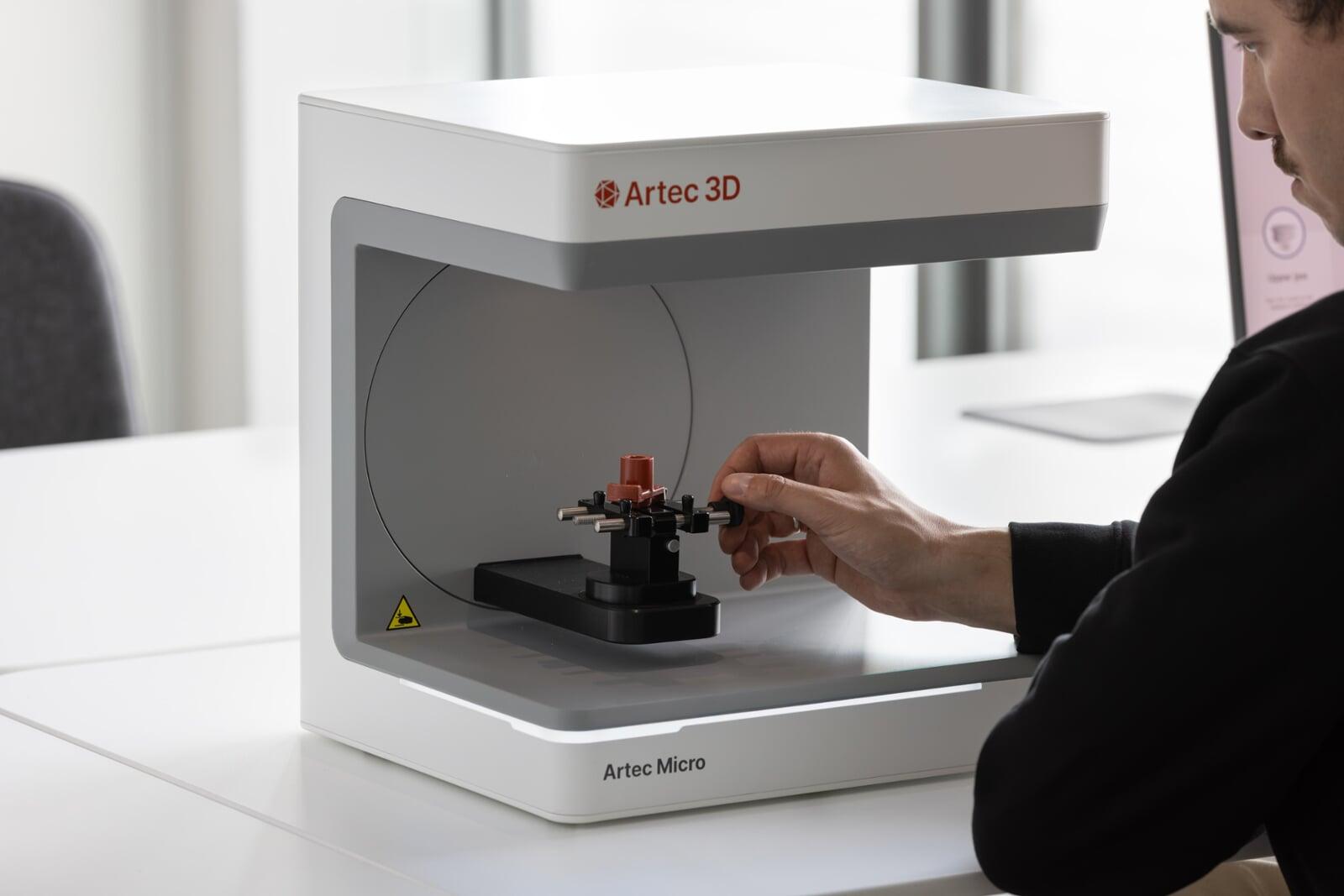

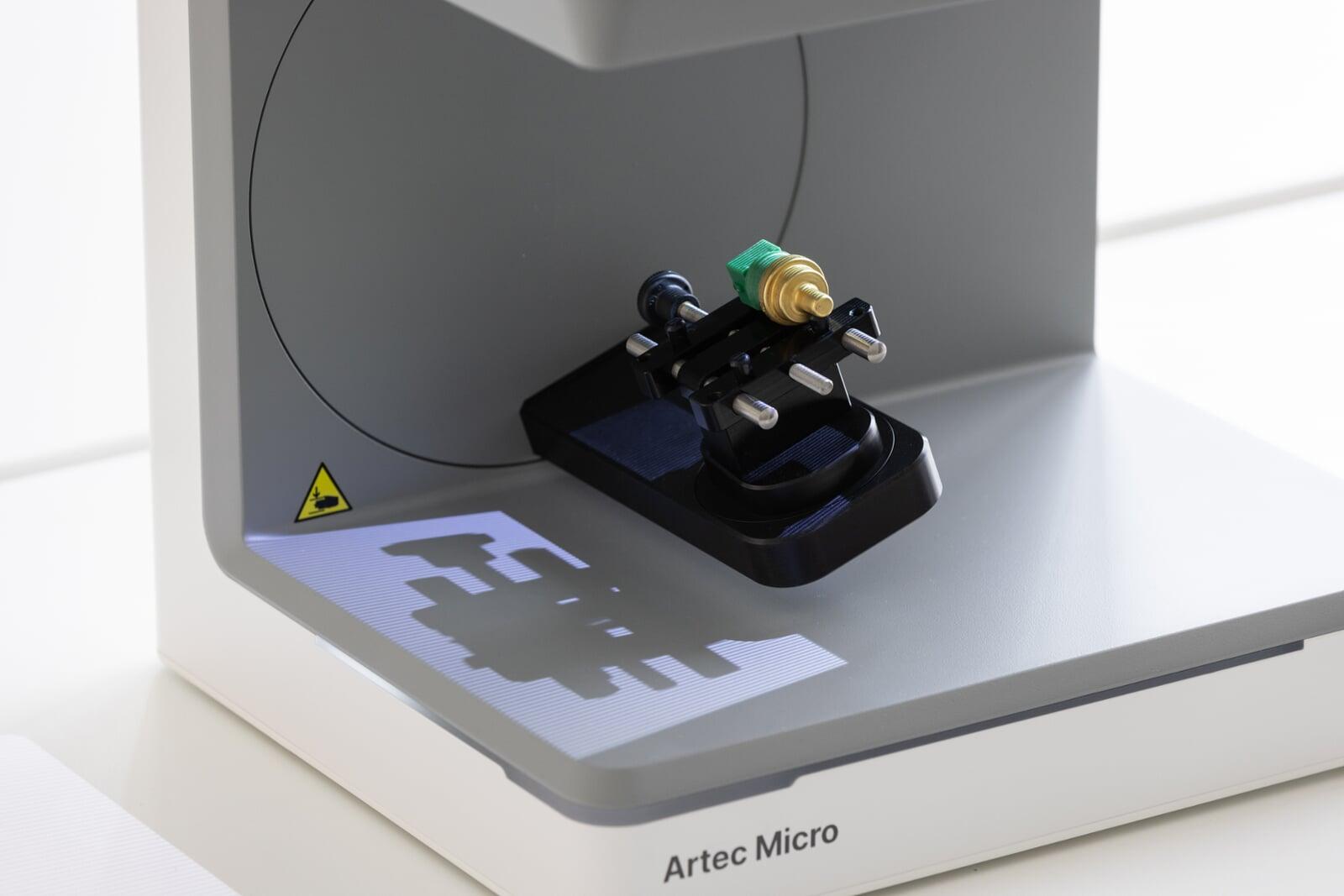

Accurate 3D Scanning with a Single Click

Optimize your time with a streamlined one-click workflow. Utilizing intelligent algorithms in Artec Studio, the scanner automatically positions your object, ensuring it follows the optimal scanning trajectory. This guarantees comprehensive scanning from all angles in minimal time. With 1,000,000 calculations made per second, your 3D scanner captures and processes more than 140 million image points per second.

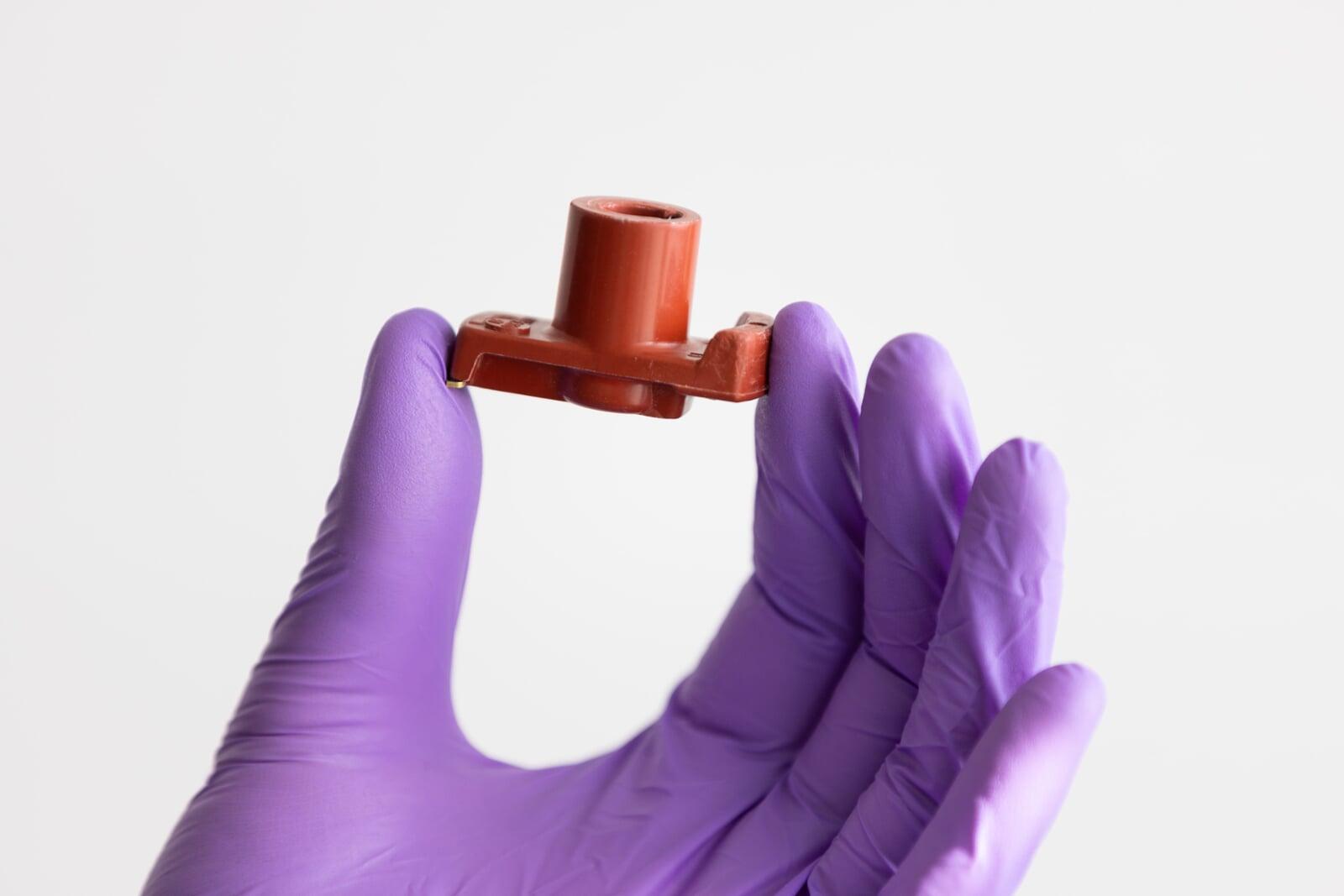

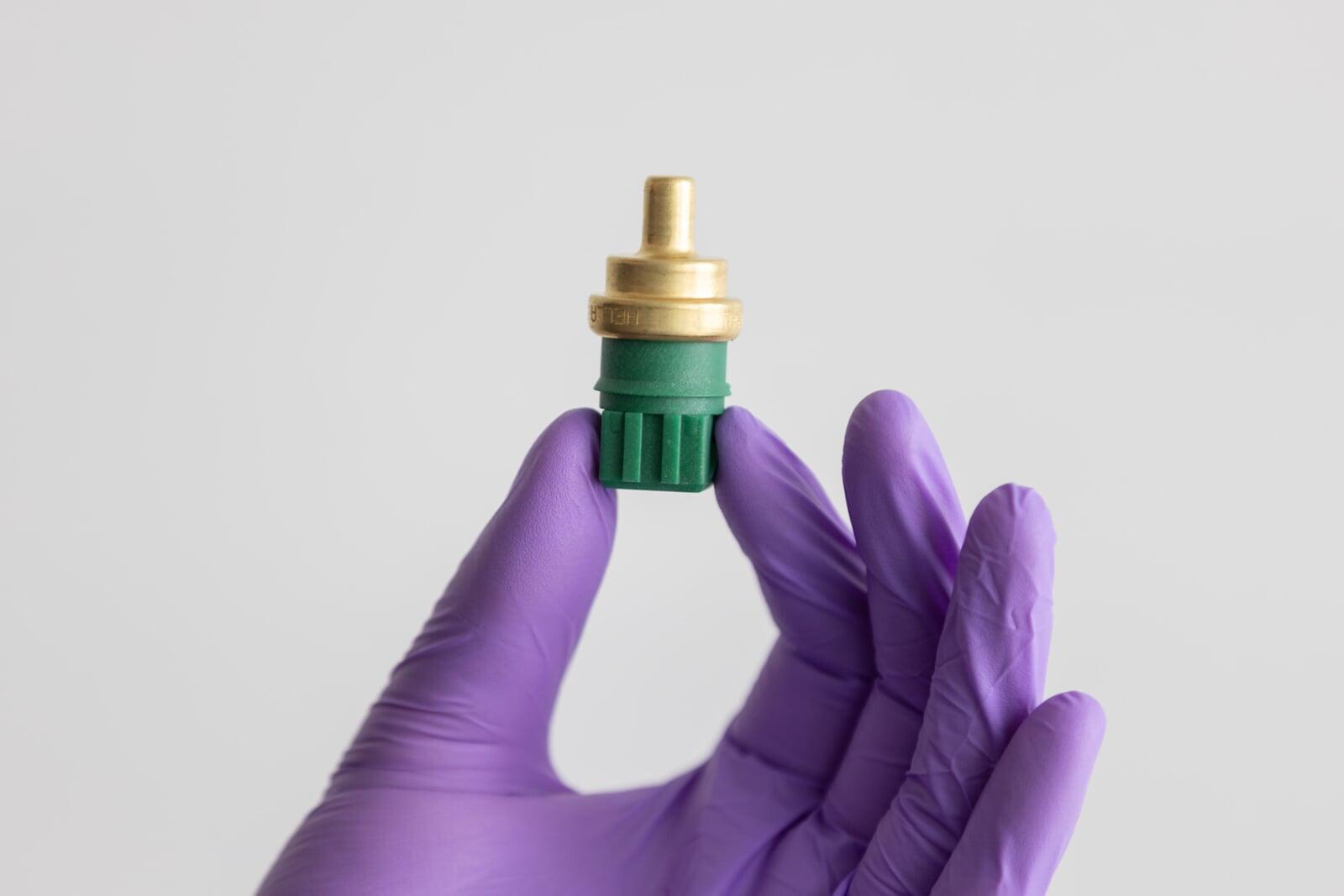

Scan Anything You Can Hold (and Under)

Starting from small items graspable between two fingers to those comfortably fitting in the palm of your hand (20 x 20 x 15 cm), the Micro II effortlessly begins scanning directly from your desktop. It requires minimal effort on your part, eliminating the need for any targets in your scans.

Deep View Cameras

Get deeper into the nooks of your object with the scanner s quad-cam scanning technique: four specially positioned 12 PMX cameras to capture hard-to-see areas for high-level digitization. The Micro II is equipped with four high-resolution cameras, and is capable of scanning sharp edges and miniscule details just what you need for the 3D scanning of small objects.

Artec Micro II Specifications

 3D Accuracy:Up to 5 microns, 2 micron repeatability
 Accuracy Certificare:
ISO12836
 Smart Scanning Mode:Yes
 Full color scanning :
 Yes
 Target-free scanning:
 Yes
 Object Size:Up to 20 x 20 x 15 cm
  Light source:
 RGB LED
 Output formats: All popular formats, including STL, OBJ, PLY

FAQs:

Does Artec Micro II have a fully automatic mode?

Yes. You can choose the automatic scanning path in the software settings before starting a scan, and let the scanner choose the optimal trajectory and number of frames needed to fully capture the object.

What is the size limit of objects that can be scanned with Micro?

We recommend scanning objects that are up to 200 × 200 × 150 mm and 2 kg (4.4 lb) in size. Examples of objects suitable for scanning with the Micro are engine valves, electrical connectors, watch gears and parts, jewelry, etc.

What are the best applications for Artec Micro?

Artec Micro is the best 3D scanner  for reverse engineering, quality control, inspection, dentistry, jewelry, design, and any other area where you need a 3D scanner for small objects with ultra-high accuracy.

What are the repeatability results for separate scans of the same object?

Repeatability is a key characteristic for inspection, and the Micro II provides excellent results in this area. While factors such as material and surface finish of the object may slightly affect noise levels, the Micro II generally provides 2-micron repeatability.
