KSCAN-MAGIC

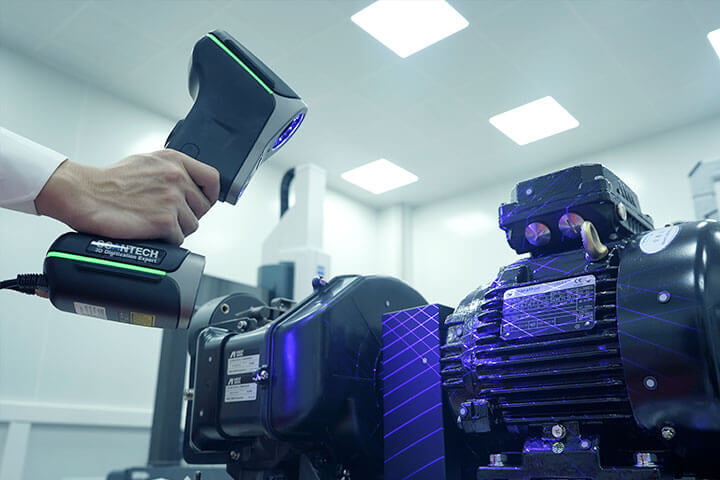

A Composite 3D Scanner That Combines Infrared & Blue Lasers

The KSCAN-Magic 3D laser scanner is the first to integrate infrared and blue lasers into a single device. Large-area scanning (globally initiative infrared laser), quick scanning (blue laser crosses), fine scanning (blue parallel laser), deep-hole scanning (single blue laser), and the built-in photogrammetry system are the five common operating modes. It can do careful 3D scanning thanks to its two sets of high-definition industrial cameras.

Download Brochure
Request a Quote

Effortless Productivity

The KScan-Magic has an extremely quick scanning rate, allowing for a faster workflow from setup to scan. It serves varied application needs by flexibly switching scanning modes (including photogrammetry) which substantially enhances working productivity.

Crystal Clear Details

Under hyperfine scanning mode, KSCAN-Magic series 3D laser scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm. The single laser line scanning mode takes 3D data of deep holes and dead angle positions correctly and fast. For wide-range 3D scanning, the KSCAN-Magic 3D laser scanner uses an infrared laser. Its maximum scanning area is 1440 mm x 860 mm, allowing for exact 3D measurement.

noun-sun-rays-1932951-0080FF.svg

Infrared & Blue Lasers

The KSCAN-Magic opens up the first introduction of infrared laser + blue laser technology with five standard working modes.

noun-accuracy-2017348-0080FF.svg

0.02mm Accuracy

Under hyperfine scanning mode, KSCAN-Magic can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.

noun-maximize-3749242-0080FF.svg

Large Scanning Area

The KSCAN-Magic's ultimate scanning area reaches 1440 mm × 860 mm, achieving precise wide range measurement with ease.

KSCAN-Magic Specifications
 Accuracy: 0.020 mm  
 Scanning rate:
Up to 1,350,000 measurements/s
 Scanning area:
 Up to 1440 mm x 860 mm
Laser lines in total:
 41
 Laser class:
 CLASS II (eye-safe)
Resolution:
Up to 0.010 mm  
 Stand-off distance:
300 mm
Depth of field:925 mm 
