Industrial SLA 3D Printer for Ultrafast Production Parts & Prototypes

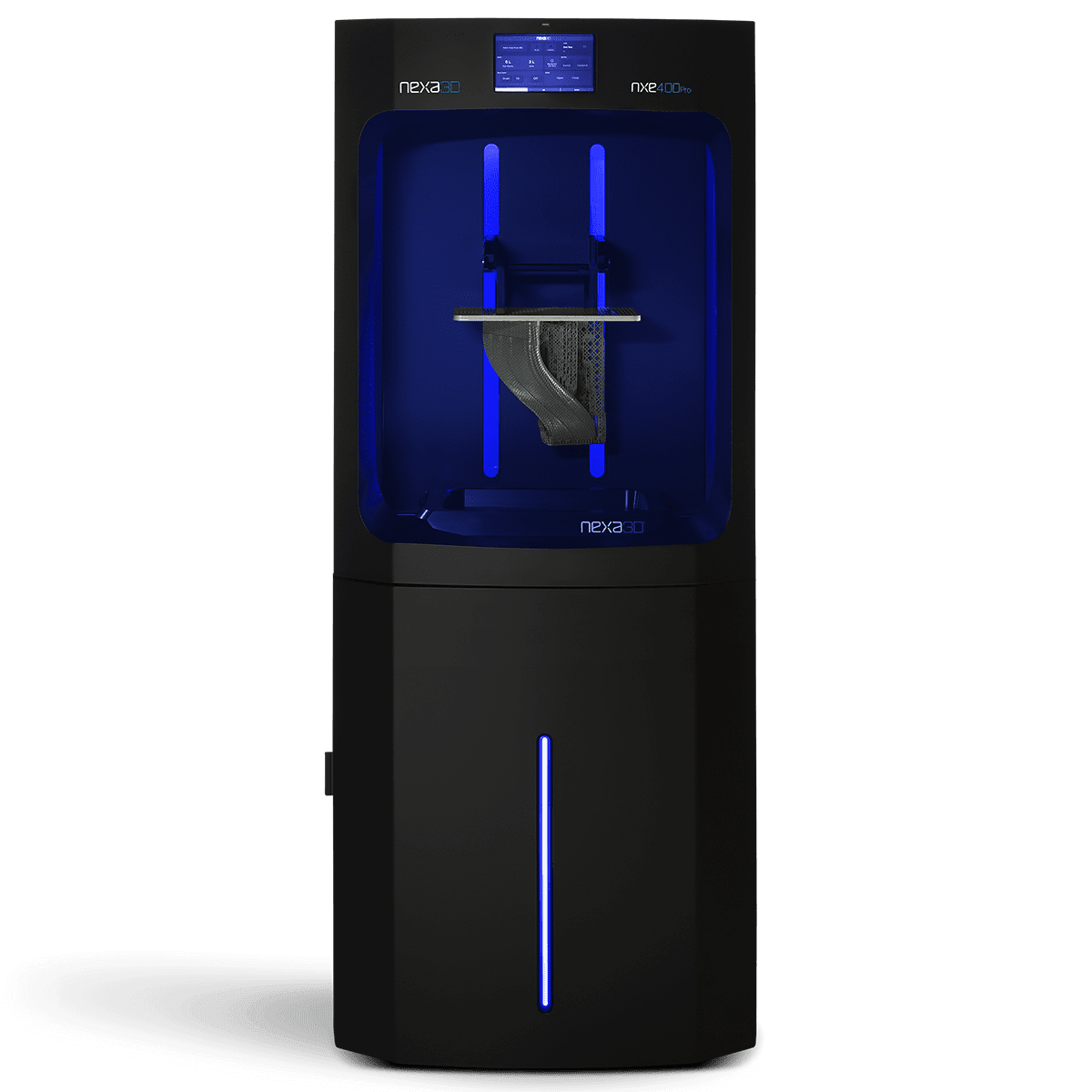

The NXE 400Pro photopolymer 3D printer boasts an unprecedented 17L build volume, delivering unmatched speed and throughput without compromising on accuracy or repeatability. Now featuring patented Lubricant Sublayer Photo-curing (LSPc®) technology & delivering accuracy and tolerances with a superior surface finish by turning SLA 3D printing technology on its head.
|
|
NXE 400Pro vs. Carbon® M3
When it comes to industrial resin 3D printers, the NXE 400Pro and Carbon M3 are the two most popular 3D printers used by OEMs and service providers. Compare Carbon M3 pricing and specs to NXE 400Pro to help you determine which one is better for your particular application. |
Nexa3D’s robust materials portfolio is backed by their strong partnerships with leading material providers including Henkel and BASF. Getting the most out of ultrafast LSPc technology is enabled by this broad range of fully validated materials, which are formulated to provide unprecedented print speed as well as part characteristics required for optimal mechanical performance. This includes general purpose resins for prototyping or tooling as well as high performance resins like xPEEK for high temperature environments or xPP for exceptional elongation characteristics.
|
Technical Specifications:
Build Volume (xyz): |
275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch) |
Pixel Pitch: |
4K resolution |
Max Resolution: |
76.5 µm (0.0030 in) |
Wavelength: |
405 nm |
NexaX 2.0: |
Full-featured software tool set providing auto-orientation and nesting, automatic support generation, easy build processing, and remote printer management including build submission, queue visibility, and job statistics. |
Connectivity: |
GigaBit Ethernet RJ-45 & WiFi Interface |
Client Hardware Recommendation: |
• 3 GHz multiple-core processor with 16+ GB RAM • NVIDIA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM • 3 GB available HDD space, additional 10GB for files / cache |
Client Operating System: |
Windows 10, 64bit |
Input Data File Formats Supported: |
d .stl, .3mf |
Post-Processing: |
Ships with basic part finishing tools accessory kit. • Max build requires wash basin & cure chamber with 300 x 180 x 480mm (12 x 7 x 19 in) capacity • Requires UV curing unit capable of > 2mW/cm2 and 60°C (ideal 20mW/cm2 and up to 120°C) |
Operating Environment:
Air Temperature: |
20–25˚C (68–77˚F) |
Electrical: |
NA Version: 100-120 VAC, 50/60 Hz, Single Phase, 8A (NEMA 15-5R) EU Version: 210-230 VAC, 50/60 Hz, Single Phase, 4A (CEE 7/7) |
Humidity: |
RH below 70% |
Dimensions:
3D Printer crated: |
990 x 990 x 1905 mm (39 x 39 x 75 inch) |
3D Printer uncrated |
710 x 710 x 1675 mm (28 x 28 x 66 inch) |
Weight:
3D Printer crated: |
250 kg (550lb) |
3D Printer uncrated |
160kg (350lb) |
