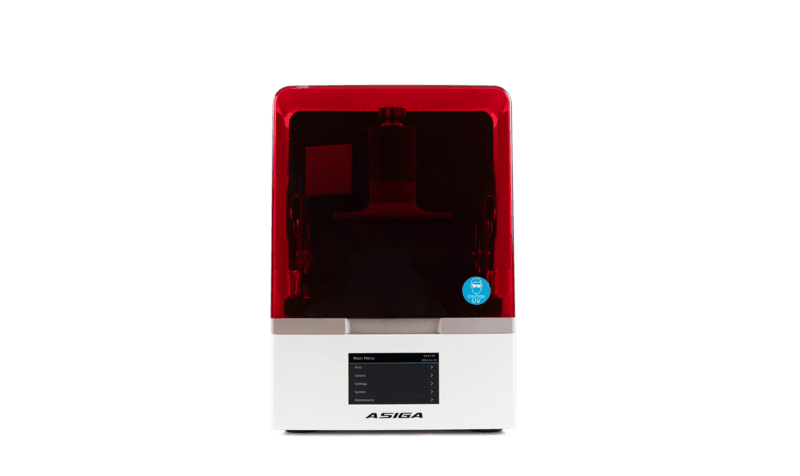

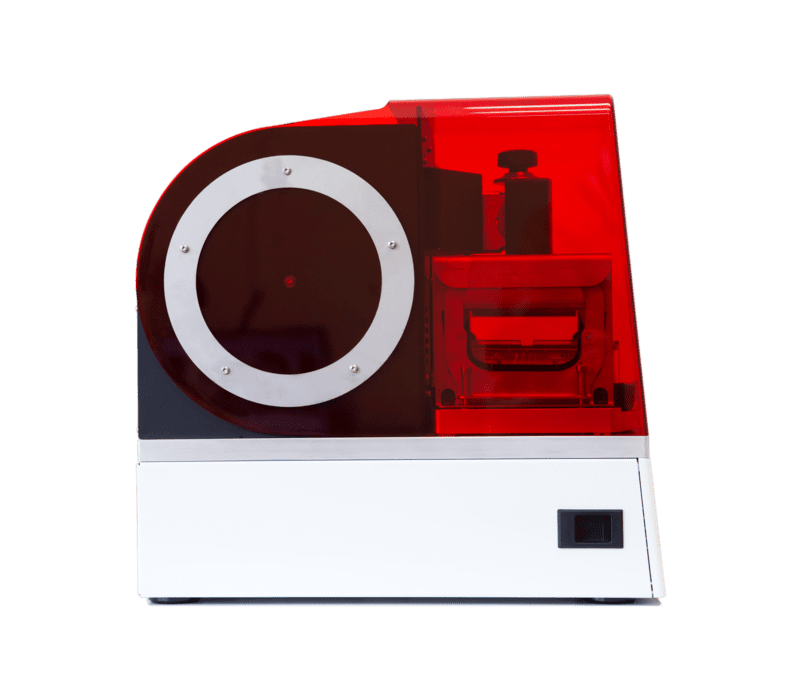

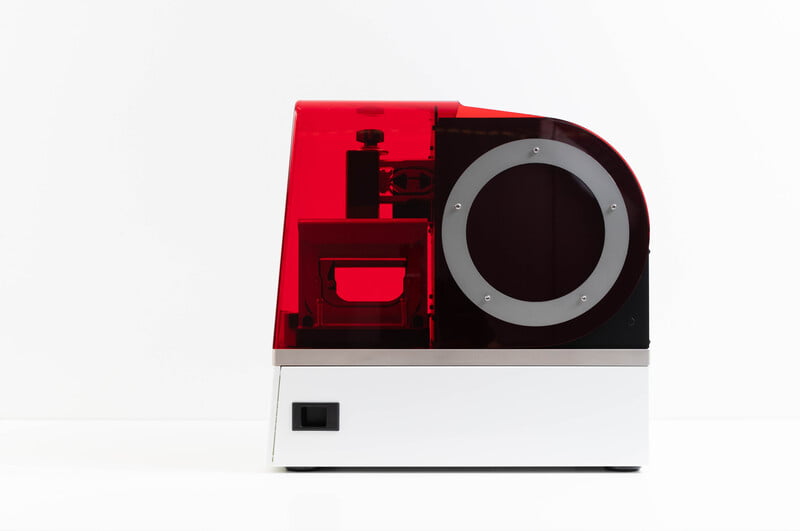

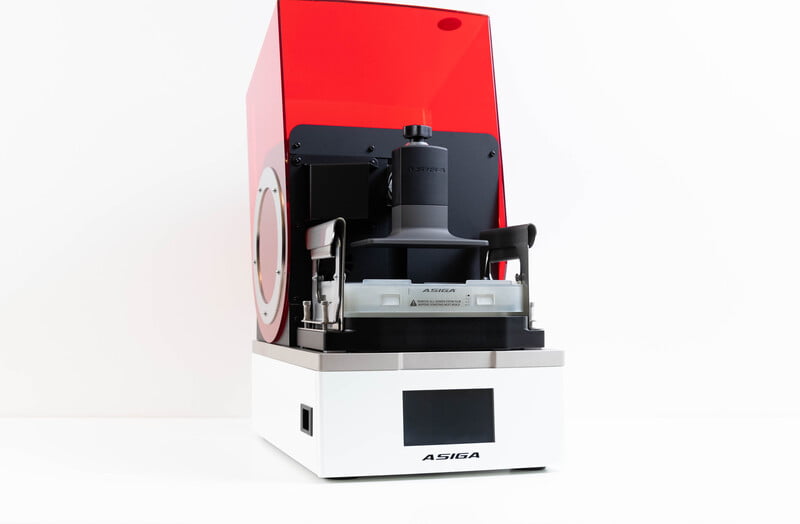

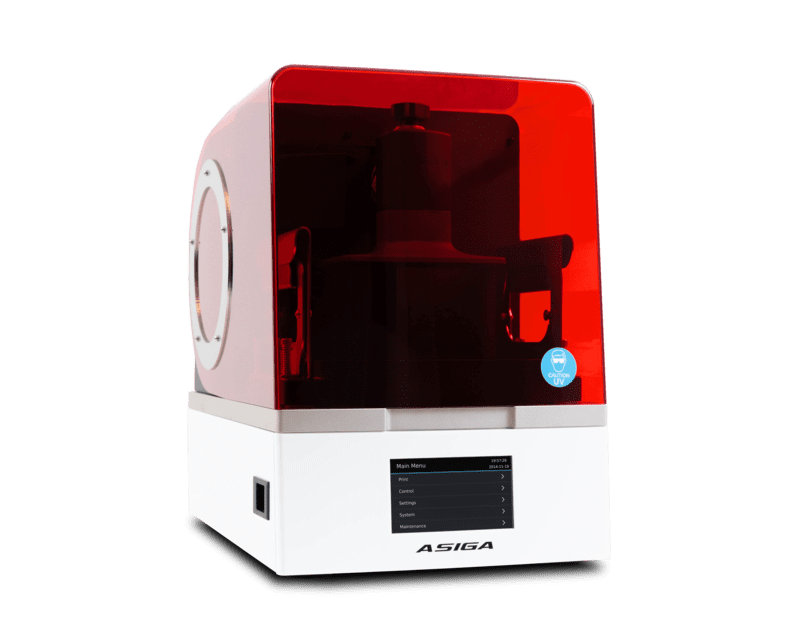

Asiga MAX | MAX UV
Select Model
The Asiga MAX is a high-accuracy DLP 3D printer designed with an emphasis on accuracy, precision, & surface quality. With 62μm HD print precision, the Asiga MAX™ is optimized for a variety of precise applications & industries such as manufacturing, audiology, dental, & jewelry.
$9,990.00 $10,990.00
Choose Quantity
Product Details
Taking the industry by storm, the ASIGA Max offers users a 62µm pixel resolution optimized for dental environments & anywhere that precision is paramount.
The MAX is an open materials system with over 400 resins validated. Its unique SPS™ process guarantees that every layer is formed accurately — which is the key to achieving consistently accurate results in any production environment.
The 385 nm light source cures faster at deeper UV wavelengths, reducing XY scattering and over-cure. The result is sharper detail definition, accuracy, production reliability and the ability to process water-clear materials.
The MAX is an open materials system with over 400 resins validated. Its unique SPS™ process guarantees that every layer is formed accurately — which is the key to achieving consistently accurate results in any production environment.
The 385 nm light source cures faster at deeper UV wavelengths, reducing XY scattering and over-cure. The result is sharper detail definition, accuracy, production reliability and the ability to process water-clear materials.
- High-Precision Printing
With 62µm print precision, the MAX is optimized for high-accuracy applications such as dental & audio lab clinic environments
- Open Material System
Compatible with a wide range of materials from Asiga's Material Library as well as other materials from third party manufacturers.
- SPS™ Smart-Positioning-System Technology
Asiga's unique SPS™ process guarantees every layer is formed accurately, which is the key to achieving consistently accurate results in any production environment.
Build Volume X, Y, Z | 119 × 67 × 75mm 4.69 × 2.64 × 2.95 inches |
Pixel Resolution | 62µm |
Technology | DLP |
LED Wavelength | 385nm (high power UV LED) or 405nm |
Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material |
Software | Asiga Composer software. Lifetime updates included |
File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
Network Compatibility | Wifi, Wireless Direct, Ethernet |
Power Requirements | 100 to 240 VAC, 50/60 Hz, ≤2 Amps |
System Sizing | 260 × 385 × 370mm / 19.3 kg 10.2 × 15.2 × 14.5 inches / 42.6 lb |
Packed Sizing | 410 × 500 × 480mm / 21.6 kg 16.1 × 19.7 × 18.9 inches / 47.6 lb |
Warranty | 12 months manufacturer's warranty |
Technical Support | Unlimited lifetime technical support included |
