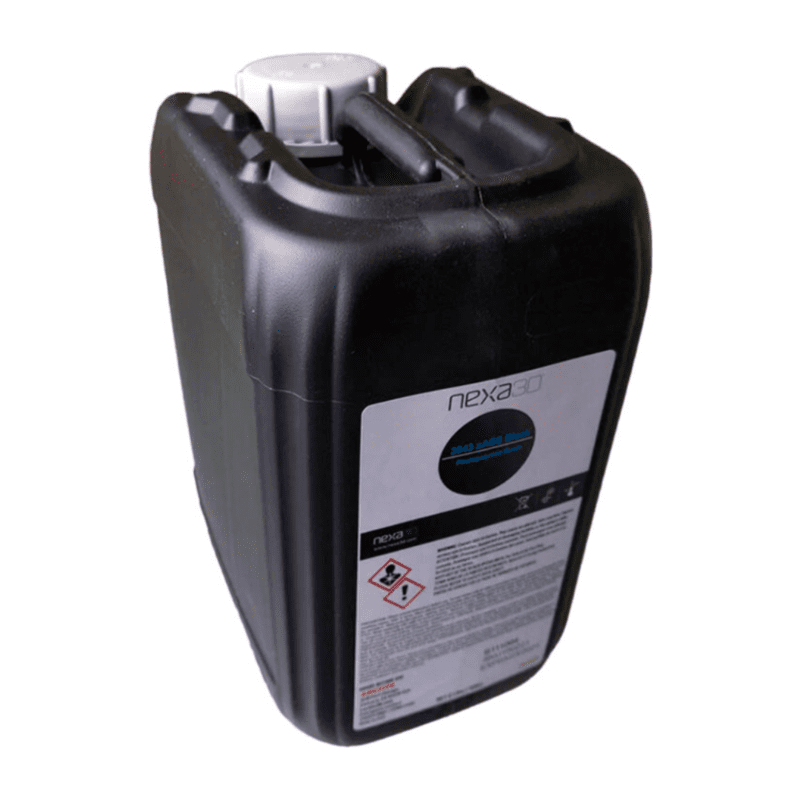

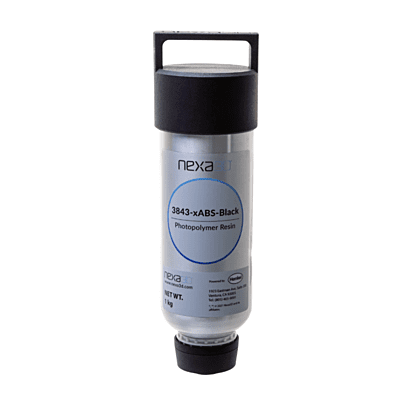

Nexa3D xABS 3843 Resin
$230.00 - $1,150.00
Nexa3D xABS 3843 Resin is a tough and long-lasting material that boasts a similar aesthetic to injection molded black ABS. It is both a high performance & high-modulus material with a relatively high degree of elongation and outstanding flexural and tensile physical characteristics.
Nexa3D xABS 3843 Resin offers users precise printing & the ability to work in a wide range of applications thanks to its high strength and heat deflection temperature.
Product Details
Applications:
- Mechanical assemblies (robotics, automation machinery, bracket)
- Levers and arms for manufacturing stations
- Parts and assemblies
Property | Test | Value |
Tensile Modulus | ASTM D638 | 1620 MPa |
Ultimate Tensile Strength | ASTM D638 | 60 MPa |
Tensile Elongation at Break | ASTM D638 | 47% |
Flex Modulus | ASTM D790 | 1860 MPa |
Flex Strength | ASTM D790 | 81 MPa |
Hardness (shore D) | ASTM D2240 | 86 |
Notched Izod | ASTM D256 | 54 J/m |
HDT @0.45 MPa | ASTM D648 | 80°C |
Water Absorption | ASTM D570 | 2.35% |
