UltiMaker S3 Productivity Bundle
$5,121.25
LIMITED TIME OFFER!
Get a PVA Removal Station for 25% off & 3 Years of Warranty Protection FREE with the purchase of an UltiMaker S3!
WHAT'S INCLUDED?
- UltiMaker S3 3D Printer
- PVA Removal Station
- 3 Year Enhanced Service Plan
- UltiMaker S3 3D Printer
- PVA Removal Station
- 3 Year Enhanced Service Plan
Product Details
Specifications

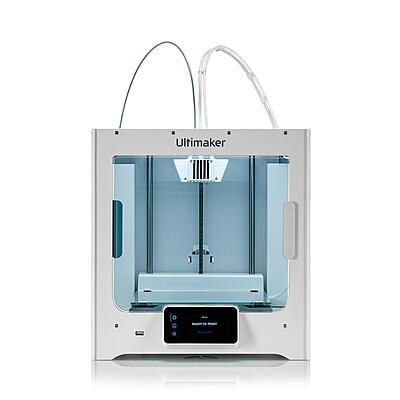

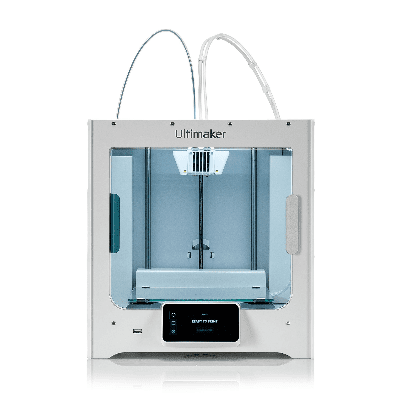

UltiMaker S3
Inside an efficiently small footprint suitable for any desk, the Ultimaker S3 delivers composite-ready dual extrusion that your process can rely on. With market-leading technology, the S3 is as easy to use as it is powerful. It displays step-by-step setup, navigation, and maintenance, ultimately reducing the learning curve. In fact, customers have stated that they feel confident enough to start printing their own designs after only a 30-minute introduction period — so there's no need to spend money on a dedicated operator.

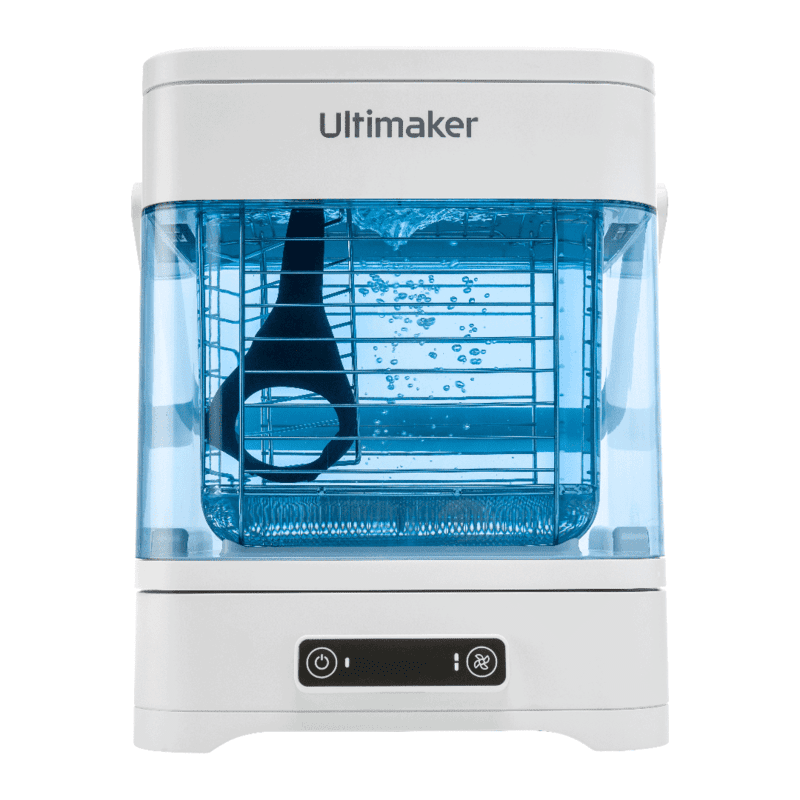

PVA Removal Station
Faster parts Experience quicker and easier post-processing when using PVA support material for complex parts or stunning visual prototypes, with the UltiMaker PVA Removal Station. Part of our start-to-finish 3D printing platform, it ensures quicker design iterations with minimal operator time and no mess.
The UltiMaker PVA Removal Station features a highspeed dissolving process driven by a magnetic rotor. Compared with motionless water in an improvised container, it removes PVA up to four times faster – even from hard-to-reach cavities in complex designs. So you have parts ready as soon as possible.
UltiMaker S3
- XY Positioning Precision:6.9 microns
- Z Positioning Precision:2.5 microns
- Build Volume:23 x 19 x 20 cm [9.05 x 7.48 x 7.87 in]
- Print Head:Dual-extrusion head with an auto-nozzle lifting system Swappable print cores (maximum 280C)
- Extrusion Speed:24 mm^3/s
- Nozzle Diameter:0.4 mm Print Core (included), 0.25 mm, 0.4 mm, 0.6 mm, and 0.8 mm Print Cores available
- Build Platform:Heated glass build plate (maximum 140C)
- Bed Leveling:Active
- Print Technology:FFF
- Filament Diameter:2.85 mm [.1122 in]
- Feeder Type:Dual-geared feeder, reinforced for composite materials
- Printer Dimensions (including Bowden tube/filament spool holder):39.4 x 48.9 x 63.7 cm [15.51 x 19.25 x 25.08 in]
- Shipping Dimensions:53.3 x 55.9 x 61 cm [21 x 22 x 24 in]
- Printer Weight:14.4 kg [31.7 lbs]
- Printer Shipping Weight:20.9 kg [46 lbs]
- Supported File Types:STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
- Operation Temperature:15-32 C [59-90 F]
- Average Operation Noise:50 dBA
- Storage Temperature:0-32 C [32-90 F]
