Ultimaker S3
SKU:
$4,450.00
$4,450.00
Unavailable
per item

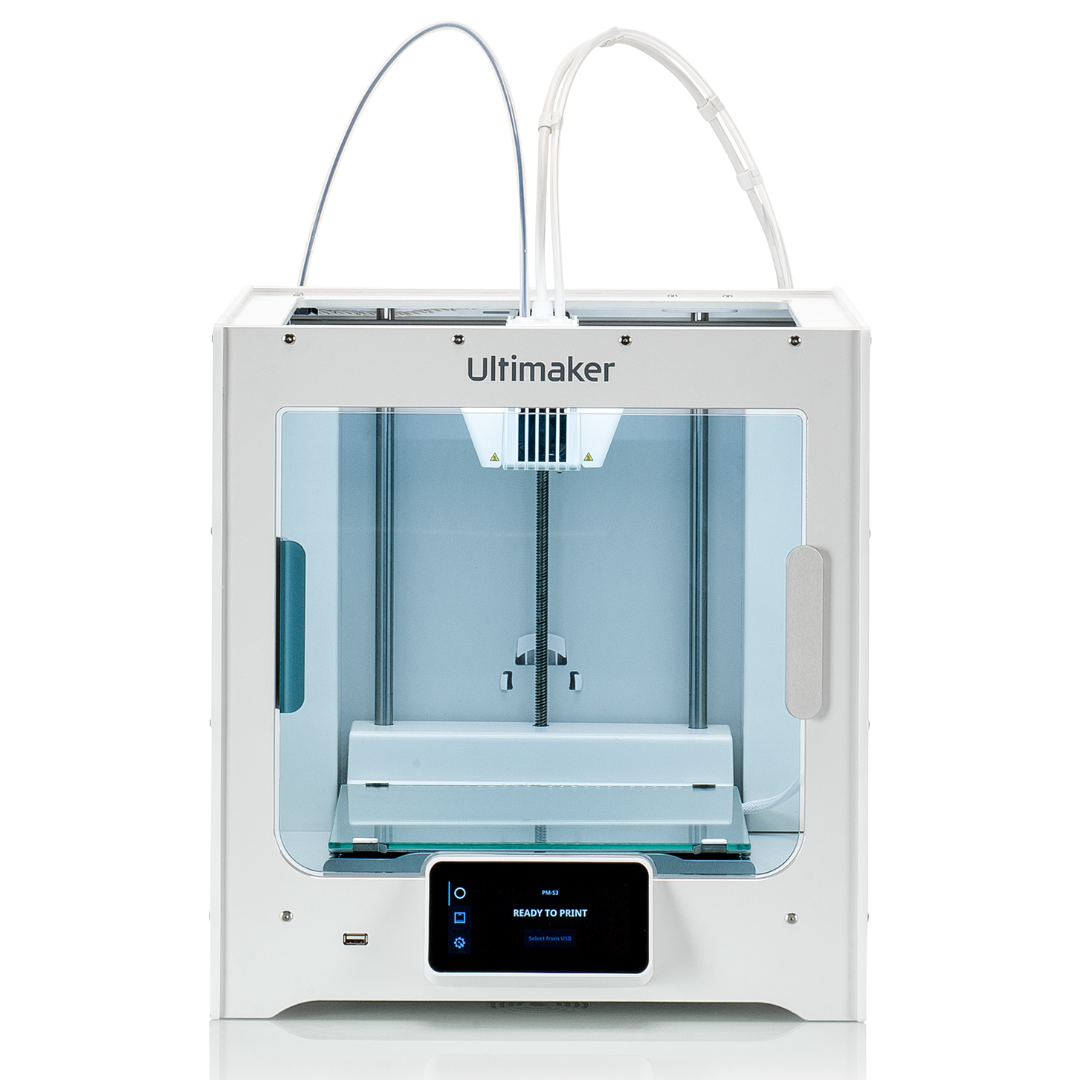

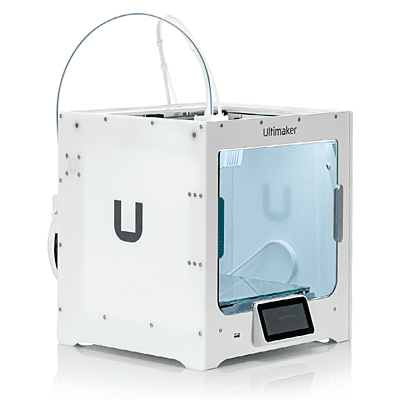

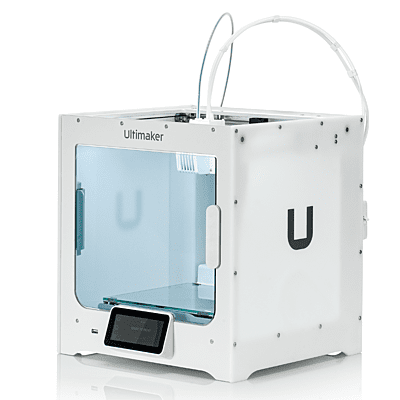

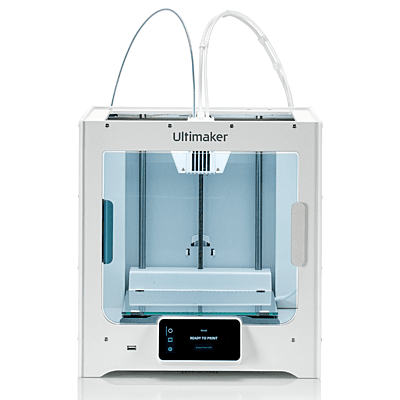

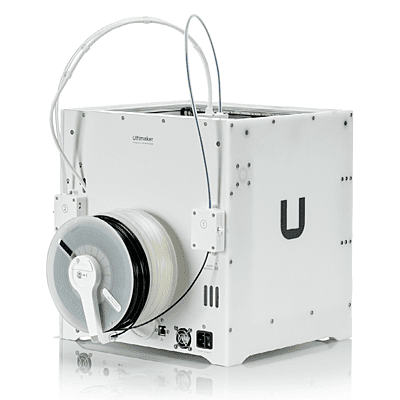

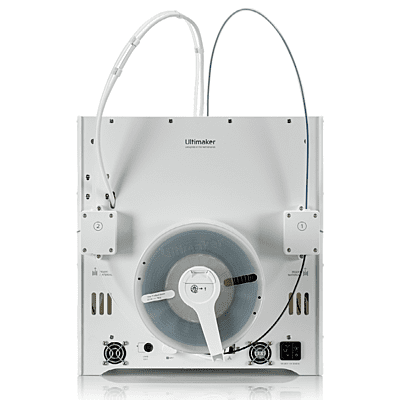

Ultimaker S3
The Ultimaker S3 has taken the best features from the S5 and combined them into a smaller, more affordable device. The S3 delivers the same high-quality, composite-ready dual extrusion, with the same market-leading reliability and ease of use – just with a smaller build volume (230 x 190 x 200 mm or 9.1 x 7.4 x 7.9 inches).
- Reinforced feeder wheels
- Dual filament flow sensors
- Advanced active leveling
- High-accuracy stepper drivers
Technical Specifications:
Dimensions:
Build Volume: |
230 x 190 x 200 mm (9 x 7.4 x 7.9 inches) |
Assembled Dimensions: |
394 x 489 x 637 mm (15.5 x 19.3 x 25.1 inches) |
Print technology: |
Fused filament fabrication (FFF) |
Weight: |
20.6 kg (45.4 lbs) |
Compatible Filament Diameter: |
2.85 mm |
Maximum Power Output: |
500 W |
Printer Properties:
Layer Resolution: |
0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
XYZ Resolution: |
6.9, 6.9, 2.5 micron |
Feeder Type: |
Dual-geared feeder, reinforced for composite materials |
Display: |
4.7-inch (11.9 cm) color touchscreen |
Print core replacement: |
Swappable print cores |
Print Head: |
Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
Nozzle Diameters: |
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters:
Build Speed: |
< 24 mm³/s |
Nozzle Temperature: |
180 - 280 °C |
Nozzle Heat-Up Time: |
< 2 minutes |
Operating Sound: |
< 50 dBA |
Build Plate Leveling: |
Advanced active leveling |
Build Plate: |
20 - 140 °C heated glass build plate |
Build Plate Heat-Up Time: |
< 4 minutes (from 20 to 60 °C) |
Operating Ambient Temperature: |
15 - 32 °C (59 - 90 °F) |
Non-Operating Temperature: |
0 - 32 °C (32 - 90 °F) |
Ecosystem:
Supplied Free Software: |
Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software |
Supported OS: |
MacOS, Windows, and Linux |
Plugin Integration: |
SolidWorks, Siemens NX, Autodesk Inventor |
Supported File Types: |
Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
File Transfer: |
Wi-Fi, Ethernet, USB |
