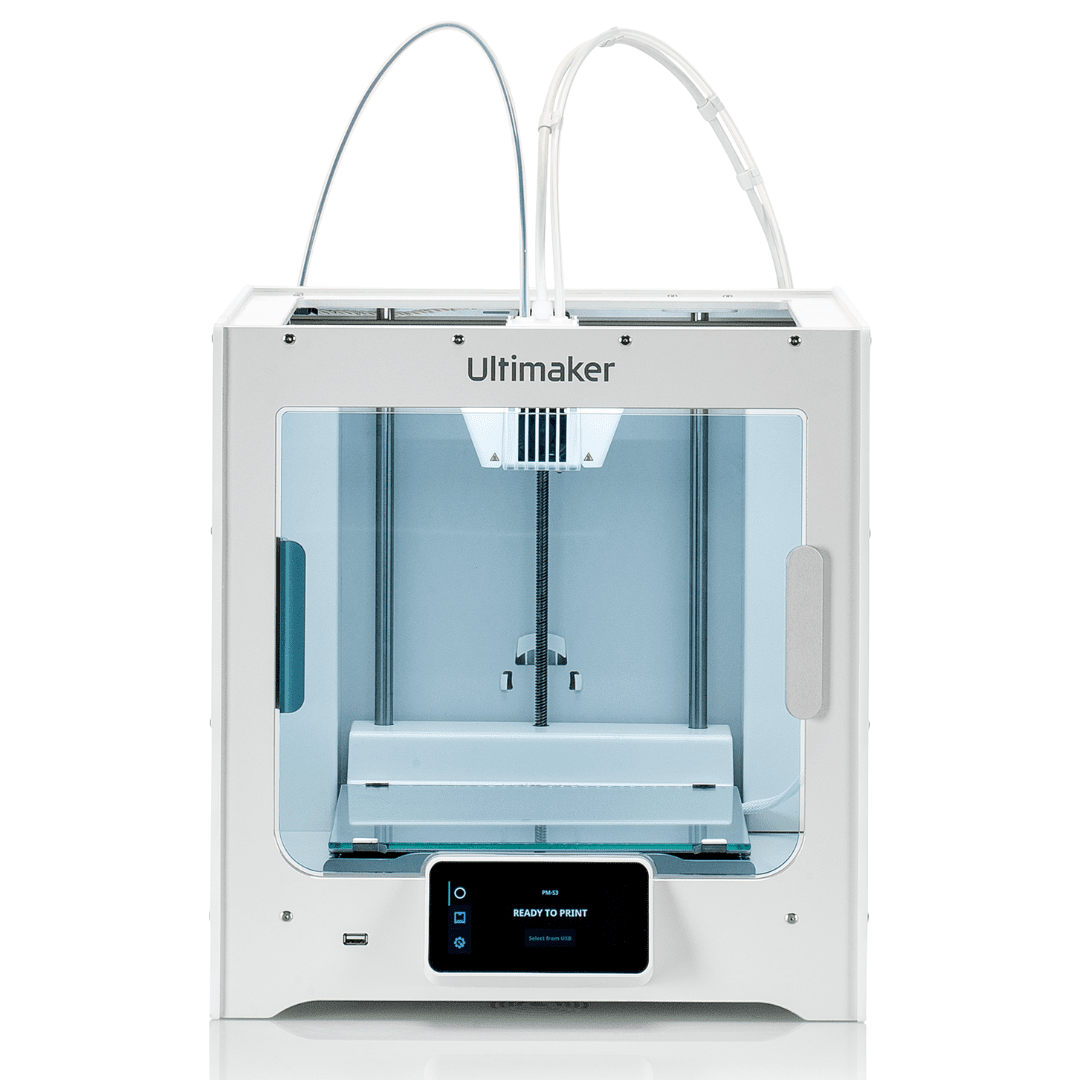

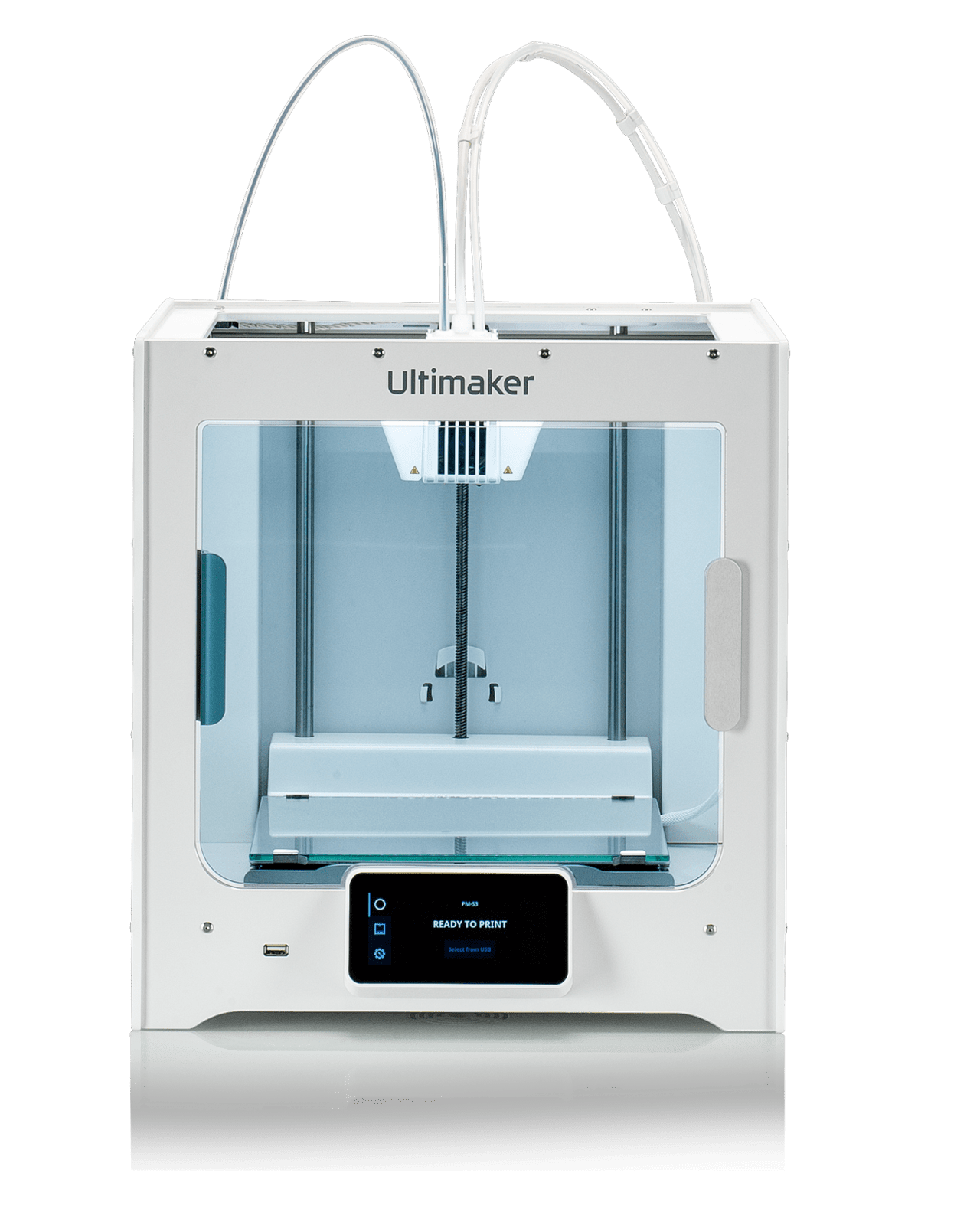

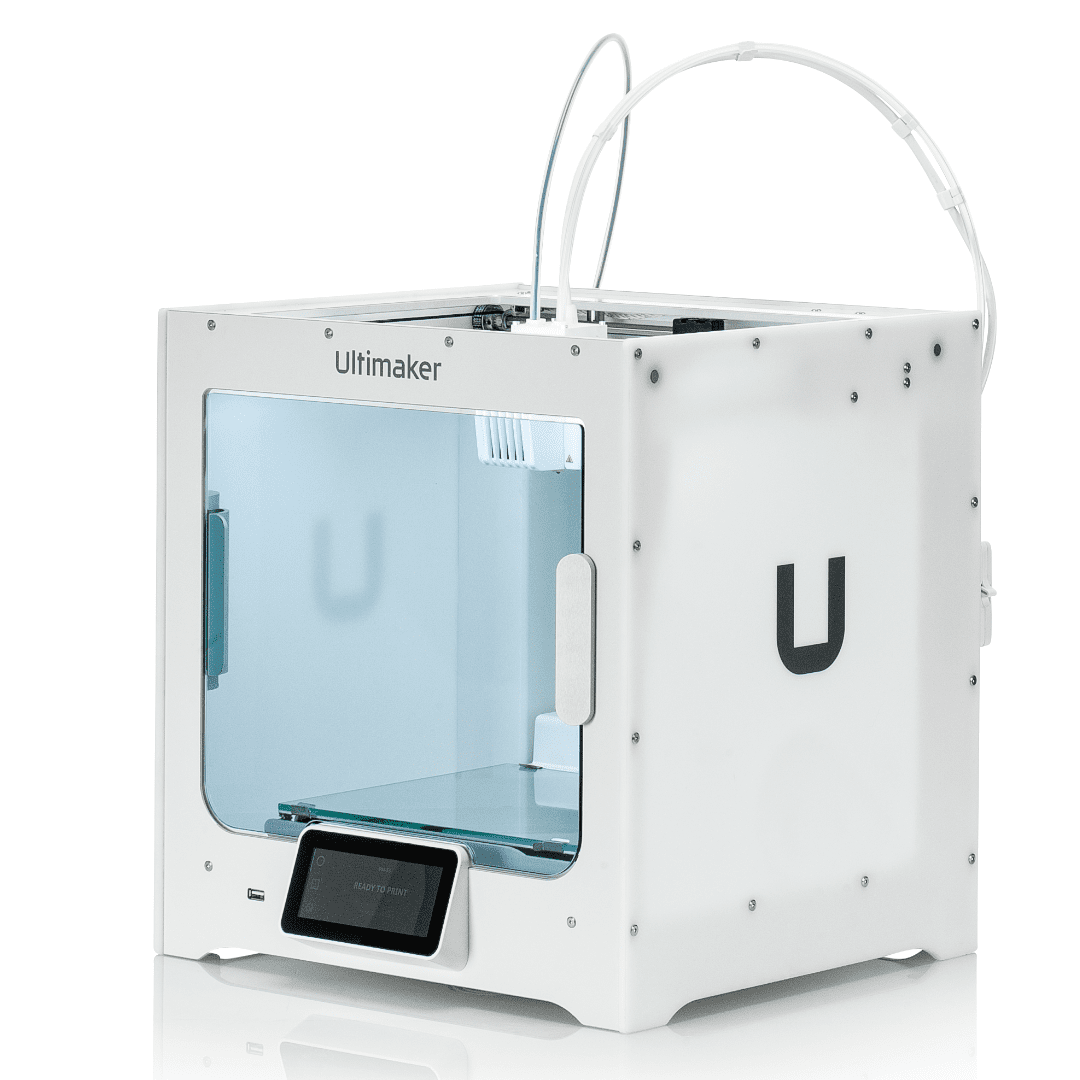

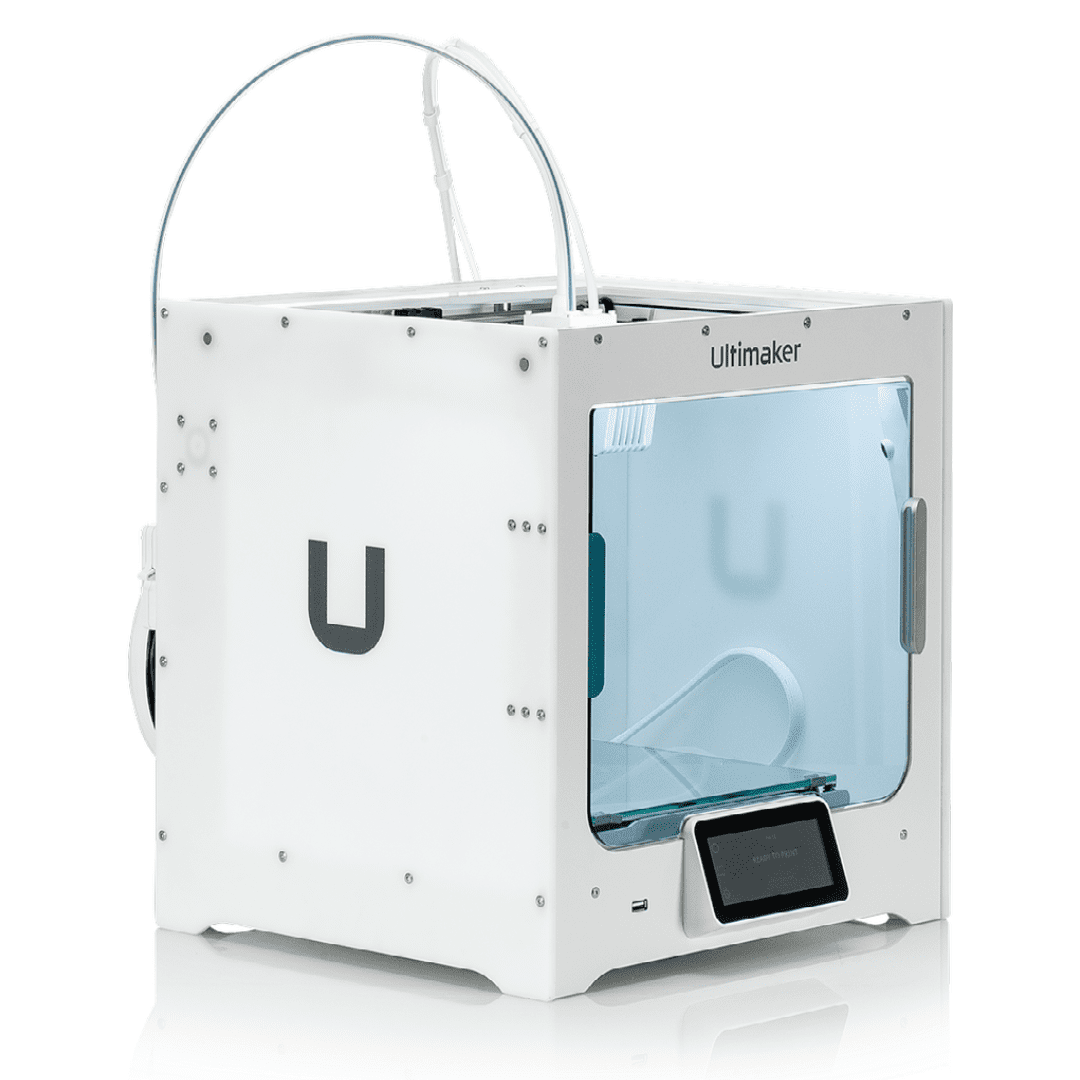

S3
Professional Performance for Any Budget
Every detail of the Ultimaker S3 has been designed and built to deliver professional S-line print quality. Inside the Ultimaker S3, you'll find:
|
The most cost-effective way to adopt in-house 3D printing
The Ultimaker S3 has taken the best features from the S5 and combined them into a smaller, more affordable device. The S3 delivers the same high-quality, composite-ready dual extrusion, with the same market-leading reliability and ease of use – just with a smaller build volume (230 x 190 x 200 mm or 9.1 x 7.4 x 7.9 inches).
Beyond that, the Ultimaker S3 has been further optimized for its form factor. These small features work together to improve the 3D printing experience:
- Rigid printer frame reduces small vibrations (or ringing) while printing to improve overall print quality
- Single glass door with a magnetic latch provides a more controlled build environment to reduce the risk of warping or delamination
- Optimized internal design allowing both dual extrusion nozzles to reach the whole build area, while maintaining a high build-volume-to-size ratio
- Internal power supply removes the need to make space for a power brick. It also makes the setup process easy across all S-line 3D printers
Seamless Workflow Integration
With its low annual cost of ownership, the Ultimaker S3 offers users an affordable entry to professional 3D printing, making ROI easy and fast to achieve. A seamless hand-off between software and hardware delivers an end-to-end solution that accelerates in-house production workflow, meaning that entrepreneurs and those using additive manufacturing now have a lower barrier to entry – without needing to compromise on performance. |
Powerful & Efficient
Inside an efficiently small footprint suitable for any desk, the Ultimaker S3 delivers composite-ready dual extrusion that your process can rely on. With market-leading technology, the S3 is as easy to use as it is powerful. It displays step-by-step setup, navigation, and maintenance, ultimately reducing the learning curve. In fact, customers have stated that they feel confident enough to start printing their own designs after only a 30-minute introduction period — so there's no need to spend money on a dedicated operator. |
S3
Technical Specifications:
Dimensions:
Build Volume: |
230 x 190 x 200 mm (9 x 7.4 x 7.9 inches) |
Assembled Dimensions: |
394 x 489 x 637 mm (15.5 x 19.3 x 25.1 inches) |
Print technology: |
Fused filament fabrication (FFF) |
Weight: |
20.6 kg (45.4 lbs) |
Compatible Filament Diameter: |
2.85 mm |
Maximum Power Output: |
500 W |
Printer Properties:
Layer Resolution: |
0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
XYZ Resolution: |
6.9, 6.9, 2.5 micron |
Feeder Type: |
Dual-geared feeder, reinforced for composite materials |
Display: |
4.7-inch (11.9 cm) color touchscreen |
Print core replacement: |
Swappable print cores |
Print Head: |
Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
Nozzle Diameters: |
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters:
Build Speed: |
< 24 mm³/s |
Nozzle Temperature: |
180 - 280 °C |
Nozzle Heat-Up Time: |
< 2 minutes |
Operating Sound: |
< 50 dBA |
Build Plate Leveling: |
Advanced active leveling |
Build Plate: |
20 - 140 °C heated glass build plate |
Build Plate Heat-Up Time: |
< 4 minutes (from 20 to 60 °C) |
Operating Ambient Temperature: |
15 - 32 °C (59 - 90 °F) |
Non-Operating Temperature: |
0 - 32 °C (32 - 90 °F) |
Ecosystem:
Supplied Free Software: |
Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software |
Supported OS: |
MacOS, Windows, and Linux |
Plugin Integration: |
SolidWorks, Siemens NX, Autodesk Inventor |
Supported File Types: |
Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
File Transfer: |
Wi-Fi, Ethernet, USB |
