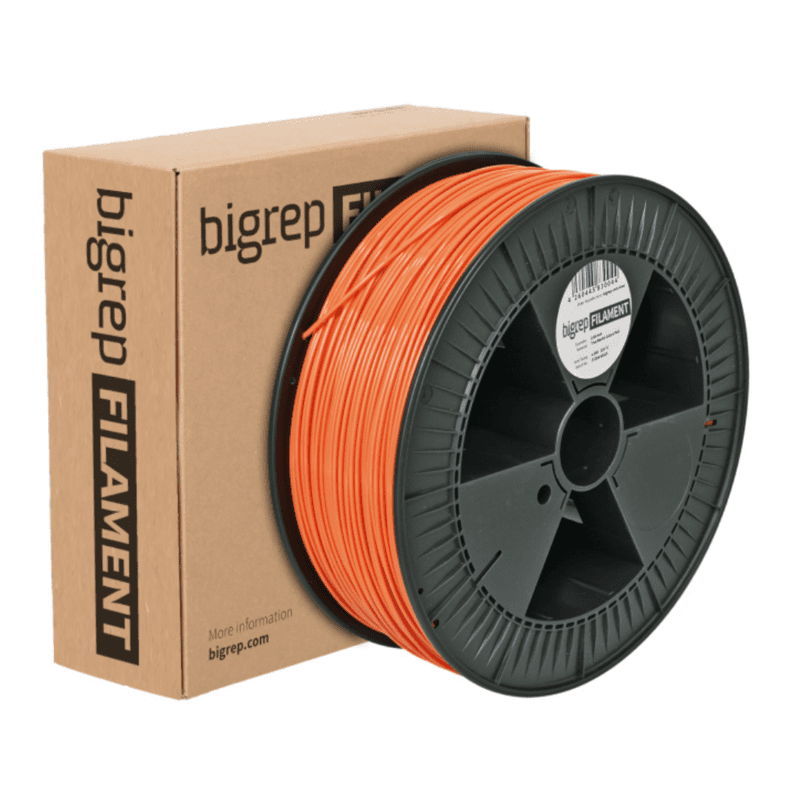

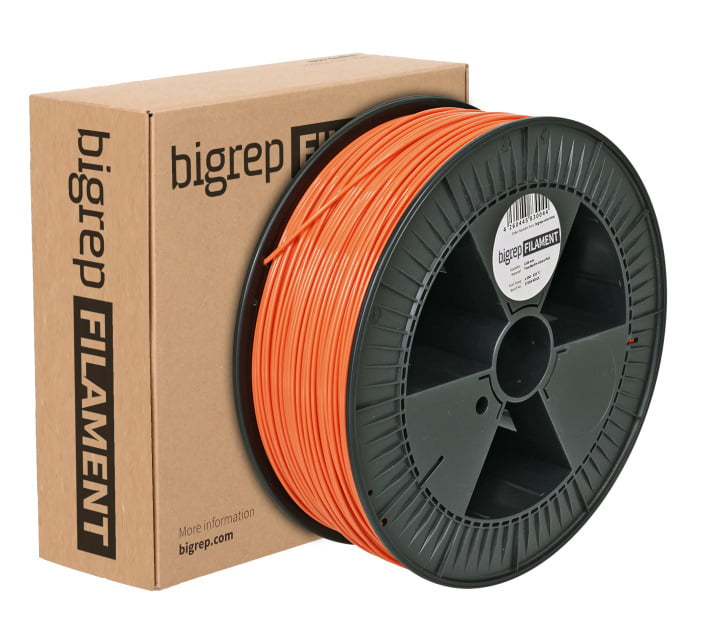

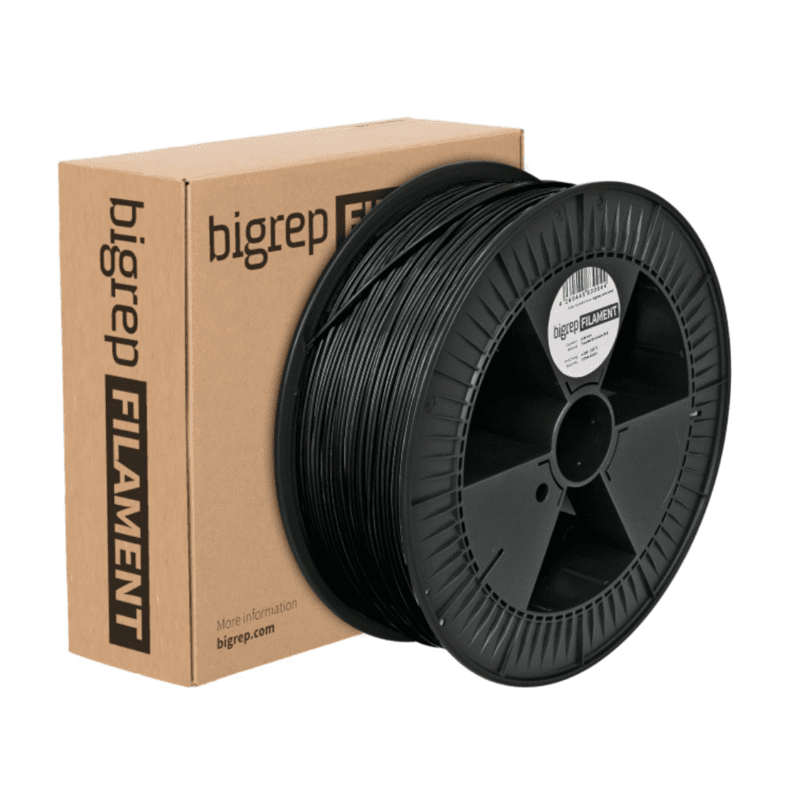

BigRep PLA
$98.00 - $328.00
BigRep's PLA filament is a versatile option suitable for large-format rapid prototyping, delivering reliable outcomes at a budget-friendly rate. Tailored to address the unique demands of large-format 3D printing, BigRep PLA outperforms cheaper alternatives designed for desktop printers.
Product Details
BigRep's PLA provides users with an attractive blend of strength and stiffness, all while ensuring a straightforward printing experience. It's noteworthy that BigRep has specifically optimized its filament for use with their large-format 3D printers, ensuring resistance against warping and shrinking even at significant scales. Moreover, the natural-colored PLA from BigRep complies with FDA and EU regulations for food contact, enhancing its versatility.
PHYSICAL PROPERTIES:
Material: | BioPolymer |
Density (ISO 527): | 1.24 g/cm³ |
Filament Diameter: | 2.85 mm |

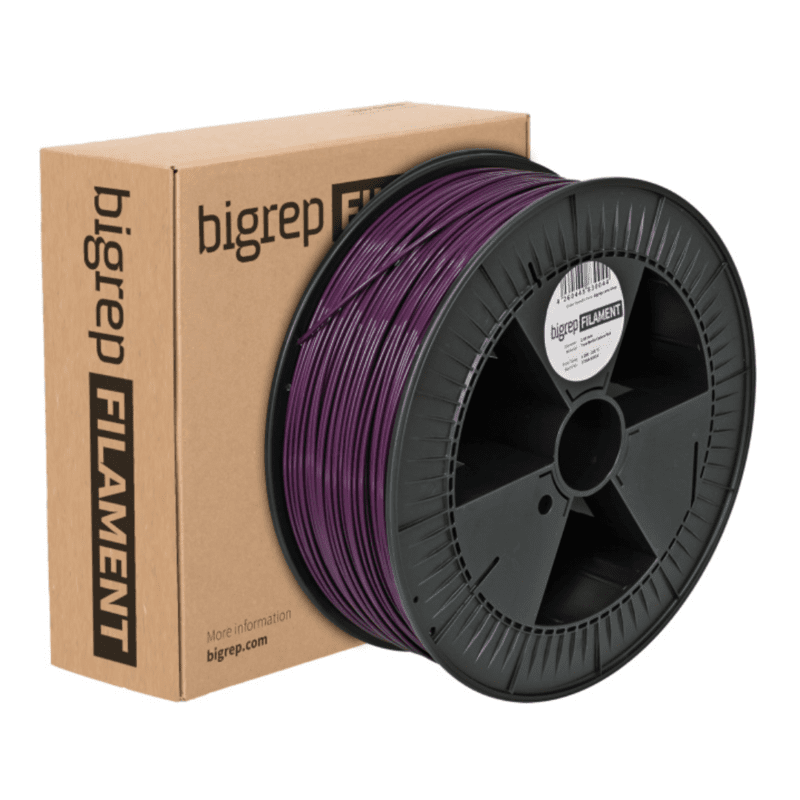

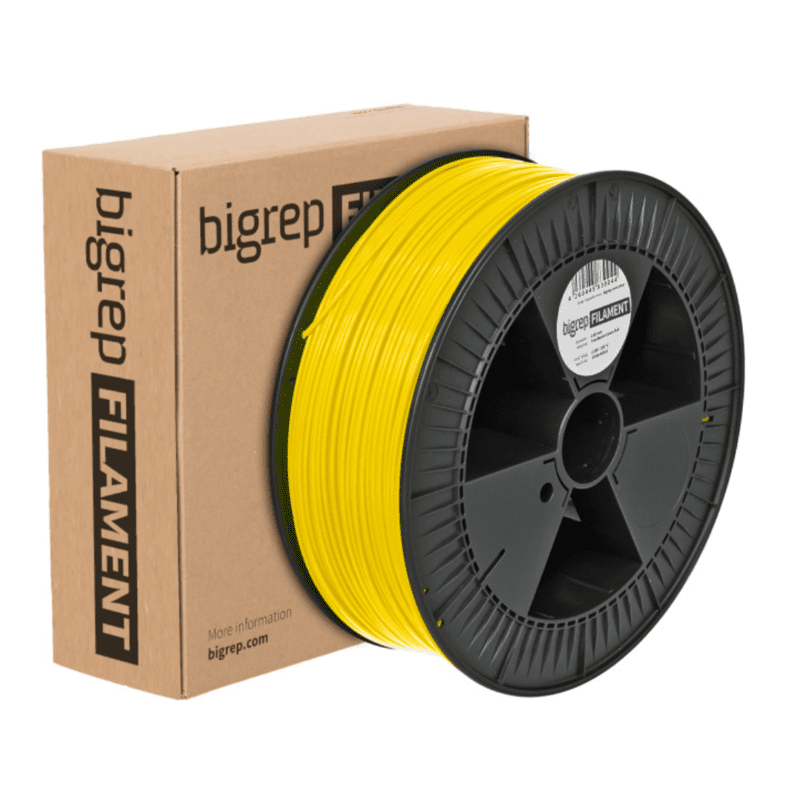

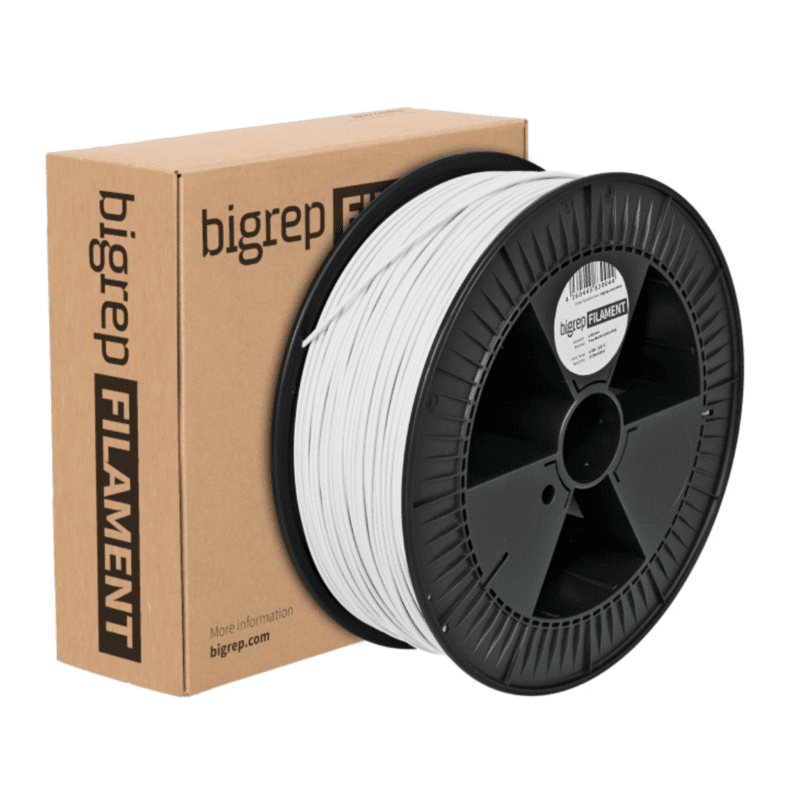

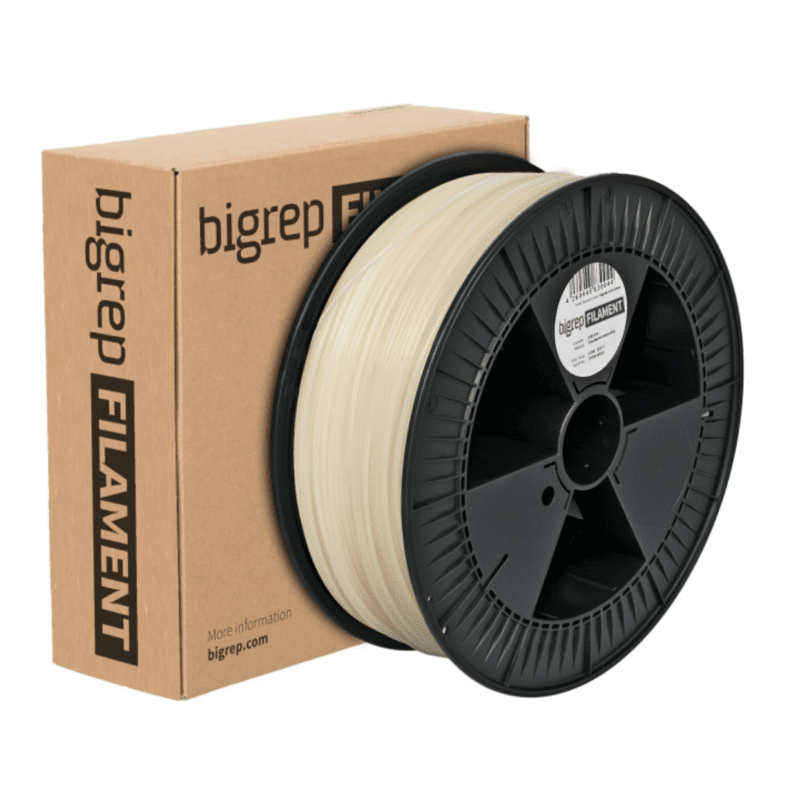

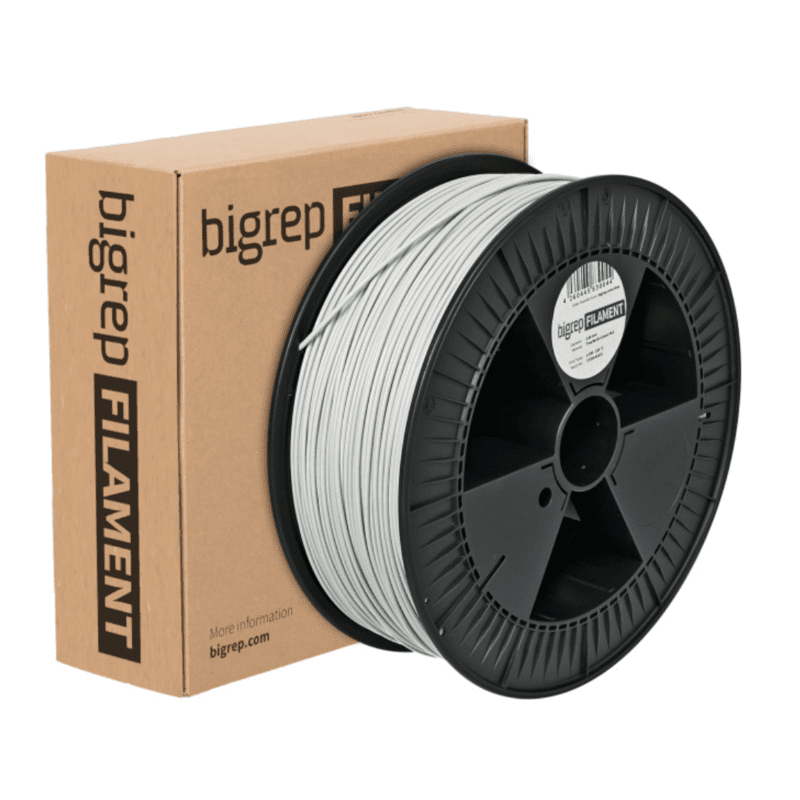

Color Availability: | Black, Grey, Natural, Orange, Purple, Red, White, Yellow |
MECHANICAL PROPERTIES:
Tensile Strength (ISO 527): | 60 MPa |
Tensile Modulus (ISO 527): | 3500 MPa |
Elongation at Break (ISO 527): | 4% |
Flexural Strength (ISO 178): | 80 MPa |
Flexural Modulus (ISO 178): | 3800 MPa |
Charpy Unnotched Impact Strength (ISO 179): | 7.5 kJ/m² |
Charpy Notched Impact Strength (ISO 179): | 2 kJ/m² |
THERMAL PROPERTIES:
HDT B - 0.45 MPa (ISO 75): | 60°C |
HDT A - 1.8 MPa (ISO 75): | 55°C |
Glass Transition Temperature (Tg) (DSC): | 60°C |
Melting Temperature (DSC): | 155 - 160°C |
RECOMMENDED PRINTING CONDITIONS:
Nozzle Temperature: | 200 - 230°C |
Print Bed Temperature: | 50 - 70°C |
Fan Speed | 75 - 100% |
Surface Adhesion | Kapton, BigRep SWITCHPLATE |
Support | Breakaway, BigRep BVOH |
