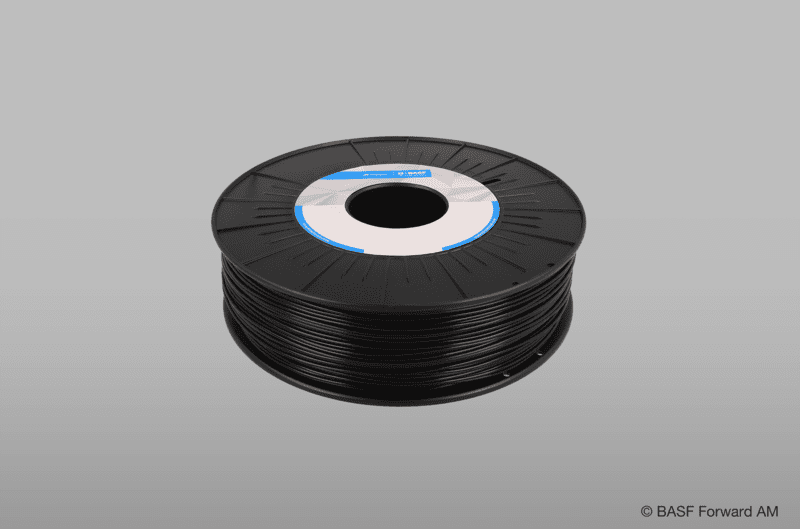

BASF Ultrafuse® PC/ABS FR
Select color
Select Diameter
Select Weight
A V-0 flame retardant blend of Polycarbonate and ABS, two of the most used thermoplastics for engineering & electrical applications.
$53.95 $59.95
Choose Quantity
Product Details
Specifications
Ultrafuse® PC/ABS FR Black is a V-0 flame retardant blend of Polycarbonate and ABS – two of the most used thermoplastics for engineering & electrical applications. The combination of these two materials results in a premium material with a mix of the excellent mechanical properties of PC and the comparably low printing temperature of ABS.
Combined with a halogen free flame retardant, parts printed with Ultrafuse® PC/ABS FR Black feature great tensile and impact strength, higher thermal resistance than ABS and can fulfill the requirements of the UL94 V-0 standard.
Benefits:
- Fulfills flame retardancy according to UL 94 V-0 (@1.5mm & 3.0mm)
- Outstanding aesthetics
- Strong layer adhesion
- High print speeds possible
- Easy to print
- Railway Classification according to EN 45545-2
Applications:

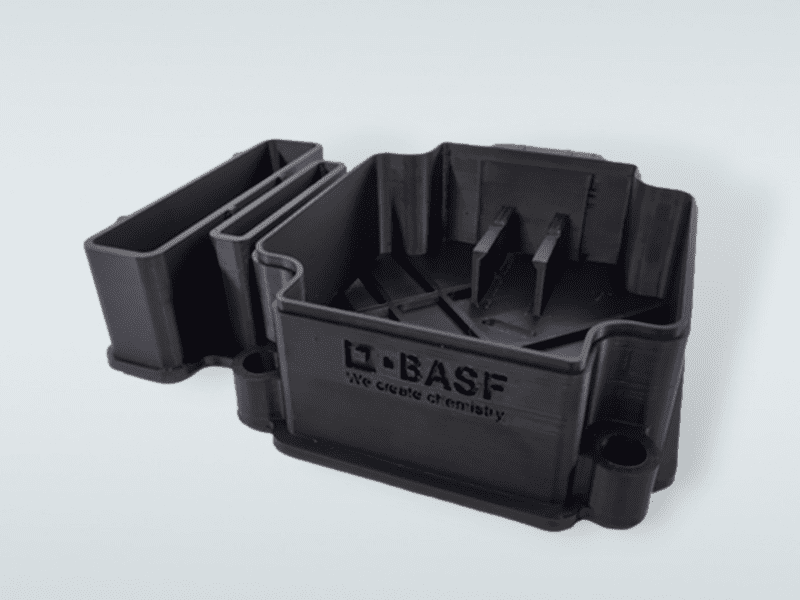

- Housing for Raspberry pi
- Sockets and plugs
- Housing for handheld devices or powertools
- Automotive components
Ultrafuse® PC/ABS FR
- Tensile Strength (MPa):17.3 (ZX), 50.1 (XY)
- Flexural Modulus (MPa):1810 (ZX), 2200 (XZ), 2550 (XY)
- Elongation at Break:0.8 % (ZX), 10.7 % (XY)
- Impact Strength Izod notched (kJ/m2):1.8 (ZX), 30.3 (XZ), 16.8 (XY)
- Impact Strength Izod unnotched (kJ/m2):3.0 (ZX), 87.9 (XZ), 57.0 (XY)
- HDT @ 0.45 MPa:86°C
- Build Chamber Temperature:Closed chamber, passively heated
- Bed Temperature:90 - 110 °C
- Bed Material:Glass
- Nozzle Diameter:≥ 0.4 mm
- Print Speed:30 -50 mm / s
