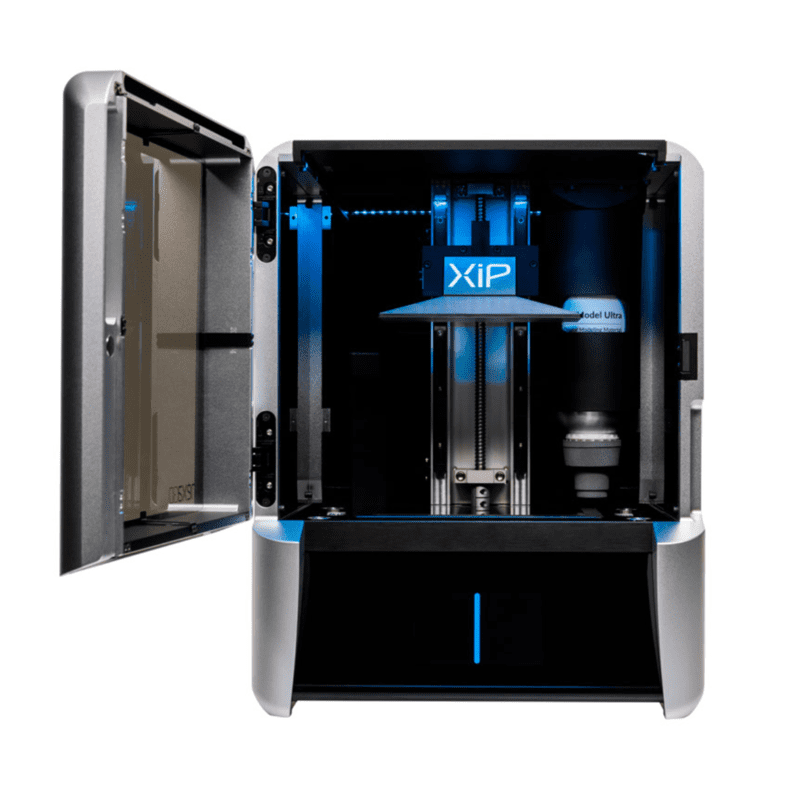

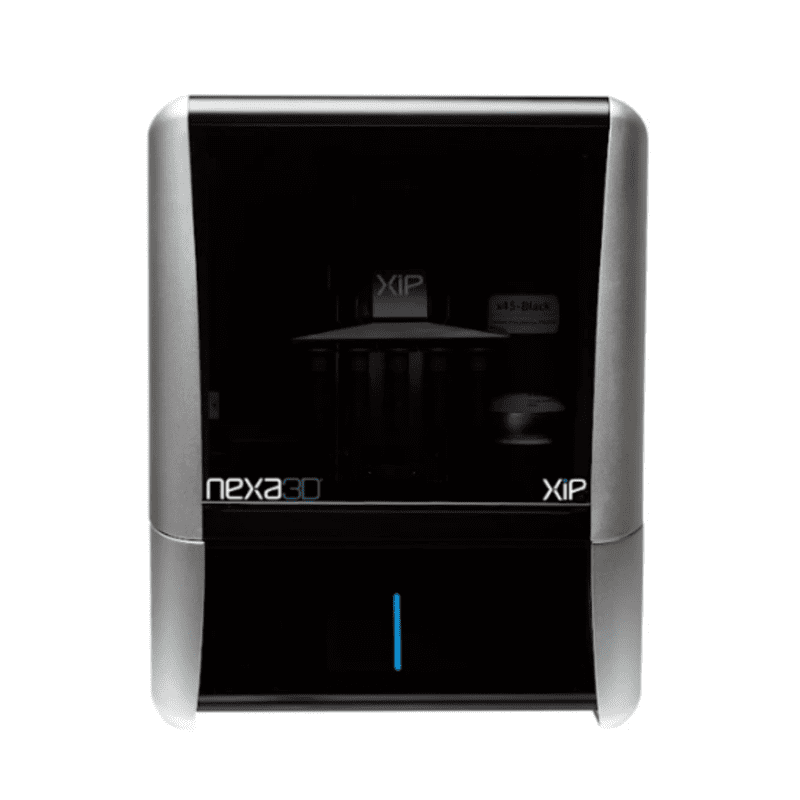

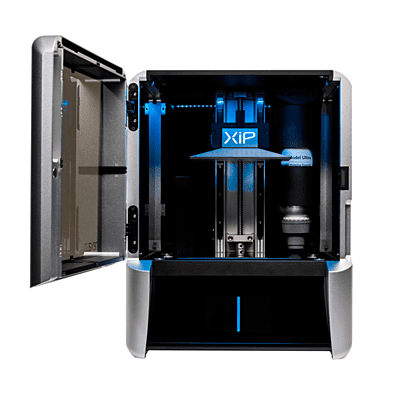

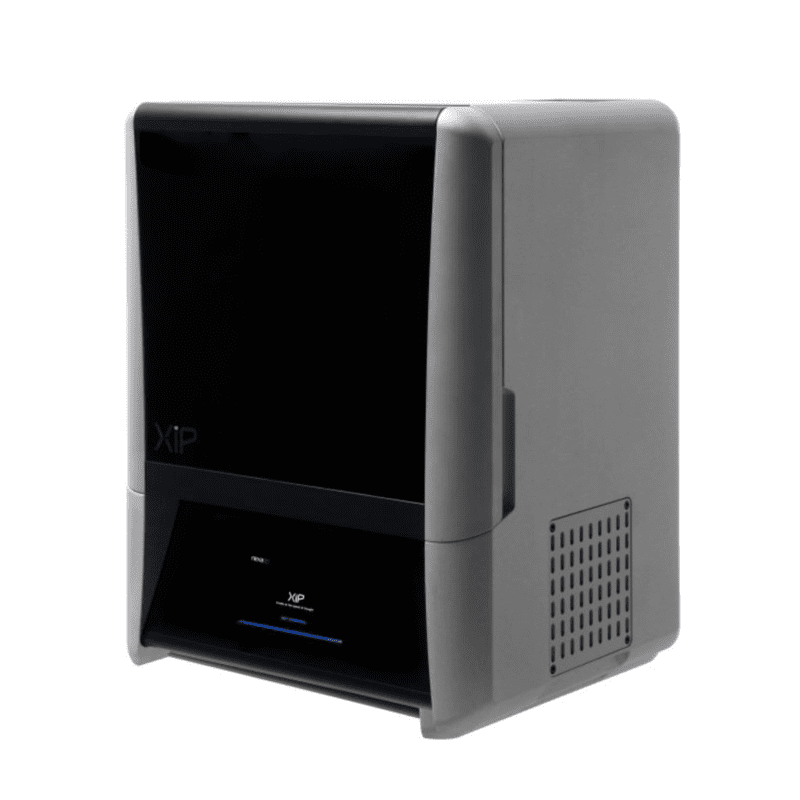

Nexa3D XiP

With its open material access, industrial performance, and modular design, the XiP is a best-in-class desktop resin 3D printer that offers the ultimate flexibility. Users can create consistent, high-quality parts and prototypes with reliability and repeatability using both Nexa3D validated resin as well as third party materials.
Add to Cart
Product Details
  • ​Build Volume:
    195mm x 115mm x 210mm (7.7" x 4.5" x 8.3")
  • Print Volume:
    4.8 Liter Print Volume
  • Light Engine:
    405 nm LED array w/ collimating lens
  • Technology:
    ​Lubricant Sublayer Photo-curing (LSPc); Everlast-2 membrane
  • Resolution:
    0.050 mm (.002”) / 0.100 mm (.004”) / 0.200 mm (.008”)
  • Pixel Size:
  • Electrical Input:
    100-240VAC, 50/60Hz
  • Ambient Temperature:
    20-25 degrees C
  • Humidity:
    Below 70%
  • Display:
    5.5” Color HD OLED Touchscreen
  • Enclosure:
    Billet Aluminum, 420mm (16.5”) W x 350mm (14”) D x 530mm (21”) H
  • Connection:
    Ethernet / USB / Wi-Fi connectivity
