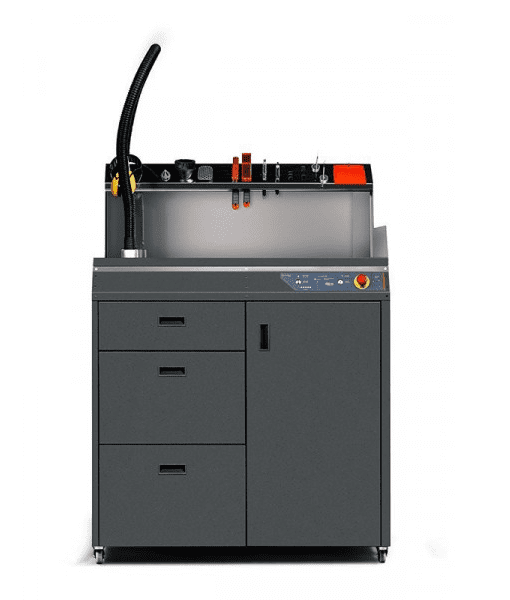

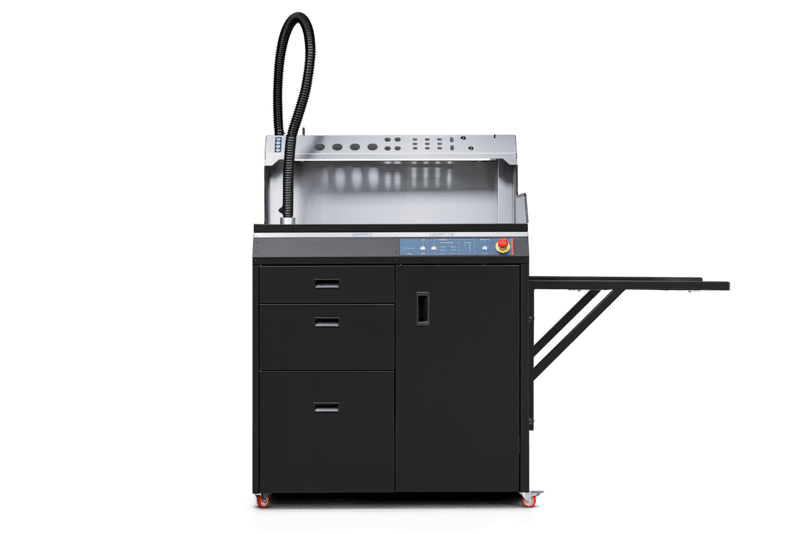

Sinterit Powder Handling Station
$8,990.00
Supporting Sinterit device designed to make post-processing and powder recovery as clean as possible.
- Compatible with Sandblaster, Sandblaster SLS, & ATEX Vacuum cleaner
- Clever SLS workspace optimized for all Sinterit printers
Product Details
Includes:
- 3D printed vacuum attachments designed for depowdering
- Purposeful storage space – three drawers
- Shelving for tools with built-in LED lighting
- Built-in sieving module and a powder separator
- 20-litre powder container
- Remote control capability for sandblasting, vacuuming, & powder collection
Build-in connections for vacuum and sandblaster
The PHS comes with convenient connections for the Sinterit ATEX Vacuum and sandblasting solutions.
Advanced powder collecting system
All elements of our collecting system (the cleaning hose, powder chamber, powder separator, powder sieving module, and container) work to maximize powder recovery, allowing you to reuse powder and drive down costs.
Control panel
Enables you to operate all of the interconnected devices from a single console and shows the time you’ll need to complete the sieving process.
Other essential accessories
The PHS set also comes with nozzles for depowerdering and detailed vacuuming, a powder wiper, a tube brush, two powder chamber grids, and two containers.
Specifications:
Dimensions: | 700 x 1000 x 1800 [mm] / 27.6 x 39.4 x 70.9 [in] |
Total weight: | 160 kg / 352.7 lbs |
Space of Installation: | 1700 x 2200 x 1800 / 66.9 x 86.6 x 70.9 |
Voltage: | 230 [V] AC, 50/60 [Hz] or 110 [V] AC 50/60 [Hz] |
Power Supply: | 110/230 V AC, 12 VDC 6.67 A, 80W |
