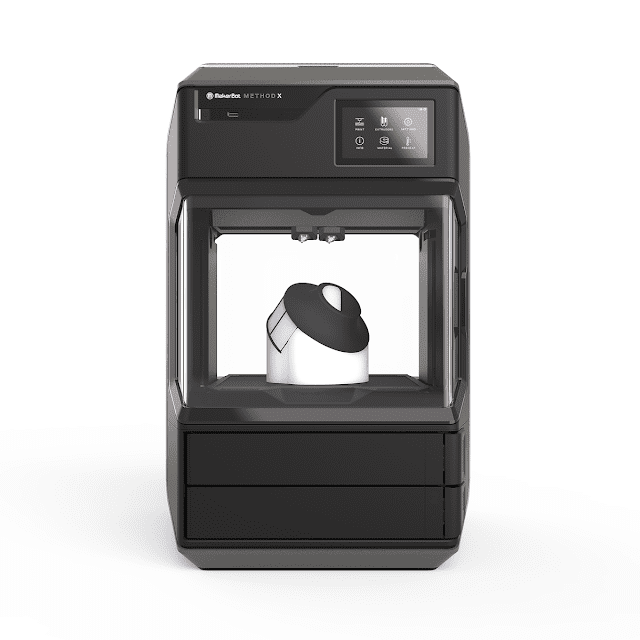

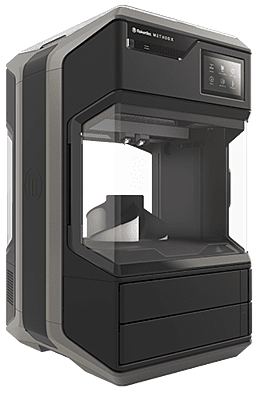

UltiMaker Method X CF
METHOD X Carbon Fiber produces dimensionally accurate parts in Carbon fiber reinforced nylon - optimized for high strength, stiffness, and heat resistance making it ideal for structural applications and metal replacements.
$6,000.00
Choose Quantity
Product Details
Specifications
DUAL EXTRUSION COMPOSITE 3D PRINTING FOR ADVANCED GEOMETRIES
- Patented VECT™ 110 (Variable Environmental Controlled Temperature) Thermal Regulation evenly heats and controls the print environment leading to parts that are 2x stronger on the z-axis, and 2x more accurate across the board.
- The 1C Composite Extruder is engineered, optimized, and tested to withstand abrasive composite materials for maximum lifespan.
- Dual extruders with water-soluble support material allow you to print in unlimited geometries and simplify your workflow.
STRONG, HEAT-RESISTANT METAL REPLACEMENT PARTS
- Excellent strength to weight ratio – 110 MPa TS – for lightweighting applications such as robotic end effectors.
- Engineering-grade stiffness with high heat resistance under load for parts that perform.
- Composites ranging from Nylon 12 Carbon Fiber to ABS Kevlar give you flexibility on your project and rigidness in your part.
- Print Metals, Composites, and Polymers and infinite 3rd party options with 6-in-1 Modular Performance Extruders for METHOD X.
IMPORT YOUR COMPLEX DESIGNS, HIT PRINT IN CARBON FIBER.
- Design in your favorite CAD software, then prep, print, and monitor remotely from CloudPrint™.
- Quickly change from production composites to modeling materials with the hands-free SmartAssist™ Material Loading System.
- Spring Steel Build Plate is durable enough to withstand thousands of prints in abrasive composites and the print pops off cleanly with a simple flex.
UltiMaker Method X CF
- Heated chamber max temperature:110° C
- Dual extruder build volume:W 152, D 190, H 196 mm (W 6, D 7.5, H 7.75 inches)
- Touchscreen display:5" (12.7 cm) full-color capacitive touchscreen
- Build volume (dual material):W 152, D 190, H 196 mm (W 6, D 7.5, H 7.75 inches)
- Build volume (single material):W 190, D 190, H 196 mm (W 7.5, D 7.5, H 7.75 inches)
- Assembled dimensions:W 43.7, D 41.3, H 64.9 H cm (W 17.2, D 16.3, H 25.6 in)
- Print technology:FFF
- Weight:29.5 kg (65 lbs)
- Maximum power output:800 W
- Layer resolution:0.4 mm nozzle: 400 - 20 micron
- Display:5" (12.7 cm) full-color capacitive touchscreen
- Extruder replacement:Swappable performance extruders
- Print head:Dual-extrusion print head with swappable extruders
- Nozzle diameter:0.4 mm
- Maximum heated chamber temperature:110° C
- Maximum extruder temperature:300° C
- Operating sound:57.1 +/- 3 dB
- Build plate:Flexible build plate
- Supplied free software:CloudPrint
- Supported OS:MacOS, Windows
- File transfter:Wi-Fi, Ethernet, USB
